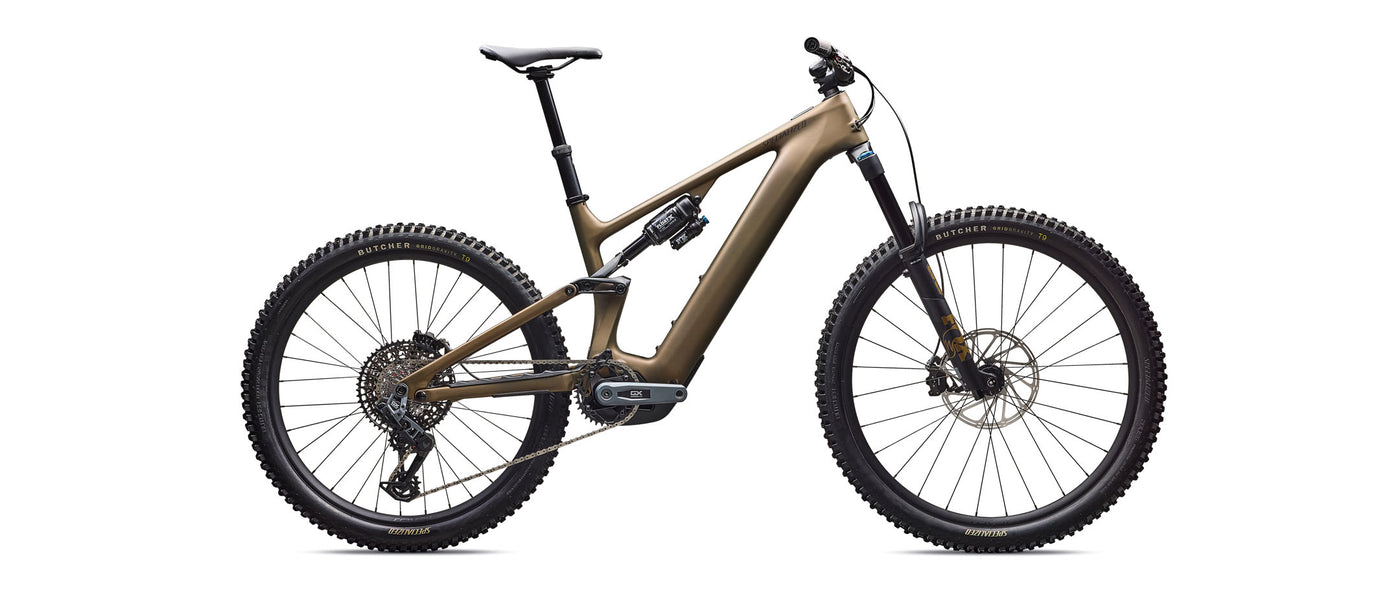

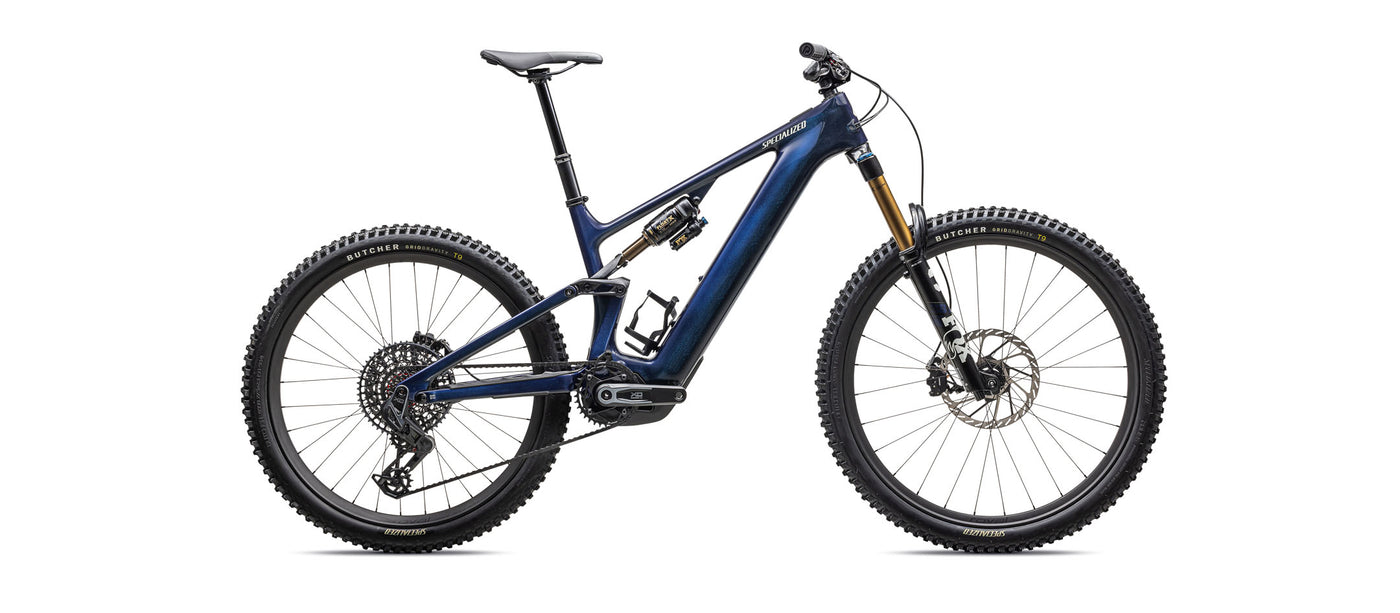

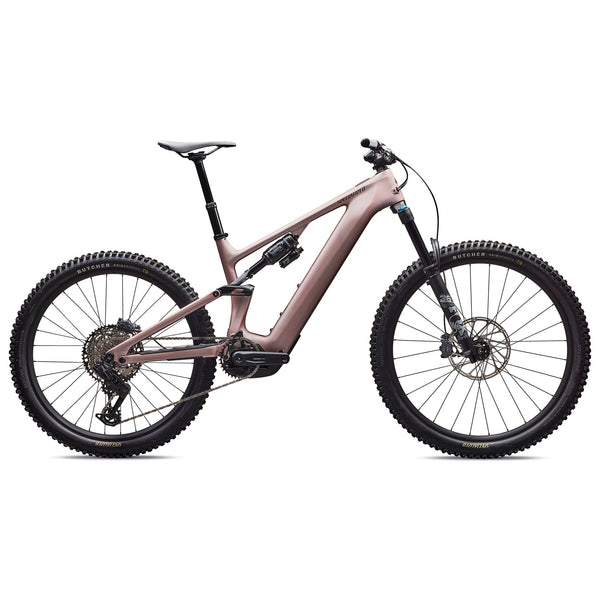

Why the Specialized Levo 4?

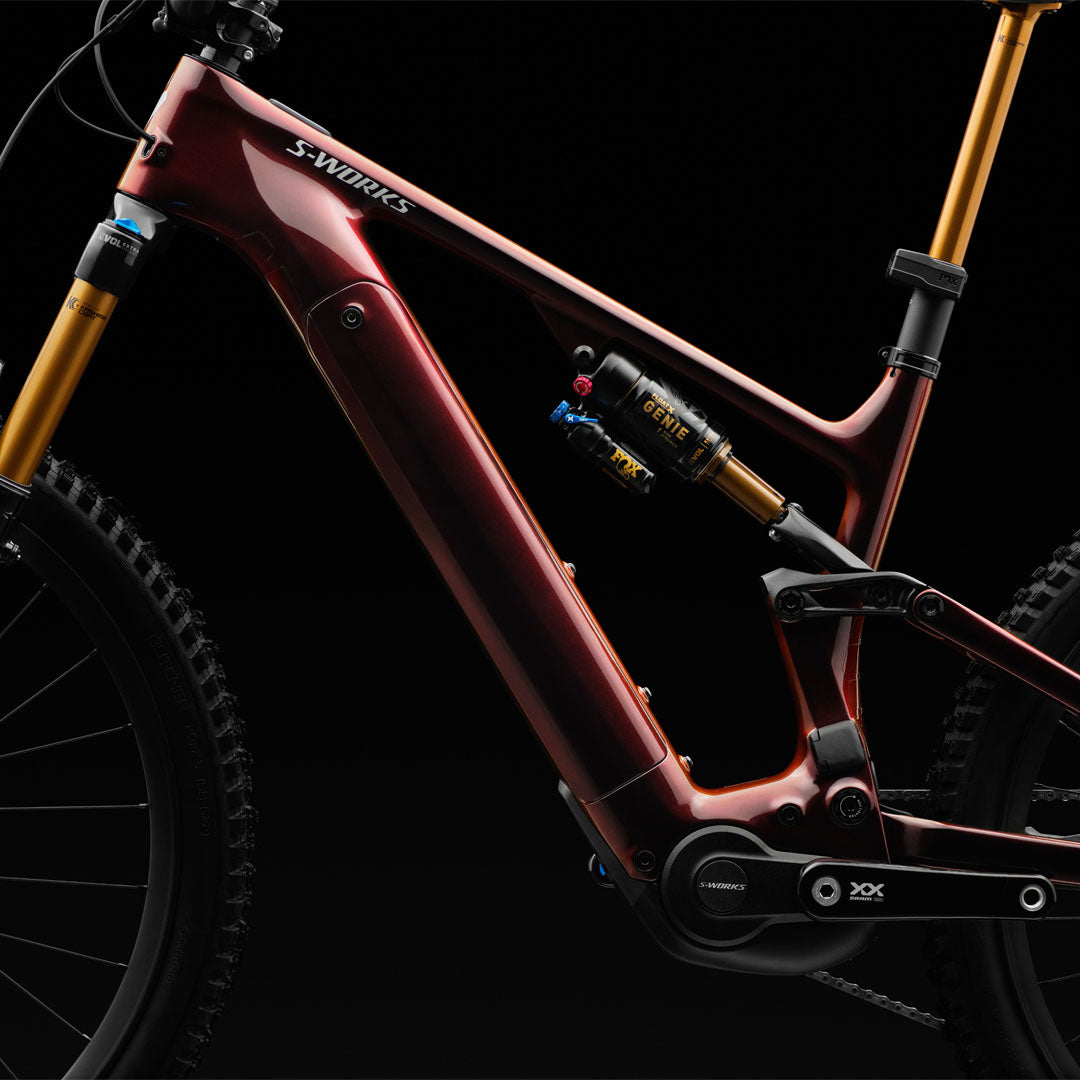

The Levo 4 brings together Specialized’s deep mountain bike experience with the latest in e-bike technology. At its core is the new S-Works 3.1 motor, delivering up to 720 watts of support and 111 Nm of torque. The frame is built around 150mm of suspension travel and adjustable geometry, giving riders a stable, capable platform that handles everything from steep climbs to technical descents. Practical features like the Wattage Cottage—an easy-access battery hatch with built-in storage—and SWAT integration keep tools and essentials within reach without adding clutter.

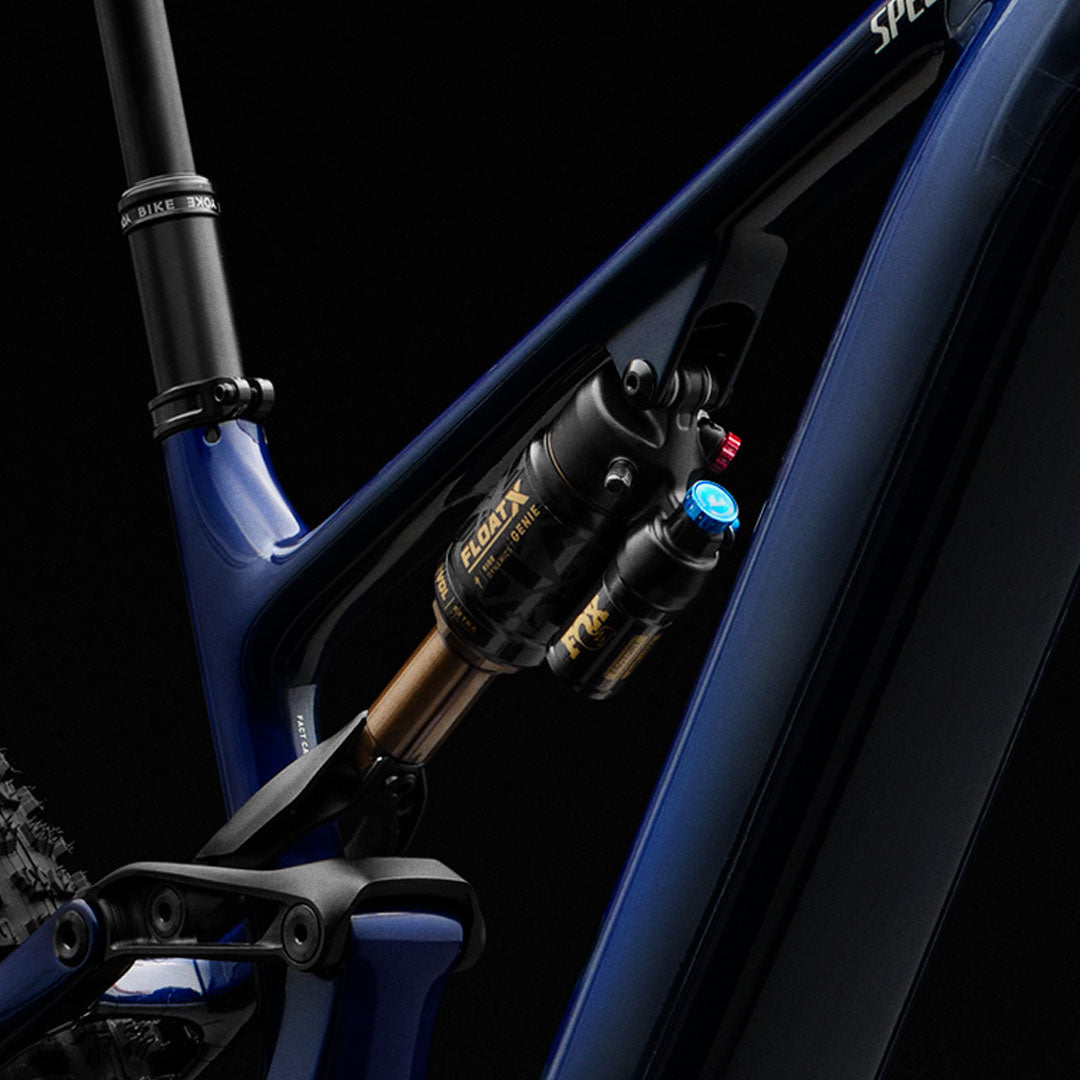

What sets the Levo 4 apart is how well everything works together. The motor feels responsive and natural, adapting to your pedaling in real time. The battery system can be customized to your ride, whether you want to go light and fast or pack in extra range. With the GENIE shock smoothing out impacts and keeping things composed, the ride feels controlled and balanced. It’s a bike that’s easy to get along with—fast when you want it to be, efficient when you need it, and ready to go wherever the trail leads.
- Travel: 160mm [F] 150mm [R]
- Wheel size: MX
- Drive Unit: Specialized 3.1
- Battery Size: 840Wh
Technical Details

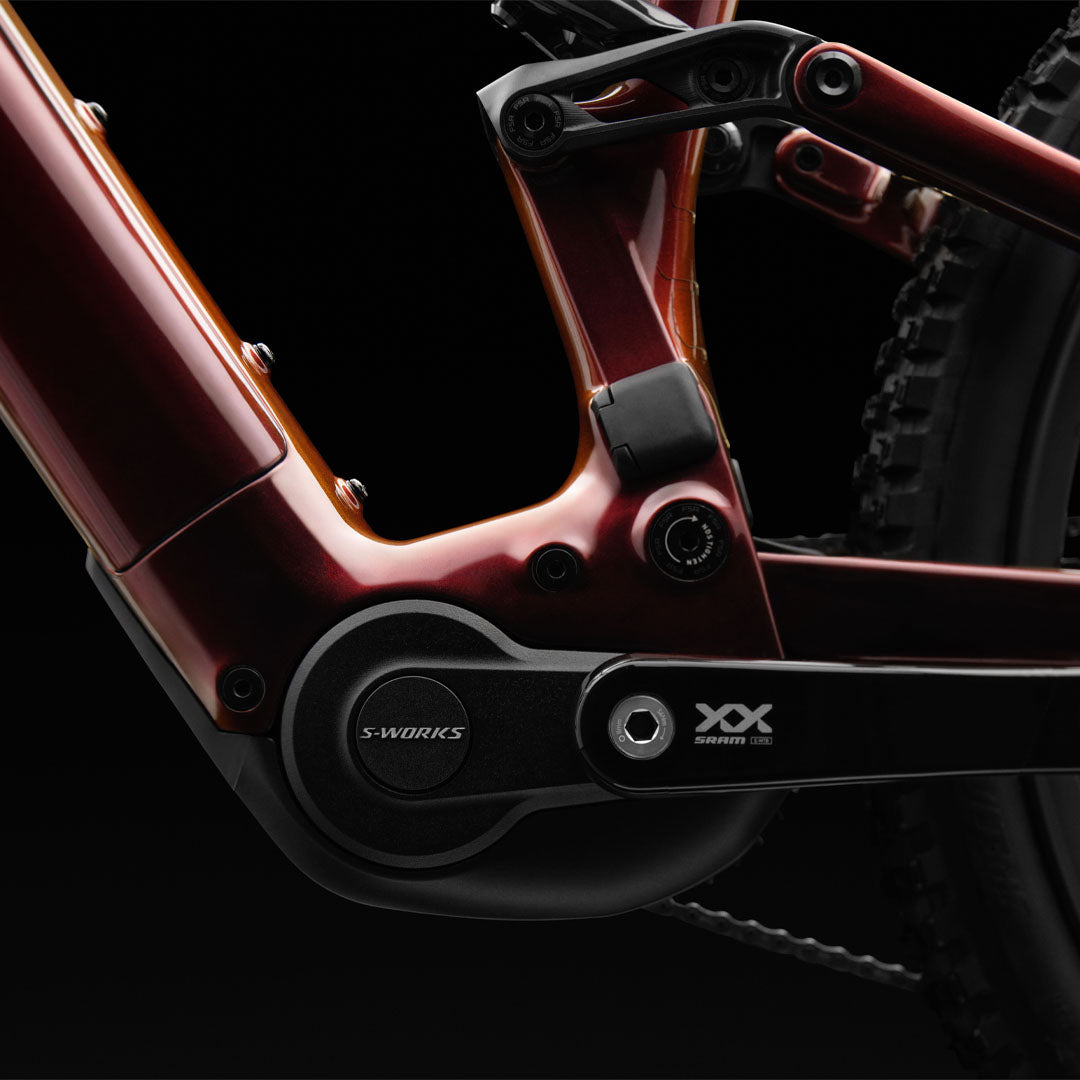

At the heart of the Levo 4 lies an awe-inspiring S-Works 3.1 motor that delivers up to 720 watts and 111 Nm of torque. This powerhouse is finely tuned to provide what Specialized calls SuperNatural power delivery. Whether you’re maneuvering technical low-speed trails or blasting through high-cadence sprints, the motor consistently responds with a smooth power delivery.
- Specialized 3.1 Motor and Mastermind TCU

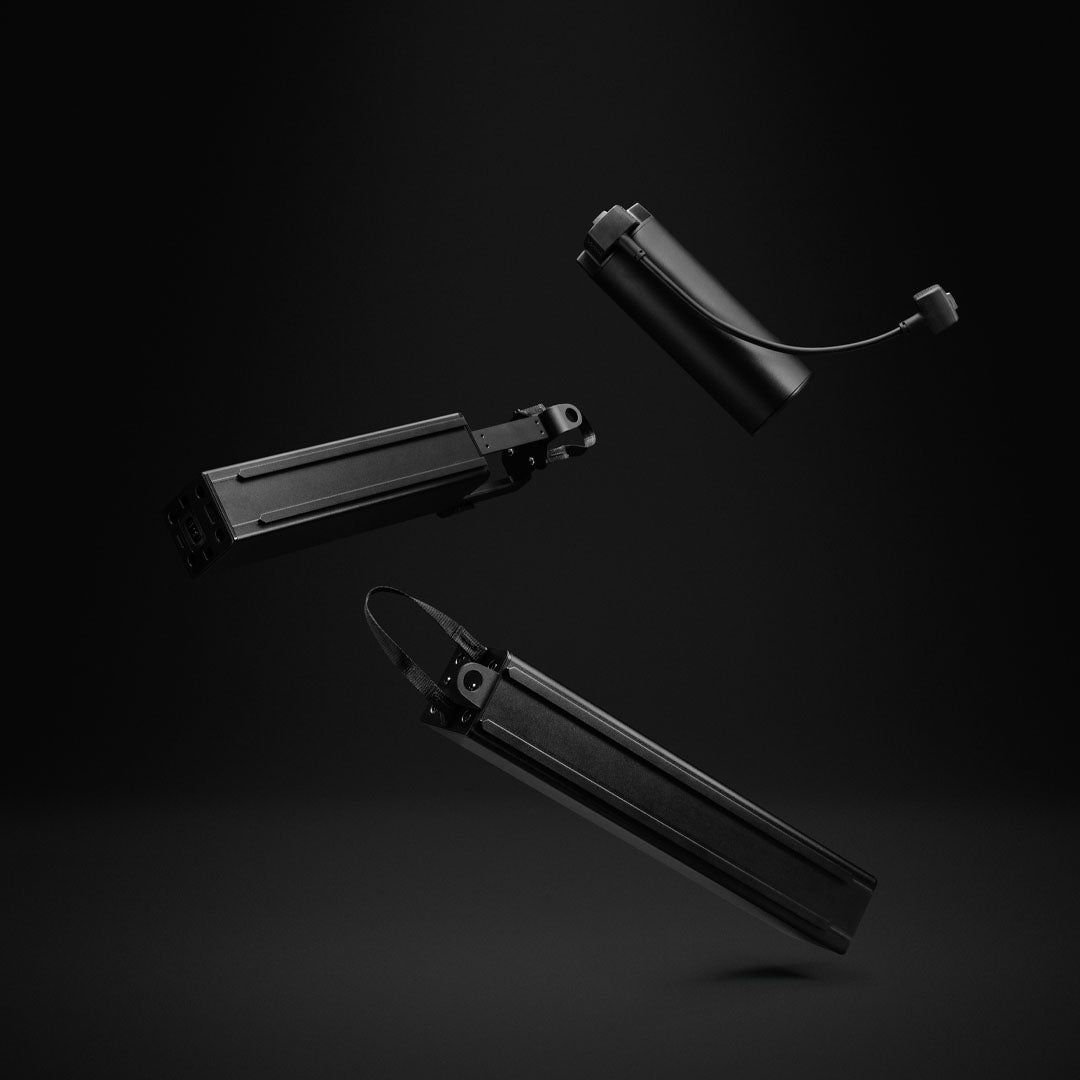

- An Enormous Battery
- SWAT and Adjustable Geo
- Genie Technology
Geometry
| S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|
| A | Reach | 435 | 455 | 480 | 505 | 535 |
| B | Stack | 618 | 626 | 638 | 652 | 667 |
| C | Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| D | Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| E | Front Centre | 765 | 789 | 820 | 851 | 888 |
| F | Bottom Bracket Height | 350 | 350 | 350 | 350 | 350 |
| G | Bottom Bracket Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| H | Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Headtube Length | 95 | 103 | 117 | 132 | 149 |
| K | Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| L | Standover Height | 753 | 754 | 753 | 758 | 761 |
| All measurements in degrees or millimetres | ||||||
Frame Sizing
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
