Unleash unstoppable power with the S‑Works Turbo Levo 4, featuring a groundbreaking 720W S‑Works 3.1 motor delivering 111Nm of torque that propels you over the most demanding terrain. An 840Wh battery fuels your adventure while a precision-tuned FOX 38 Factory fork paired with a GENIE shock guarantees sublime control and responsiveness every time you hit the trail.

Colour
Size

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Specialized S-Works Turbo Levo 4

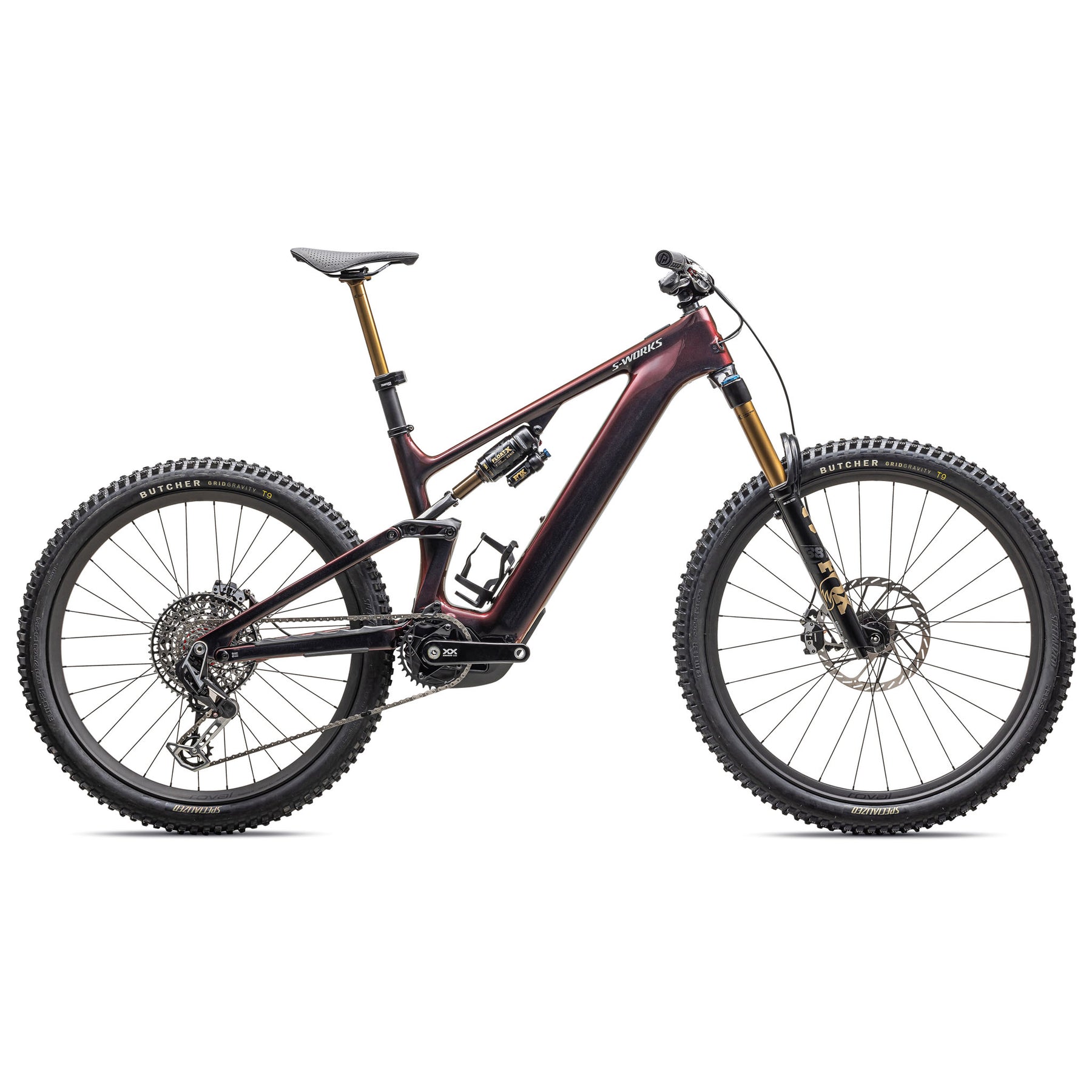

The Levo 4 combines Specialized’s mountain bike know-how with advanced e-bike tech. At the center is the S-Works 3.1 motor, delivering up to 720 watts and 111 Nm of torque. Paired with 150mm of travel and adjustable geometry, it offers a stable platform for climbs, descents, and everything in between. Features like the Wattage Cottage battery hatch and built-in SWAT storage keep things clean and functional on the trail.

What makes the Levo 4 stand out is how smoothly everything works together. The motor responds naturally to your pedaling, and the modular battery setup lets you prioritize weight or range. The GENIE shock manages impacts with ease, giving the ride a balanced, confident feel. It’s a versatile, trail-ready bike that’s built to go far and ride hard.

Specifications

MOTOR All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

BATTERY 840wh battery

UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

CHARGER Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

WIRING HARNESS Specialized wiring harness

FRAME All new SW Levo 4 frame with carbon shock extension, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm

SEAT BINDER Alloy, 38.6mm

REAR SHOCK Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

FORK FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

FRONT BRAKE SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

REAR BRAKE SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

SHIFT LEVERS SRAM AXS POD Ultimate Controller with Discrete clamp

REAR DERAILLEUR SRAM XX Eagle Transmission Derailleur

CASSETTE SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

CHAIN SRAM XX EagleTransmission Flattop Chain

CRANKSET SRAM XX Carbon crank, 160mm, ISIS interface

CHAINRINGS SRAM 34t T-Type chainring, 104 BCD, steel

FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"

FRONT WHEEL Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h

REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"

REAR WHEEL Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

INNER TUBES Standard, Presta Valve

STEM Industry 9 A35 Moutain stem, 35mm clamp, 40mm length

HANDLEBARS RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

GRIPS Deity Lockjaw grips

SADDLE Specialized Power Pro Mirror w/hollow Ti rails

SEATPOST FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

SWAT SWAT internal downtube storage

Weight 23.68kg (52 lb, 3.3 oz) - Size S4

*Specifications are subject to change without notice

Geometry

S2 S3 S4 S5 S6
A Reach 435 455 480 505 535
B Stack 618 626 638 652 667
C Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
D Seat Tube Angle 77° 77° 77° 77° 77°
E Front Centre 765 789 820 851 888
F Bottom Bracket Height 350 350 350 350 350
G Bottom Bracket Drop 29.5 29.5 29.5 29.5 29.5
H Wheelbase 1200 1223 1254 1286 1323
I Chainstay Length 435 435 435 435 435
J Headtube Length 95 103 117 132 149
K Seat Tube Length 390 405 425 445 465
L Standover Height 753 754 753 758 761
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team
Size Height
Imperial Metric
S1 4'11" - 5'3" 150 - 160cm
S2 5'2" - 5'8" 157 - 173cm
S3 5'5" - 5'11" 165 - 180cm
S4 5'8" - 6'2" 173 - 188cm
S5 5'10" - 6'4" 178 - 193cm
S6 6'2" - 6'8" 188 - 203cm
