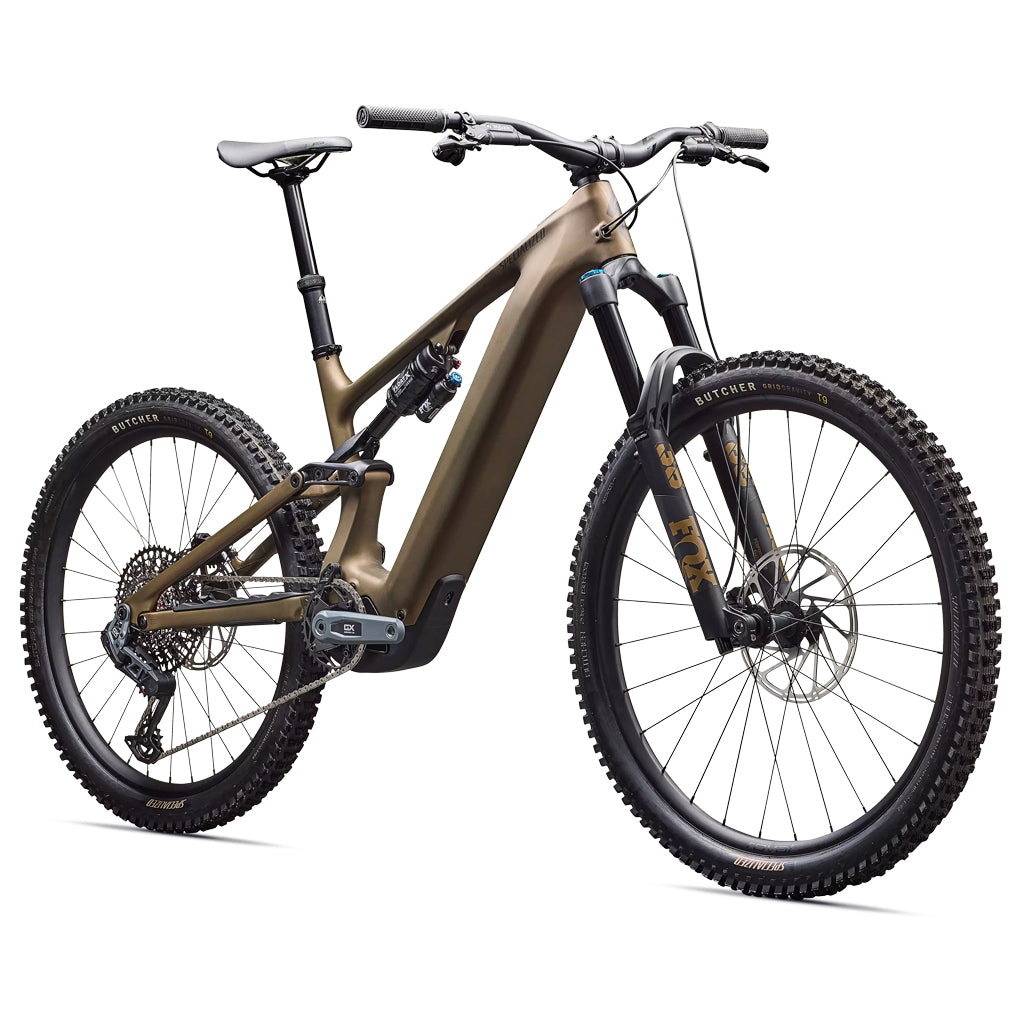

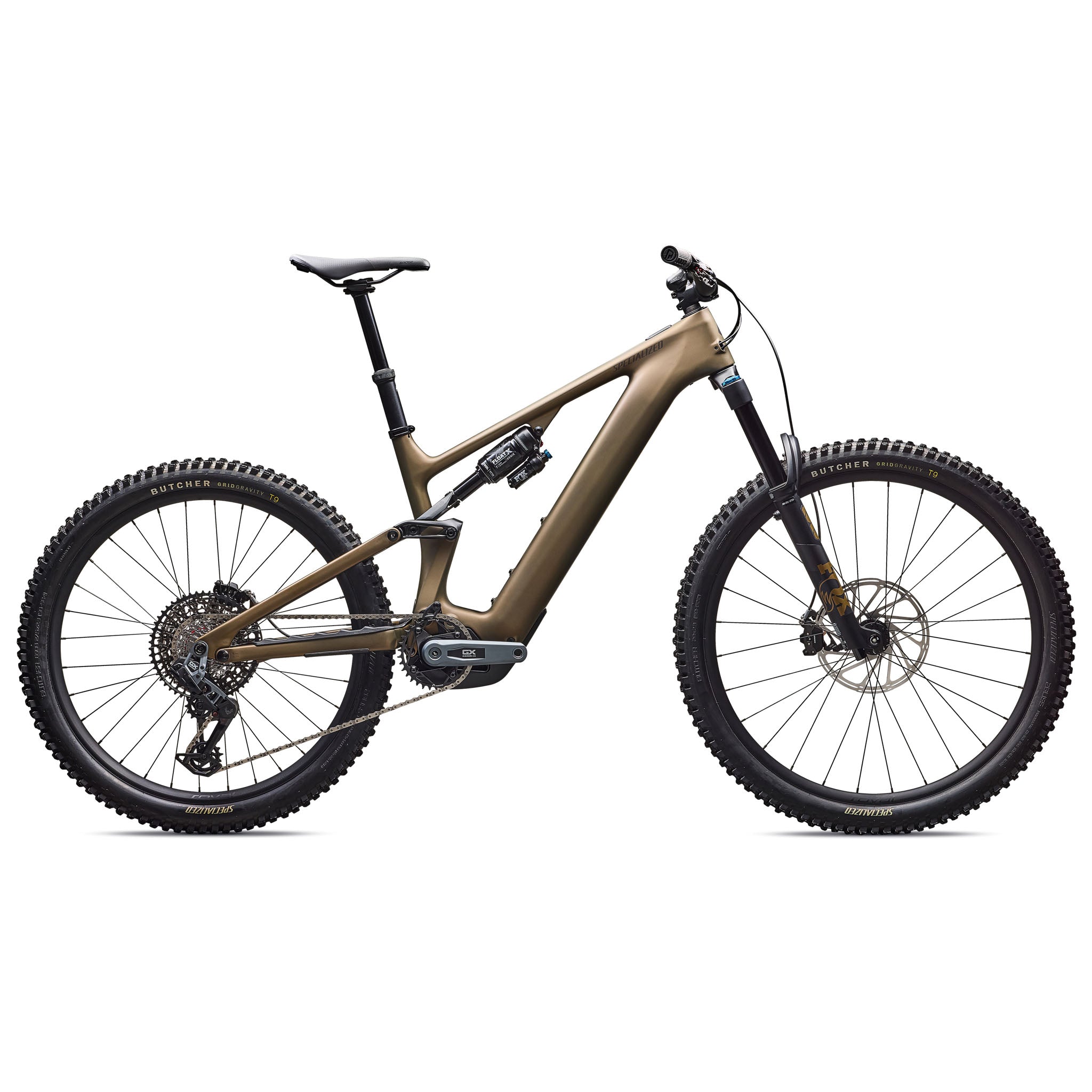

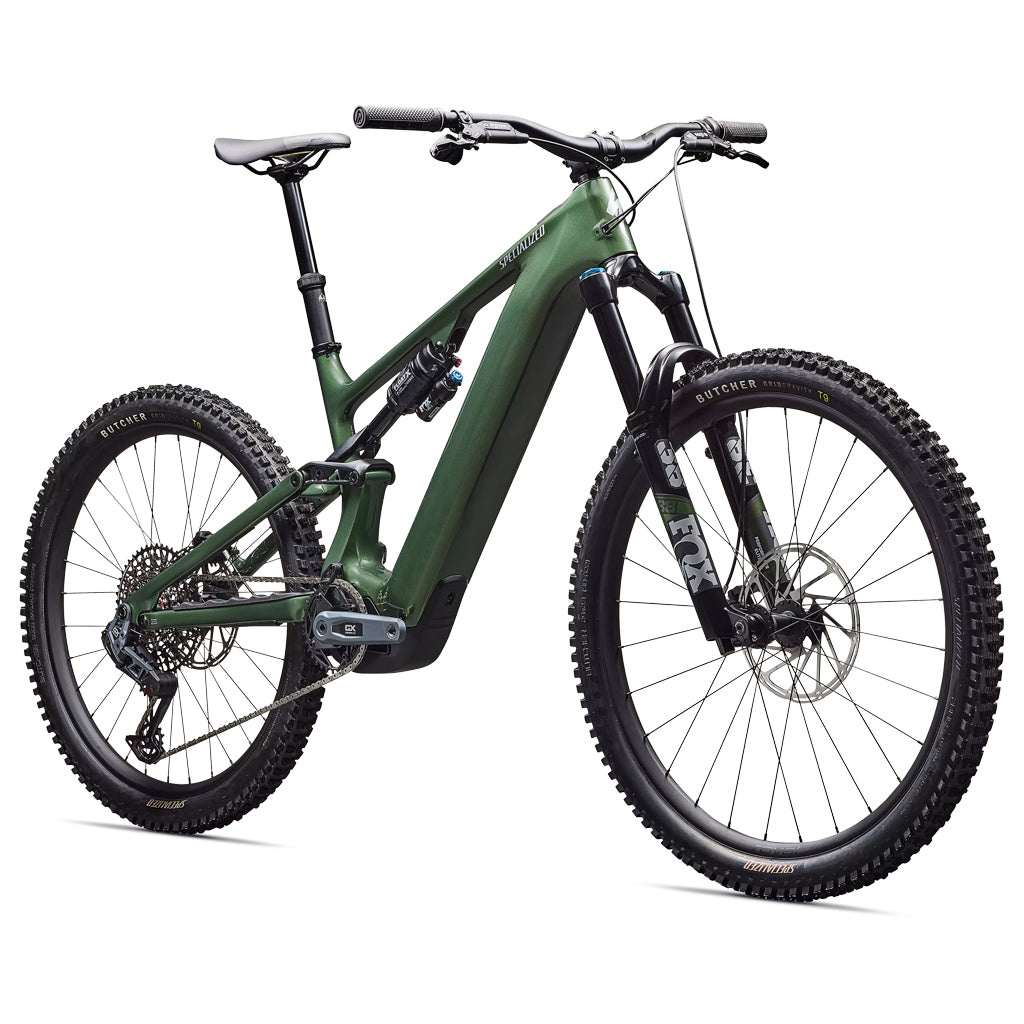

Specialized Turbo Levo 4 Expert
Specifications
MOTOR All New Specialized 3.1 Motor, 101Nm torque, 666W power
BATTERY 840wh battery
UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
CHARGER Specialized 4amp charger
FRAME All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm
SEAT BINDER Alloy, 38.6mm
REAR SHOCK FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
FORK Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel
FRONT BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
REAR BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
SHIFT LEVERS SRAM AXS POD Controller
REAR DERAILLEUR SRAM GX Eagle Transmission Derailleur
CASSETTE SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
CHAIN SRAM GX Eagle Transmission Flattop Chain
CRANKSET SRAM GX Eagle Crankset, Integrated Guard, 55mm Chainline, 155mm
CHAINRINGS SRAM T-type ring, 34T
FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"
FRONT WHEEL Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"
REAR WHEEL Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
INNER TUBES Standard, Presta valve
STEM Alloy Trail Stem, 35mm bar bore
HANDLEBARS Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S2: 30mm, S3-S6:40mm Rise, 780mm Width
GRIPS Deity Lockjaw grips
SADDLE Bridge Comp, Hollow Cr-mo rails
SEATPOST PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm
SWAT SWAT internal downtube storage
Weight 24.41 kg (53 lb, 13.0 oz)
Geometry

S2 | S3 | S4 | S5 | S6 | ||
---|---|---|---|---|---|---|
A | Reach | 435 | 455 | 480 | 505 | 535 |
B | Stack | 618 | 626 | 638 | 652 | 667 |
C | Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
D | Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
E | Front Centre | 765 | 789 | 820 | 851 | 888 |
F | Bottom Bracket Height | 350 | 350 | 350 | 350 | 350 |
G | Bottom Bracket Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
H | Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
J | Headtube Length | 95 | 103 | 117 | 132 | 149 |
K | Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
L | Standover Height | 753 | 754 | 753 | 758 | 761 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S1 | 4'11" - 5'3" | 150 - 160cm |
S2 | 5'2" - 5'8" | 157 - 173cm |
S3 | 5'5" - 5'11" | 165 - 180cm |
S4 | 5'8" - 6'2" | 173 - 188cm |
S5 | 5'10" - 6'4" | 178 - 193cm |
S6 | 6'2" - 6'8" | 188 - 203cm |
