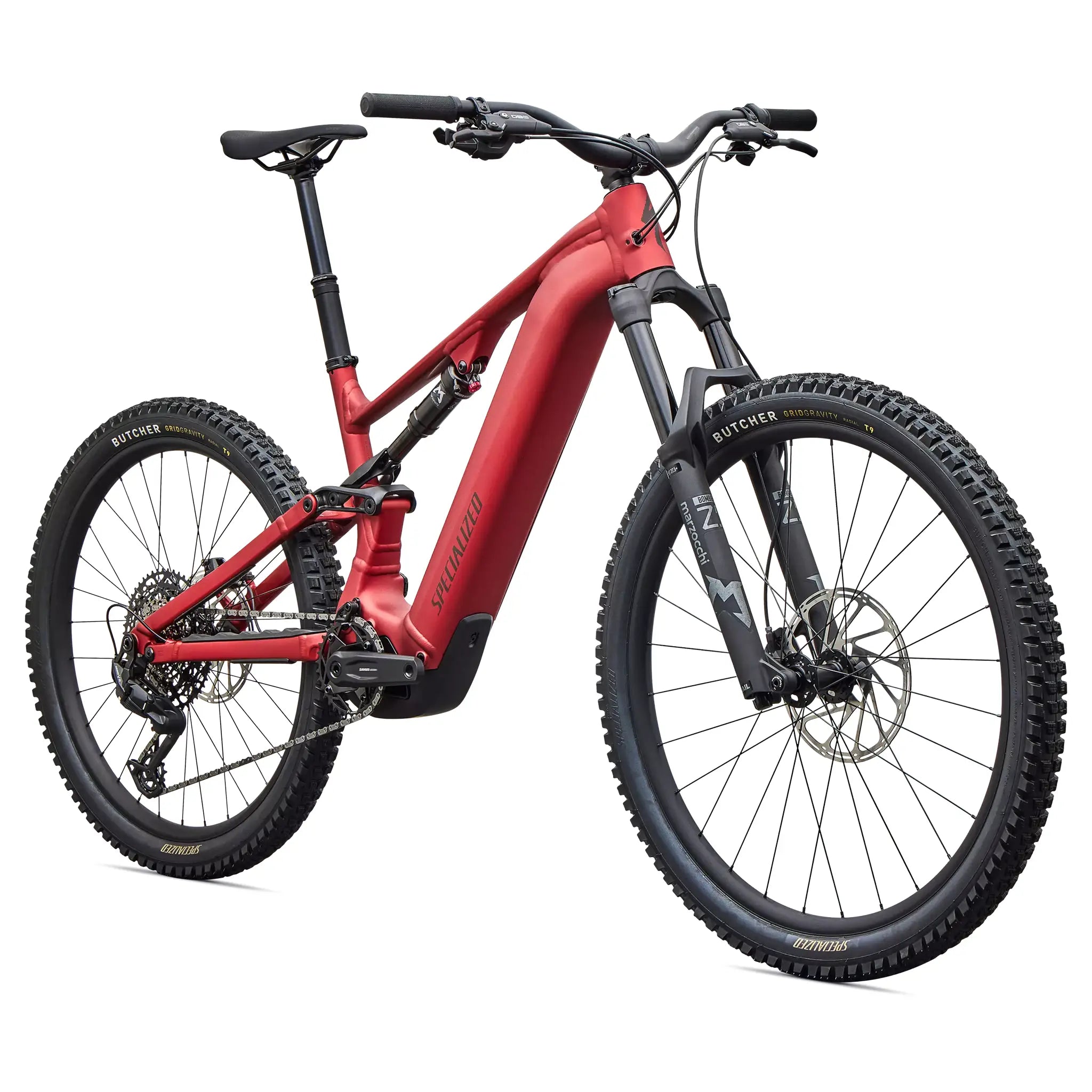

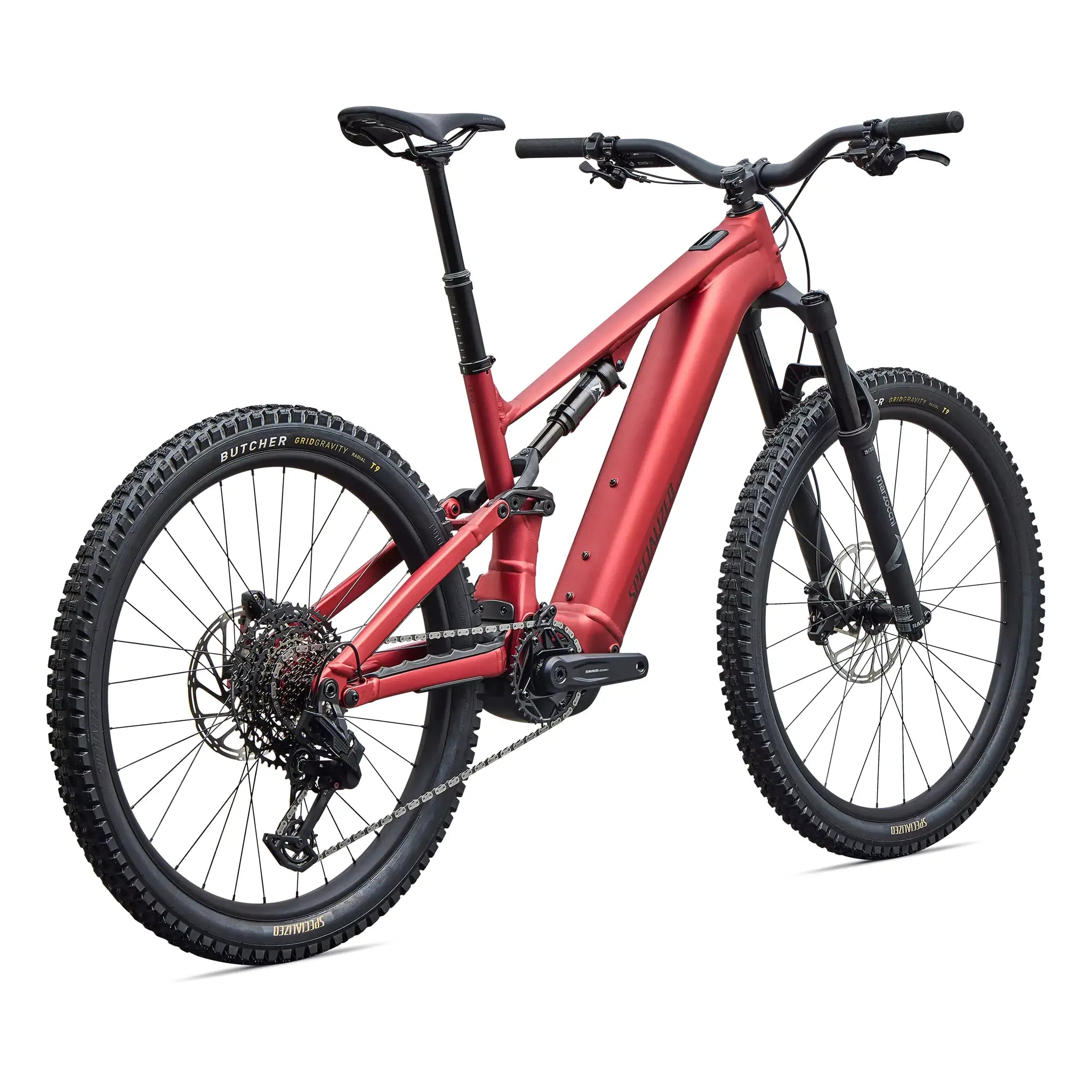

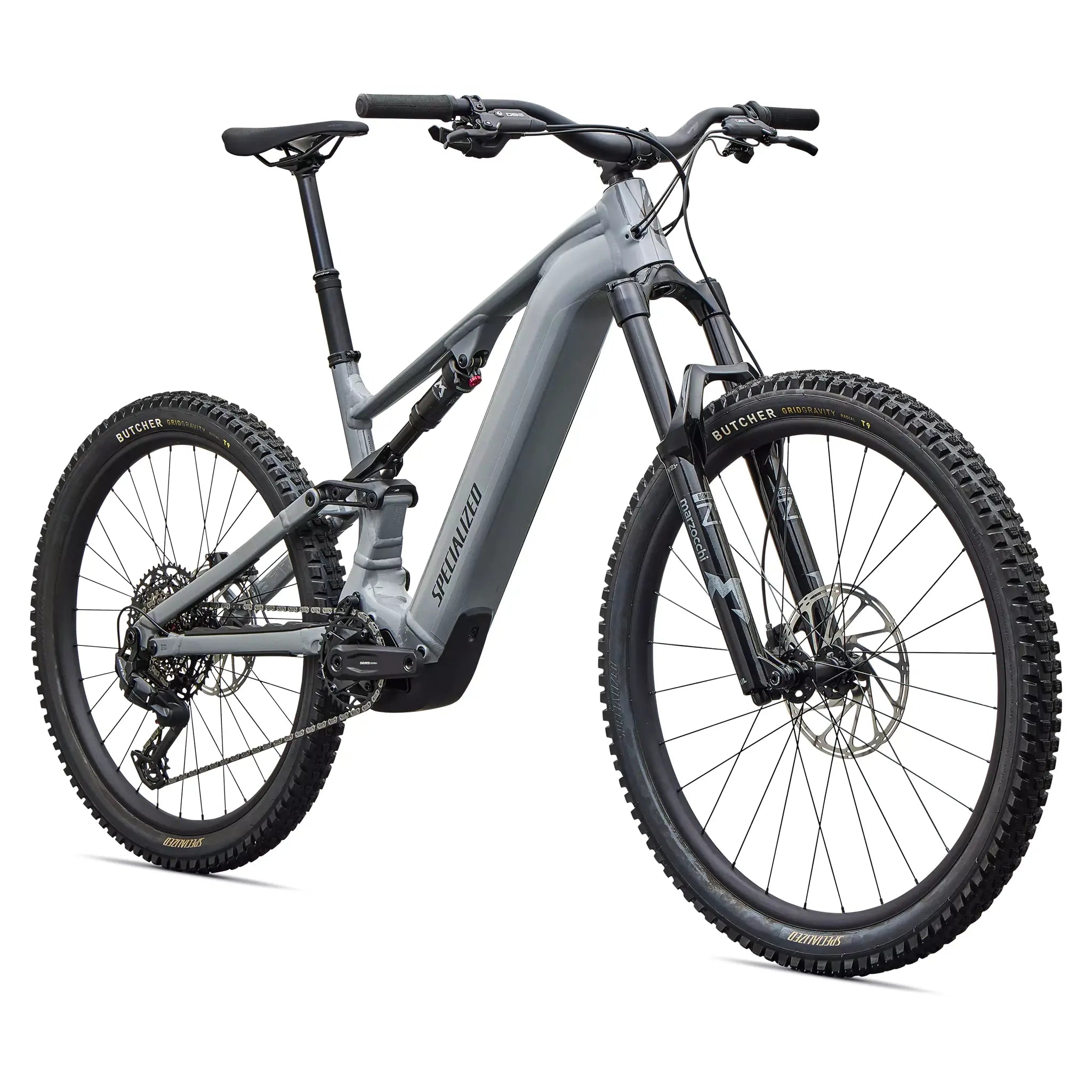

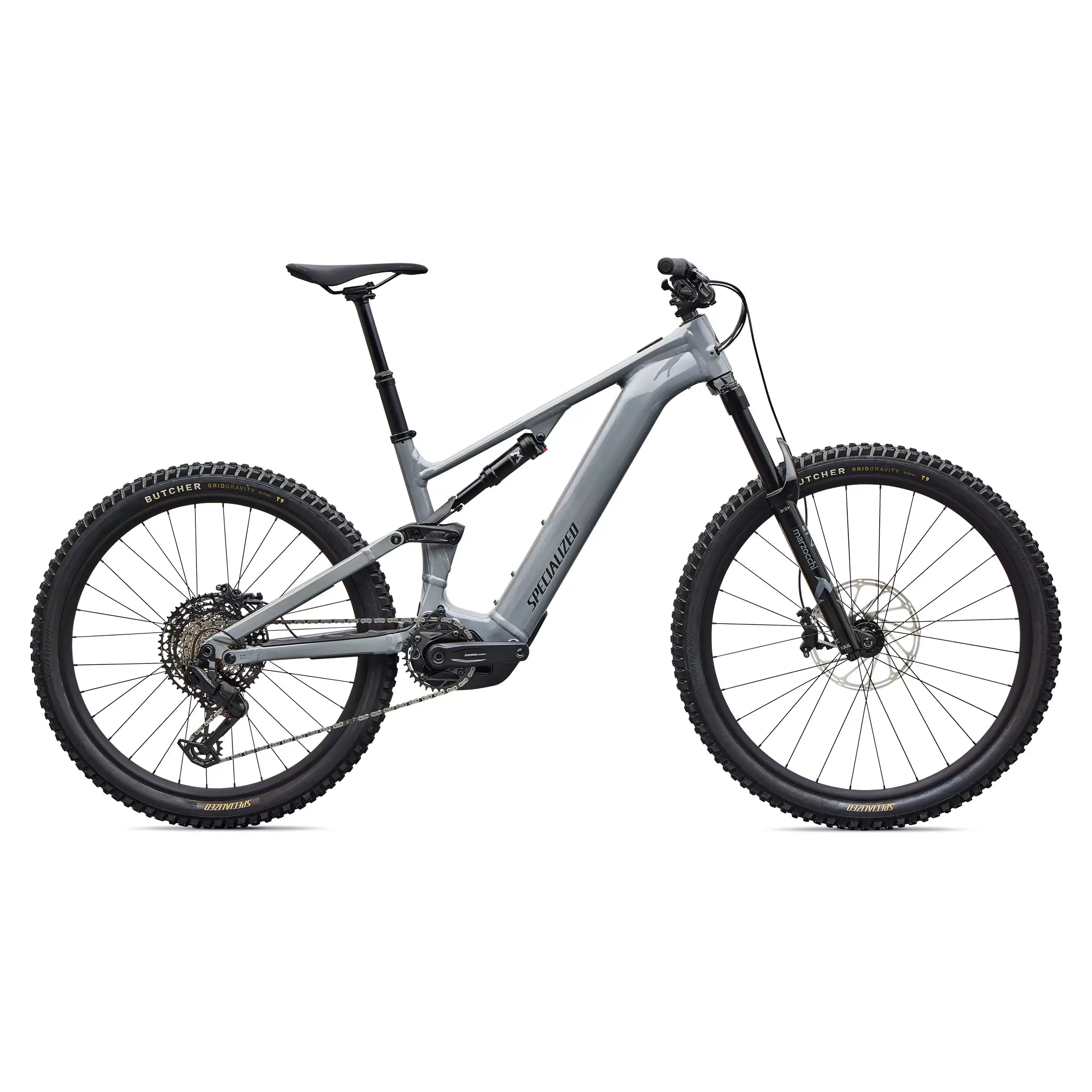

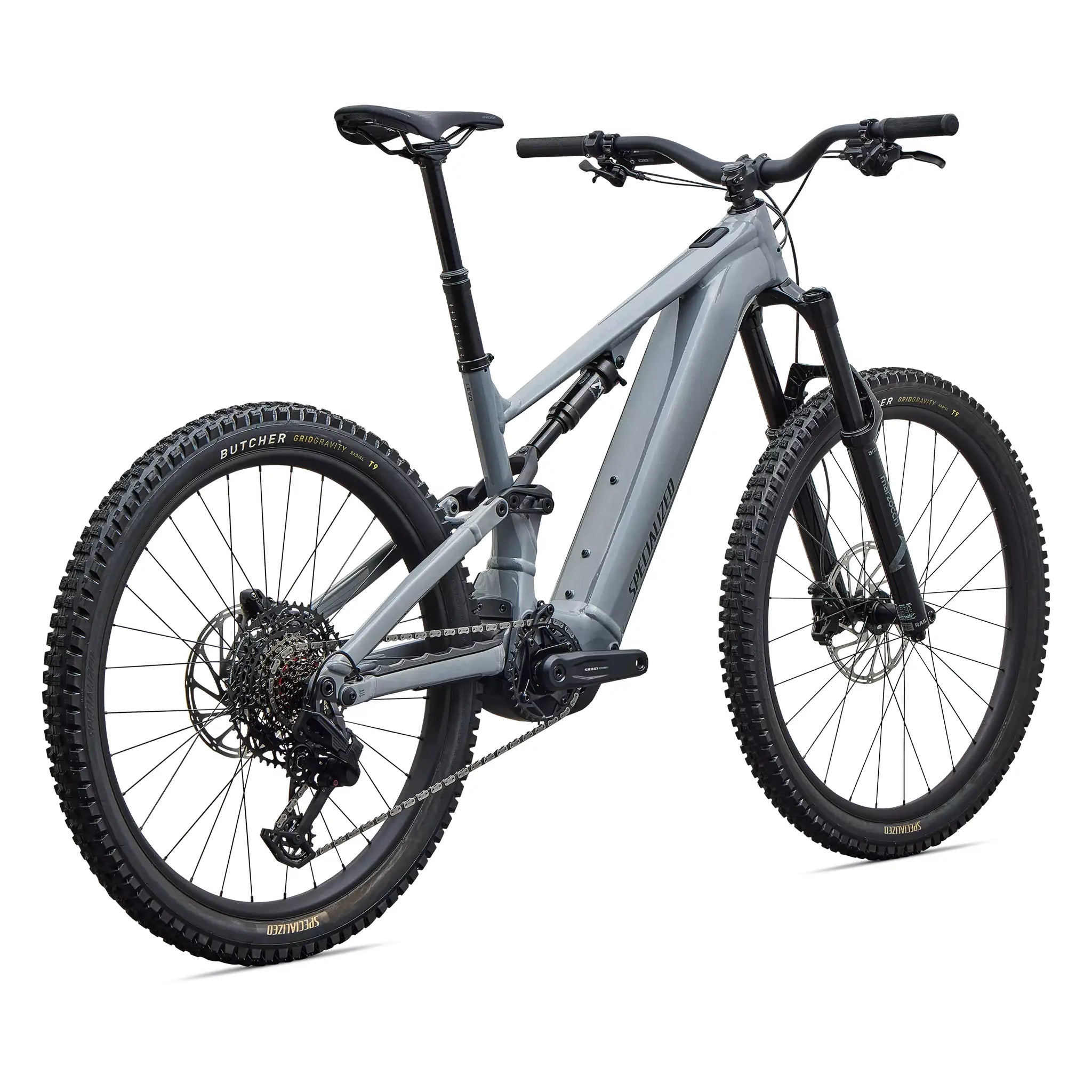

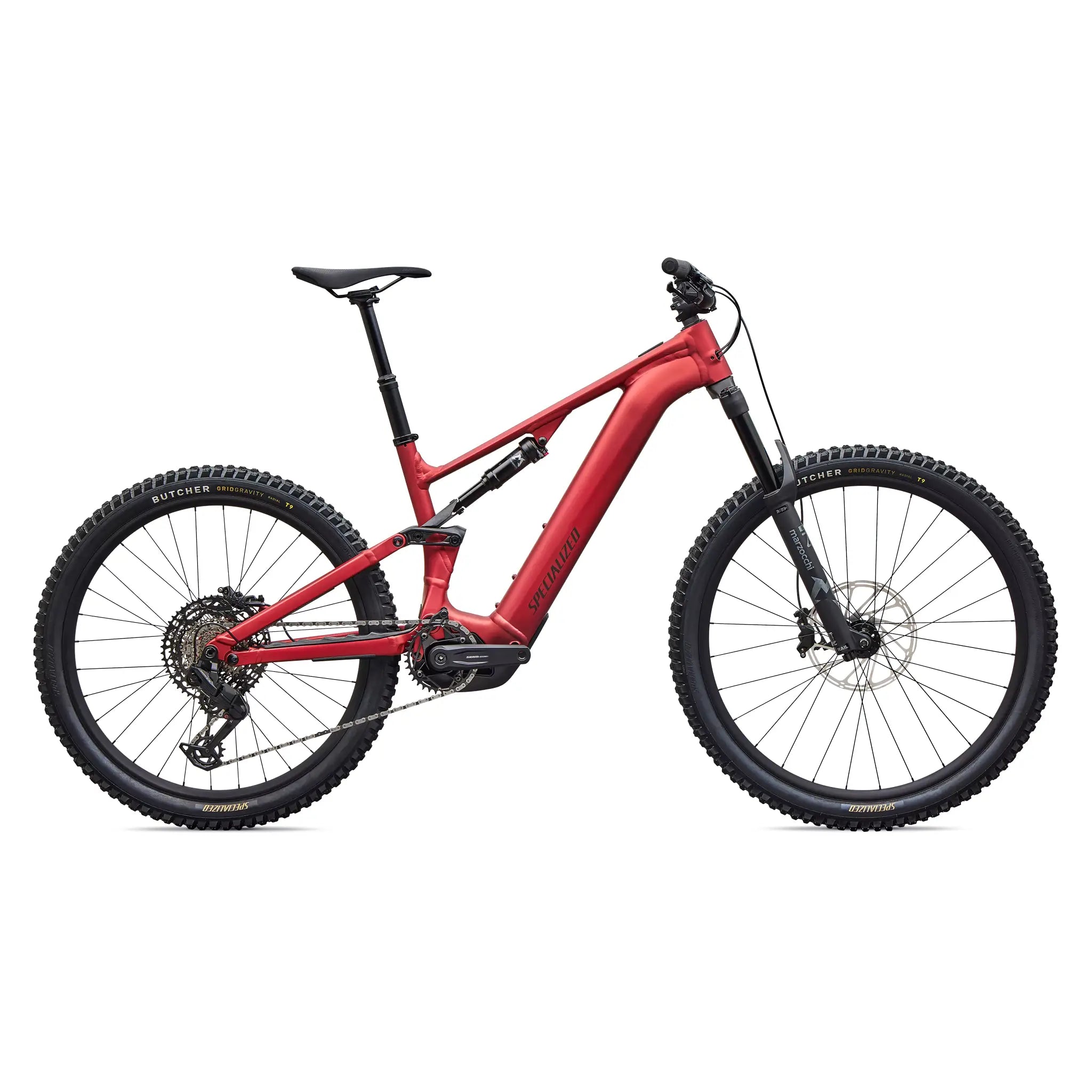

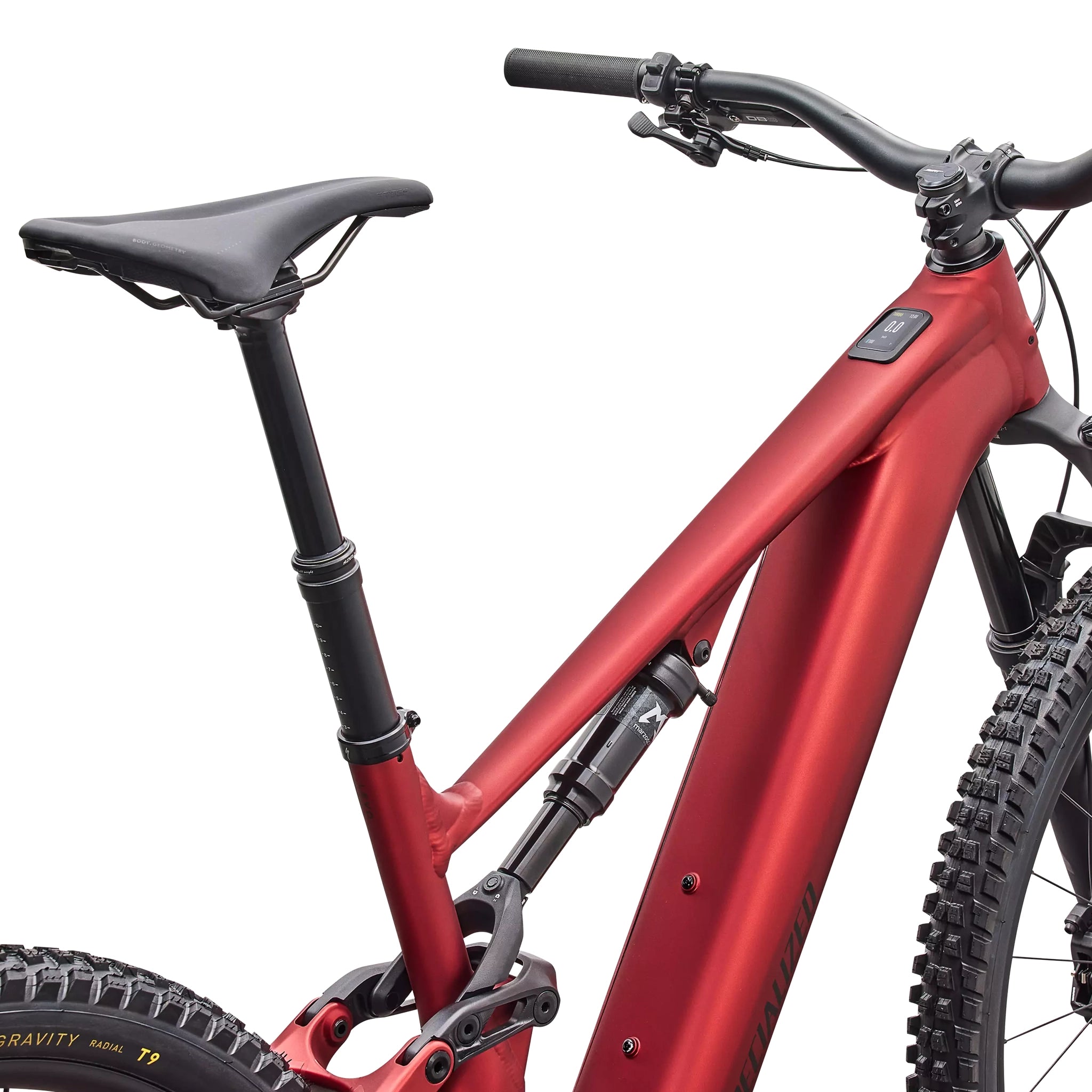

Specialized Turbo Levo 4 Alloy
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Where Super Meets Natural
Specialized Turbo Levo 4 Alloy
Features
Specifications
| Battery | 840Wh battery |
|---|---|

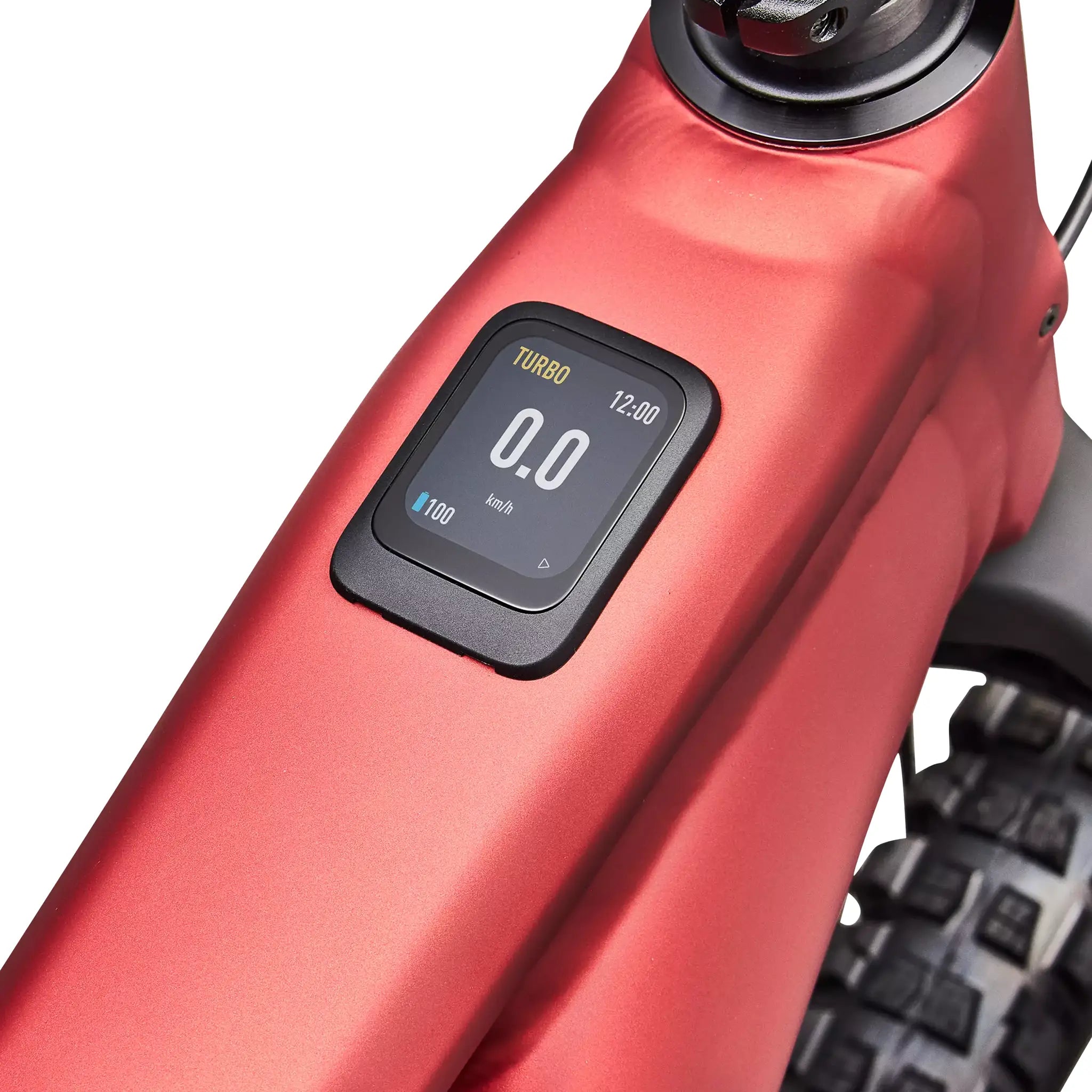

| UI/Remote | Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My |
| Charger | Specialized 4amp charger |

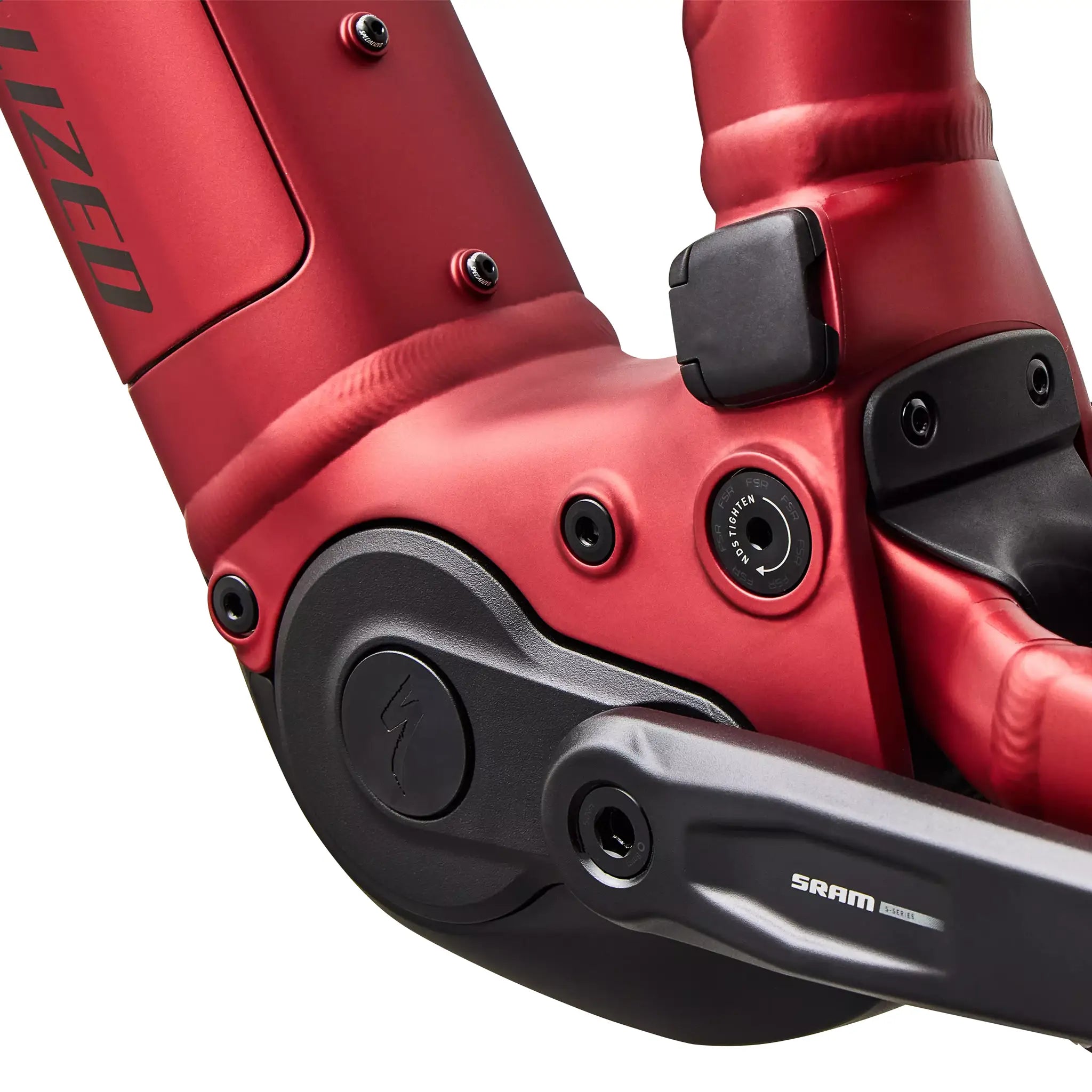

| Motor | Specialized 3.1 Motor, 105Nm torque, 810W power |
| Seat Binder | Alloy, 38.6mm |
| Frame | Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel |
| Fork | Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |

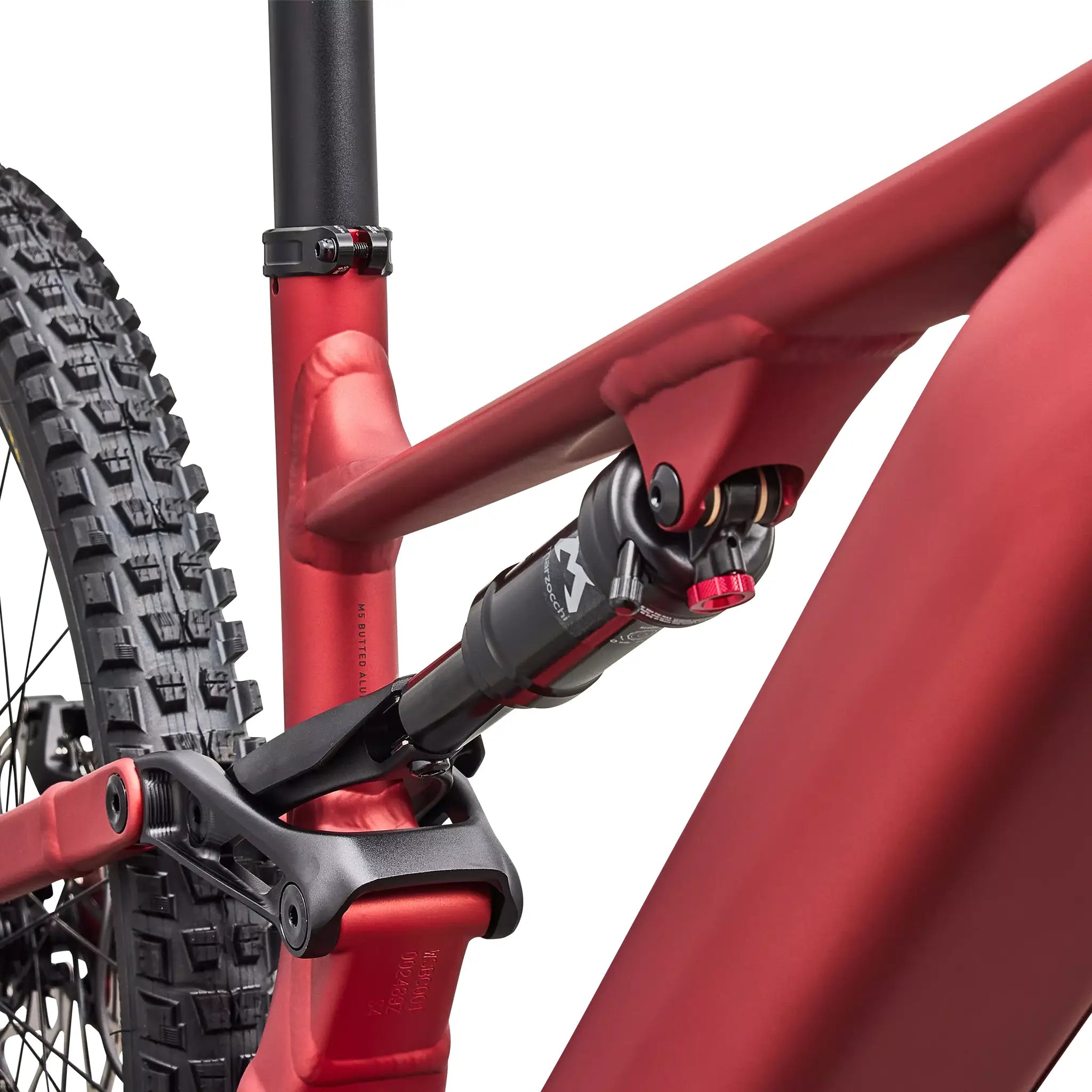

| Rear Shock | Marzocchi Bomber Inline, Evol LV air sleeve, rebound adjust |
| Rear Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor |
| Front Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor |
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Shift Levers | SRAM Eagle 70 T-Type, single click with MMX |
| Crankset | SRAM S1000 Alloy crank, ISIS interface, 155mm length |
| Rear Derailleur | SRAM Eagle 70 Transmission, 12-speed, easy shift under load |
| Cassette | SRAM 12-speed,10-52t |
| Chain | SRAM 70 Transmission 12-Speed Flattop Chain |
| Front Tire | Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4 |
| Rear Tire | Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4 |
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb |
| Spokes | DT Swiss Elemental |
| Inner Tubes | Standard, Presta Valve |
| Grips | Specialized Trail Grips |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Handlebars | Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise |
| SeatPost | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| SWAT | SWAT Internal downtube storage |
| Weight | 26.0 kg (57 lb, 5.1 oz) - Size S4 |
*Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| B | Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| C | Headtube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| D | Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| E | Front Centre | 744 | 765 | 789 | 820 | 851 | 888 |
| F | Bottom Bracket Height | 355 | 350 | 350 | 350 | 350 | 350 |
| G | Bottom Bracket Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| H | Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| J | Headtube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| K | Top Tube Length | 556 | 578 | 599 | 627 | 655 | 698 |
| L | Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| M | Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| Gloss Cool Grey | Satin Cayenne Metallic | |
| S1 | 95227-7001 | 95227-7201 |
| S2 | 95227-7002 | 95227-7202 |
| S3 | 95227-7003 | 95227-7203 |
| S4 | 95227-7004 | 95227-7204 |
| S5 | 95227-7005 | 95227-7205 |
| S6 | 95227-7006 | 95227-7206 |
