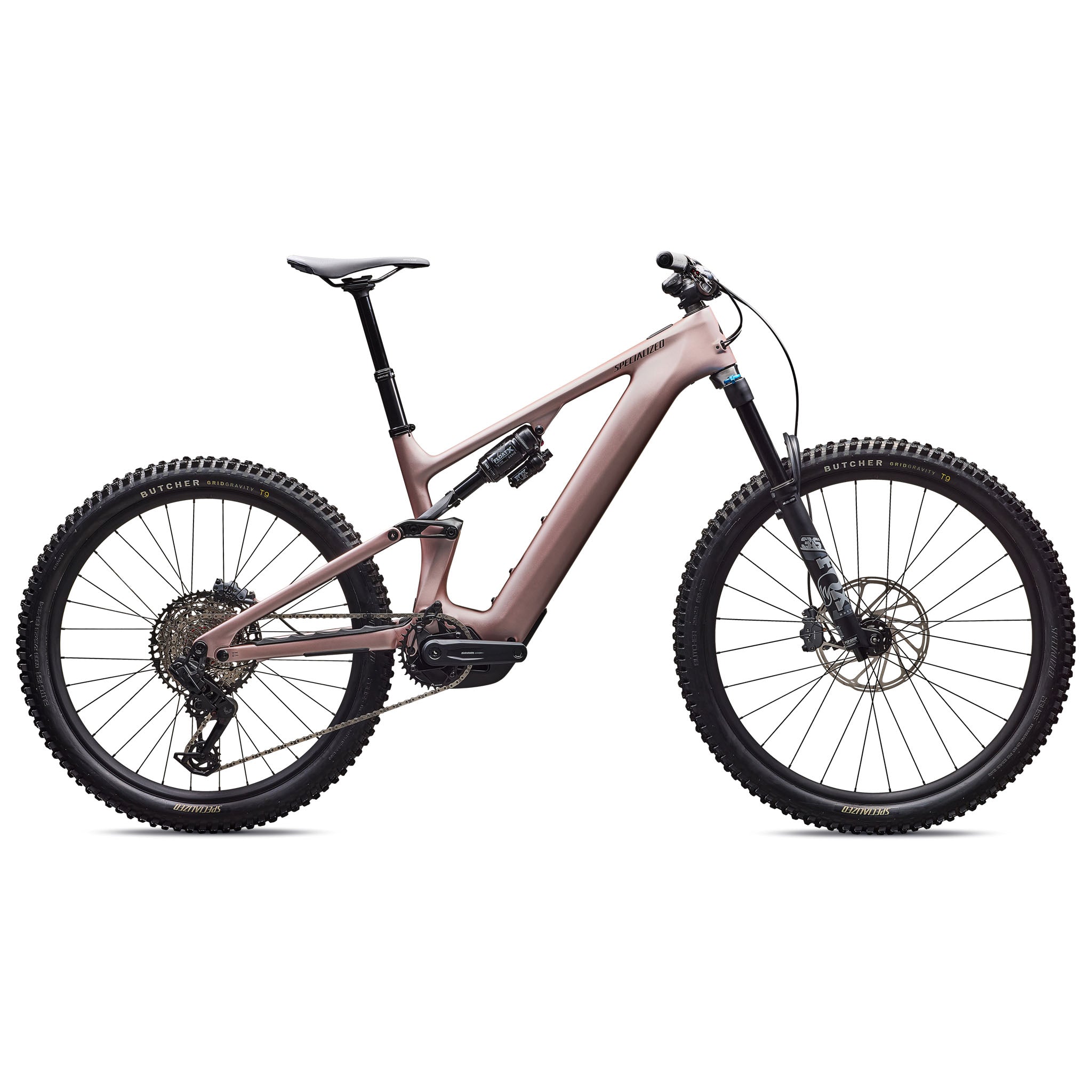

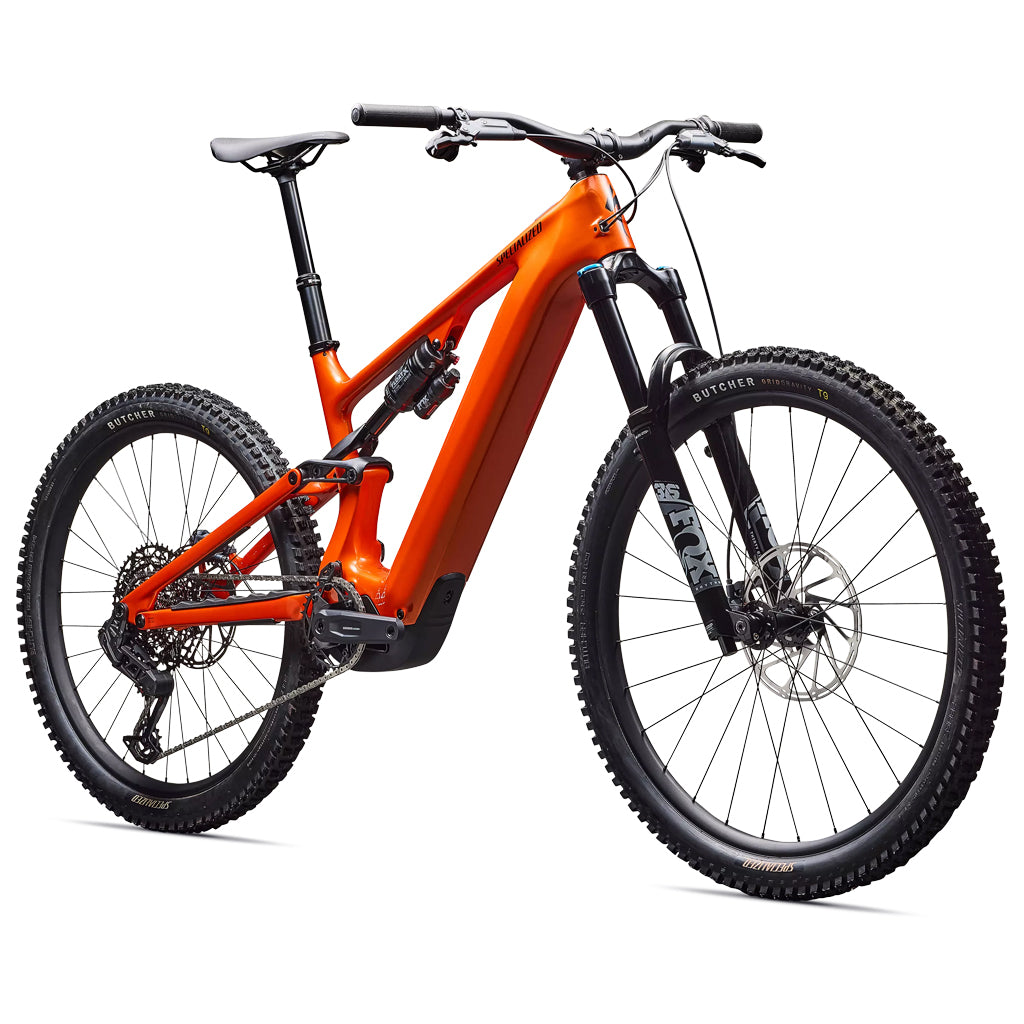

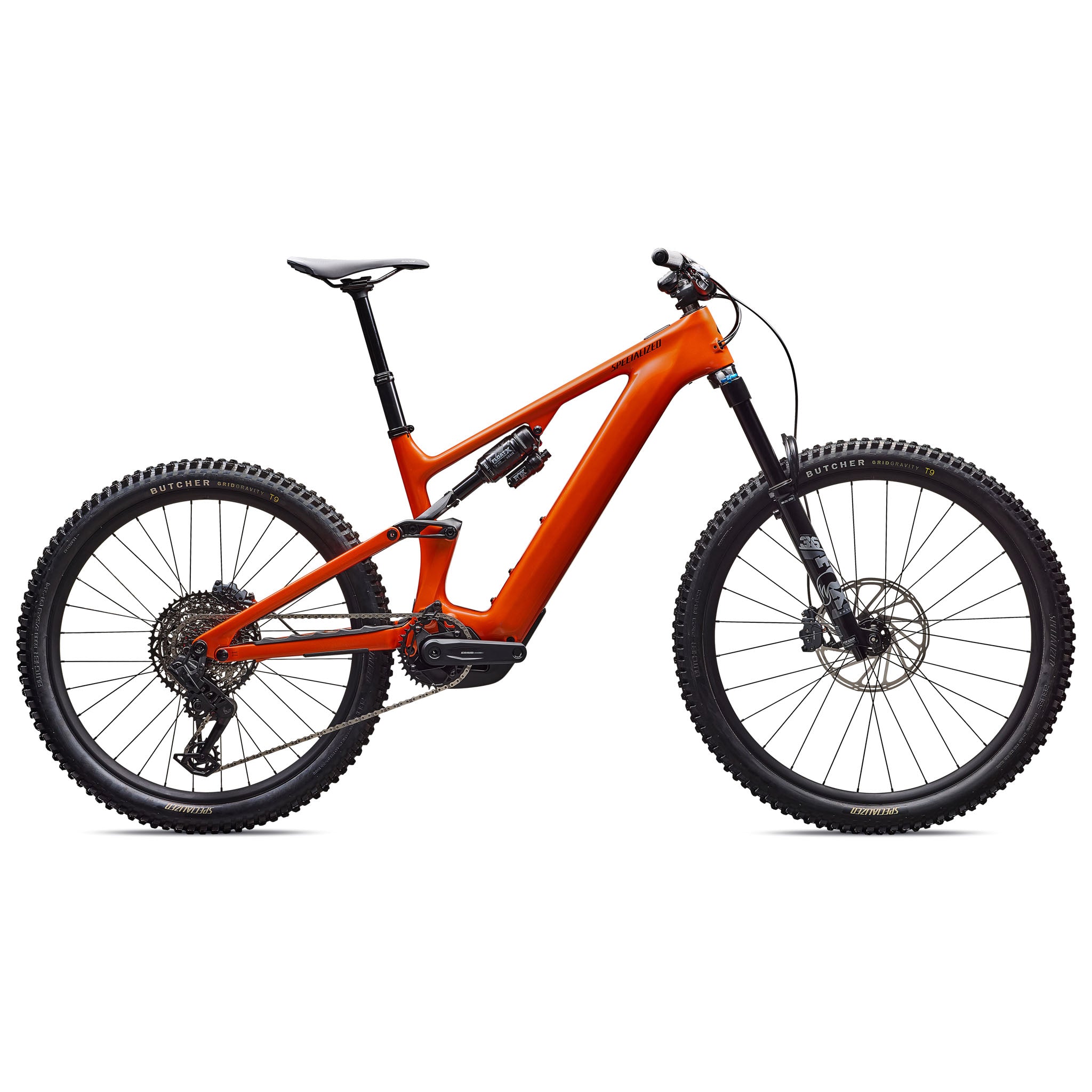

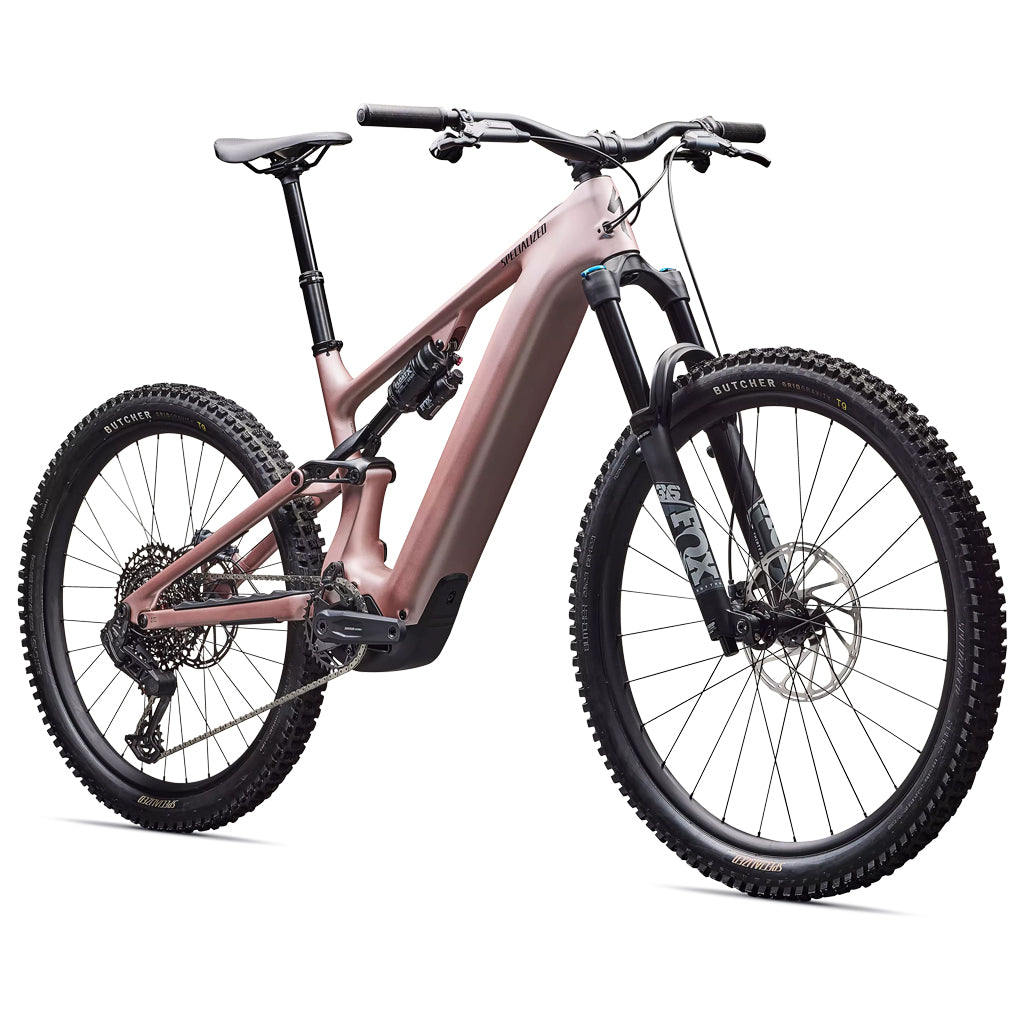

Specialized Turbo Levo 4 Comp
Specifications
MOTOR All New Specialized 3.1 Motor, 101Nm torque, 666W power
BATTERY 840wh battery
UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
CHARGER Specialized 4amp charger
WIRING HARNESS Specialized wiring harness
FRAME All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm
SEAT BINDER Alloy, 38.6mm
REAR SHOCK FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
FORK FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
FRONT BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc
REAR BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc
SHIFT LEVERS SRAM AXS POD Controller
REAR DERAILLEUR SRAM S1000 Eagle Transmission Derailleur
CASSETTE SRAM XS-1270 Transmission Cassette, 12spd, 10-52t
CHAIN SRAM GX Eagle Transmission Flattop Chain
CRANKSET SRAM S1000 Crankset, Integrated Guard, 55mm Chainline, 155mm
CHAINRINGS SRAM T-type ring, 34T
RIMS Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
FRONT HUB Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
REAR HUB Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
SPOKES DT Swiss Industry
FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"
REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"
INNER TUBES Standard, Presta valve
STEM Alloy Trail Stem, 35mm bar bore
HANDLEBARS Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S2: 30mm, S3-S6:40mm Rise, 780mm Width
GRIPS Specialized Trail Grips
SADDLE Bridge Comp, Hollow Cr-mo rails
SEATPOST X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
SWAT SWAT internal downtube storage
Weight 24.41 kg (53 lb, 13.0 oz) - Size S4
Geometry

S2 | S3 | S4 | S5 | S6 | ||
---|---|---|---|---|---|---|
A | Reach | 435 | 455 | 480 | 505 | 535 |
B | Stack | 618 | 626 | 638 | 652 | 667 |
C | Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
D | Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
E | Front Centre | 765 | 789 | 820 | 851 | 888 |
F | Bottom Bracket Height | 350 | 350 | 350 | 350 | 350 |
G | Bottom Bracket Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
H | Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
J | Headtube Length | 95 | 103 | 117 | 132 | 149 |
K | Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
L | Standover Height | 753 | 754 | 753 | 758 | 761 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S1 | 4'11" - 5'3" | 150 - 160cm |
S2 | 5'2" - 5'8" | 157 - 173cm |
S3 | 5'5" - 5'11" | 165 - 180cm |
S4 | 5'8" - 6'2" | 173 - 188cm |
S5 | 5'10" - 6'4" | 178 - 193cm |
S6 | 6'2" - 6'8" | 188 - 203cm |
