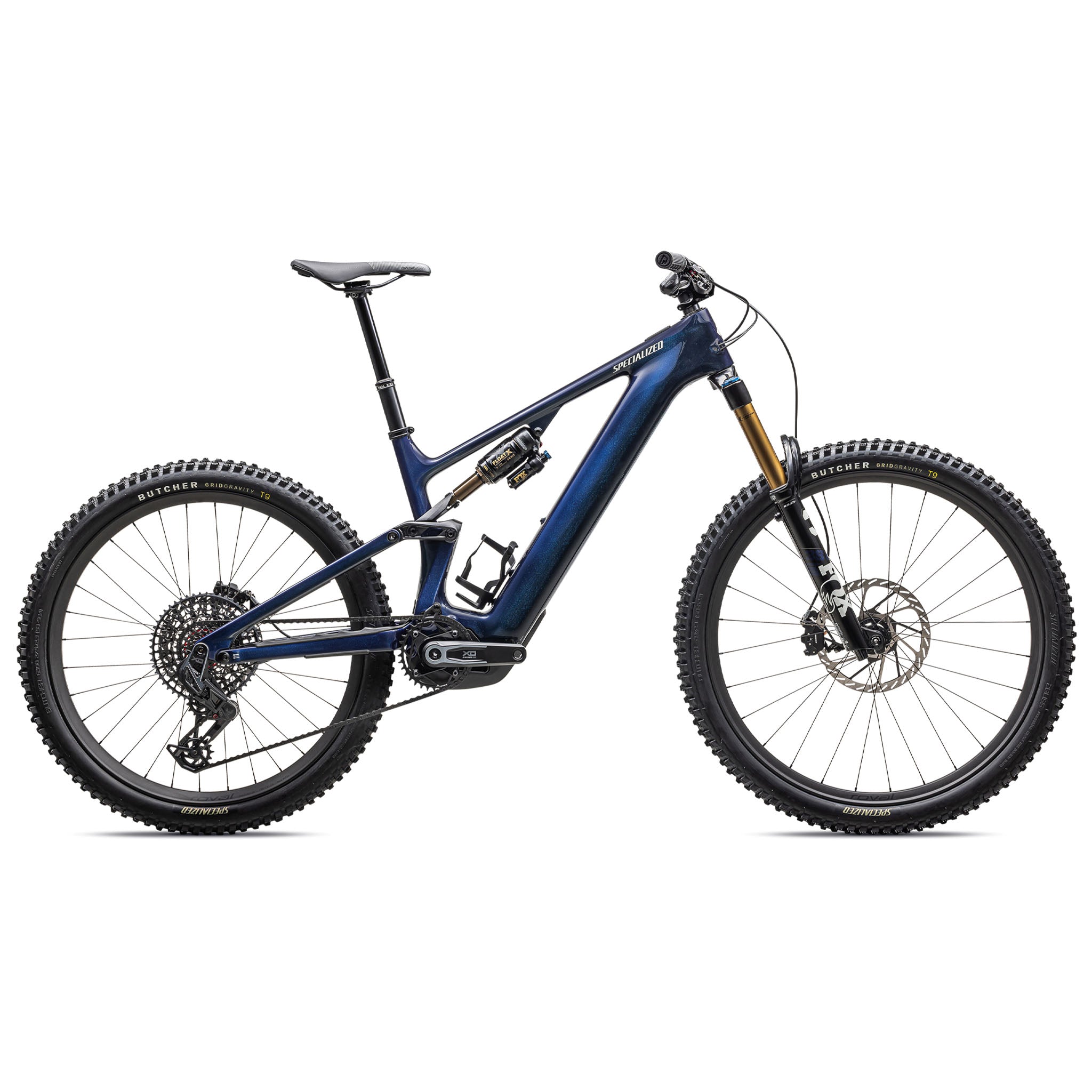

Specialized Turbo Levo 4 Pro
Specifications
MOTOR Specialized 3.1 Motor, 101Nm torque, 666W power
BATTERY 840wh battery
UI/REMOTE MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
CHARGER Specialized 4amp charger
WIRING HARNESS Specialized wiring harness
FRAME Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm
SEAT BINDER Alloy, 38.6mm
REAR SHOCK Fox Float X Factory with Specialized GENIE, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
FORK FOX FLOAT 38 Factory, GRIP X2 damper 15x110mm QR axle, 44mm offset, 160mm of travel
FRONT BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
REAR BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
SHIFT LEVERS SRAM AXS POD Controller
REAR DERAILLEUR SRAM X0 Eagle Transmission
CASSETTE SRAM XO 1295, 12 speed, 10-52
CHAIN SRAM X0
CRANKSET SRAM XO Alloy crank, 155mm, ISIS interface
CHAINRINGS SRAM 34T T-Type chainring, 104 BCD, steel
FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"
FRONT WHEEL Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"
REAR WHEEL Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
INNER TUBES Standard, Presta valve
STEM Industry 9 A35 Moutain stem, 35mm clamp, 40mm length
HANDLEBARS RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
GRIPS Deity Lockjaw grips
SADDLE Bridge Mimic Expert, ti rail
SEATPOST Bike Yoke Revive Max 3.0 Dropper post. S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
SWAT SWAT internal downtube storage
Weight 23.94kg (52 lb, 12.5 oz) - Size S4
Geometry

S2 | S3 | S4 | S5 | S6 | ||
---|---|---|---|---|---|---|
A | Reach | 435 | 455 | 480 | 505 | 535 |
B | Stack | 618 | 626 | 638 | 652 | 667 |
C | Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
D | Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
E | Front Centre | 765 | 789 | 820 | 851 | 888 |
F | Bottom Bracket Height | 350 | 350 | 350 | 350 | 350 |
G | Bottom Bracket Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
H | Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
J | Headtube Length | 95 | 103 | 117 | 132 | 149 |
K | Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
L | Standover Height | 753 | 754 | 753 | 758 | 761 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S1 | 4'11" - 5'3" | 150 - 160cm |
S2 | 5'2" - 5'8" | 157 - 173cm |
S3 | 5'5" - 5'11" | 165 - 180cm |
S4 | 5'8" - 6'2" | 173 - 188cm |
S5 | 5'10" - 6'4" | 178 - 193cm |
S6 | 6'2" - 6'8" | 188 - 203cm |
