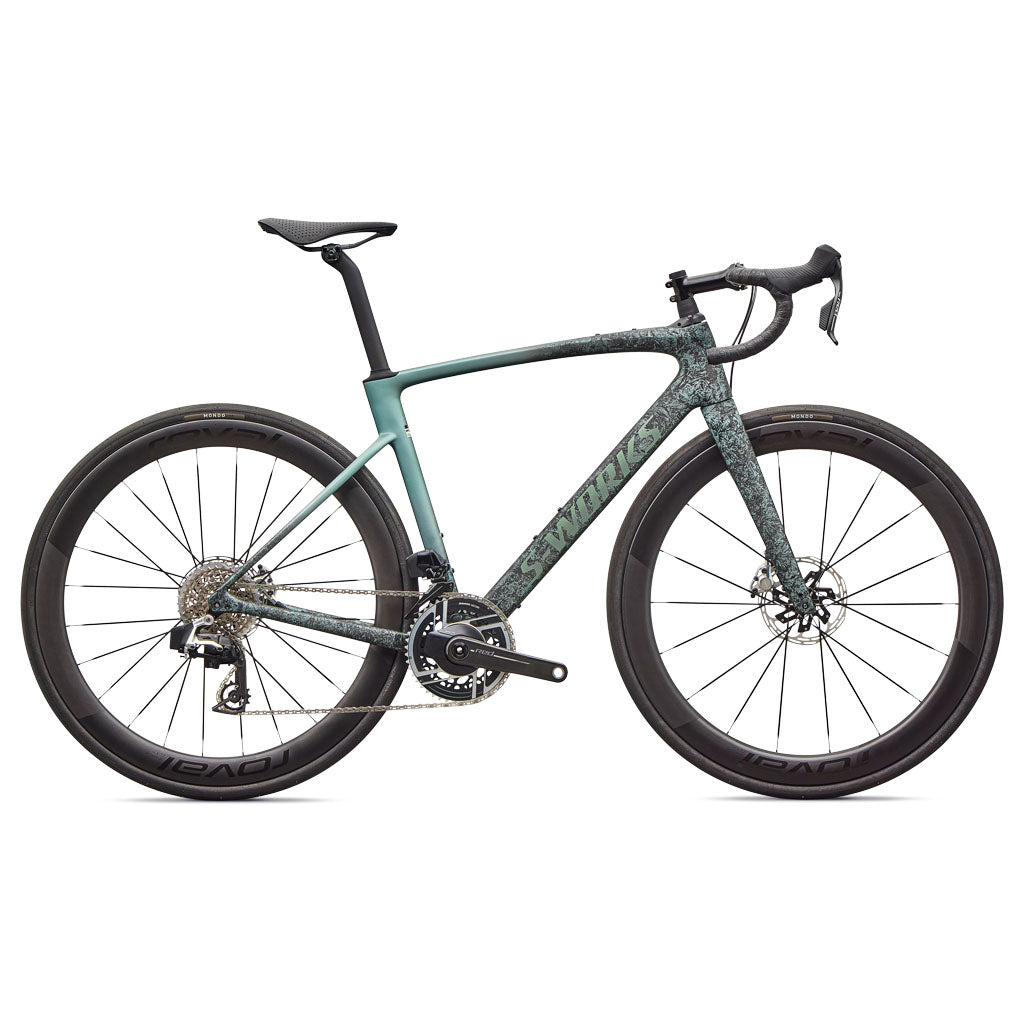

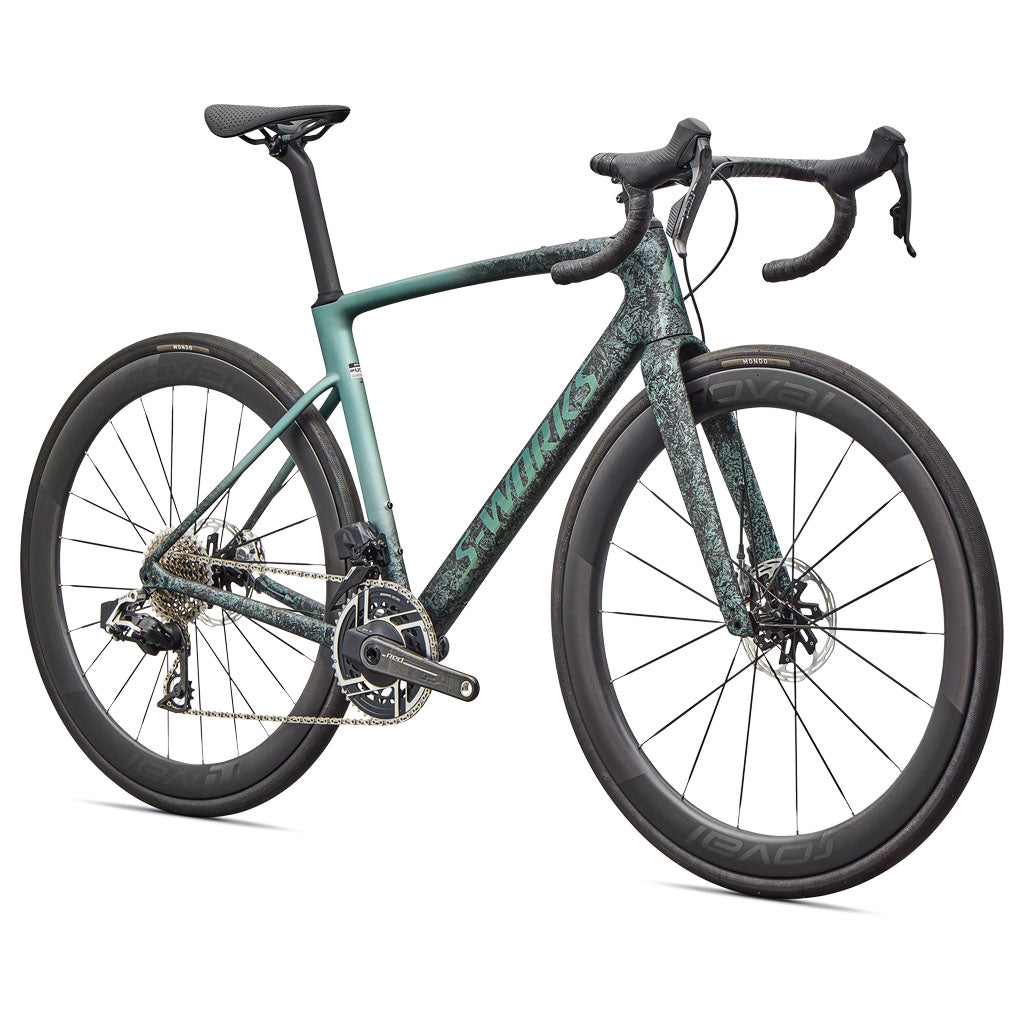

Specialized S-Works Roubaix SL8 SRAM RED AXS E1
Specifications
Frame FACT 12R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Front Brake SRAM RED E1, hydraulic disc
Rear BrakeSRAM RED E1, hydraulic disc
Crankset SRAM RED AXS Power Meter 46/33t
Front DerailleurSRAM RED AXS, braze-on
Rear DerailleurSRAM RED AXS E1
CassetteSRAM RED XG-1290, 12-speed, 10-36t
Bottom BracketSRAM DUB BSA 68
ChainSRAM RED 12-speed
Inner Tubes700x28/38mm, 48mm Presta valve
Front TireMondo TLR Endurance Tire, 700x32c, GRIPTON T2/T5
Rear TireMondo TLR Endurance Tire, 700x32c, GRIPTON T2/T5
Front Wheel Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18-F hub w/DT Ceramic Sinc bearings, 18h, Carbon spokes
Rear Wheel Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48mm depth, Win Tunnel Engineered, Roval LF19-R hub w/DT Ceramic Sinc bearings, 24h, Carbon spokes
Tape Supacaz Super Sticky Kush
Seat Binder Hidden drop clamp
Saddle S-Works Power with Mirror
Handlebars Roval Alpinist Carbon Handlebar, 125mm drop, 75mm reach
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
SeatPost S-Works Pave Seat post
Weight 7.29 kg (16 lb, 1.1 oz) 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 353 | 363 | 370 | 381 | 389 | 397 | 403 | 409 |
| B | Stack | 543 | 549 | 566 | 585 | 605 | 630 | 665 | 685 |
| C | Head Tube Angle | 69.3° | 70.8° | 71.5° | 72.3° | 73° | 73° | 73.5° | 73.5° |
| D | Front Centre | 589 | 587 | 593 | 598 | 604 | 620 | 631 | 634 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 78 | 78 | 78 | 78 | 78 |
| F | Wheelbase | 994 | 992 | 998 | 1005 | 1012 | 1031 | 1042 | 1054 |
| G | Chainstay Length | 418 | 418 | 418 | 420 | 420 | 423 | 423 | 423 |
| H | Head Tube Length | 90 | 90 | 105 | 122 | 140 | 168 | 202 | 222 |
| I | Top Tube Length | 503 | 523 | 534 | 550 | 569 | 584 | 600 | 618 |
| J | Seat Tube Angle | 75° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| K | Standover Height | 686 | 719 | 747 | 766 | 787 | 809 | 847 | 865 |
| All measurements in degrees or millimetres | |||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Satin Carbon |
|---|---|
| 44 | 94426-0144 |
| 49 | 94426-0149 |
| 52 | 94426-0152 |
| 54 | 94426-0154 |
| 56 | 94426-0156 |
| 58 | 94426-0158 |
| 61 | 94426-0161 |
