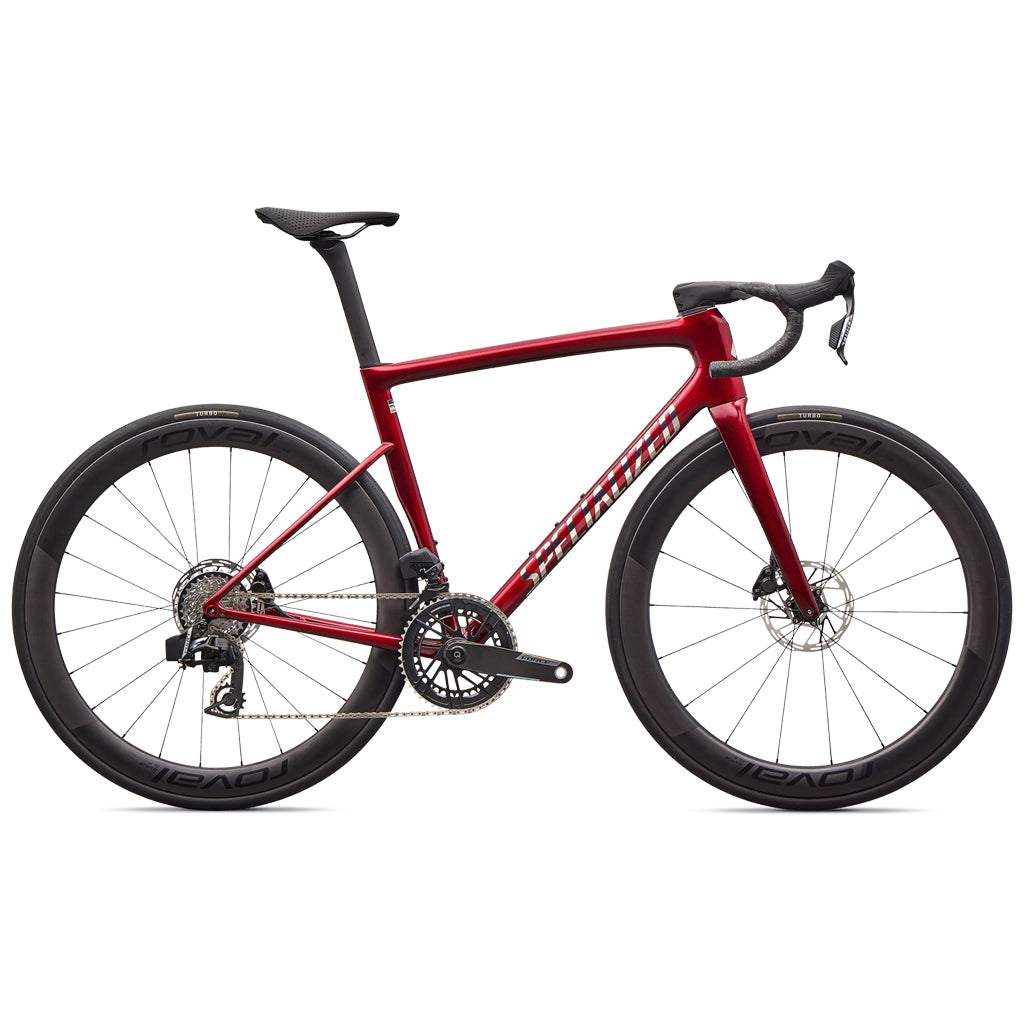

Specialized Tarmac SL8 Pro SRAM Force AXS
Specifications
Frame Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake NEW SRAM Force AXS E1, hydraulic disc 160mm rotor
Rear Brake NEW SRAM Force AXS E1, hydraulic disc 160mm rotor
Bottom Bracket SRAM DUB BSA
Chain NEW SRAM Force E1
Shift Levers NEW SRAM Force AXS E1 HRD
Rear Derailleur NEW SRAM Force AXS E1
Front Derailleur NEW SRAM Force AXS E1
Crankset NEW SRAM Force E1 Power Meter, 48/35t
Cassette NEW SRAM Force XG-1270, 12sp, 10-33t
Rear Wheel Roval Rapide CL III
Front Wheel Roval Rapide CL III
Front Tire S-Works Turbo TLR Race Tire, 700x28c
Rear Tire S-Works Turbo TLR Race Tire, 700x28c
Inner Tubes STANDARD 80MM PV
Stem Included in Handlebar
Saddle Body Geometry Power Pro Mirror, Hollow Ti Rails
Handlebars Roval Rapide Cockpit, Integrated Bar/Stem
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Tape Supacaz Super Sticky Kush
Seat Binder Tarmac integrated wedge
Headset Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use
Product ID 279927
Weight Size 56
Weight 7.25 kg (15 lb, 15.7 oz)
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Front Centre | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Red Sky | Gloss Silver Dust |
|---|---|---|
| 44 | 94926-1044 | 94926-1644 |
| 49 | 94926-1049 | 94926-1649 |
| 52 | 94926-1052 | 94926-1652 |
| 54 | 94926-1054 | 94926-1654 |
| 56 | 94926-1056 | 94926-1656 |
| 58 | 94926-1058 | 94926-1658 |
| 61 | 94926-1061 | 94926-1661 |
