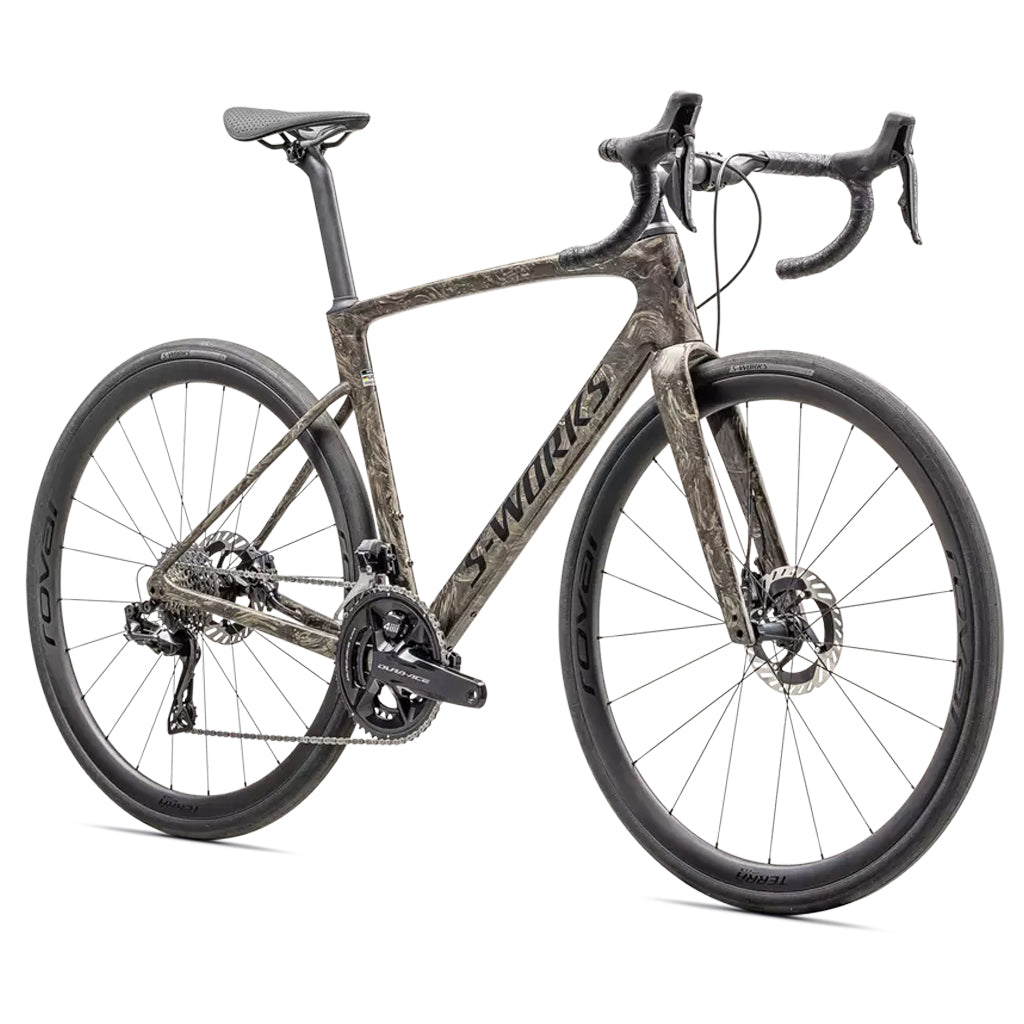

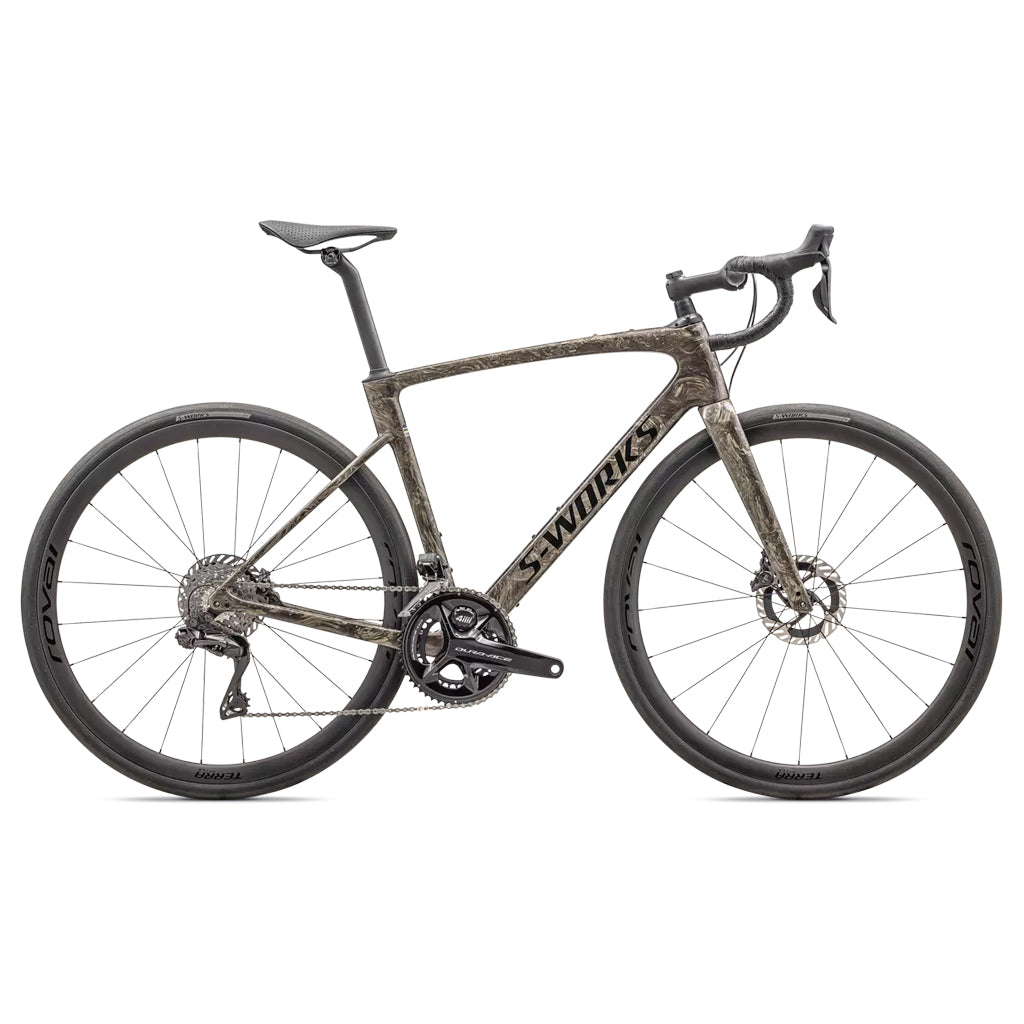

Specialized S-Works Roubaix SL8 Dura-Ace Di2
Specifications
Frame FACT 12R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Front Brake Shimano Dura-Ace, Hydraulic Disc, 160mm
Rear Brake Shimano Dura-Ace, Hydraulic Disc, 160mm
Chainrings 50/34t
Shift Levers Shimano Dura-Ace R9270, hydraulic disc
Rear Derailleur Shimano Dura-Ace R9250, 12-speed
Crankset Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter
Front Derailleur Shimano Dura-Ace R9250, braze-on
Cassette Shimano Dura-Ace, 12-speed, 11-34t
Bottom Bracket Shimano Dura-Ace, BB-R9100
Chain Shimano Dura-Ace, 12-speed
Inner Tubes 700x28/38mm, 60mm Presta valve
Front Tire S-Works Mondo 2BR, 700x32c
Rear Tire S-Works Mondo 2BR, 700x32c
Front Wheel Roval Terra CLX II, 25mm internal width, 32mm depth, 21h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear Wheel Roval Terra CLX II, 25mm internal width, 32mm depth, 24h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Grips Supacaz Super Sticky Kush
Seat Binder Hidden drop clamp
Saddle S-Works Power with Mirror
Handlebars S-Works Carbon Hover Drop 125mm, Reach 75mm, w/Di2 hole
Stem S-Works Future Stem, w/ Integrated Computer Mount
SeatPost S-Works Pave Seat post
Weight 7.25 kg (15 lb, 15.7 oz) 56cm
Geometry

44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
---|---|---|---|---|---|---|---|---|---|
A | Reach | 353 | 363 | 370 | 381 | 389 | 397 | 403 | 409 |
B | Stack | 543 | 549 | 566 | 585 | 605 | 630 | 665 | 685 |
C | Head Tube Angle | 69.3° | 70.8° | 71.5° | 72.3° | 73° | 73° | 73.5° | 73.5° |
D | Front Centre | 589 | 587 | 593 | 598 | 604 | 620 | 631 | 634 |
E | Bottom Bracket Drop | 80 | 80 | 80 | 78 | 78 | 78 | 78 | 78 |
F | Wheelbase | 994 | 992 | 998 | 1005 | 1012 | 1031 | 1042 | 1054 |
G | Chainstay Length | 418 | 418 | 418 | 420 | 420 | 423 | 423 | 423 |
H | Head Tube Length | 90 | 90 | 105 | 122 | 140 | 168 | 202 | 222 |
I | Top Tube Length | 503 | 523 | 534 | 550 | 569 | 584 | 600 | 618 |
J | Seat Tube Angle | 75° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
K | Standover Height | 686 | 719 | 747 | 766 | 787 | 809 | 847 | 865 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
44 | 4'8" - 5'1" | 142 - 155cm |
49 | 5'1" - 5'5" | 155 - 163cm |
52 | 5'4" - 5'7" | 163 - 170cm |
54 | 5'7" - 5'9" | 170 - 175cm |
56 | 5'9" - 5'11" | 175 - 180cm |
58 | 5'11" - 6'2" | 180 - 188cm |
61 | 6'2" - 6'5" | 188 - 196cm |
