DESCRIPTION
Whether your goal is to escape on gravel back roads, far from cars and crowds, toe the start line at your first gravel race, or simply get the most versatile bike on the road or dirt, no bike is better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - alloy bike we've ever made, delivering a ride that's quick and lively, but stable and confidence inspiring when the terrain gets rough. With all-new gravel geometry and category leading tire clearance, the new Diverge represents everything we've learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.

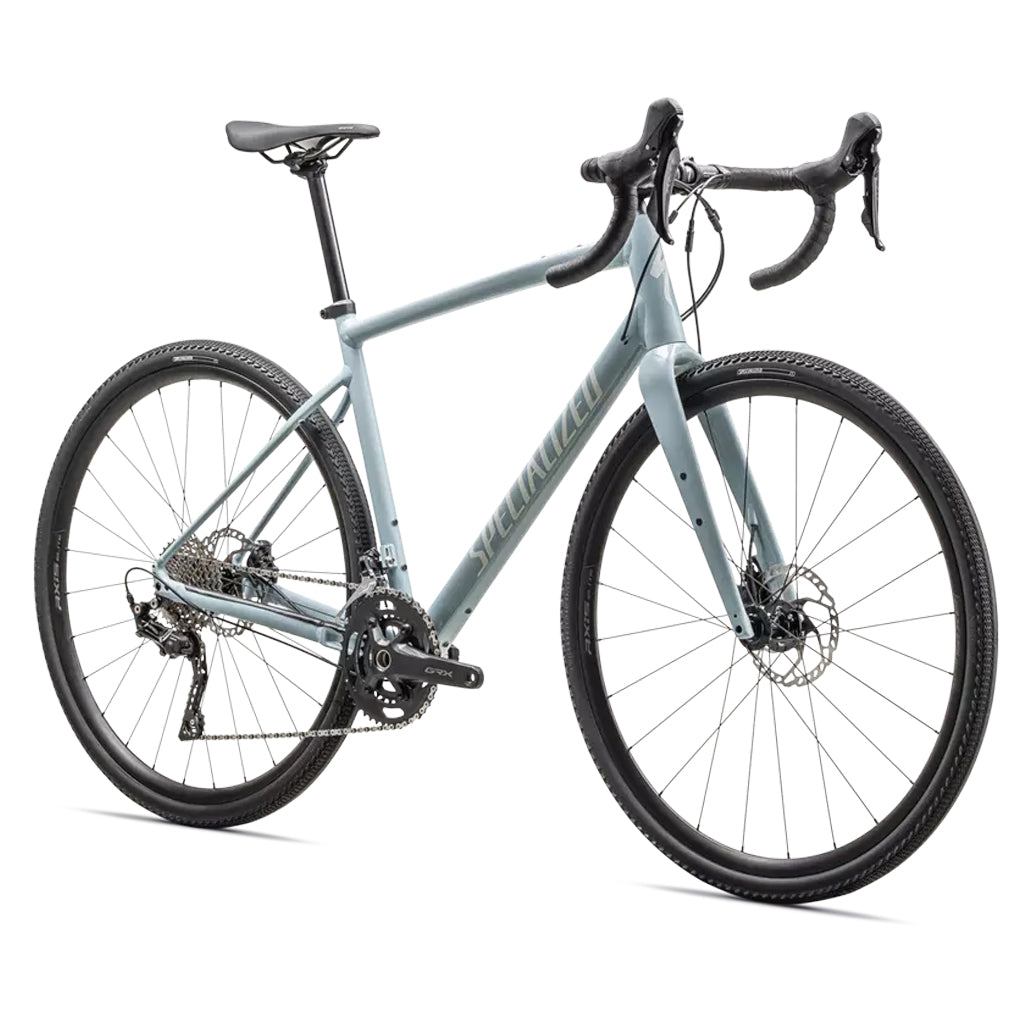

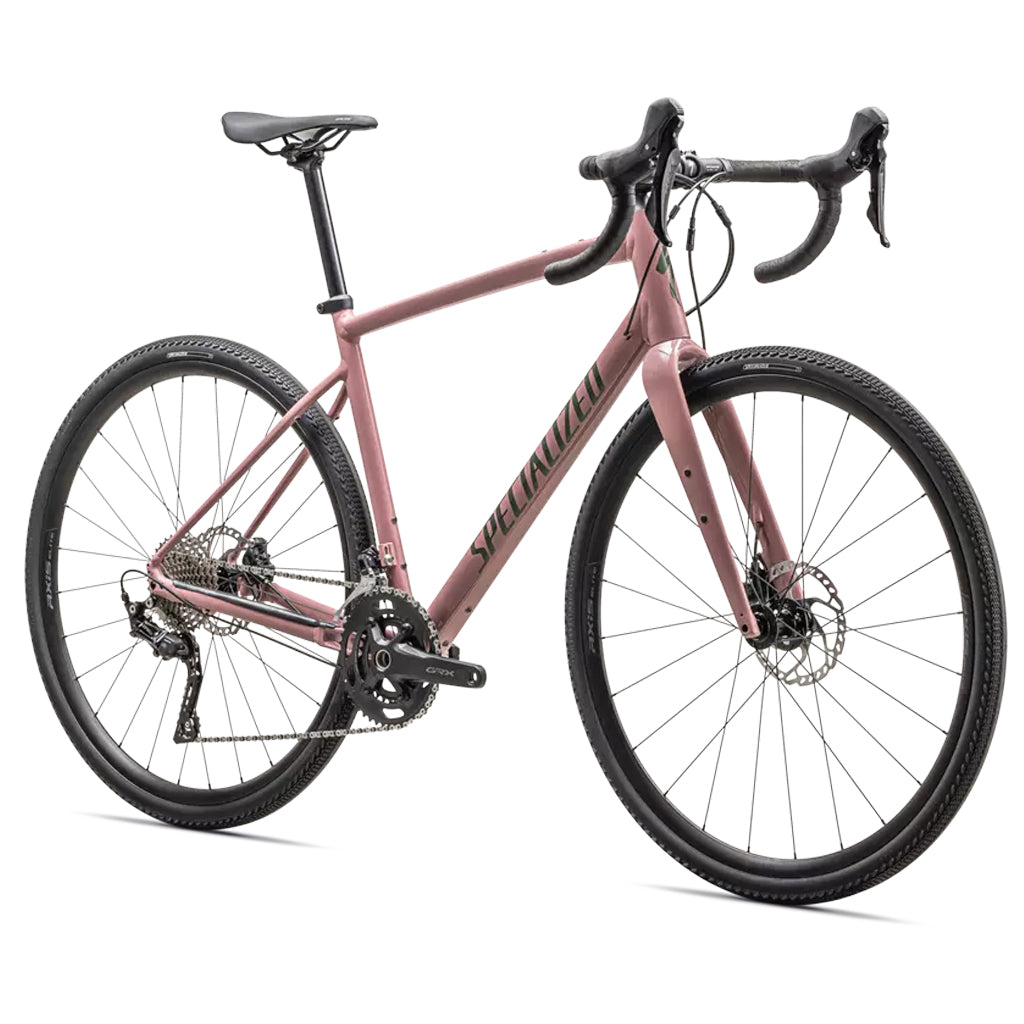

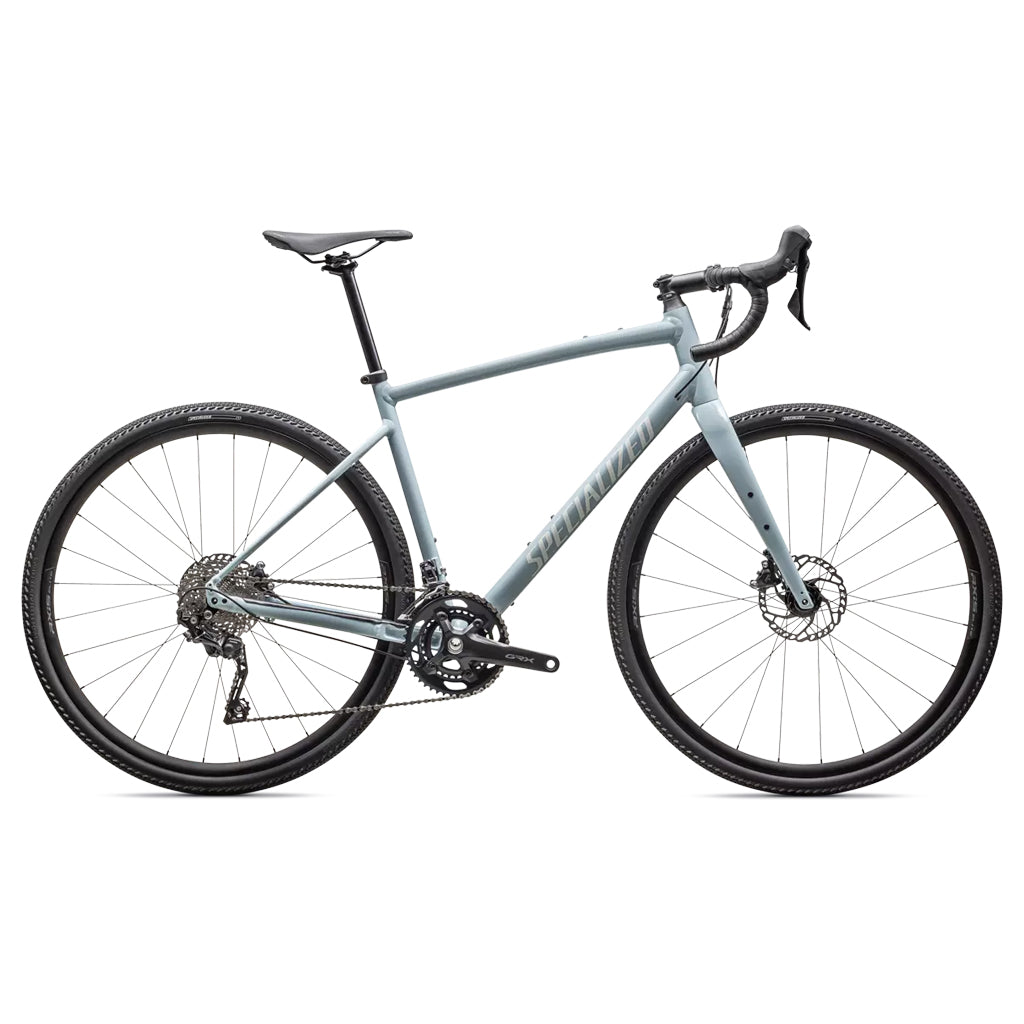

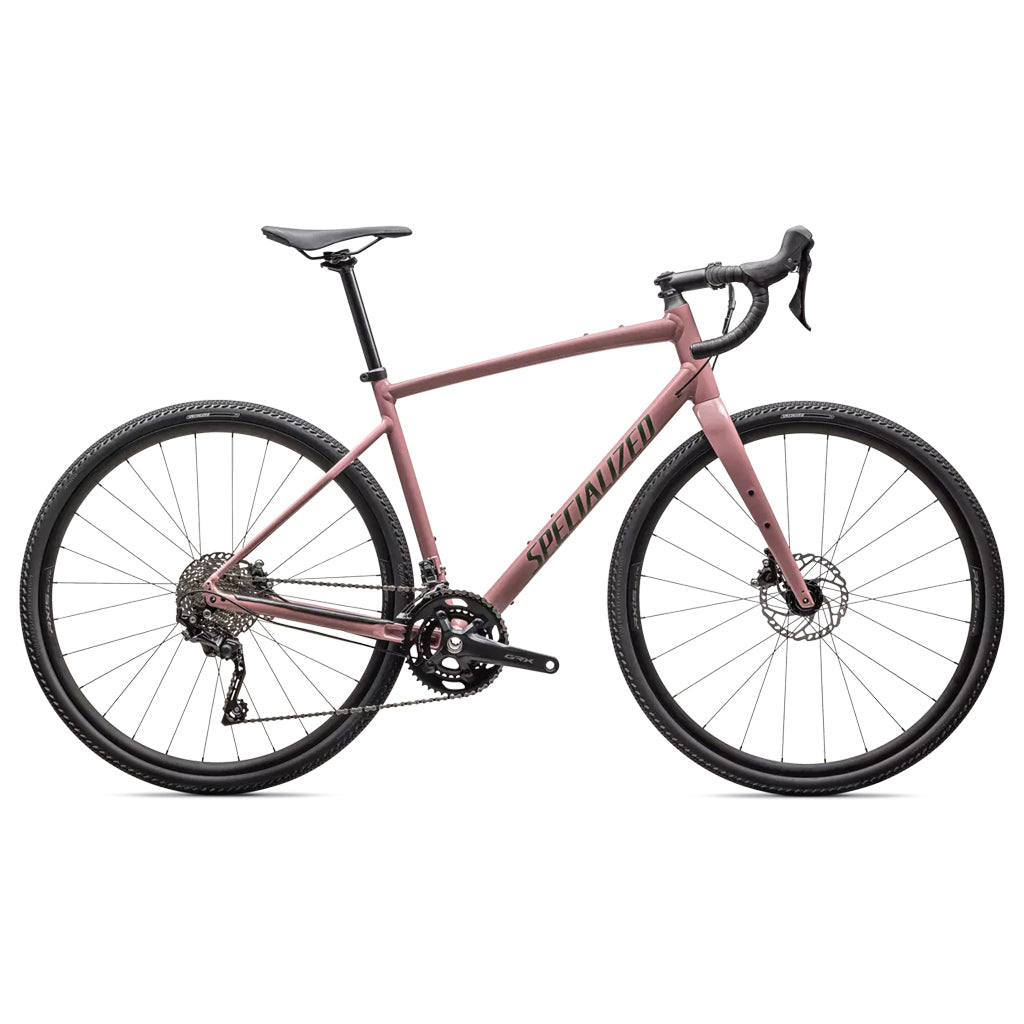

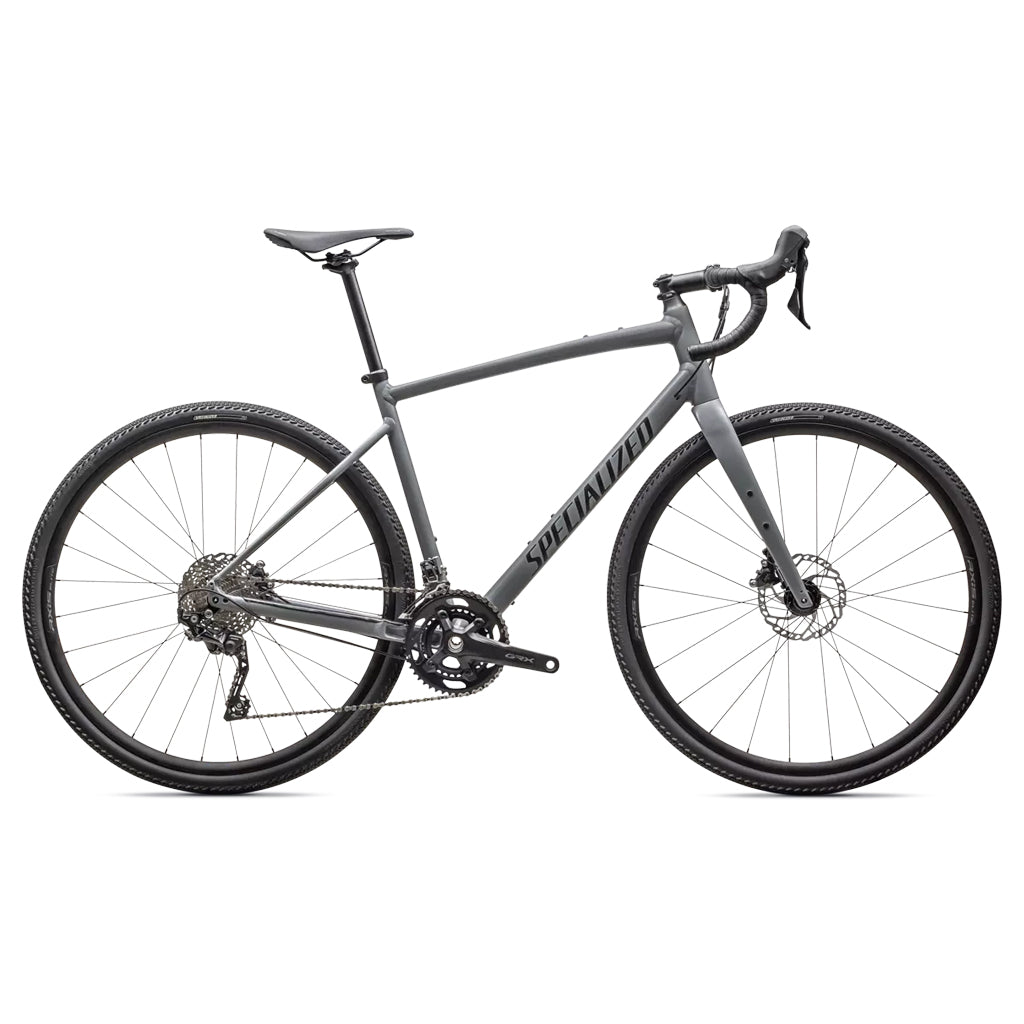

The Diverge Elite E5 utilizes our premium E5 alloy frame and a full carbon FACT fork for a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. Shimano’s gravel inspired GRX 400 group shifts 2x10 gears smoothly on any terrain and Axis Elite alloy wheels with 38mm Pathfinder tires provide an efficient ride on pavement with the versatility for hard pack dirt riding.
- Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge E5 becomes a light, lively and versatile bike ready to attack any surface.
- We tossed gravel geometry status quo out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability but high enough to utilize with 650b wheels if that’s your jam.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
Specifications
Frame
Specialized Diverge E5 Premium Aluminum, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork
FACT carbon, full carbon steerer, 12x100 mm thru-axle, flat-mount disc
Saddle
Body Geometry Bridge Saddle, steel rails
Stem
3D-forged alloy, 31.8mm, 7-degree rise
SeatPost
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Seat Binder
Specialized Alloy, 30.8mm
Handlebars
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Tape
Supacaz Suave
Front Brake
Shimano GRX, Hydraulic disc
Rear Brake
Shimano GRX, Hydraulic disc
Chainrings
46/30T
Shift Levers
Shimano GRX RX400 hydraulic brake levers, 2x10 speed mechanical shifting
Front Derailleur
Shimano GRX RX400, braze-on
Rear Derailleur
Shimano GRX RX400, 10-speed
Bottom Bracket
Shimano 68mm threaded
Crankset
Shimano GRX RX600
Chain
KMC X10, 10-speed w/ reusable Missing Link™
Cassette
Shimano CS-HG50-10, 10-Speed 11-36t
Rear Wheel
AXIS Elite Disc
Front Wheel
AXIS Elite Disc
Rear Tire
Specialized Pathfinder Sport, 700x38c
Front Tire
Specialized Pathfinder Sport, 700x38c
Inner Tubes
700x28/38mm, 48mm Presta valve
Weight
10.0kg (22 lb, .7 oz) 56cm
* Specifications are subject to change without notice
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 | 419 |
| B | Stack | 568 | 571 | 577 | 592 | 610 | 634 | 659 | 684 |
| C | Head Tube Angle | 69.5° | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° | 72.25° |
| D | Front Center | 604 | 607 | 614 | 620 | 630 | 647 | 664 | 675 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 1016 | 1019 | 1026 | 1032 | 1042 | 1059 | 1076 | 1088 |
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length | 99 | 99 | 104 | 116 | 133 | 159 | 185 | 209 |
| I | Top Tube Length | 515 | 529 | 542 | 558 | 573 | 589 | 605 | 628 |
| J | Seat Tube Angle | 74.5° | 74° | 73.75° | 73.5° | 73.5° | 73.5° | 73.5° | 73° |
| K | Standover Height | 683 | 700 | 725 | 754 | 779 | 805 | 832 | 859 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
| 64 | 6'5" - 6'9" | 196 - 205cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
