DESCRIPTION
Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.

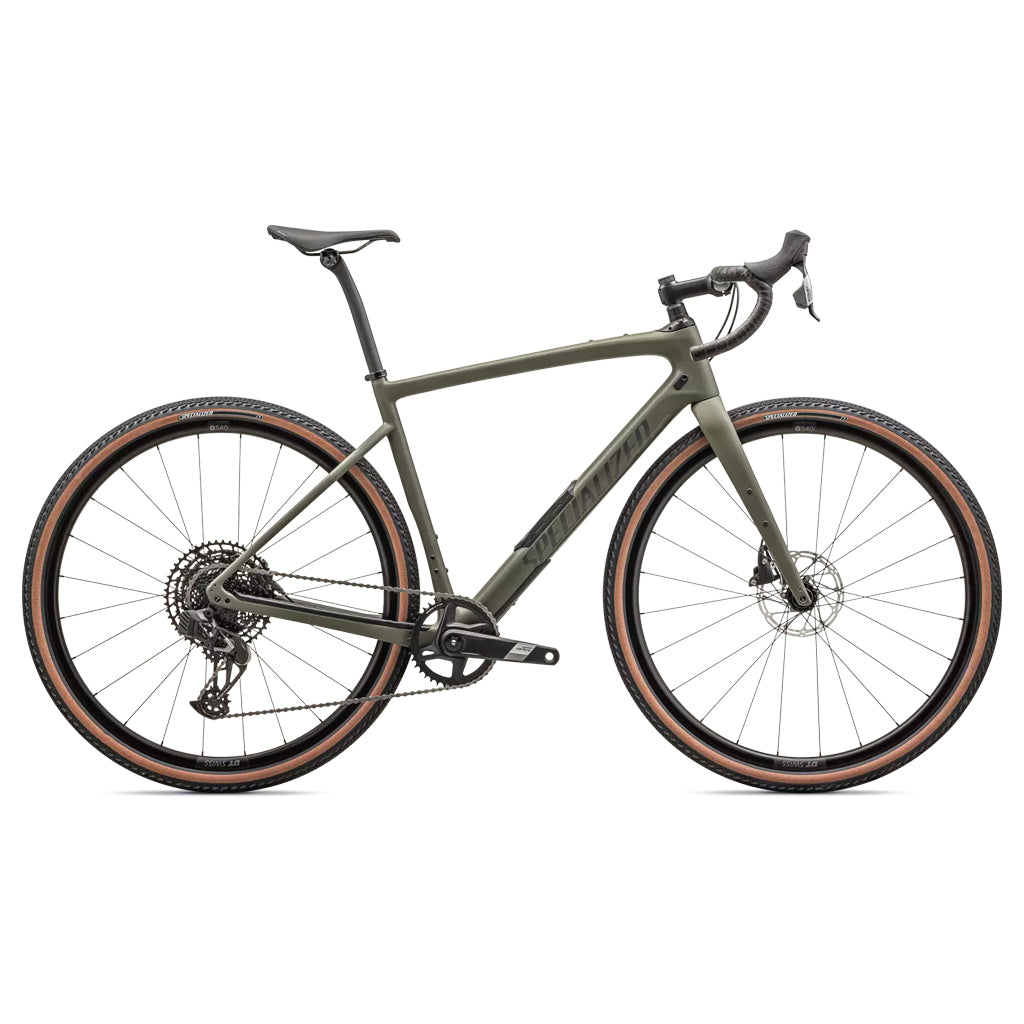

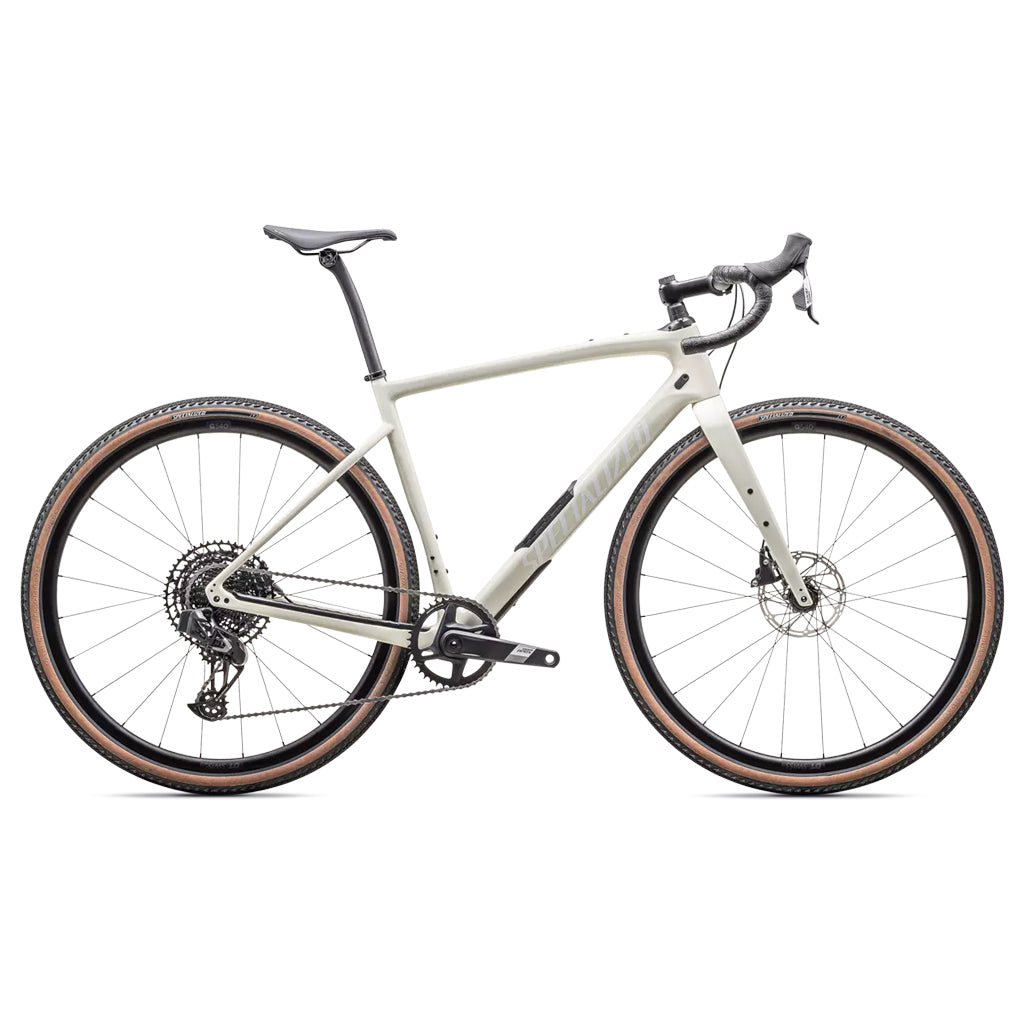

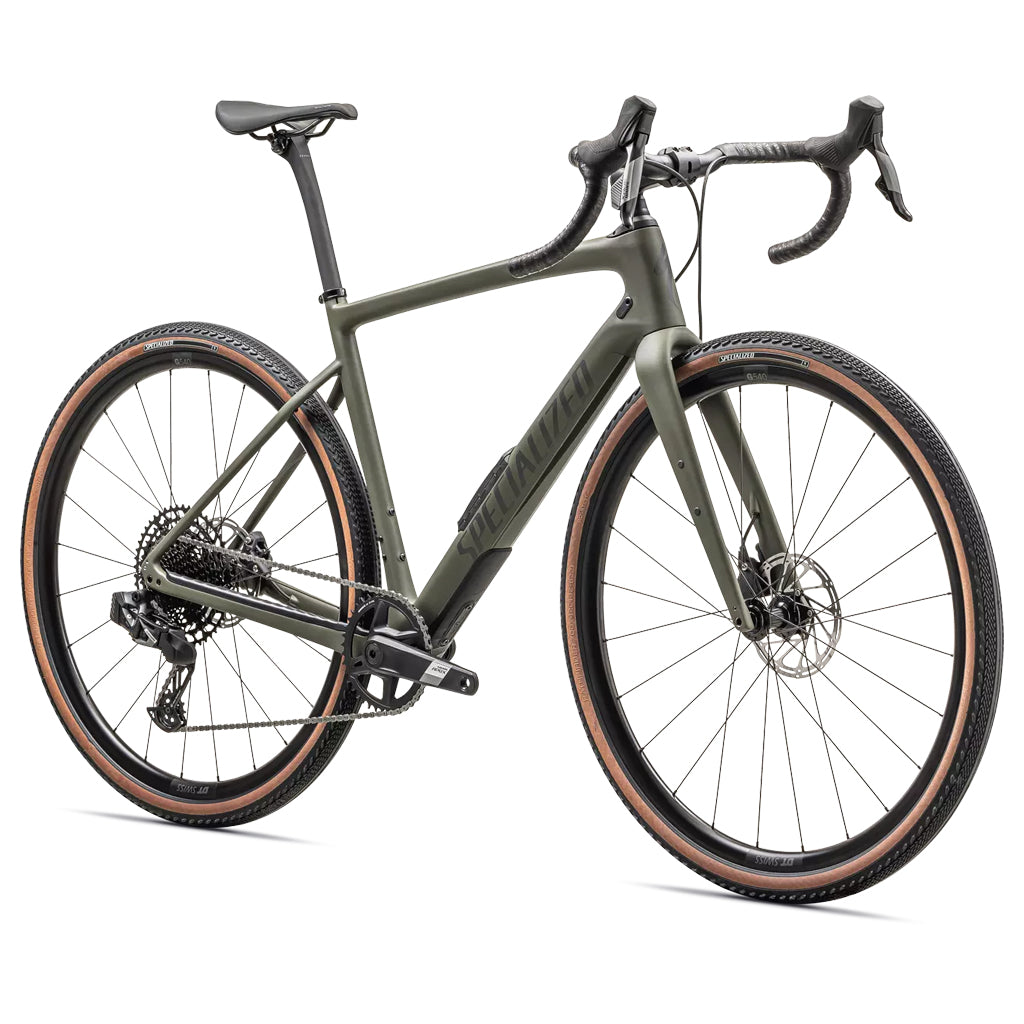

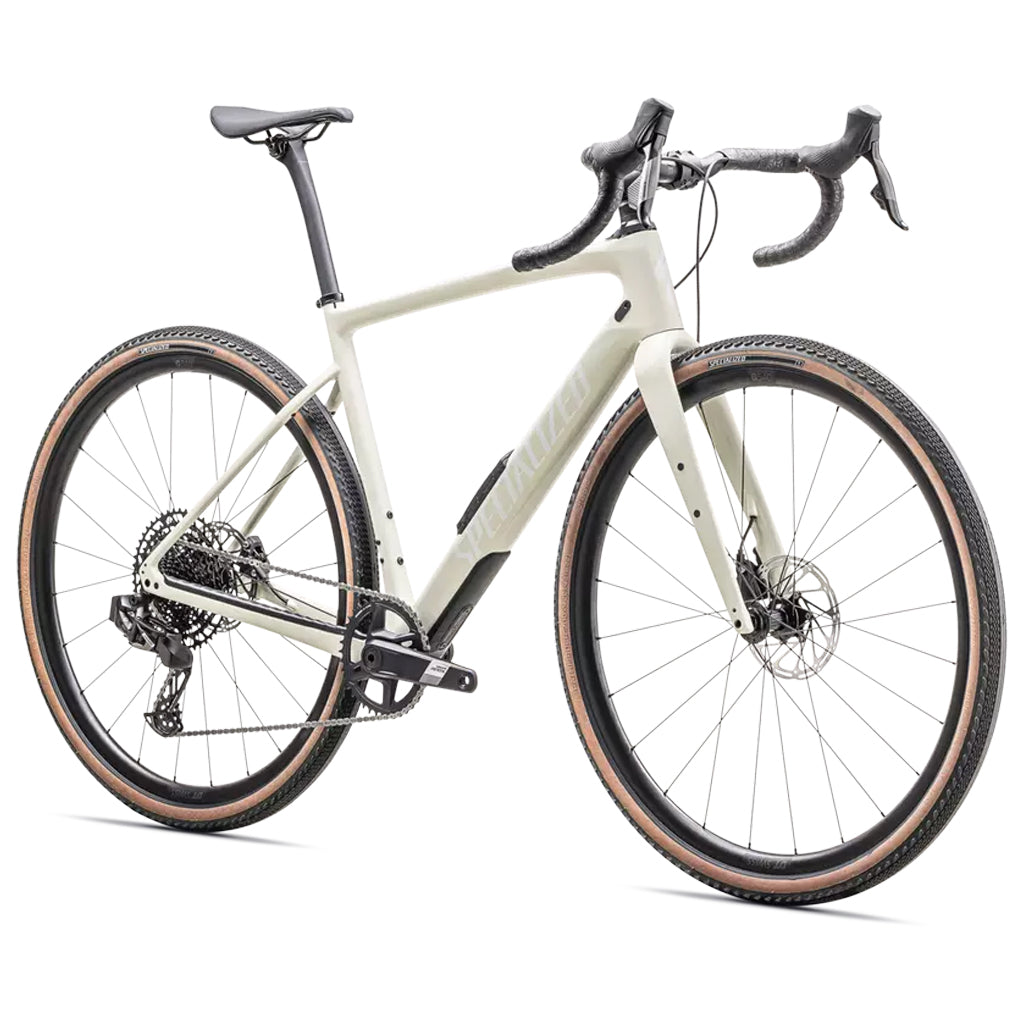

With a FACT 9r carbon frame and Future Shock 2.0, the Diverge Comp will have you riding faster and more confidently over more terrain than you ever imagined possible. SRAM’s wireless Apex eTap AXS 12-speed groupset delivers quick, crisp shifting and alloy DT Swiss G540 wheels keep you rolling efficiently, while Unbound winning Pathfinder Pro 42mm tires deliver performance across smooth pavement, dirt roads and gravel tracks. To give the Diverge Comp a perfectly balanced ride we spec Roval’s Terra seat post.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
- With a FACT 9r carbon frame, the Diverge frame is incredibly capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant backcountry peak, the light and lively Diverge will get you there faster.
- Speed, control, and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider, not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick, loose gravel while keeping your hands, arms, and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).
Specifications
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork
Future Shock 2.0 w/Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 30.8mm
Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Front Brake
SRAM Apex eTAP AXS, hydraulic disc
Rear Brake
SRAM Apex eTAP AXS, hydraulic disc
Chainring
40T
Shift Levers
SRAM Apex eTap AXS
Rear Derailleur
Shimano GRX R810, 11speed
Bottom Bracket
SRAM DUB BSA
Crankset
SRAM Apex DUB Wide
Chain
SRAM, NX Eagle, 12-speed
Cassette
SRAM PG1210, 12-Speed, 11-50t
Inner Tubes
700x28/38mm, 48mm Presta valve
Rear Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Tire
Pathfinder Pro 2BR, Tan sidewall, 700x42
Front Tire
Pathfinder Pro 2BR, Tan sidewall, 700x42
SWAT
Integrated SWAT door, internal storage system
Weight
9.99kg (22lbs, .4oz) 56cm
* Specifications are subject to change without notice
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 | 419 |
| B | Stack | 568 | 571 | 577 | 592 | 610 | 634 | 659 | 684 |
| C | Head Tube Angle | 69.5° | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° | 72.25° |
| D | Front Center | 604 | 607 | 614 | 620 | 630 | 647 | 664 | 675 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 1016 | 1019 | 1026 | 1032 | 1042 | 1059 | 1076 | 1088 |
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length | 99 | 99 | 104 | 116 | 133 | 159 | 185 | 209 |
| I | Top Tube Length | 515 | 529 | 542 | 558 | 573 | 589 | 605 | 628 |
| J | Seat Tube Angle | 74.5° | 74° | 73.75° | 73.5° | 73.5° | 73.5° | 73.5° | 73° |
| K | Standover Height | 683 | 700 | 725 | 754 | 779 | 805 | 832 | 859 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
| 64 | 6'5" - 6'9" | 196 - 205cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
