Specialized Demo Race Frameset

Specialized Demo Race Frameset

210000085046

$3,999.99 CAD
/
Shipping Canada Wide

The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction, and maneuverability while allowing for unmatched versatility.

Colour
Size

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

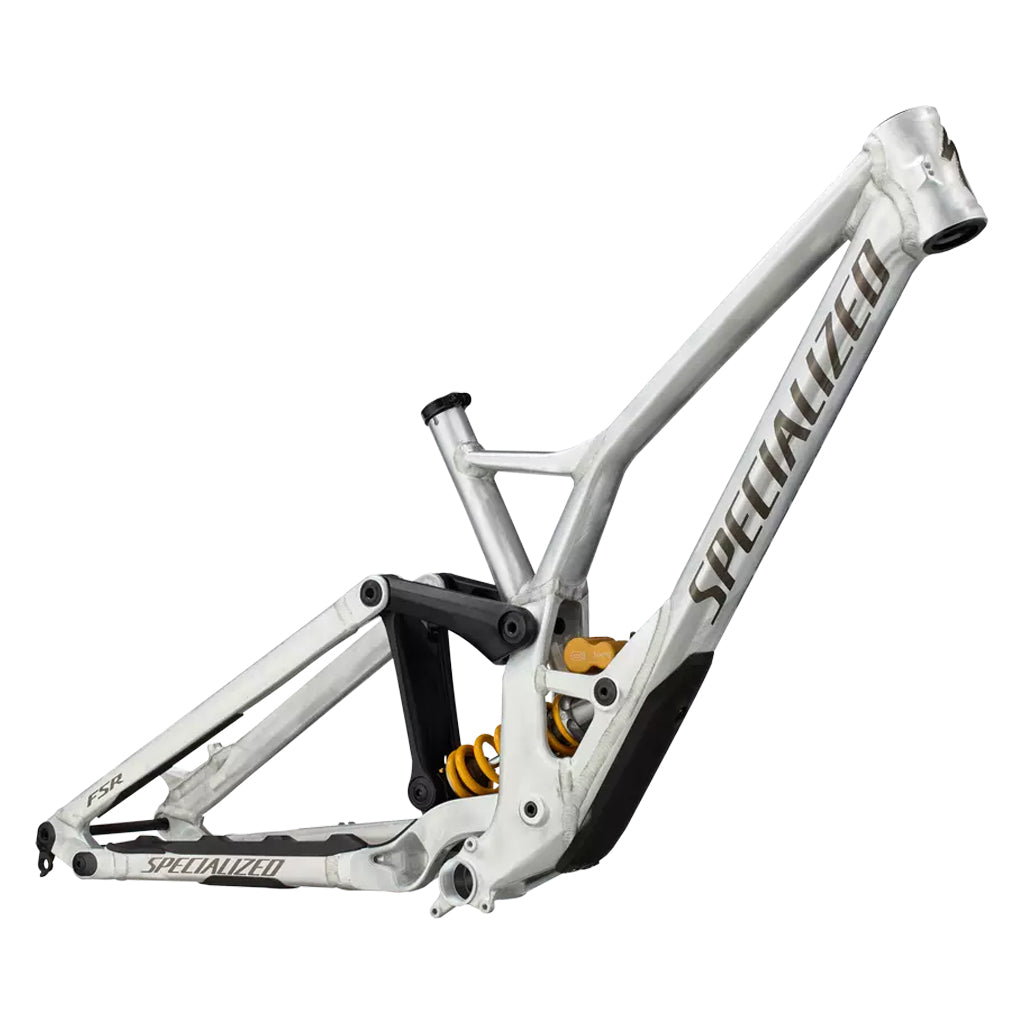

Specialized Demo Race Frameset

The Specialized Demo Race M5 alloy frame is fully optimized to take advantage of the benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaining the ability to change your rear wheel size to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.

The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.

With superb small bump tracking and the ability to soak up landings from even the heftiest drop, the Öhlins DH38 m.1 fork’s 200-millimeters of travel will give you smoother, faster, and more confident feeling runs than anything you’ve ridden before.

Specifications

Frame M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

Seat Binder Alloy, 34.9mm

Rear Shock Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75

SeatPost Thomson, alloy, straight, 12-degree clamp

Saddle Body Geometry Henge DH, hollow titanium rails, 130mm

Weight 5.92kg (13 lb, 8 oz) S3

*Specifications are subject to change without notice

Geometry

S2 S3 S4
A Reach 426 446 466
B Stack 632 632 632
C Head Tube Angle 62.8° 62.8° 62.8°
D Seat Tube Length 394 420 420
E Front Center 801 821 841
F Bottom Bracket Height 350 350 350
G Bottom Bracket Drop 25 25 25
H Wheelbase 1249 1269 1289
I Chainstay Length 438 438 438
J Head Tube Length 105 105 105
L Seat Tube Angle 77.8° 76.4° 76.4°
ALL MEASUREMENTS IN DEGREES OR MILLIMETRES

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team
Size Height
Imperial Metric
S2 5'2" - 5'9" 158 - 175cm
S3 5'5" - 6'0" 165 - 183cm
S4 5'8" - 6'4" 173 - 193cm
