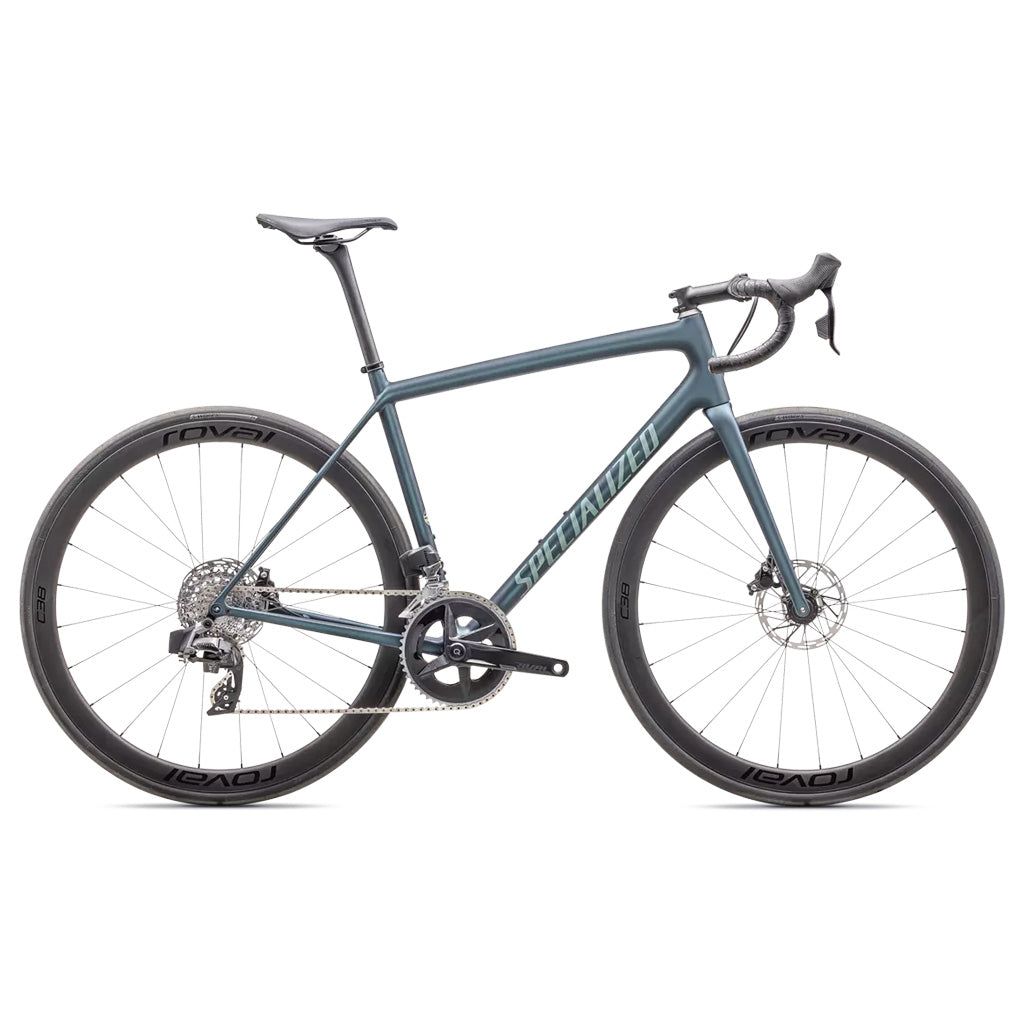

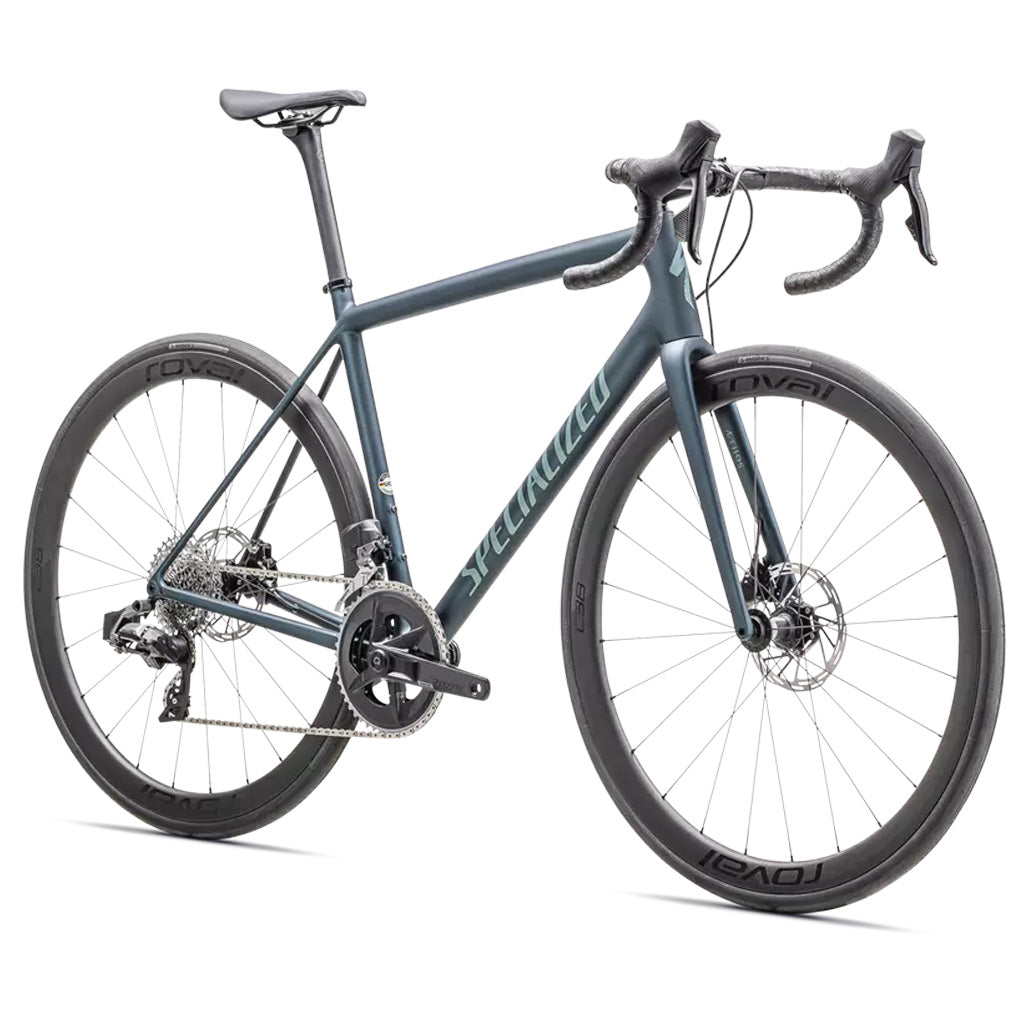

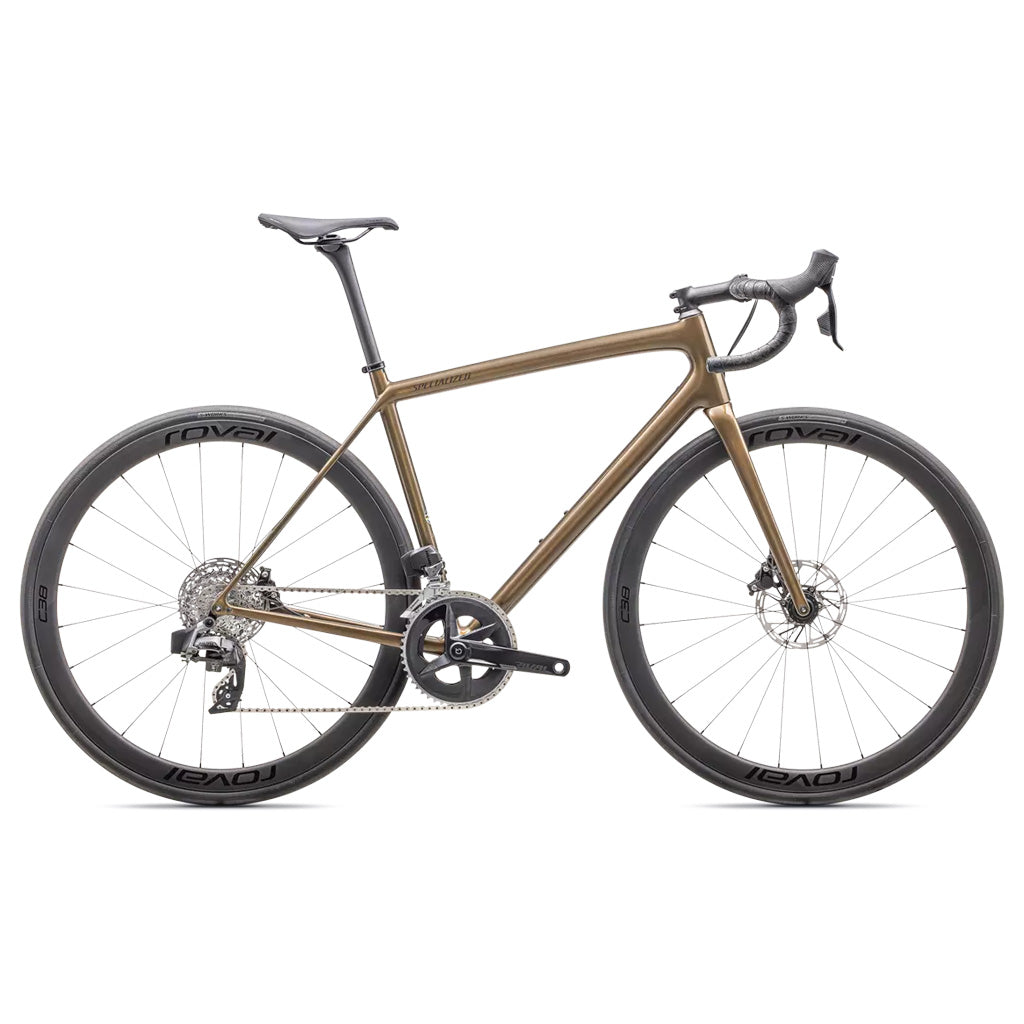

Specialized Aethos Expert Rival eTap AXS
Specifications
Frame Aethos FACT 10R Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake SRAM Rival eTAP AXS, hydraulic disc
Rear Brake SRAM Rival eTAP AXS, hydraulic disc
Shift Levers SRAM Rival eTap AXS
Front Derailleur SRAM Rival eTAP AXS, braze-on
Rear Derailleur SRAM Rival eTap AXS, 12-speed
Cassette SRAM Rival, 12-speed, 10-36t
Chain SRAM Rival 12-speed
Crankset SRAM Rival DUB, Power Meter, 48-35t
Chainrings 48/35T
Bottom Bracket SRAM DUB BSA 68
Front Wheel Roval C38, 21mm internal width carbon rim, tubeless ready
Rear Wheel Roval C38, 21mm internal width carbon rim, tubeless ready
Front Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x28mm
Rear Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x28mm
Inner Tubes 700x20-28, 48mm Presta Valve
Tape Supacaz Super Sticky Kush
Stem Specialized Pro SL, alloy, 4-bolt
Handlebars Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach
Saddle Body Geometry Power Expert
Seatpost Roval Alpinist Carbon Seatpost
Seat Binder Specialized Alloy, 30mm
Weight 7.54kg (16 lb, 10 oz) 56cm
Geometry

49 | 52 | 54 | 56 | 58 | 61 | ||
---|---|---|---|---|---|---|---|
A | Reach | 375 | 380 | 384 | 395 | 402 | 408 |
B | Stack | 514 | 527 | 544 | 565 | 591 | 612 |
C | Head Tube Angle | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
D | Front Centre | 574 | 577 | 579 | 591 | 606 | 613 |
E | Bottom Bracket Drop | 74 | 74 | 72 | 72 | 72 | 72 |
F | Wheelbase | 973 | 975 | 978 | 991 | 1005 | 1012 |
G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
H | Head Tube Length | 109 | 120 | 137 | 157 | 184 | 204 |
I | Top Tube Length | 508 | 531 | 540 | 562 | 577 | 595 |
J | Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
K | Standover Height | 705 | 728 | 748 | 769 | 796 | 824 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
49 | 5'1" - 5'5" | 155 - 163cm |
52 | 5'4" - 5'7" | 163 - 170cm |
54 | 5'7" - 5'9" | 170 - 175cm |
56 | 5'9" - 5'11" | 175 - 180cm |
58 | 5'11" - 6'2" | 180 - 188cm |
61 | 6'2" - 6'5" | 188 - 196cm |
