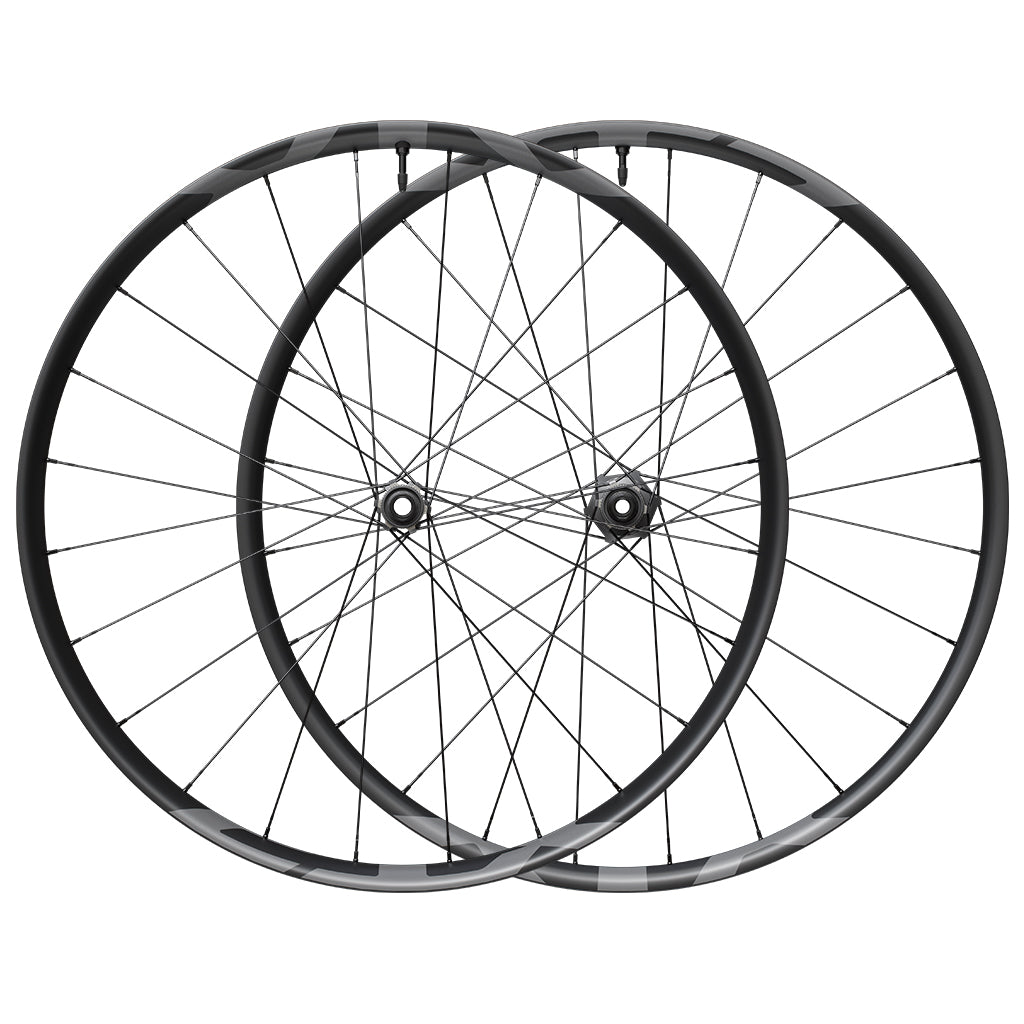

Shimano XTR WH-M9200 29" XC 24H Centre Lock Disc-Brake Wheelset

Featherweight wheels designed for the XC racer (or racer at heart), built around Shimano’s lightest-ever carbon tubeless 29.6 mm hooked rim, laced with titanium straight spokes, and spinning on more reliable, higher-performing XTR hubs. Along with being the lightest production ever produced in the XTR family, WH-M9200 wheels also feature Centerlock brake mounts and MICRO SPLINE to complete the full XC package.

FEATURES

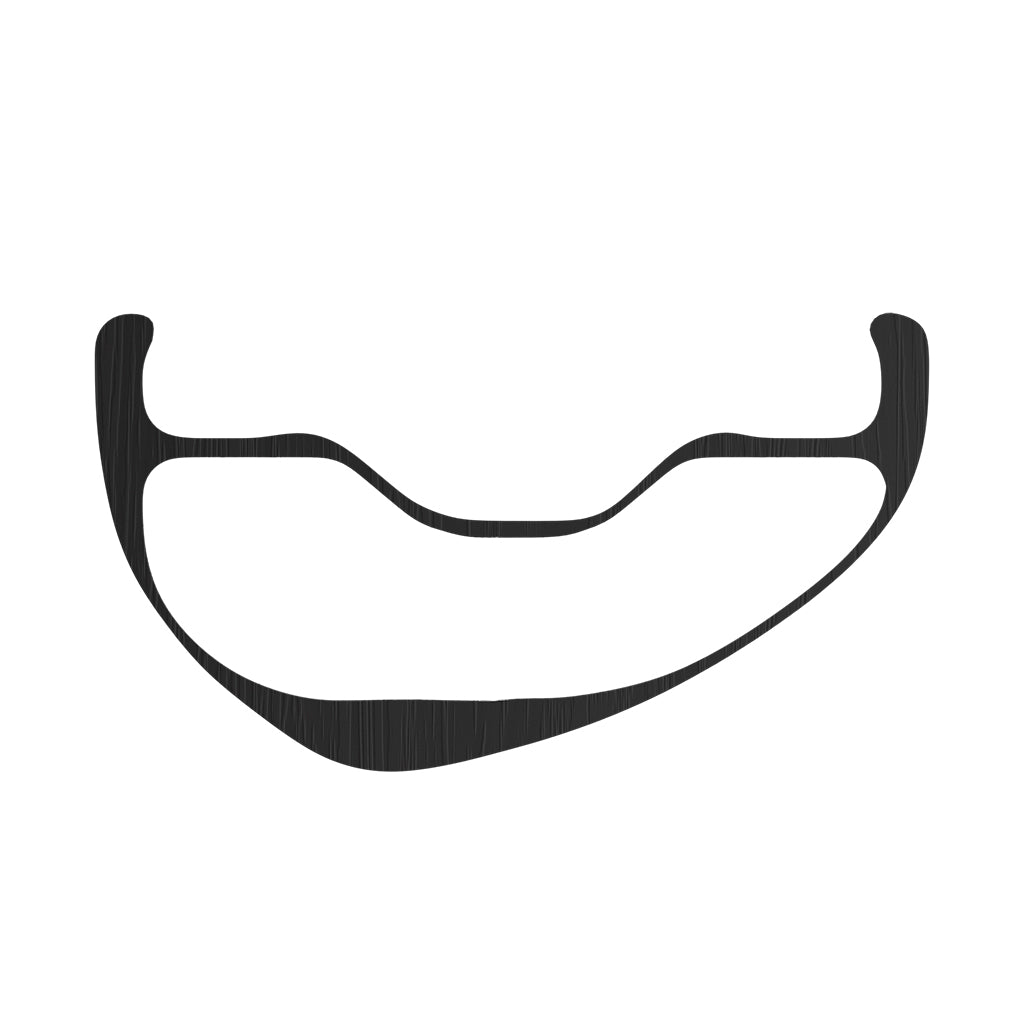

• Carbon Rim: 29.6 mm full-carbon rim keeps the wheel light but robust enough for high-level XC racing.

• Titanium Spokes/24H Straightlaced: 29-inch rims.

• 110x15 front hub boost spacing and titanium spokes balance weight and strength.

• 148x12 rear hub boost spacing and titanium spokes balance weight and strength.

• Cartridge Bearings: XTR hubs are now available with easily serviceable cartridge bearings.

• Quicker Engagement/Less Drag: A 3.5-degree engagement angle makes the FH-M9210-B fast off the line, while smart seal design and smooth bearings mean less drag when coasting.

• Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.

SPECIFICATIONS
Freehub Body: MICRO SPLINE
Rear Hub Engagement Type: Direct Engagement
Height: 19.2mm
Internal width: 29.6mm
External width: 35mm
Requires rim tape: (30-622)
Spoke Count: 24
Spoke Type: Straight pull
Front OLD: 110mm
Rear OLD: 148mm

SKUs
Product Code: EWHM9200LFEREBD9X
Model No: WH-M9200-B-29
