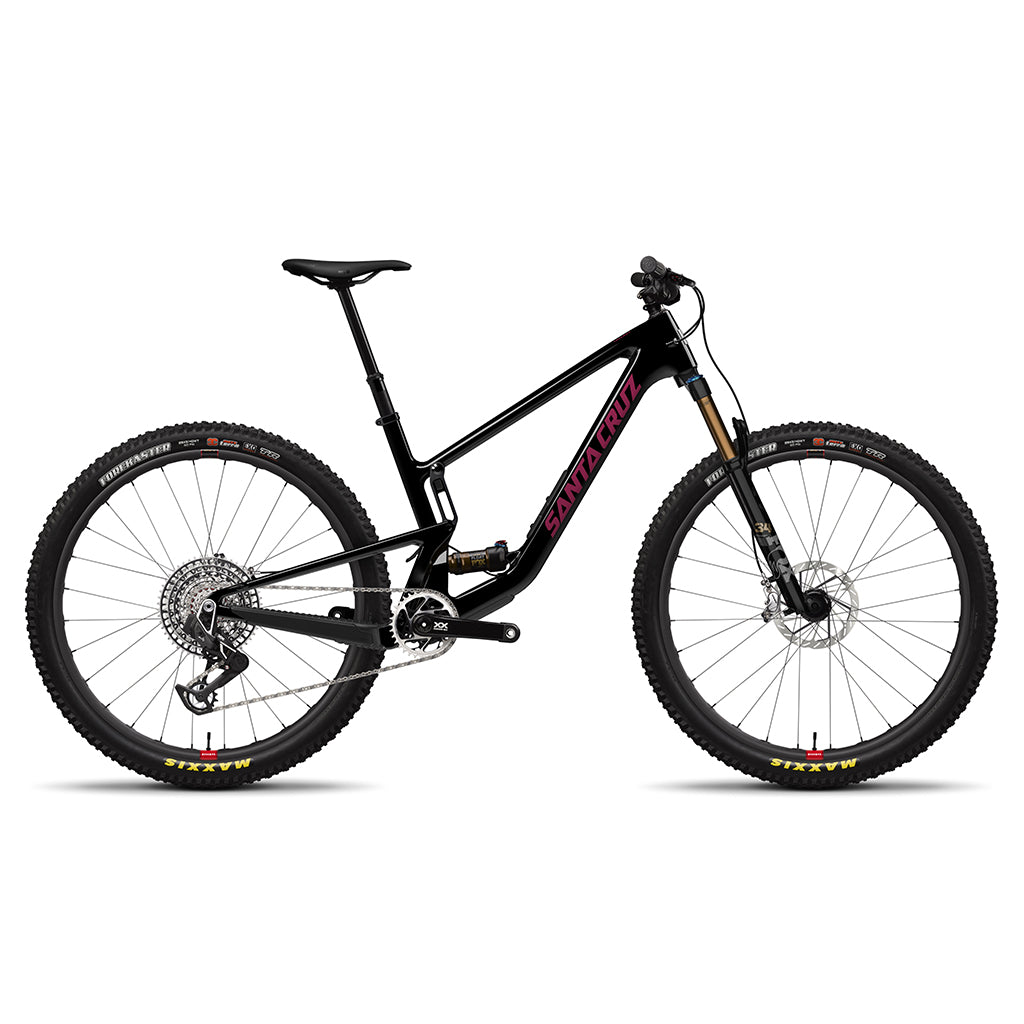

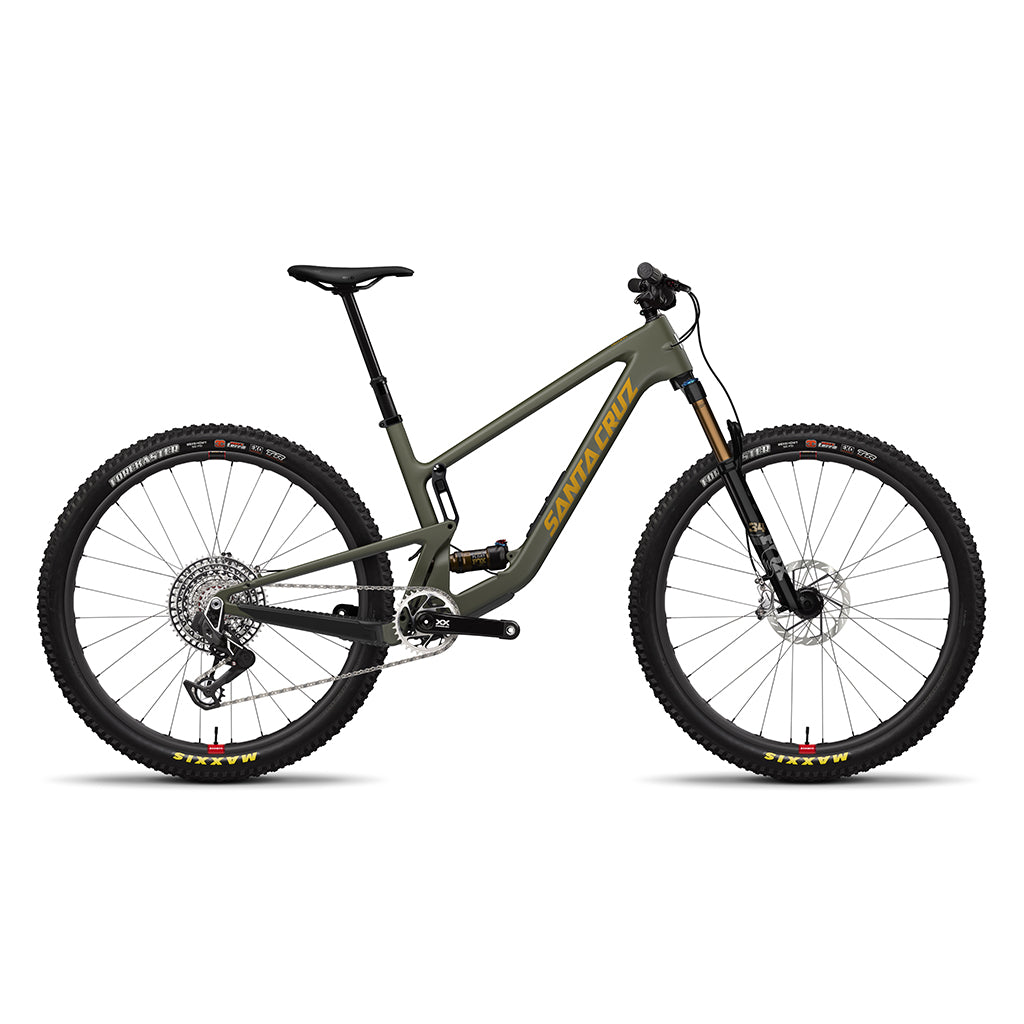

Santa Cruz Tallboy 5 CC 29 XX SL AXS Reserve
Specifications
FrameCarbon CC 29" 120mm Travel VPP™
Rear ShockFOX Float Factory, 190x45
ForkFOX 34 Float Factory, Grip X, 130mm
Rear DerailleurSRAM XX SL Eagle AXS T-Type, 12-Speed
ShifterSRAM AXS Pod Controller Rocker Paddle
CassetteSRAM XX SL Eagle T-Type, 10-52t
ChainSRAM XX SL Eagle T-Type, Flattop, 12-Speed
Bottom BracketSRAM DUB 68/73mm Threaded BB
HeadsetChris King DropSet 3 Integrated Headset
Rear TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Front TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Front HubIndustry Nine Hydra, 15x110, 6-Bolt, 28h
Front RimReserve 30|SL Carbon
Rear HubIndustry Nine Hydra, 12x148, XD, 6-Bolt, 28h
Rear RimReserve 30|SL Carbon
Front RotorSRAM HS2 180mm
Rear RotorSRAM HS2 180mm
BrakesSRAM Code Ultimate Stealth
CranksetSRAM XX SL Eagle DUB T-Type Crankset, 32t
HandlebarSanta Cruz 20 Carbon Bar, 760mm
StemIndustry Nine A35, 40mm
SaddleWTB Silverado Medium Fusion, Stainless
SeatpostOneUp Dropper Post, 31.6
Grips/Bar TapeSanta Cruz Bicycles House Grips
Geometry

XS | S | M | L | XL | XXL | ||
---|---|---|---|---|---|---|---|
hi | lo | hi | lo | hi | lo | hi | lo | hi | lo | hi | lo | ||
A | Reach | 405 | 403 | 430 | 428 | 455 | 453 | 475 | 473 | 495 | 493 | 520 | 518 |
B | Stack | 601 | 603 | 610 | 612 | 619 | 621 | 628 | 630 | 646 | 648 | 656 | 658 |
C | Head Tube Angle | 65.7 | 65.5 | 65.7 | 65.5 | 65.7 | 65.5 | 65.7 | 65.5 | 65.7 | 65.5 | 65.7 | 65.5 |
D | Seat Tube Length | 370 | 370 | 380 | 380 | 405 | 405 | 430 | 430 | 460 | 460 | 500 | 500 |
E | Front Centre | 708 | 708 | 737 | 737 | 766 | 766 | 790 | 790 | 818 | 818 | 847 | 847 |
F | Bottom Bracket Height | 335 | 332 | 335 | 332 | 335 | 332 | 335 | 332 | 335 | 332 | 335 | 332 |
G | Bottom Bracket Drop | 38 | 41 | 38 | 41 | 38 | 41 | 38 | 41 | 38 | 41 | 38 | 41 |
H | Wheelbase | 1138 | 1138 | 1167 | 1167 | 1199 | 1199 | 1227 | 1227 | 1257 | 1258 | 1290 | 1291 |
I | Rear Centre | 430 | 431 | 430 | 431 | 433 | 434 | 437 | 438 | 439 | 440 | 443 | 444 |
J | Head Tube Length | 95 | 95 | 105 | 105 | 115 | 115 | 125 | 125 | 145 | 145 | 160 | 160 |
K | Top Tube Length | 555 | 556 | 579 | 580 | 602 | 603 | 622 | 623 | 644 | 645 | 671 | 671 |
L | Seat Tube Angle | 76 | 75.7 | 76.3 | 76 | 76.7 | 76.4 | 76.8 | 76.6 | 77 | 76.8 | 77.1 | 76.8 |
M | Standover Height | 680 | 676 | 693 | 691 | 696 | 693 | 698 | 695 | 698 | 695 | 701 | 698 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | |
---|---|---|
Imperial | Metric | |
XS | 4'8" - 5'1" | 142 - 155cm |
S | 5'1" - 5'5" | 155 - 165cm |
M | 5'5" - 5'9" | 165 - 175cm |
L | 5'9 - 6'1" | 175 - 185cm |
XL | 6'1" - 6'4" | 185 - 193cm |
XXL | 6'4" - 6'7" | 193 - 201cm |
