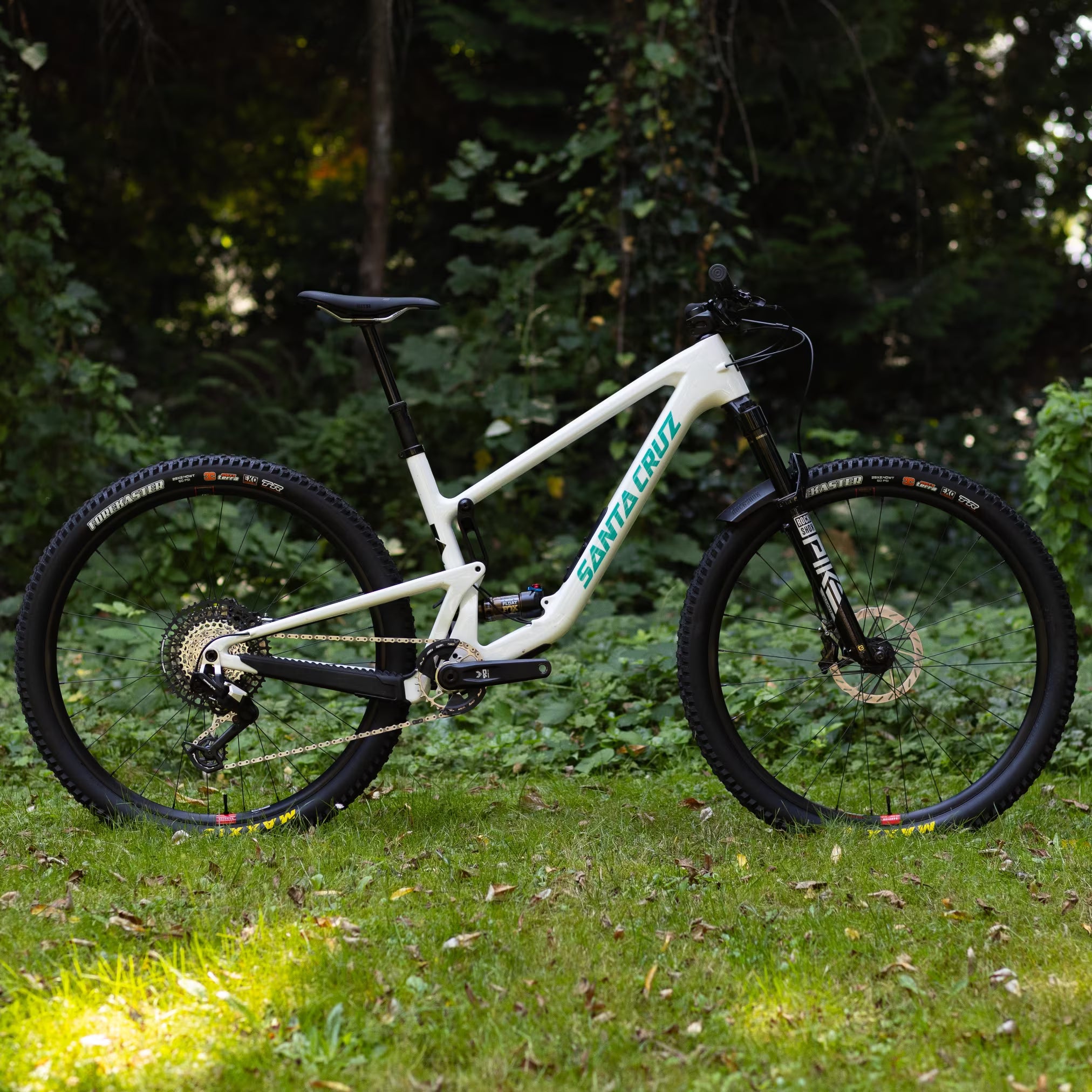

Santa Cruz Tallboy 5 CC 29 Custom White L (Demo)

$7,799.99

The Santa Cruz Tallboy combines 120mm of rear travel with a FOX Float Factory shock and a 130mm RockShox Pike Ulitmate. Its 29” wheels and lightweight build make it perfect for fast, efficient trail riding. A new SRAM 90 Transmission drivetrain has been installed, as well as new Reserve 30|SL AL wheels.

*Some small marks in the RideWrap near the rear shock on the driveside.


210000130312
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us

Santa Cruz Tallboy 5 CC 29 Custom White L (Demo)

Santa Cruz Tallboy 5 CC 29 Custom White L (Demo)

$7,799.99

The Downhiller's XC Bike

Santa Cruz Tallboy 5 CC 29 Custom White L (Demo)

The Santa Cruz Tallboy is the perfect blend of cross-country efficiency and downhill capability, making it the ideal choice for riders who demand versatility. With a 120mm VPP™ rear travel and a 130mm fork, the Tallboy offers a snappy, responsive ride that excels on both long climbs and technical descents. Its refined suspension system, featuring a reduced progression and a lower peak anti-squat, enhances both small bump sensitivity and big hit compliance, providing a smoother and more controlled experience. The proportional geometry adjusts the frame's design based on size, ensuring each rider benefits from optimal handling and comfort.

Built to withstand the rigors of aggressive riding, the Tallboy's C and CC carbon frames are lightweight yet robust, perfect for everything from all-day epics to "power hour" laps. With thoughtful features like the Glovebox™ for storing essentials and a progressive leverage curve for predictable support, the Tallboy delivers a unique combination of agility and stability. Santa Cruz backs the Tallboy with a lifetime warranty on frames and bearings, supported by a team of real riders who know what it takes to keep your bike on the trail.

Features

Specifications

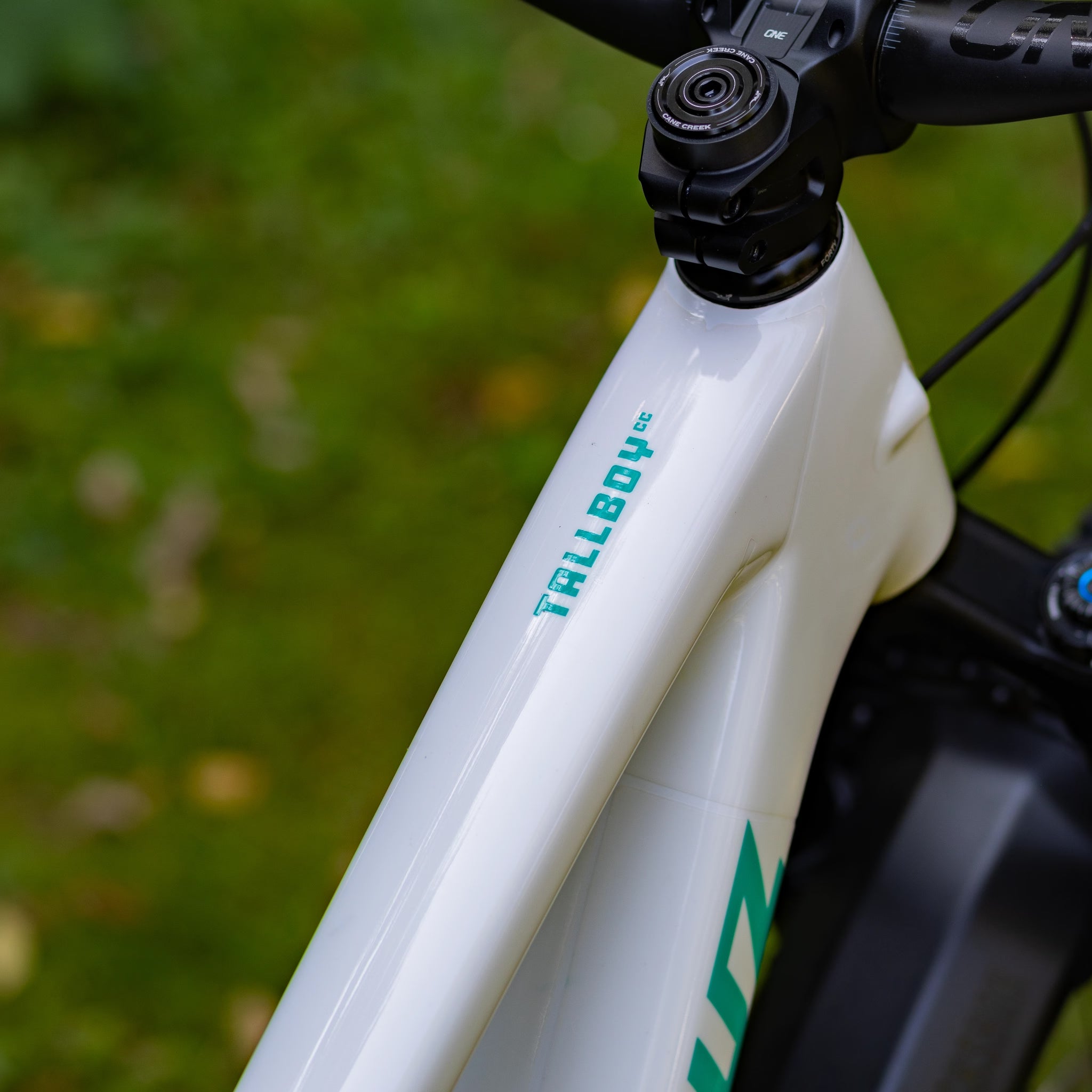

Frame Tallboy 5 CC Frame Large White with RideWrap installed

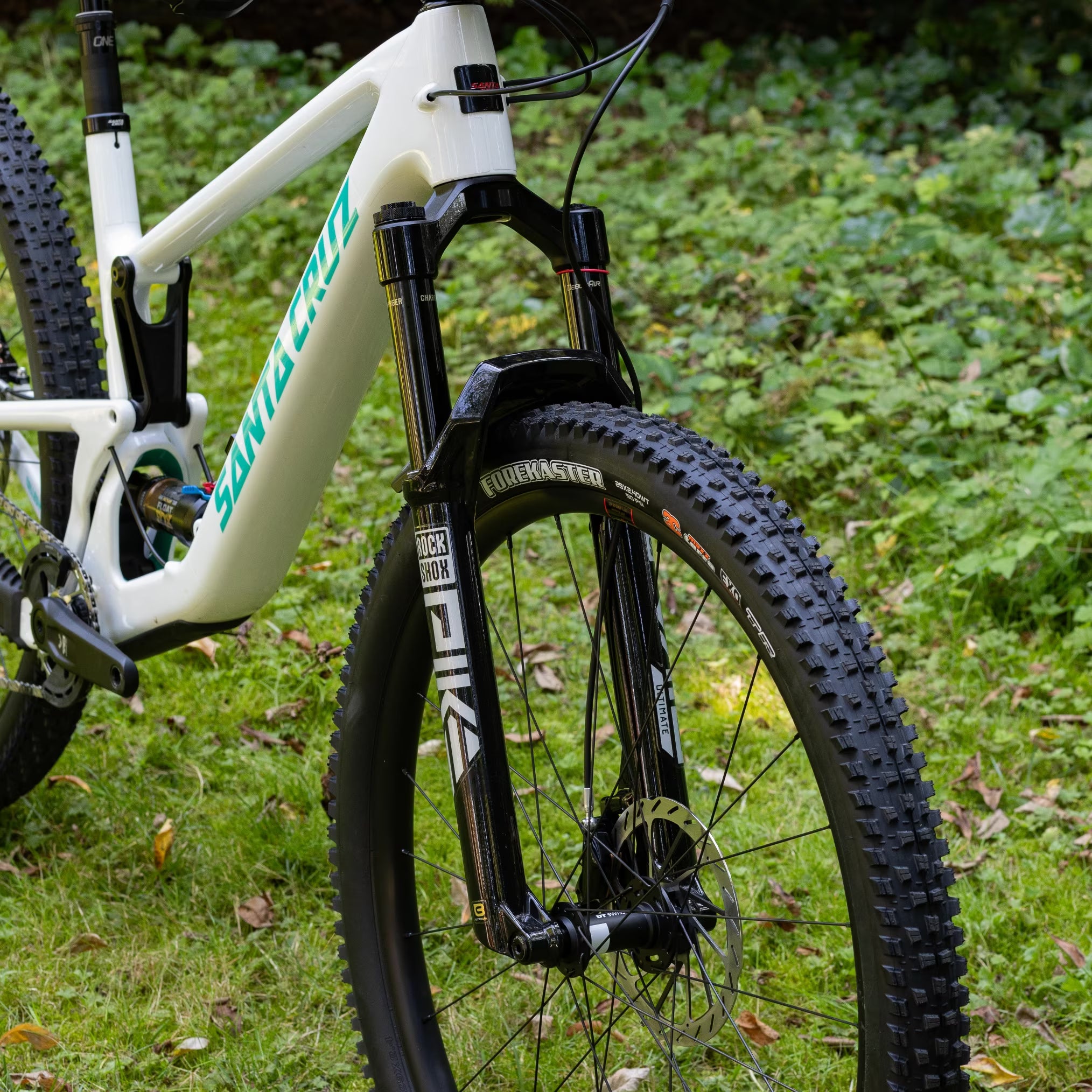

Fork RockShox Pike Ultimate 130mm

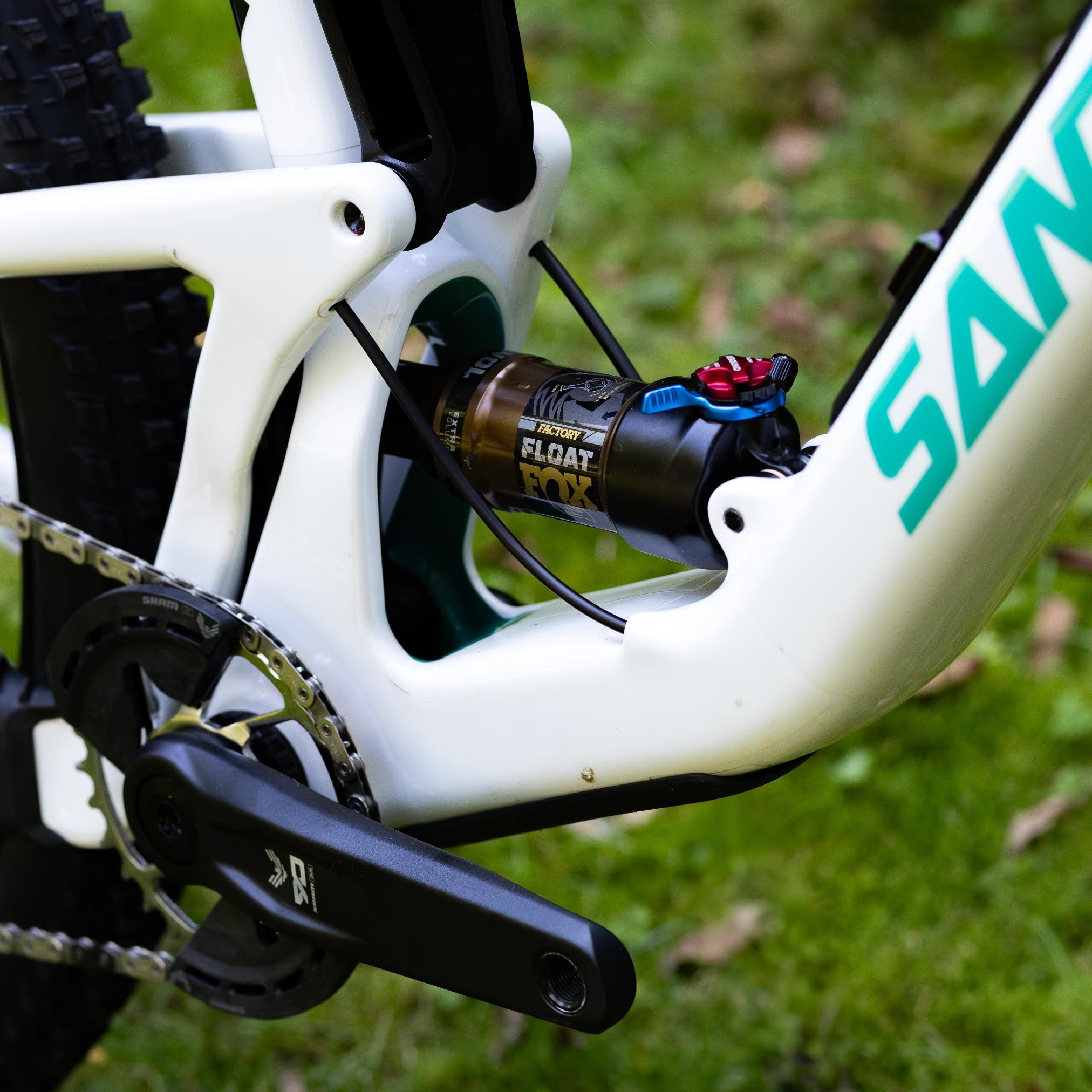

Shock Fox Float Factory

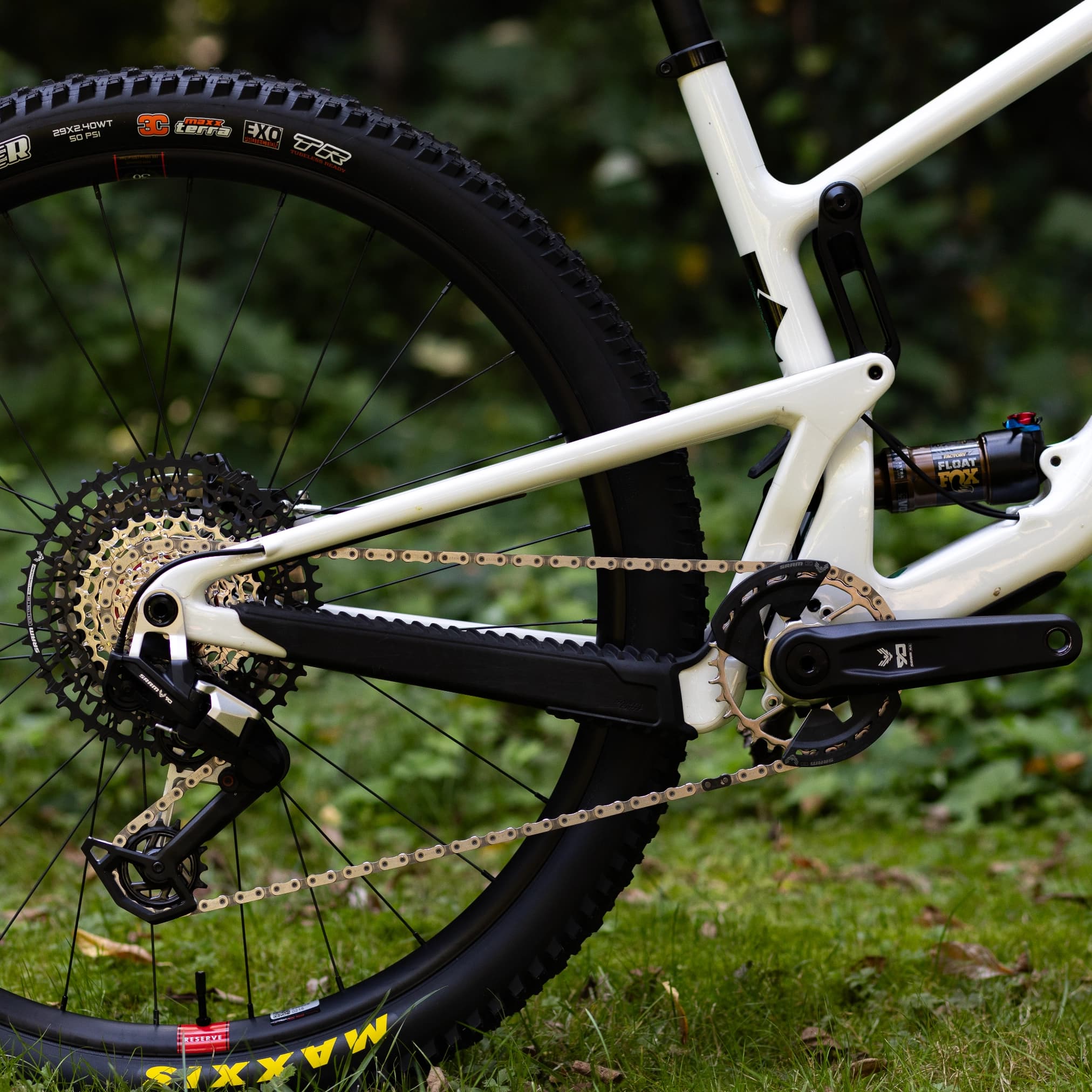

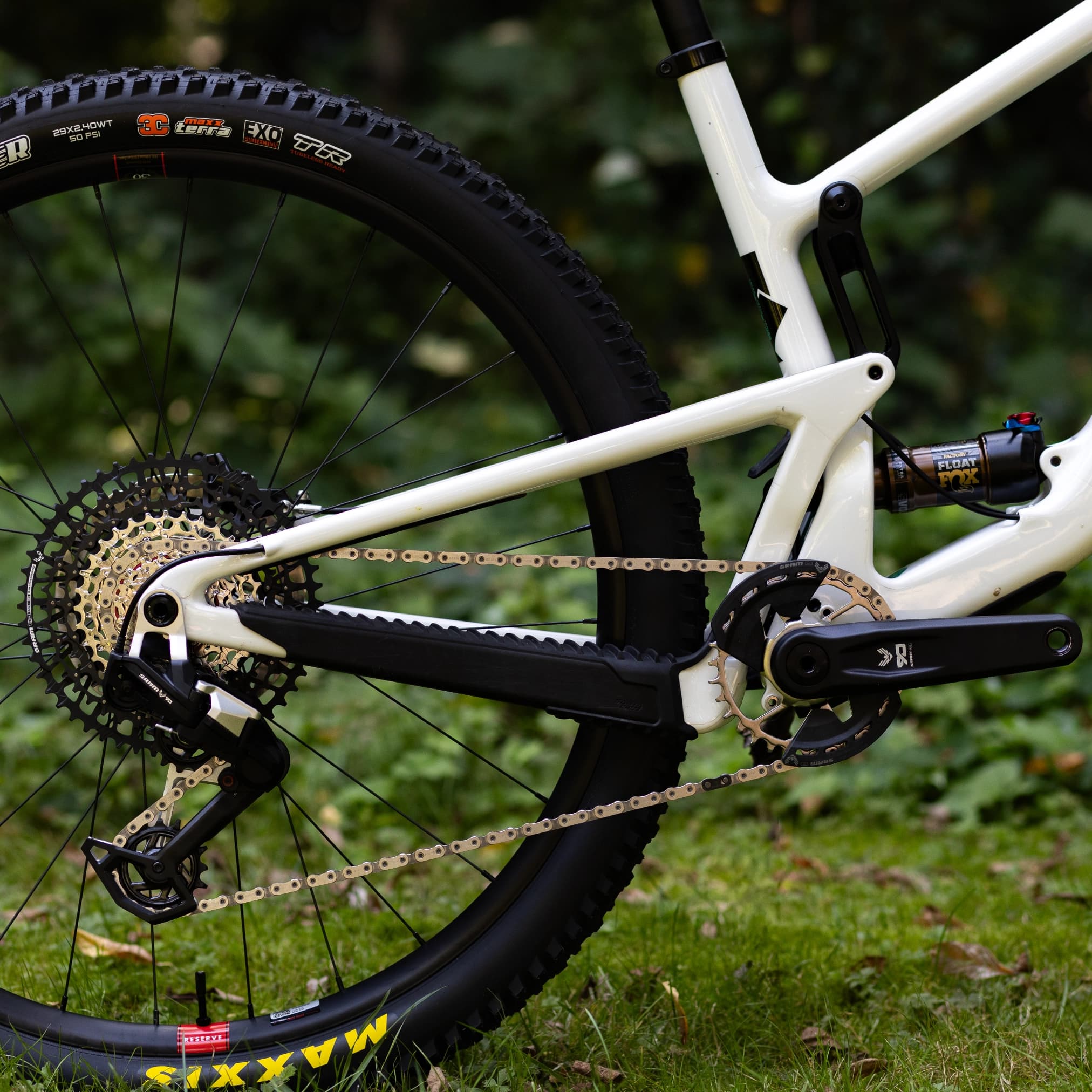

Rear Derailleur SRAM 90 Transmission
Shifter SRAM Eagle 90
Cassette SRAM 1275 T-Type 10-52T
Chain SRAM Eagle 90
Crankset SRAM Eagle 90 32T DUB w/ Bash guard

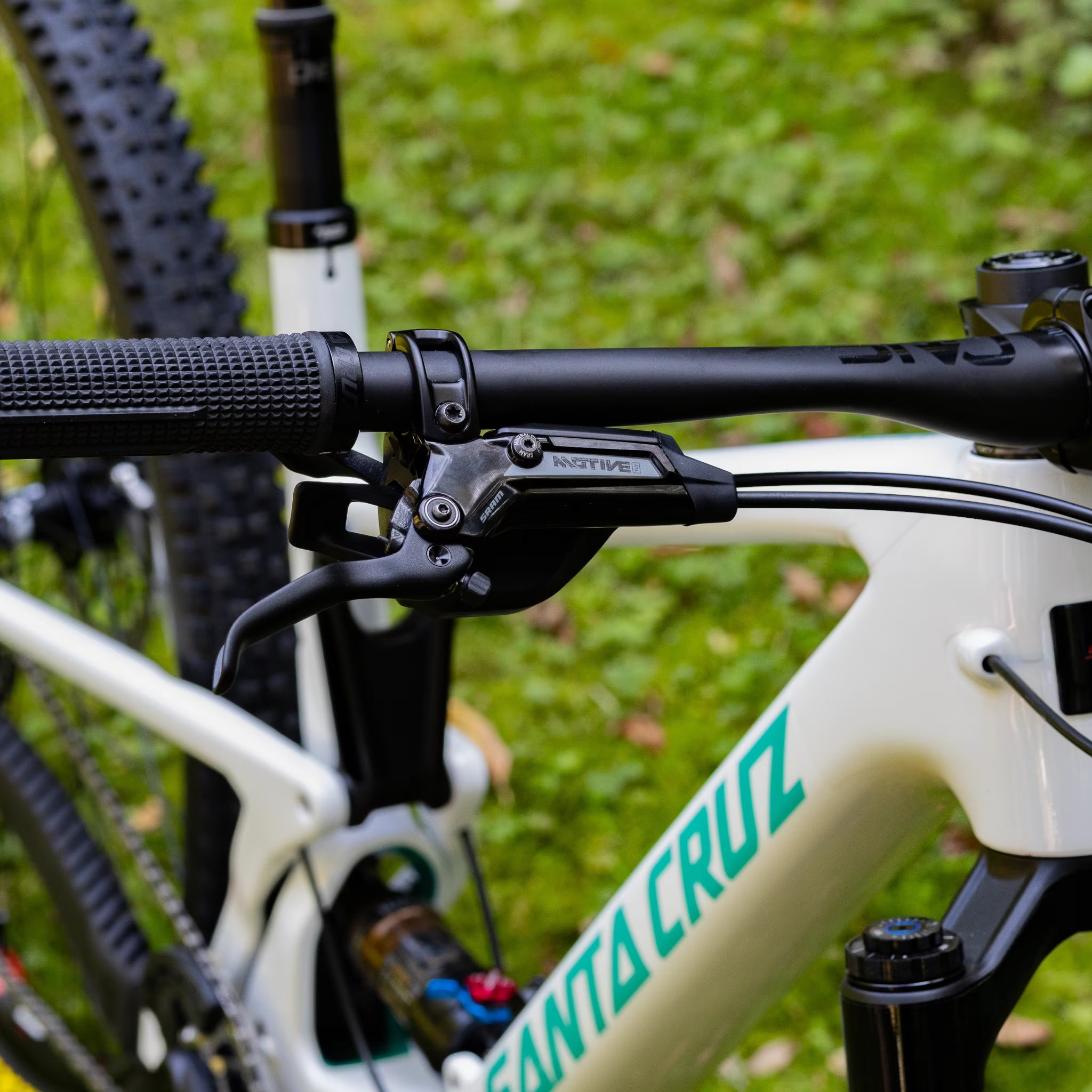

Brakes SRAM Motive Silver
Rotors SRAM HS2 180mm
Seat Post OneUp 31.6 x 180mm

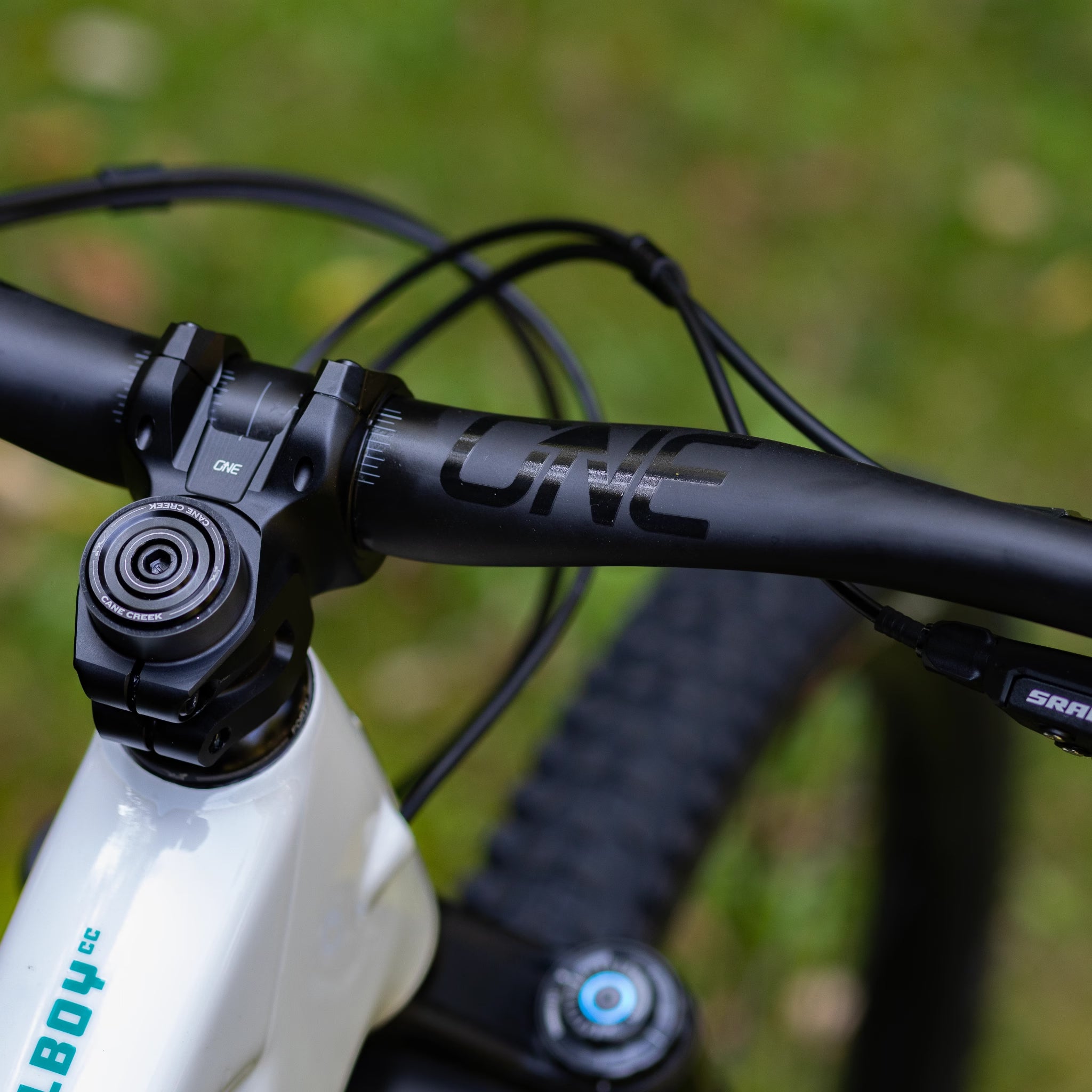

Handlebar OneUp Carbon 20mm
Stem Oneup 50mm
Tires Maxxis Forekaster 29 x 2.4 Maxxterra Exo
Wheels Reserve 30 SL Aluminum DT 350 Hubs.

*Specifications are subject to change without notice

Geometry

XS S M L XL XXL
hi | lo hi | lo hi | lo hi | lo hi | lo hi | lo
A Reach 405 | 403 430 | 428 455 | 453 475 | 473 495 | 493 520 | 518
B Stack 601 | 603 610 | 612 619 | 621 628 | 630 646 | 648 656 | 658
C Head Tube Angle 65.7 | 65.5 65.7 | 65.5 65.7 | 65.5 65.7 | 65.5 65.7 | 65.5 65.7 | 65.5
D Seat Tube Length 370 | 370 380 | 380 405 | 405 430 | 430 460 | 460 500 | 500
E Front Centre 708 | 708 737 | 737 766 | 766 790 | 790 818 | 818 847 | 847
F Bottom Bracket Height 335 | 332 335 | 332 335 | 332 335 | 332 335 | 332 335 | 332
G Bottom Bracket Drop 38 | 41 38 | 41 38 | 41 38 | 41 38 | 41 38 | 41
H Wheelbase 1138 | 1138 1167 | 1167 1199 | 1199 1227 | 1227 1257 | 1258 1290 | 1291
I Rear Centre 430 | 431 430 | 431 433 | 434 437 | 438 439 | 440 443 | 444
J Head Tube Length 95 | 95 105 | 105 115 | 115 125 | 125 145 | 145 160 | 160
K Top Tube Length 555 | 556 579 | 580 602 | 603 622 | 623 644 | 645 671 | 671
L Seat Tube Angle 76 | 75.7 76.3 | 76 76.7 | 76.4 76.8 | 76.6 77 | 76.8 77.1 | 76.8
M Standover Height 680 | 676 693 | 691 696 | 693 698 | 695 698 | 695 701 | 698
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
XS 4'8" - 5'1" 142 - 155cm
S 5'1" - 5'5" 155 - 165cm
M 5'5" - 5'9" 165 - 175cm
L 5'9 - 6'1" 175 - 185cm
XL 6'1" - 6'4" 185 - 193cm
XXL 6'4" - 6'7" 193 - 201cm
