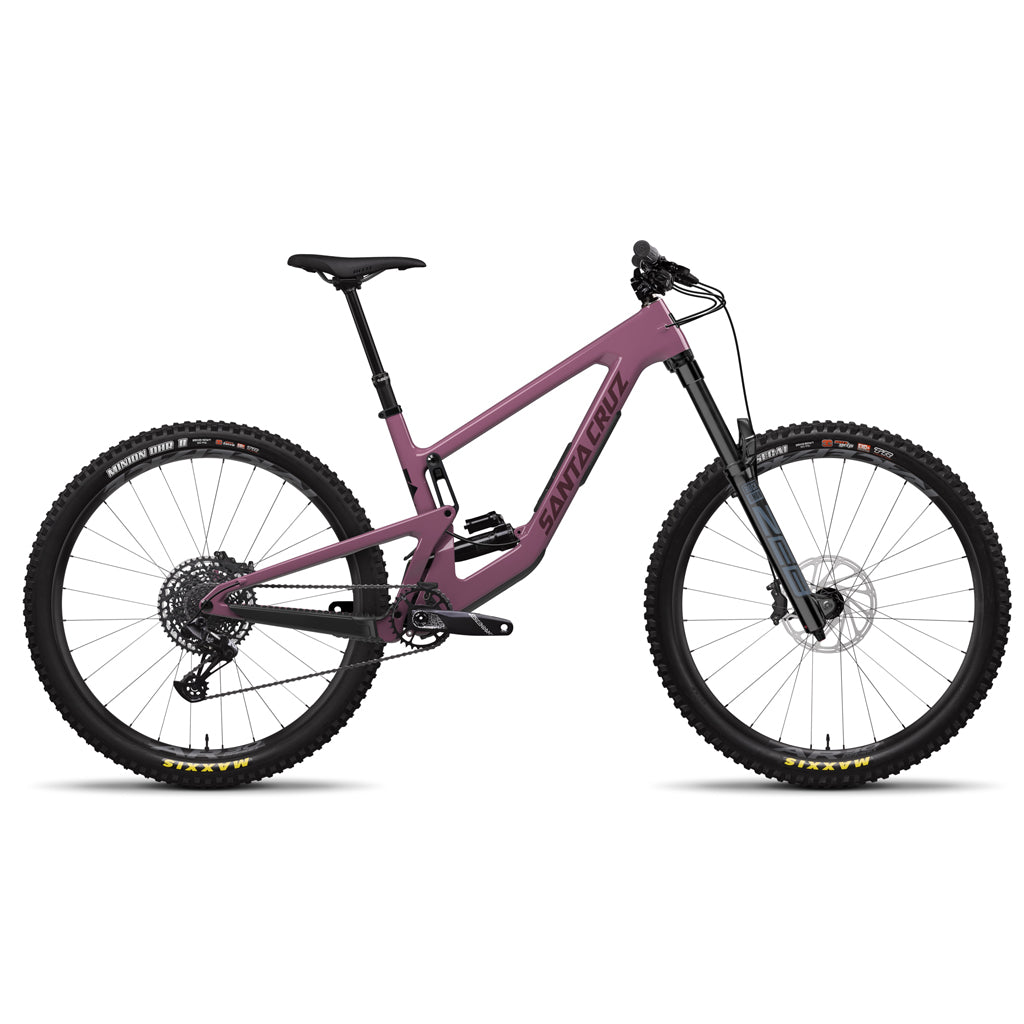

Santa Cruz Megatower 2 C 29 R
Specifications
FRAME Carbon C 29" 165mm Travel VPP™
REAR SHOCK RockShox Super Deluxe Select, 230x62.5
FORK RockShox Zeb Base, 170mm
REAR DERAILLEUR SRAM NX Eagle, 12spd
SHIFTER SRAM NX Eagle, 12spd
CASSETTE SRAM PG1230, 12spd, 11-50t
CHAIN SRAM NX Eagle, 12spd
CHAIN GUIDE E.13 TRS Race SL, ISCG05
BOTTOM BRACKET SRAM DUB 68/73mm Threaded BB
HEADSET FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
REAR TIRE Maxxis Minion DHR II 29"x2.4"WT, 3C MaxxTerra, EXO+
FRONT TIRE Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+
FRONT HUB SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
FRONT RIM RaceFace AR Offset 30, 29"
REAR HUB SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
REAR RIM RaceFace AR Offset 30, 29"
FRONT ROTOR Avid Centerline, 200mm
REAR ROTOR Avid Centerline, 200mm
BRAKES SRAM G2 RE
CRANKSET SRAM Descendant Eagle 148 DUB 32t
HANDLEBAR e13 TRS Base
STEM e.13 Base
SADDLE WTB Silverado, CroMo
SEATPOST SDG Tellis Dropper, 31.6
GRIPS/BAR TAPE Santa Cruz Bicycles House Grips
Geometry
S | M | L | XL | XXL | ||
---|---|---|---|---|---|---|
hi | lo | hi | lo | hi | lo | hi | lo | hi | lo | ||
A | Reach | 430 | 427 | 455 | 452 | 475 | 472 | 495 | 492 | 520 | 517 |
B | Stack | 616 | 618 | 625 | 627 | 638 | 640 | 656 | 658 | 670 | 672 |
C | Head Tube Angle | 63.8° | 63.5° | 63.8° | 63.5° | 63.8° | 63.5° | 63.8° | 63.5° | 63.8° | 63.5° |
D | Seat Tube Length | 380 | 405 | 430 | 460 | 500 |
E | Front Centre | 770 | 799 | 826 | 855 | 886 |
F | Bottom Bracket Height | 346 | 342.5 | 346 | 342.5 | 346 | 342.5 | 346 | 342.5 | 346 | 342.5 |
G | Bottom Bracket Drop | 26.5 | 30 | 26.5 | 30 | 26.5 | 30 | 26.5 | 30 | 26.5 | 30 |
H | Wheelbase | 1206 | 1236 | 1266 | 1298 | 1333 |
I | Rear Centre | 436 | 437 | 437 | 438 | 440 | 441 | 443 | 444 | 447 | 448 |
J | Head Tube Length | 90 | 100 | 115 | 135 | 150 |
K | Top Tube Length | 570 | 594 | 613 | 637 | 666 |
L | Seat Tube Angle | 77.24° | 77.0° | 77.42° | 77.2° | 77.8° | 77.5° | 77.8° | 77.5° | 77.8° | 77.5° |
M | Standover Height | 709 | 705 | 716 | 712 | 723 | 718 | 722 | 717 | 724 | 720 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S | 5'1"-5'5" | 155 - 165cm |
M | 5'5"-5'9" | 165 - 175cm |
L | 5'9-6'1" | 175 - 185cm |
XL | 6'1"-6'4" | 185 - 193cm |
XXL | 6'4" - 6'7" | 193 - 201cm |
