DESCRIPTION
On and On and On and On...

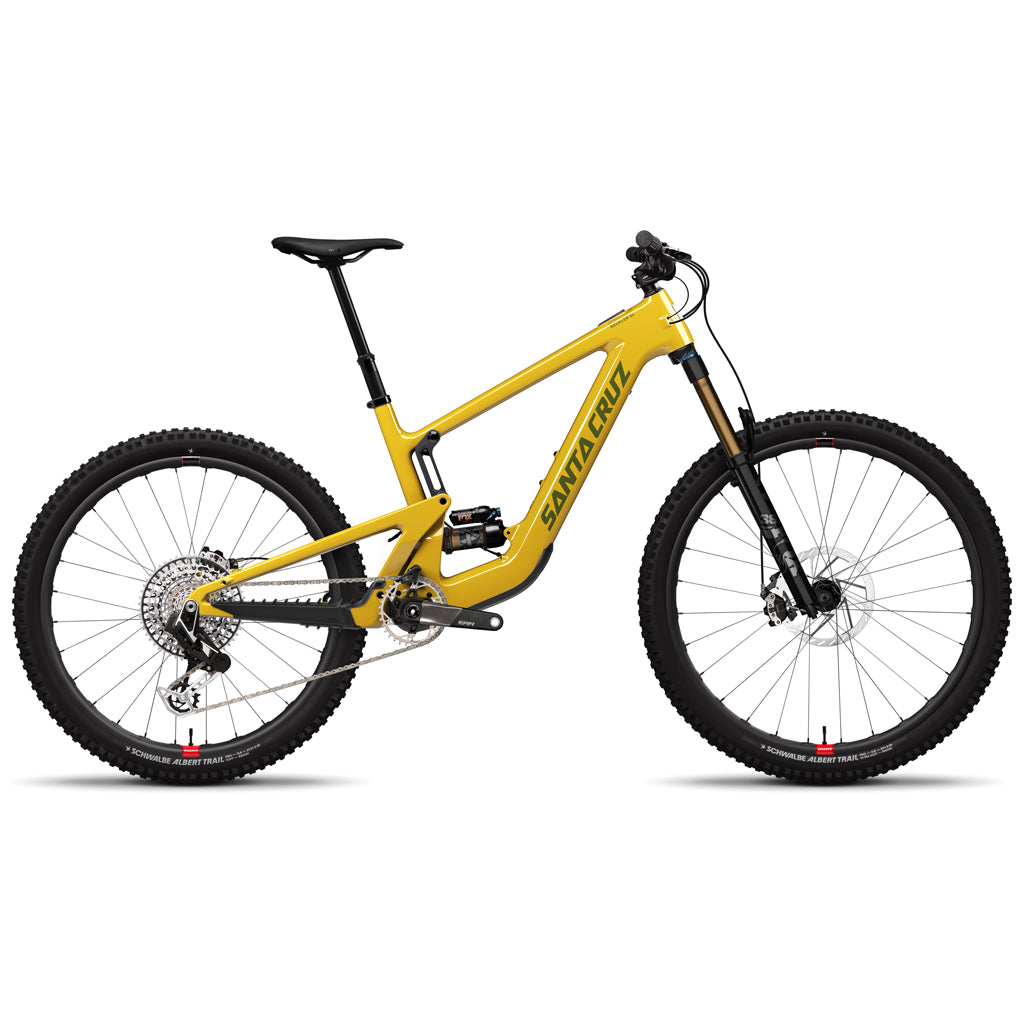

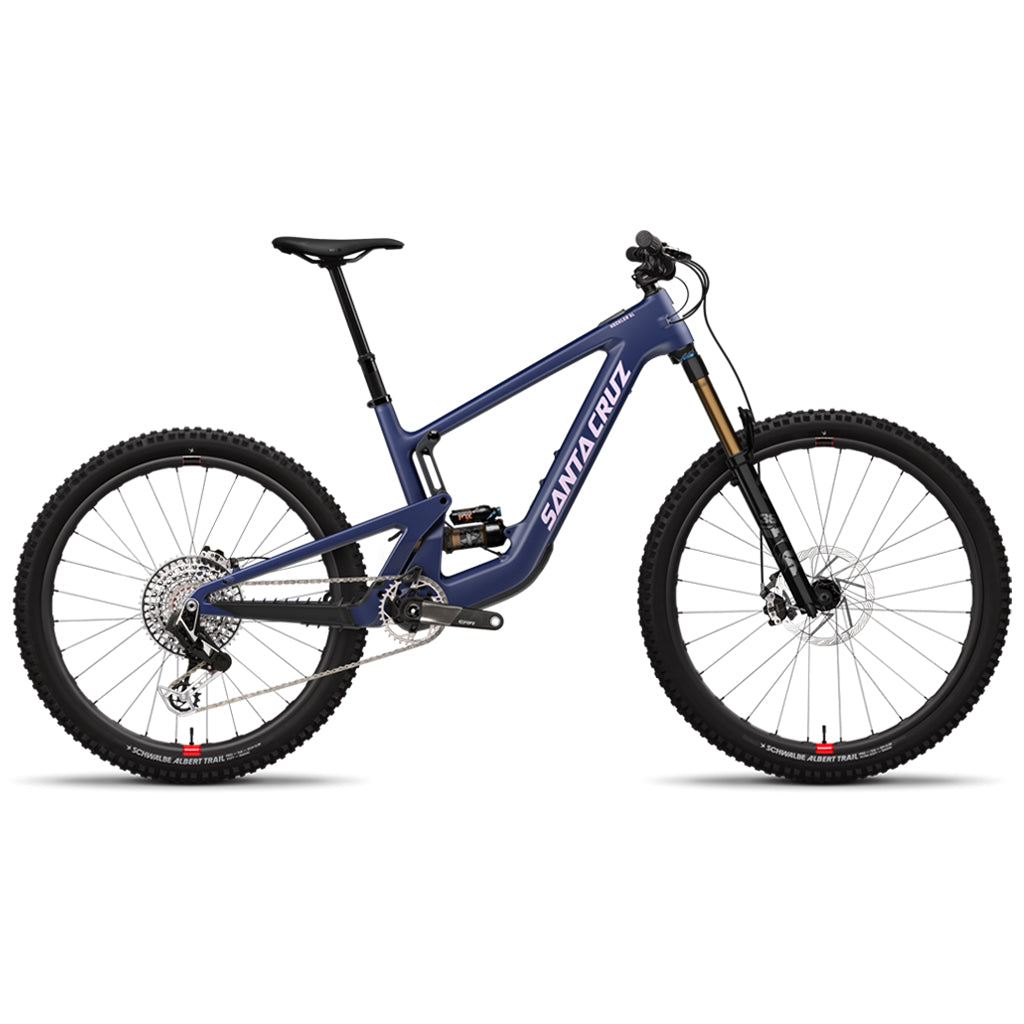

Danny MacAskill can't help but sing the praises of e-bike adventures, and when he's out riding, he just keeps going. That's one reason why we've taken the Heckler to new heights, distances, and speeds. With its hefty interchangeable 720Wh battery, this e-bike opens up trails that were once out of reach, unlocks less-traveled paths, and lets you squeeze more riding into less time. The Heckler boasts a substantial 150mm of rear travel (paired with a 160mm travel fork up front) using VPP™ suspension, meticulously fine-tuned to conquer expansive trails on thrilling descents and grip the terrain like glue during climbs. It offers versatility with the option of mixed or dual 29-inch wheel sizes and a comprehensive range of frame sizes, from small to XXL.
Specifications
Frame
Carbon CC MX 150mm Travel VPP™
Rear Shock
Fox Float X Factory, 210x55 -or- RockShox Super Deluxe ULT, 210x55
Fork
Fox 36 Float Factory, Grip X2, 160mm -or- RockShox Lyrik ULT, 160mm
Rear Derailleur
SRAM XX Eagle AXS T-Type, 12spd
Shifter
SRAM AXS Pod Ultimate Bridge
Cassette
SRAM XX Eagle T-Type, 10-52t
Chain
SRAM XX Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Headset
Chris King DropSet 3 Integrated Headset
Rear Tire
Schwalbe Albert, 27.5x2.5, Trail Radial Soft
Front Tire
Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
Front Hub
Industry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim
Reserve 30|HD Carbon
Rear Hub
Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
Rear Rim
Reserve 30|HD Carbon
Front Rotor
SRAM HS2 200mm
Rear Rotor
SRAM HS2 200mm
Brakes
SRAM Maven Ultimate Stealth
Crankset
Race Face Era-E Carbon, 165mm
Handlebar
Santa Cruz e35 Carbon Bar, 800mm
Stem
Burgtec Enduro MK3, 42mm
Saddle
WTB Silverado Medium Fusion, Stainless
Seatpost
OneUp Dropper Post, 31.6
Grips/Bar Tape
Santa Cruz Bicycles House Grips
Battery
Fazua 430 Wh Integrated Battery
Drive Unit
Fazua Ride60
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| hi/lo | hi/lo | hi/lo | hi/lo | hi/lo | ||
| A | Reach | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
| B | Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
| C | Head Tube Angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
| D | Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| E | Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
| F | Bottom Bracket Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
| G | Bottom Bracket Drop | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 |
| H | Wheelbase | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
| I | Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
| J | Head Tube Length | 100 | 110 | 120 | 140 | 155 |
| K | Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
| L | Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
| M | Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
*All measurements in degrees or millimetres
Sizing
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1"-5'5" | 155 - 165cm |
| M | 5'5"-5'9" | 165 - 175cm |
| L | 5'9-6'1" | 175 - 185cm |
| XL | 6'1"-6'4" | 185 - 193cm |
| XXL | 6'4" - 6'7" | 193 - 201cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
