DESCRIPTION
A Fair Advantage

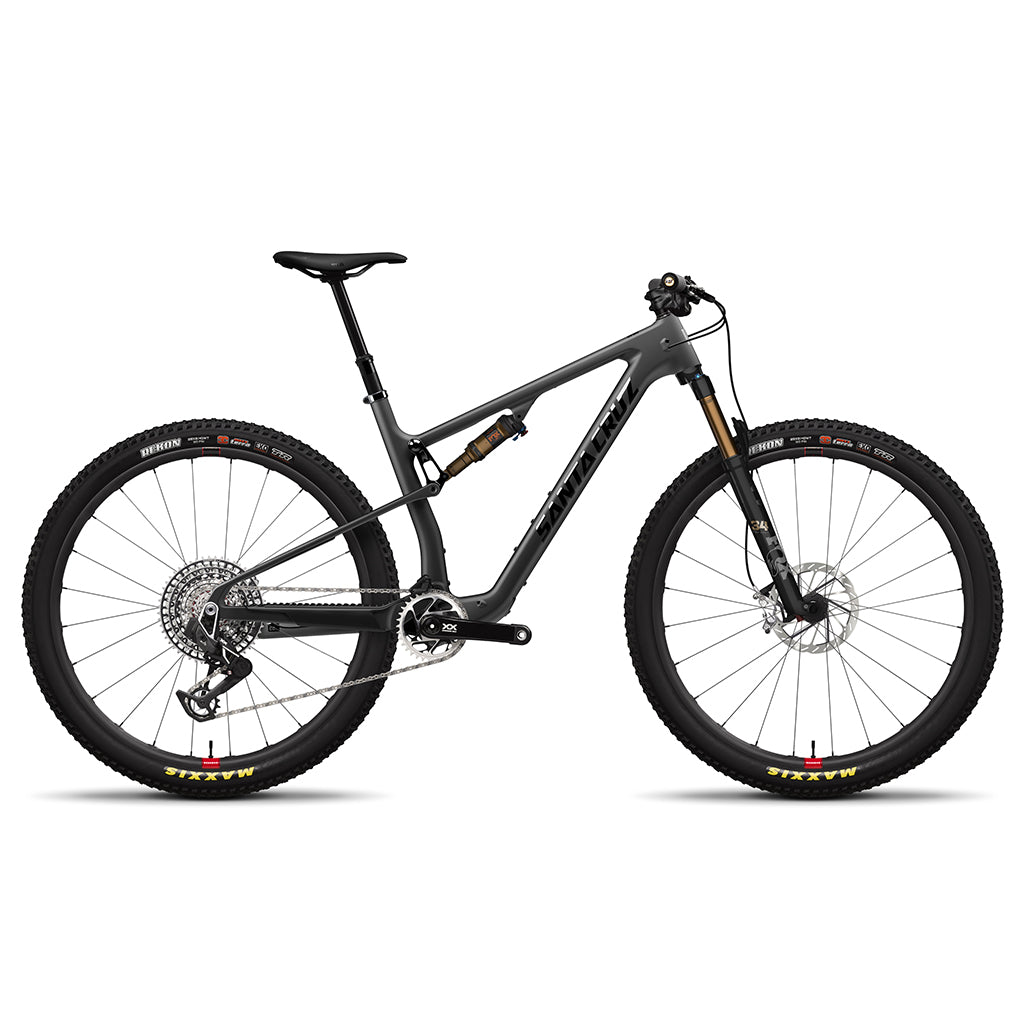

We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes and added the super-efficient Superlight™ suspension to make a World Cup-winning XC race bike. The Blur isn’t guaranteed to make you a race winner but being the lightest, full-suspension carbon XC bike we’ve ever made, it might be the difference between claiming first place...or just crossing the line.
Specifications
Frame
Carbon CC 29" 115mm Travel Superlight™ Suspension
Rear Shock
FOX Float SL Factory, 190x45
Fork
FOX 34SC Float Factory, Grip SL, 120mm
Rear Derailleur
SRAM XX SL Eagle AXS T-Type, 12spd
Shifter
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM XX SL Eagle T-Type, 10-52t
Chain
SRAM XX SL Eagle T-Type, Flattop, 12spd
Chainguide
OneUp Chainguide
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Headset
Cane Creek AER IS Tapered Headset
Rear Tire
Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Tire
Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Hub
DT Swiss 180 EXP, 15x110, Centerlock, 24h
Front Rim
Reserve 28|XC Carbon
Rear Hub
DT Swiss 180 EXP, 12x148, XD, Centerlock, 36t, 24h
Rear Rim
Reserve 28|XC Carbon
Front Rotor
SRAM HS2 Centerlock 180mm
Rear Rotor
SRAM HS2 Centerlock 180mm
Brakes
SRAM Level Ultimate Stealth 4-Piston
Crankset
SRAM XX SL Eagle DUB T-Type Crankset, 34t
Handlebars
Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Stem
SRAM Atmos 7k, 60mm
Saddle
WTB Silverado Medium Fusion, Stainless
Seatpost
OneUp V3 Dropper Post, 31.6
Grips/Bar Tape
ESI Chunky Grips
*Specifications are subject to change without notice
Geometry
| BLUR TR | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Reach | 412.3 | 437.8 | 457.5 | 482.5 |
| B | Stack | 587.4 | 597.0 | 606.5 | 620.7 |
| C | Head Tube Angle | 67.1º | 67.1º | 67.1º | 67.1º |
| D | Seat Tube Length | 405 | 430 | 470 | 520 |
| E | Front Center | 695 | 723.7 | 747.4 | 778 |
| F | Bottom Bracket Height | 339.9 | 339.7 | 339.6 | 339.4 |
| G | Bottom Bracket Drop | 32.6 | 32.8 | 32.9 | 33.1 |
| H | Wheelbase | 1125.8 | 1157 | 1183.2 | 1216.3 |
| I | Rear Center | 430.8 | 433.3 | 435.8 | 438.3 |
| J | Head Tube Length | 90 | 100 | 110 | 125 |
| K | Top Tube Length | 568.4 | 597.3 | 621.4 | 651.7 |
| L | Seat Tube Angle | 75.1º | 75.0º | 74.9º | 74.8º |
| M | Standover Height | 743.5 | 746.4 | 745.4 | 750.1 |
*All measurements in degrees or millimetres
Sizing
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'5" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'1" | 175 - 185cm |
| XL | 6'1" - 6'5" | 185 - 196cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
