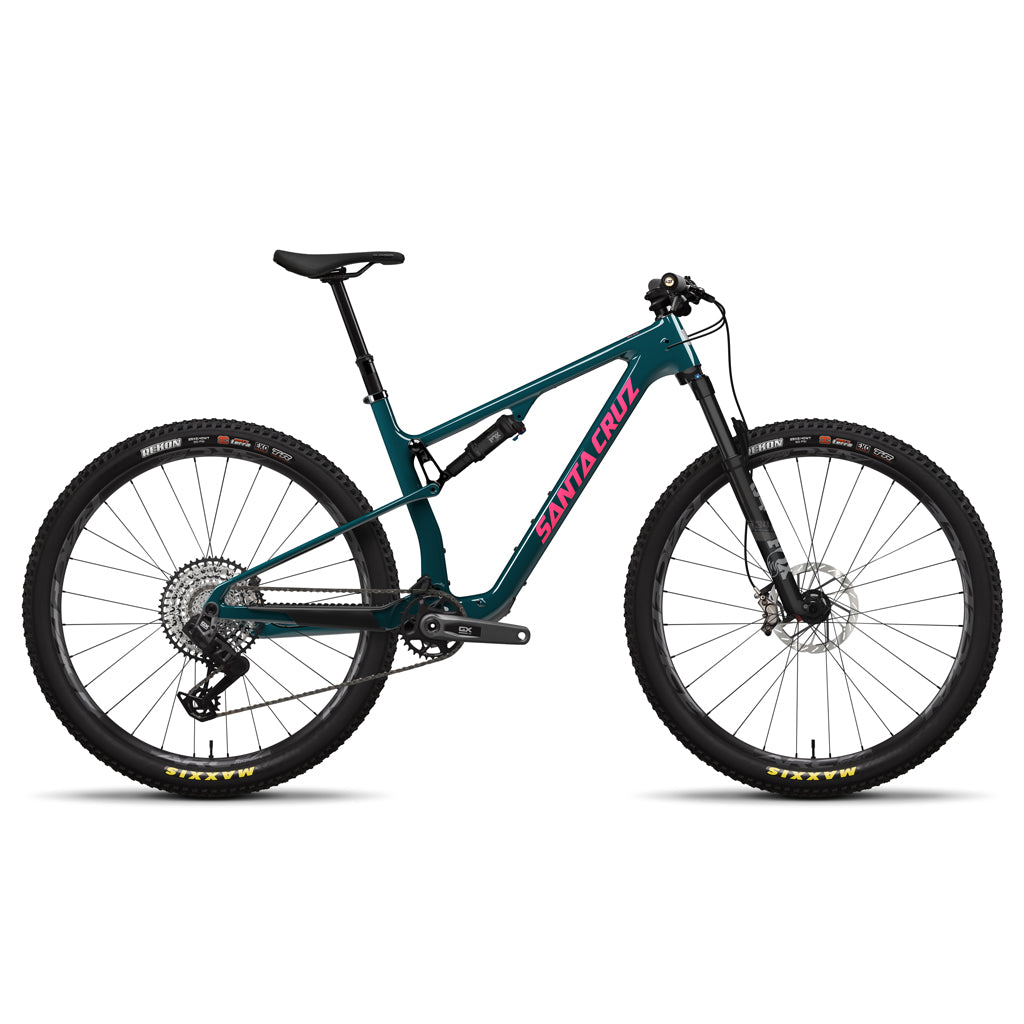

Santa Cruz Blur 4 C 29 GX AXS TR
Specifications
Frame Carbon C 29" 115mm Travel Superlight™
Rear Shock FOX Float SL Performance Elite, 190x45
Fork FOX 34SC Float Performance Elite, Grip SL, 120mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Shifter SRAM AXS Pod Bridge
Cassette SRAM GX Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Hub DT Swiss 370, 15x110, 6-Bolt, 28h
Front Rim RaceFace ARC Offset 27 29"
Rear Hub DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim RaceFace ARC Offset 27 29"
Front Rotor SRAM HS2 180mm
Rear Rotor SRAM HS2 180mm
Brakes SRAM Level Bronze Stealth 4-Piston
Crankset SRAM GX Eagle DUB T-Type Crankset. 34t
Handlebars Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Stem SRAM Atmos Stem, 60mm
Saddle SDG Bel-Air V3, Lux-Alloy Atmos
Seatpost OneUp V3 Dropper Post, 31.6
Grips/Bar Tape ESI Chunky Grips
Geometry
BLUR XC | S | M | L | XL | |
---|---|---|---|---|---|
A | Reach | 425 | 450 | 470 | 495 |
B | Stack | 578.3 | 587.6 | 596.9 | 610.8 |
C | Head Tube Angle | 68.3° | 68.3° | 68.3° | 68.3° |
D | Seat Tube Length | 405 | 430 | 470 | 520 |
E | Front Centre | 685.8 | 714.5 | 738.2 | 768.7 |
F | BB Height | 330.5 | 330.5 | 330.5 | 330.5 |
G | Bottom Bracket Drop | 42 | 42 | 42 | 42 |
H | Wheelbase | 1115.8 | 1147 | 1173.2 | 1206.2 |
I | Rear Centre | 430 | 432.5 | 435 | 437.5 |
J | Head Tube Length | 90 | 100 | 110 | 125 |
K | Top Tube Length | 563.9 | 592.8 | 616.9 | 647.2 |
L | Seat Tube Angle | 76.5° | 76.3° | 75.8° | 75.7° |
M | Standover Height | 736.6 | 740.1 | 739.2 | 745.1 |
All measurements in degrees or millimetres |
BLUR TR | S | M | L | XL | ||
---|---|---|---|---|---|---|
A | Reach | 412.3 | 437.8 | 457.5 | 482.5 | |
B | Stack | 587.4 | 597.0 | 606.5 | 620.7 | |
C | Head Tube Angle | 67.1Âş | 67.1Âş | 67.1Âş | 67.1Âş | |
D | Seat Tube Length | 405 | 430 | 470 | 520 | |
E | Front Centre | 695 | 723.7 | 747.4 | 778 | |
F | Bottom Bracket Height | 339.9 | 339.7 | 339.6 | 339.4 | |
G | Bottom Bracket Drop | 32.6 | 32.8 | 32.9 | 33.1 | |
H | Wheelbase | 1125.8 | 1157 | 1183.2 | 1216.3 | |
I | Rear Centre | 430.8 | 433.3 | 435.8 | 438.3 | |
J | Head Tube Length | 90 | 100 | 110 | 125 | |
K | Top Tube Length | 568.4 | 597.3 | 621.4 | 651.7 | |
L | Seat Tube Angle | 75.1Âş | 75.0Âş | 74.9Âş | 74.8Âş | |
M | Standover Height | 743.5 | 746.4 | 745.4 | 750.1 | |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S | 5'1" - 5'5" | 155 - 165cm |
M | 5'5" - 5'9" | 165 - 175cm |
L | 5'9 - 6'1" | 175 - 185cm |
XL | 6'1" - 6'5" | 185 - 196cm |
