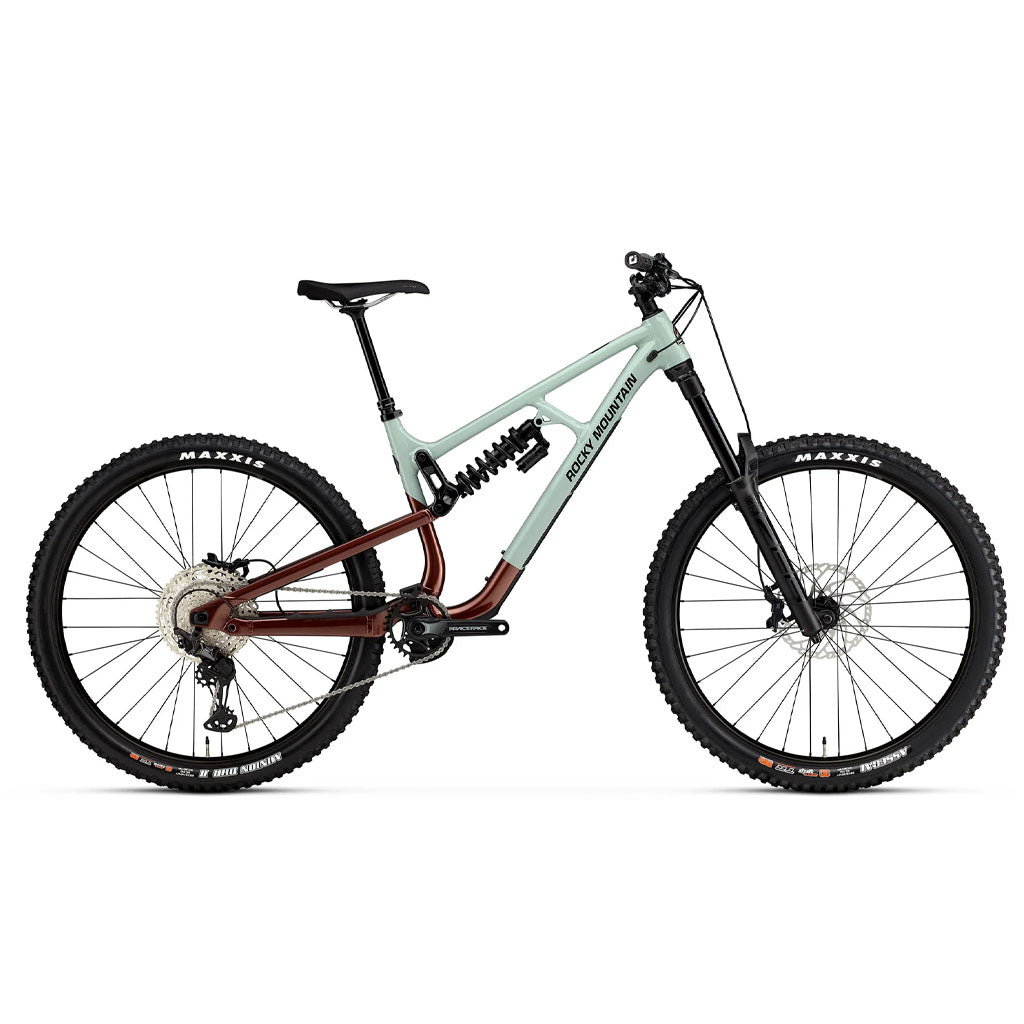

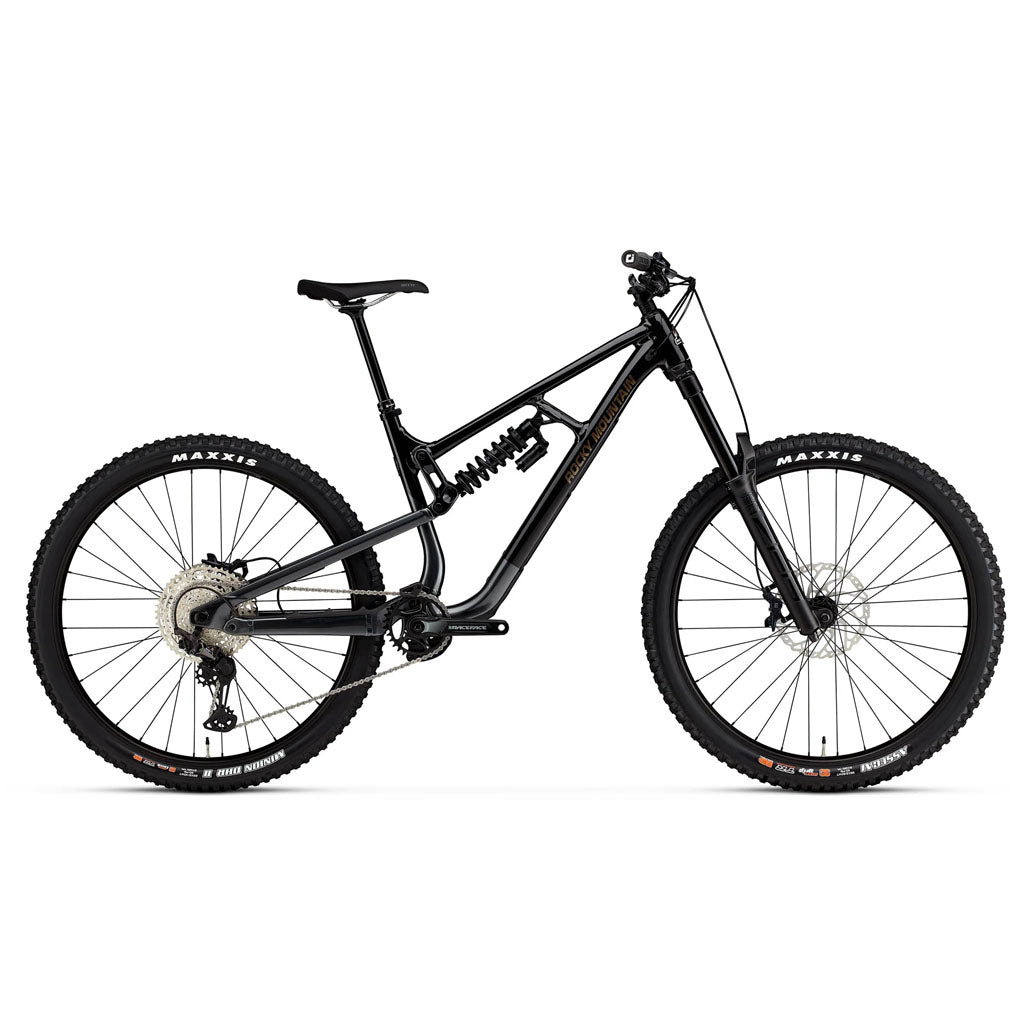

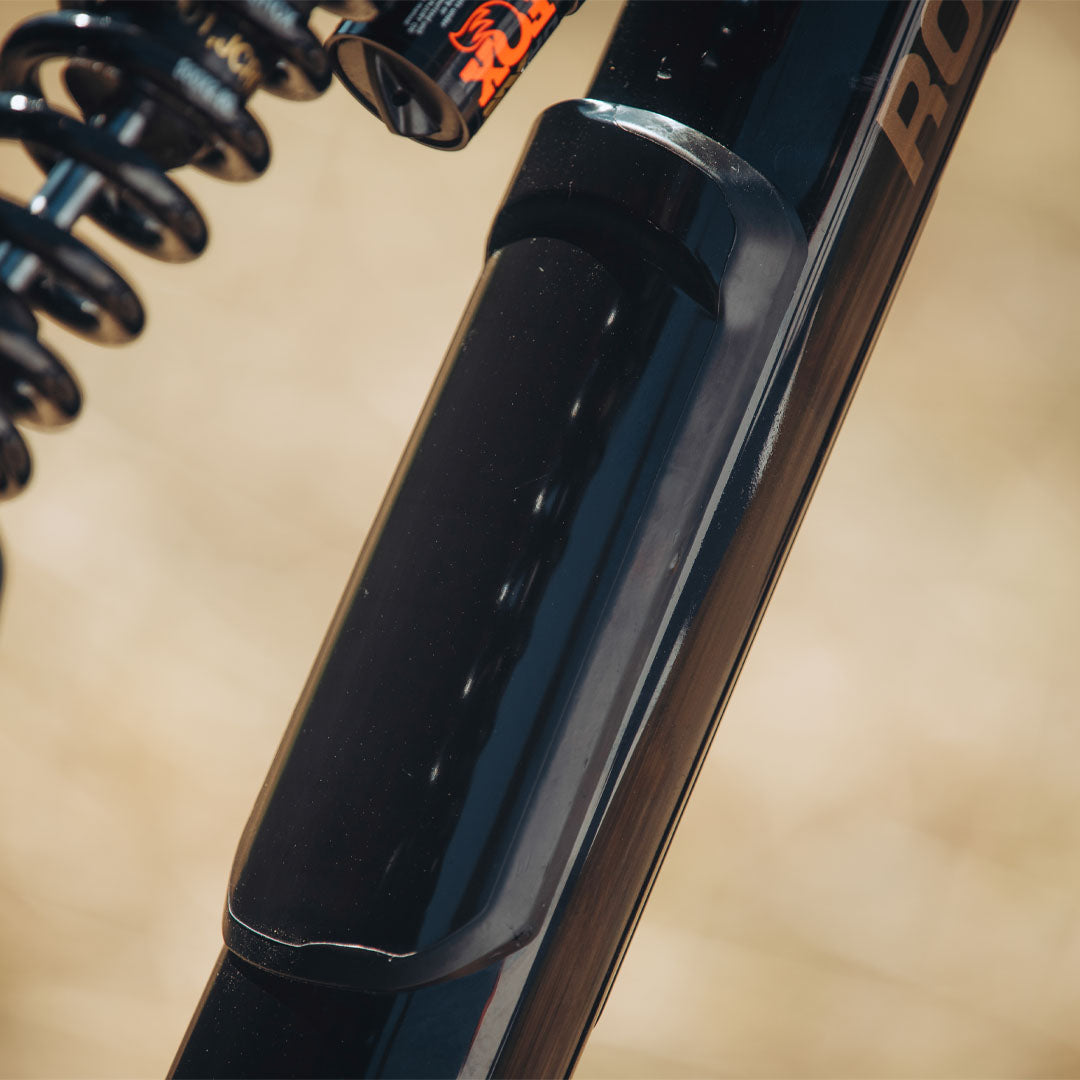

Experience balanced trail brutality at its finest. The Slayer is now available in a mixed-wheel setup, is longer and slacker than ever and features a handy PenaltyBox, storage compartment. Nothing can stop you now. Expect villainous levels of confidence when taking on trails or devouring the park.
Frame

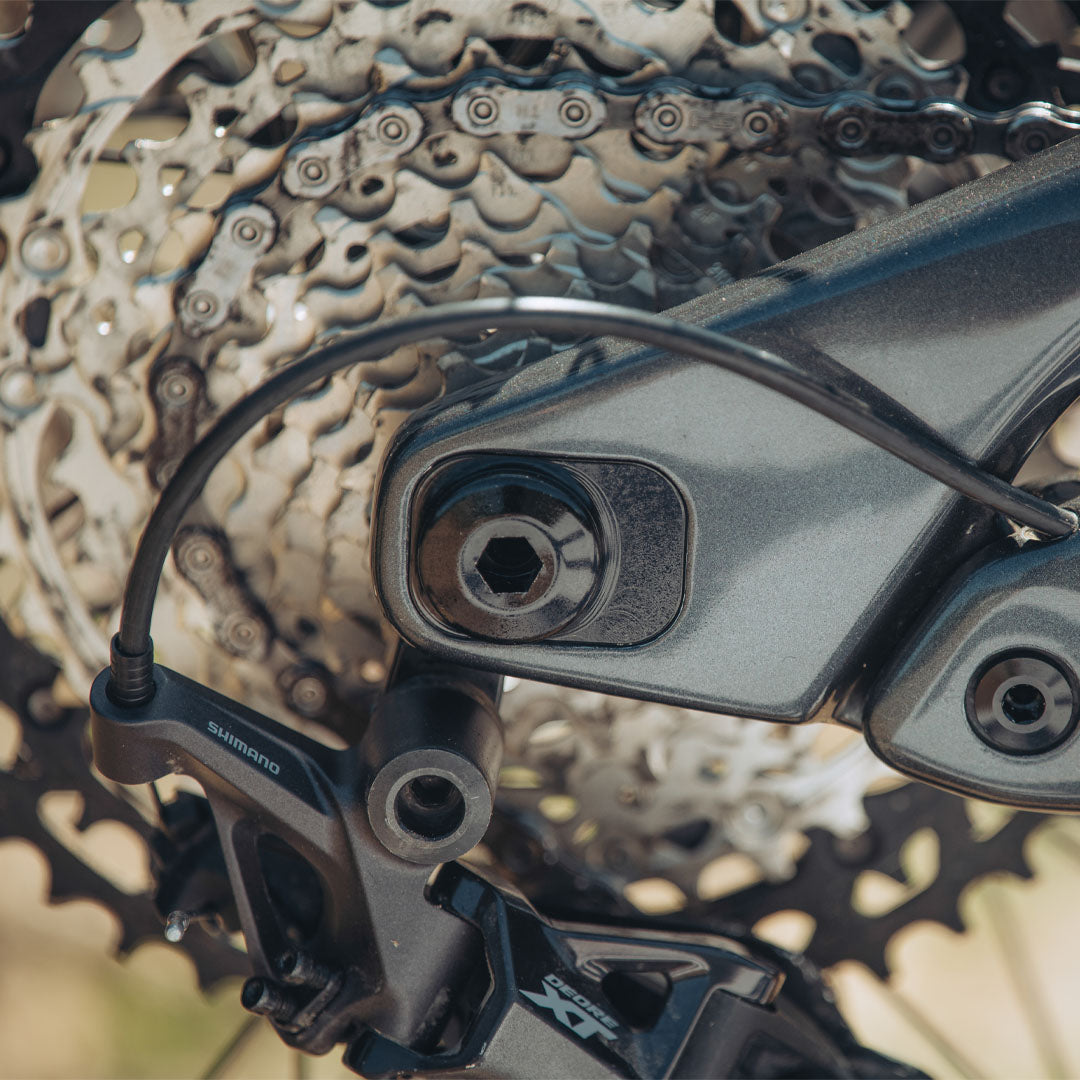

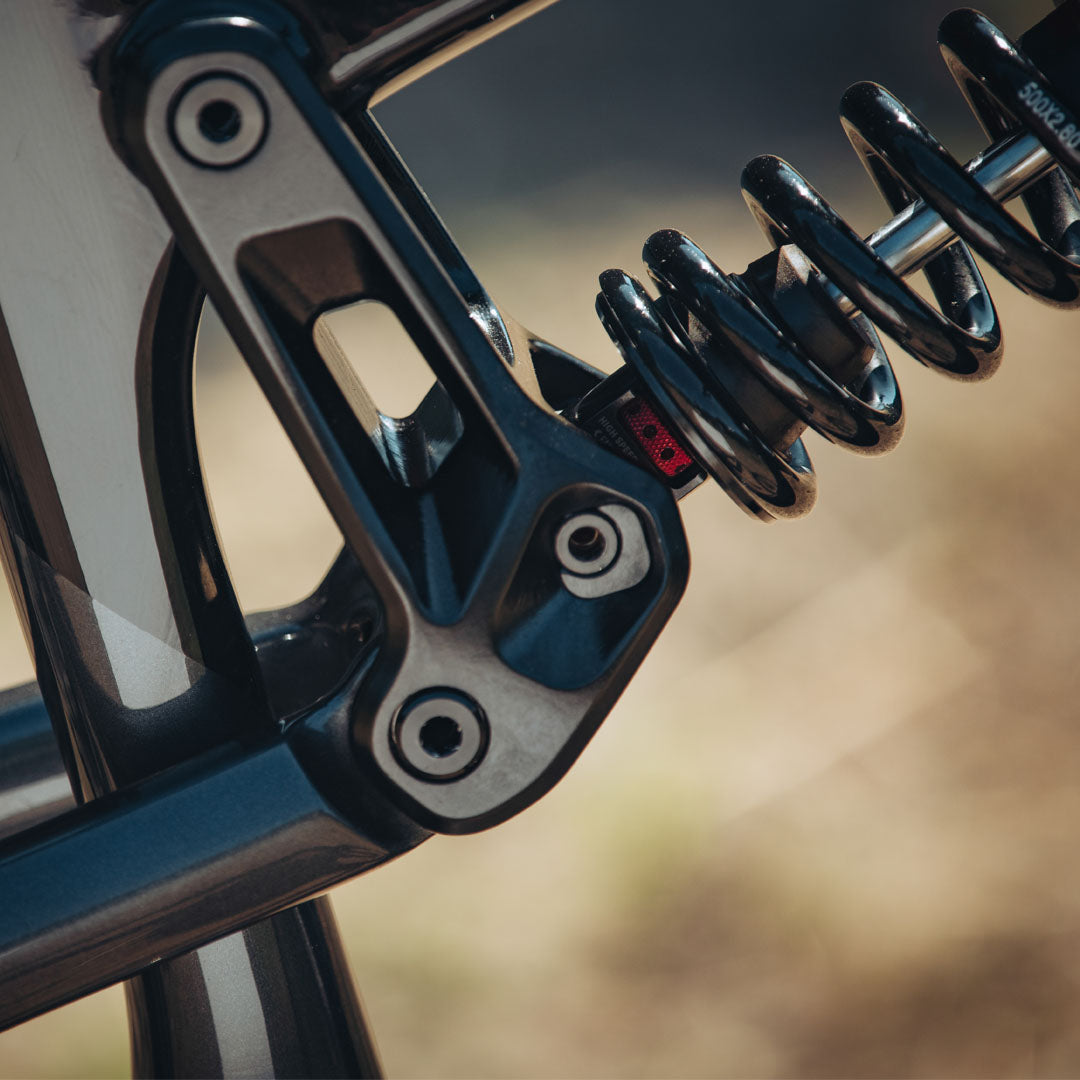

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 180mm Travel. FORM™ Alloy Rear Triangle
Fork
RockShox Zeb Select RC | 180mm | 44mm Offset
Front Travel
180
Rear Shock
RockShox Super Deluxe Coil Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230 x 65mm | Coil Spring SM - MD - LG - XL = 400 - 450 - 500 - 550
Rear Travel
180
Headset
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handelbar
Rocky Mountain AM | 780mmWidth | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Brakes
Shimano SLX Trail 4 Piston | Metal Pads
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Aeffect Cinch | 32T | 24mm Spindle | SM = 165mm | MD - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano Deore 10-51T 12spd
Chain
Shimano M6100
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes
DT Swiss Champion 2.0
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl
Tires
F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Seatpost
X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | SM = 150mm | MD = 170mm | LG - XL = 200mm
Saddle
WTB Volt Race 142
*Specifications are subject to change without notice
SM - MX | MD - MX | LG | XL | ||
---|---|---|---|---|---|
Steep | Slack | Steep | Slack | Steep | Slack | Steep | Slack | ||
A | Reach | 424 | 433 | 450 | 458 | 474 | 484 | 504 | 514 |
B | Stack | 623 | 617 | 623 | 617 | 638 | 631 | 651 | 644 |
C | Head Tube Angle | 62.5° | 63.3° | 62.5° | 63.3° | 62.5° | 63.3° | 62.5° | 63.3° |
D | Bottom Bracket Drop | 29 | 19 | 29 | 19 | 29 | 19 | 29 | 19 |
E | Top Tube Length | 568 | 566 | 593 | 591 | 622 | 620 | 655 | 653 |
F | Rear Center | 440-450 | 438-448 | 440-450 | 438-448 | 440-450 | 438-448 | 440-450 | 438-448 |
G | Head Tube Length | 100 | 100 | 110 | 125 |
H | Top Tube Length | 568 | 566 | 593 | 591 | 622 | 620 | 655 | 653 |
I | Seat Tube Angle | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° |
J | Standover Height | 820 | 824 | 820 | 824 | 820 | 827 | 822 | 827 |
*All specifications in millimetres and degrees
Size | Height | |
---|---|---|
Imperial | Metric | |
S | 5'1" - 5'6" | 155 - 167.5cm |
M | 5'6" - 5'10" | 165 - 177.5cm |
L | 5'9" - 6'2" | 175 - 188cm |
XL | 6'1" - 6'6" | 185.5 - 198cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
