DESCRIPTION

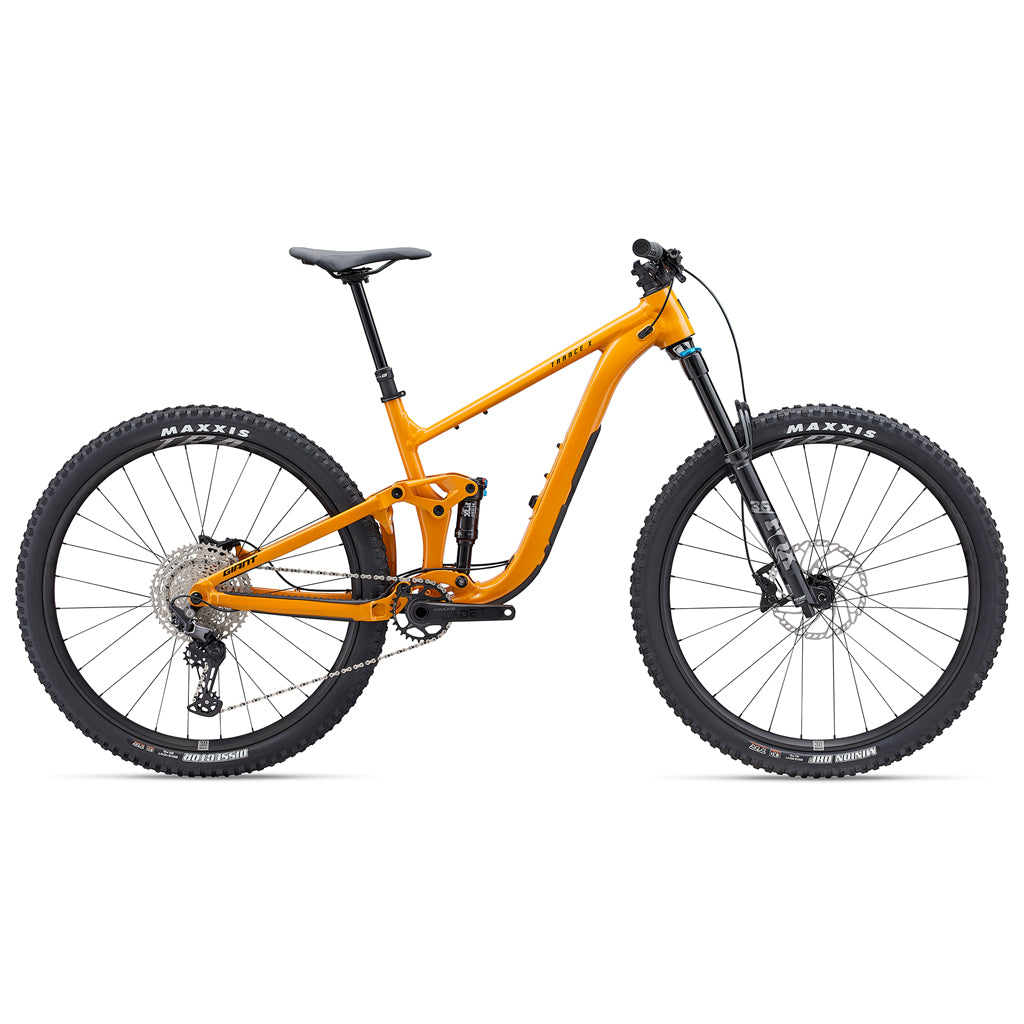

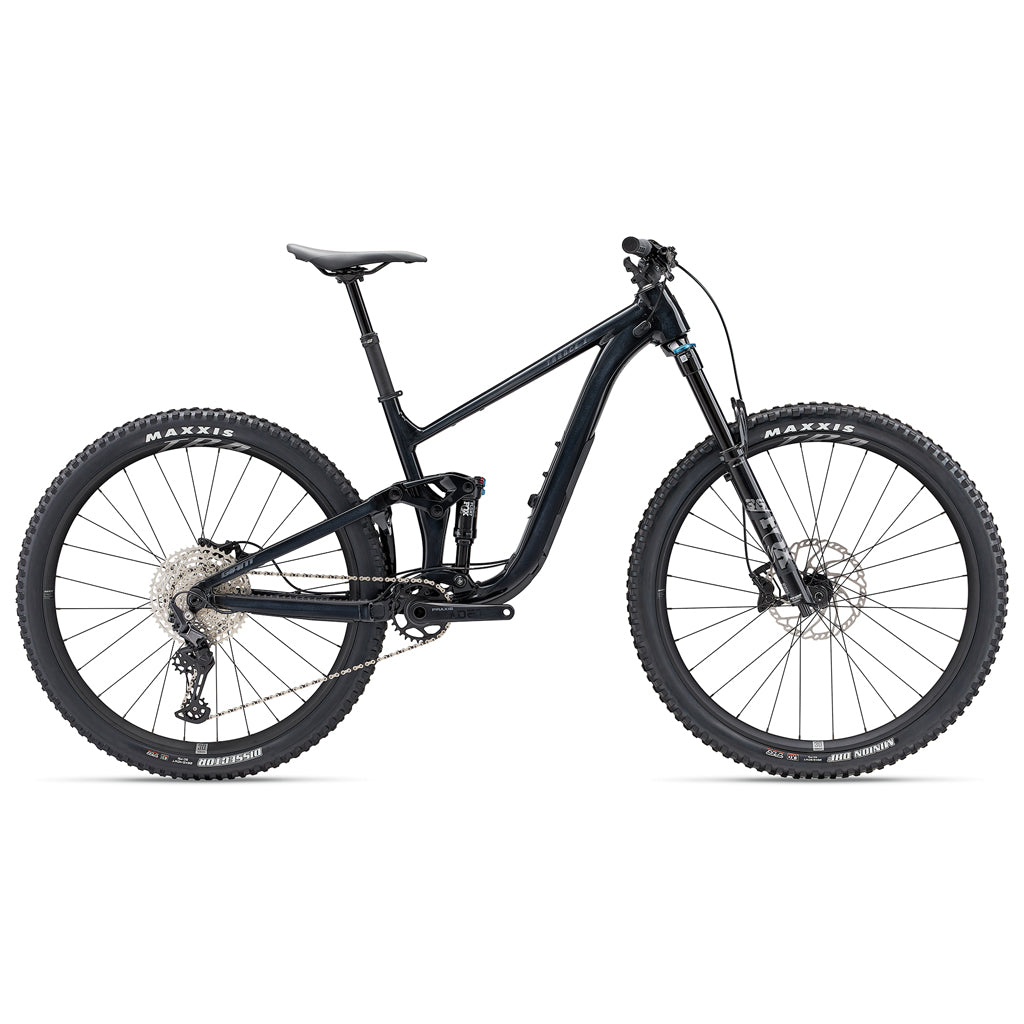

Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminum chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.
Updated Suspension
A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.
Adjustable Trail Geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.
Rear Wheel Options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.
Specification
Frame
ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage
Fork
Fox 36 Float Rhythm, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
Shock
Fox Float Performance, 185/52.5, custom tuned for Giant
Handlebar
Giant Contact TR35, 780x35mm, 20mm rise
Grips
Giant Tactal Pro single lock-on
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost
Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle
Giant Romero
Shifters
Shimano Deore, 1x12
Rear Derailleur
Shimano Deore
Brakes
Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
Brake Levers
Shimano Deore BL-MT401
Cassette
Shimano Deore, 10x51
Chain
KMC X-12
Crankset
Praxis Cadet, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
Praxis, press fit
Rims
Giant AM 29, alloy
Hubs
Alloy, sealed bearing
Spokes
Stainless
Tires
[F] Maxxis Minion DHF 29x2.5 WT, EXO, TR
[R] Maxxis Dissector 29x2.4, EXO, TR, tubeless
Extras
Tubeless prepared, 2.5" max tire size, 34t max chainring size, integrated down tube storage bag
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 507 | 510 | 514 |
| B | Stack | 617 | 614 | 611 | 621 | 619 | 616 | 631 | 628 | 625 | 640 | 637 | 634 |
| C | Head Tube Angle | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| D | Bottom Bracket Drop | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 |
| E | Wheelbase | 1190 | 1190 | 1189 | 1222 | 1222 | 1221 | 1246 | 1246 | 1245 | 1281 | 1280 | 1280 |
| F | Chainstay Length | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| G | Head Tube Length | 100 | 105 | 115 | 125 |
| H | Top Tube Length | 571 | 570 | 569 | 602 | 601 | 600 | 624 | 623 | 622 | 657 | 656 | 655 |
| I | Seat Tube Angle | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| J | Stand Over Height | 732 | 737 | 742 | 746 | 750 | 755 | 763 | 768 | 773 | 781 | 788 | 790 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'5" | 187 - 196cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
