Amped for Adventure

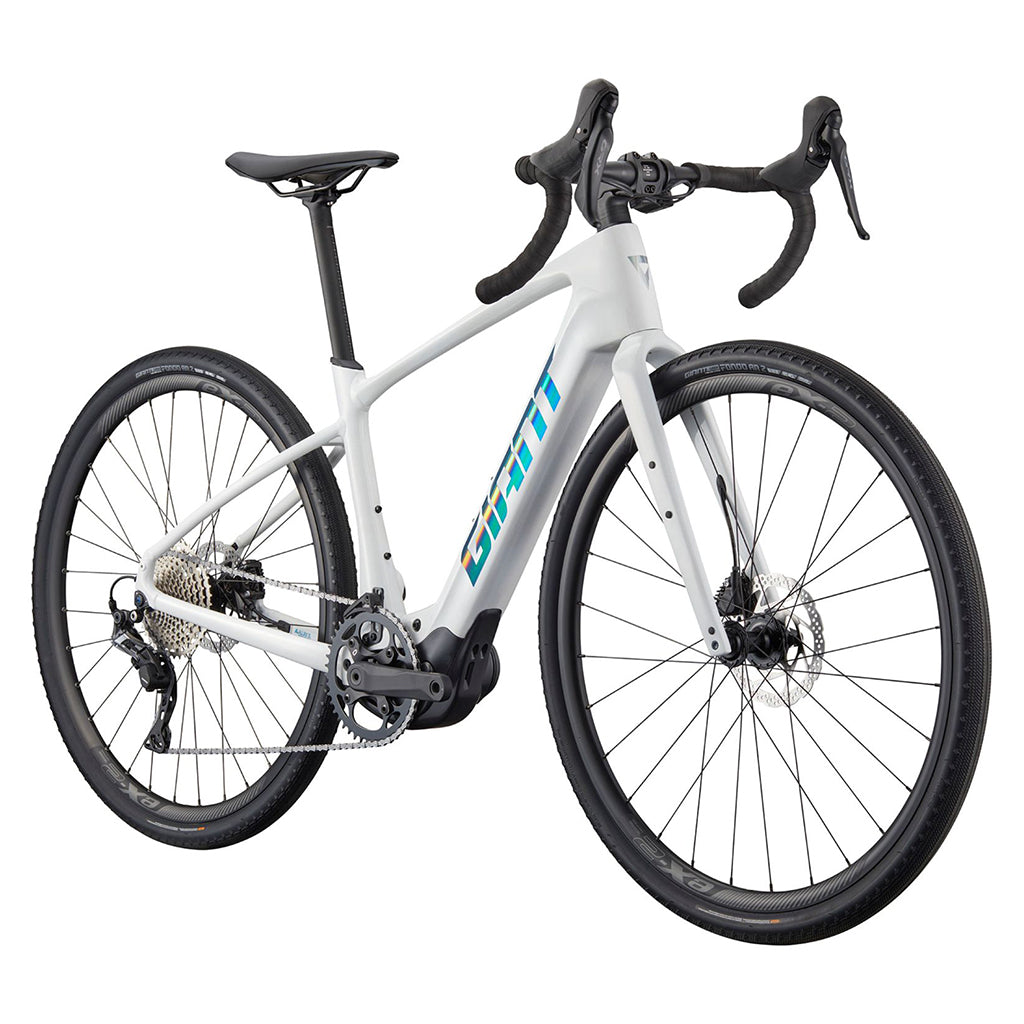

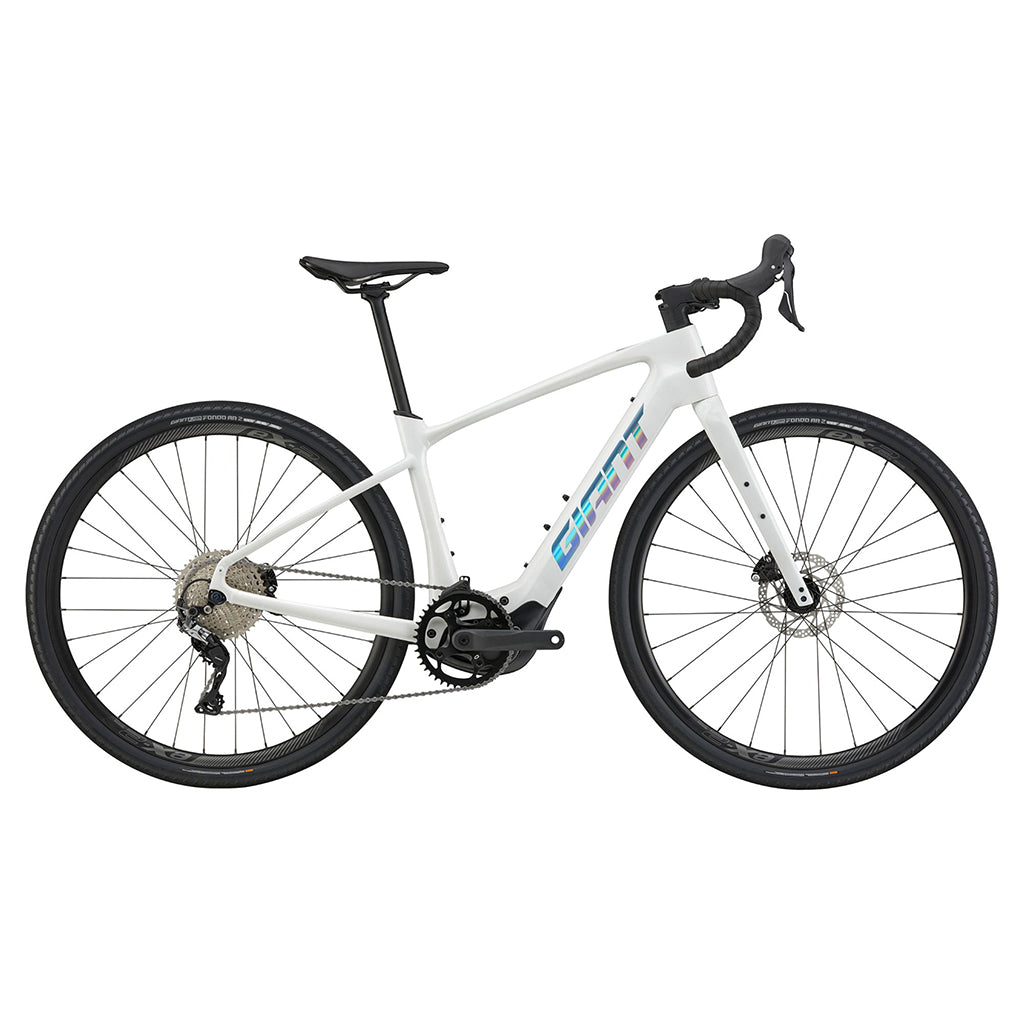

Giant Revolt E+ 2
Local Pickup Only
Giant Revolt E+ 2
$4,899.99
From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.
210000111930
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
MotorSyncDrive Sport2, 75Nm, powered by Yamaha
ControllerRideControl Ergo 2 remote, 5 power levels plus Smart Assist auto mode
DisplayRideControl GO, frame integrated LED console optional ANT+ wireless display compatible
BatteryEnergyPak 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible
ChargerEnergyPak 4A smart charger, 60% in 1:45h
FrameALUXX SL-grade aluminum,1.125" - 1.25" head tube, 12x142 thru-axle, KSA18 kickstand mount
ForkAdvanced-grade composite, 12x100mm thru-axle
HandlebarGiant Contact XR D-Fuse, 31.8mm
GripsCork tape with gel
StemGiant Contact AeroLight, -10 degree
SeatpostGiant D-Fuse, alloy, 14mm offset
SaddleGiant Approach
ShiftersShimano GRX RD-RX812
Rear DerailleurShimano GRX RD-RX812
BrakesShimano GRX RX400 hydraulic Shimano RT65 [F]180mm, [R]160mm
Brake LeversShimano GRX RX600
CassetteShimano Deore, 11-speed,11-42
ChainKMC e.11 Sport, EcoProteq, e-bike optimized
CranksetFSA E-crank alloy, SRAM X-SYNC chain ring 46t, 107BCD
RimsGiant eX 2 Disc wheelset, alloy, tubeless ready, 22mm IW, 24mm H
HubsGiant eTracker, [F] 100x12mm thru-axle, [R] 142x12mm thru-axle
SpokesSapim [F] Race, [R] E-Lite, e-bike optimized
TiresGiant Gavia Fondo AR 2, tubeless, 700X40c, 60 TPI, wire bead
ExtrasTubeless kit (liquid, valves, levers, manual, tool)
*Specifications are subject to change without notice
Geometry
| XS | S | M | ML | ||||
|---|---|---|---|---|---|---|---|
| A | Reach | 399 | 404 | 408 | 410 | ||
| B | Stack | 563 | 563 | 577 | 592 | ||
| C | Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | ||
| D | Bottom Bracket Drop | 75 | 75 | 75 | 75 | ||
| E | Wheelbase | 1069 | 1078 | 1079 | 1090 | ||
| F | Chainstay Length | 455 | 455 | 455 | 455 | ||
| G | Head Tube Length | 135 | 135 | 150 | 165 | ||
| H | Top Tube Length | 550 | 560 | 570 | 580 | ||
| I | Seat Tube Angle | 75° | 75° | 74° | 74° | ||
| J | Standover Height | 702 | 747 | 798 | 810 | 830 | |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'3" - 5'8" | 161 - 172cm |
| S | 5'3" - 5'8" | 161 - 172cm |
| M | 5'6" - 5'10" | 168 - 178cm |
| ML | 5'9" - 6'1" | 175 - 185cm |
Model Numbers
| Size | Model Number |
|---|---|
| Rainbow White | |
| XS | 7521009103 |
| S | 7521009104 |
| M | 7521009105 |
| M/L | 7521009106 |
