Specifications

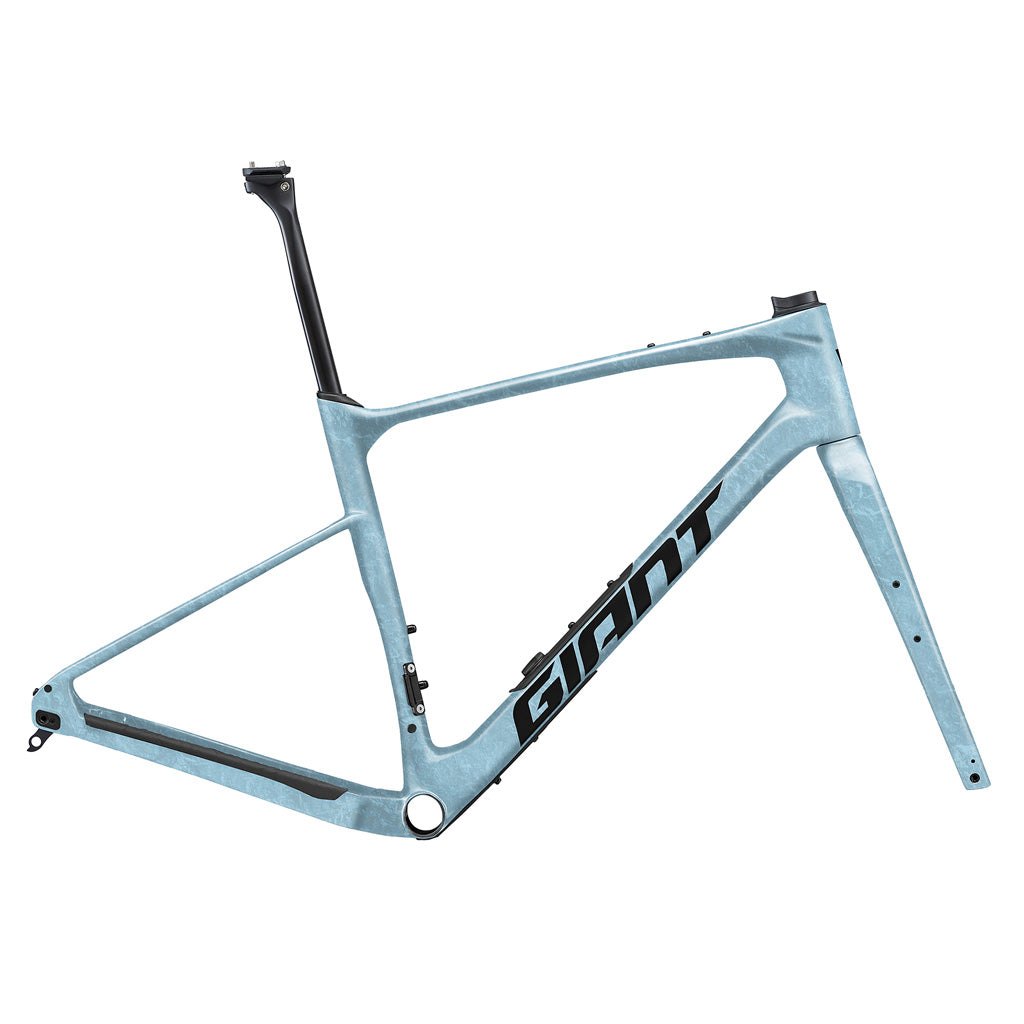

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork
Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Extras
Headset, integrated down tube storage bag, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
* Specifications are subject to change without notice
Geometry
| XS | S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Reach | 381 | 381 | 387 | 391 | 397 | 407 |
| B | Stack | 556 | 570 | 586 | 602 | 616 | 630 |
| C | Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| D | Bottom Bracket Drop | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| E | Wheelbase | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| F | Chainstay Length | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| G | Head Tube Length | 125 | 135 | 150 | 165 | 180 | 195 |
| H | Top Tube Length | 540 | 550 | 560 | 575 | 585 | 600 |
| I | Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| J | Stand Over Height | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'1" - 5'5" | 155 - 166cm |
| S | 5'3" - 5'7" | 159 - 171cm |
| M | 5'5" - 5'11" | 169 - 181cm |
| M/L | 5'9 - 6'1" | 174 - 186cm |
| L | 5'10" - 6'3" | 179 - 191cm |
| XL | 6'2" - 6'7" | 189 - 200cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
