The Gravel Crusher
The Giant Revolt Advanced is designed for those who enjoy fast and free gravel riding. This lightweight composite bike offers versatility, allowing you to either compete for a win or embark on a weekend adventure to explore new distances. Featuring a composite frame, adjustable wheelbase, and internal storage for essentials, the Revolt Advanced is equipped to handle any challenge.
Key performance factors include a fast and versatile setup. The Advanced-grade composite frame and fork provide lightweight efficiency and smooth control. The two-position flip chip on the rear dropout enables wheelbase adjustment for either quicker handling or improved stability with added tire clearance up to 53mm. Riders can opt for the included D-Fuse seatpost for added flex and compliance or switch to a traditional 30.9mm round seatpost or dropper post.
Key Highlights:
-
Fast and Versatile:
- Advanced-grade composite frame and fork
- Adjustable wheelbase with a two-position flip chip on the rear dropout
- Wheelbase options for quick handling or improved stability
- Choice between D-Fuse seatpost, traditional 30.9mm round seatpost, or dropper post
-
Tuned Compliance:
- Dropped seatstays with small-diameter tubing
- Contact SL XR D-Fuse alloy handlebar
- Carbon D-Fuse seatpost
- Enhanced control and reduced fatigue on rough tracks
-
Smart Integration:
- Internally routed cables for clean aesthetics and improved aero performance
- Storage compartment inside the top tube for carrying tools, snacks, and essentials
- Additional integrated mounts on top tube, fork, and rear dropout for packs or fenders
- Molded chainstay and down tube protection to defend against impacts and reduce noise
Specifications
Sizes
XS, S, M, M/L, L, XL
Colours

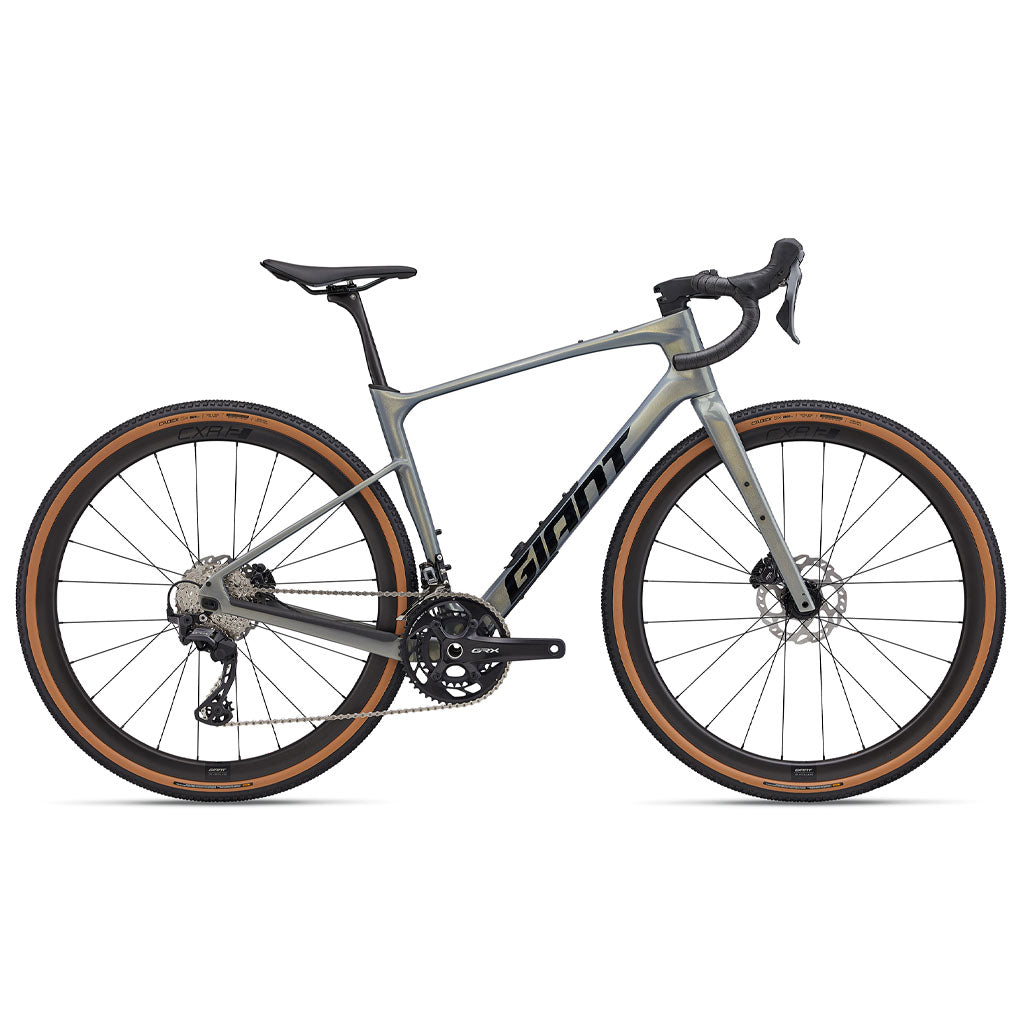

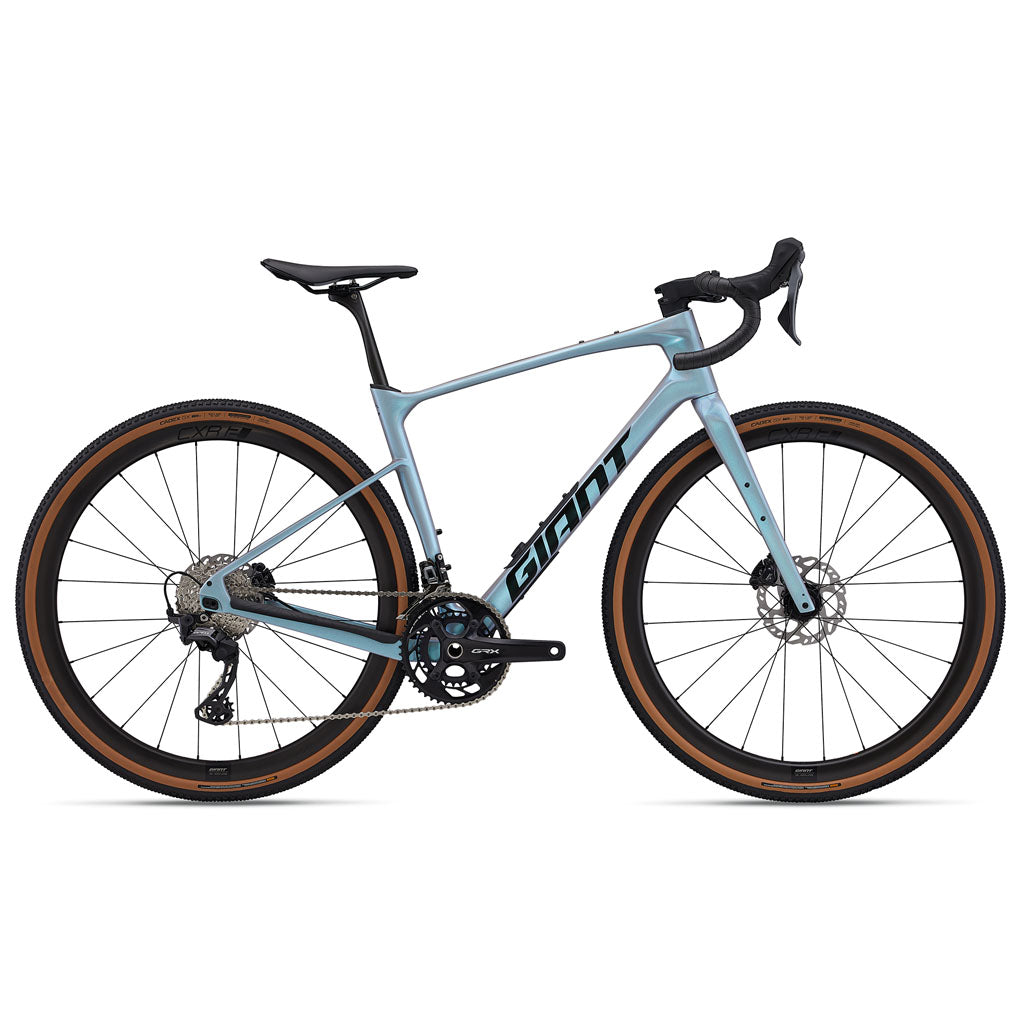

Prismatic Haze / Aurora Noise
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc, flat mount disc
Handlebar
Giant Contact XR D-Fuse, 31.8mm XS, S:42cm, M, M/L:44cm, L, XL:46cm
Grips
Stratus Lite 3.0
Stem
Giant Contact AeroLight, -10 degree
Seatpost
Giant D-Fuse SL, composite, -5/+15mm offset
Saddle
Giant Grit
Shifters
Shimano GRX RX820, 2x12
Front Derailleur
Shimano GRX RX820
Rear Derailleur
Shimano GRX RX820
Brakes
Shimano GRX RX820 hydraulic, Shimano RT70 rotors [F]160mm, [R]160mm
Brake Levers
Shimano GRX RX820
Cassette
Shimano CS-HG710, 12-speed, 11x36
Chain
KMC X12L-1
Crankset
Shimano GRX RX820, 31/48 XS, S:170mm, M, M/L:172.5mm, L, XL:175mm
Bottom Bracket
Shimano BB71, press fit
Rims
Giant CXR 2 Carbon Disc WheelSystem, 35mm depth, 25mm inner width
Hubs
[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes
Sapim Sprint
Tires
CADEX GX, tubeless, 700x40c, 170 tpi, FOLDING
Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, integrated down tube storage bag
*Specifications are subject to change without notice
XS | S | M | ML | L | XL | ||
---|---|---|---|---|---|---|---|
SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | ||
A | REACH | 381 | 381 | 387 | 391 | 397 | 407 |
B | STACK | 556 | 570 | 586 | 602 | 616 | 630 |
C | HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
D | BOTTOM BRACKET DROP | 80|81 | 80|81 | 80|81 | 80|81 | 80|81 | 80|81 |
E | WHEELBASE | 1024|1034 | 1020|1030 | 1026|1036 | 1031|1041 | 1041|1051 | 1056|1066 |
F | CHAINSTAY LENGTH | 425|435 | 425|435 | 425|435 | 425|435 | 425|435 | 425|435 |
G | HEAD TUBE LENGTH | 125 | 135 | 150 | 165 | 180 | 195 |
H | TOP TUBE LENGTH | 540 | 550 | 560 | 575 | 585 | 600 |
I | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
M | STANDOVER HEIGHT | 724|731 | 740|747 | 757|764 | 774|780 | 791|797 | 807|814 |
Size | Height | Imperial | Metric |
---|---|---|
XS | 5'1"-5'5" | 155 - 166cm |
S | 5'3"-5'7" | 159 - 171cm |
M | 5'5"-5'11" | 169 - 181cm |
L | 5'9-6'1" | 174 - 186cm |
XL | 5'10"-6'3" | 179 - 191cm |
XXL | 6'2" - 6'7" | 189 - 200cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
