Reign Supreme
Giant Reign SX
Local Pickup Only

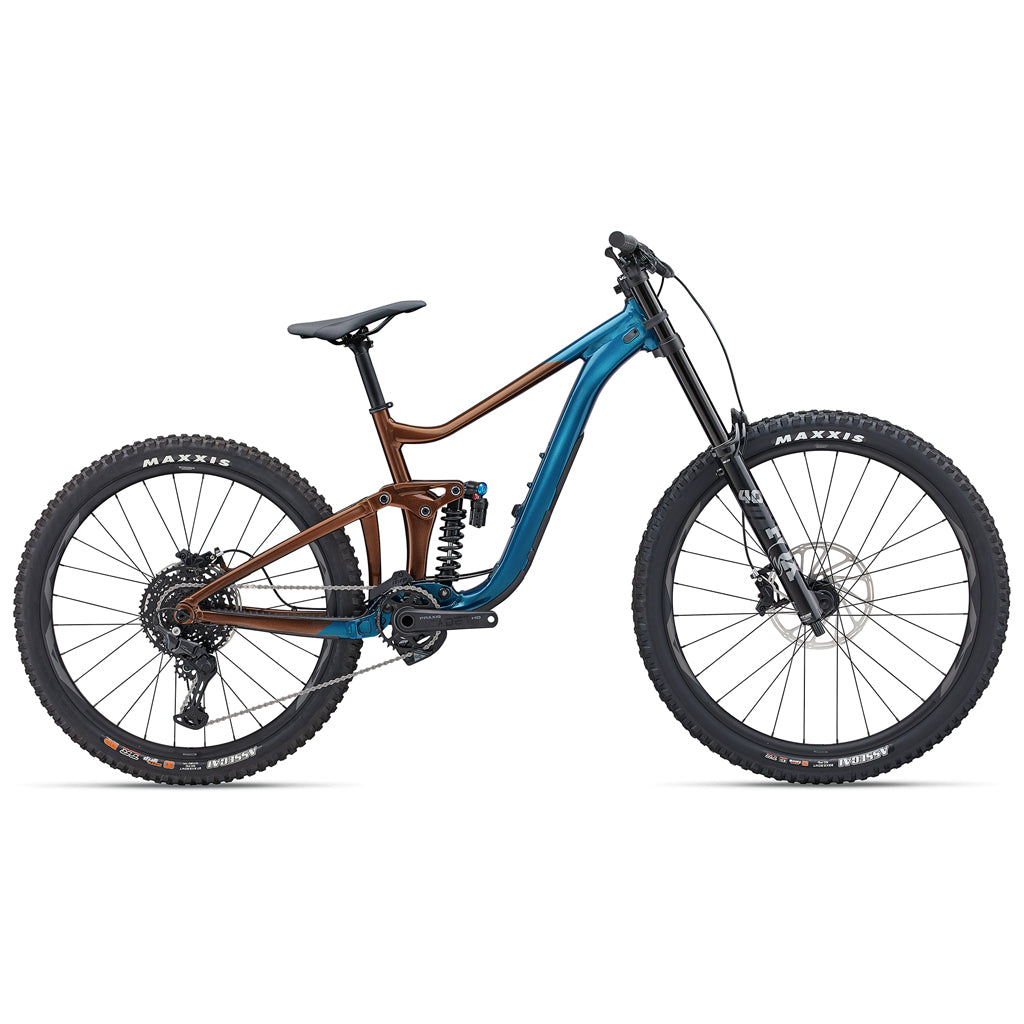

Giant Reign SX
$4,999.99
The Giant Reign SX combines an aluminum frame with a Shimano CUES drivetrain, Fox 40 Performance fork, and a Fox DHX2 Performance Elite rear shock. Designed for aggressive riders, it offers 190mm of front and 165mm of rear suspension.
210000070421
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
Frame ALUXX SL-grade aluminum front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage
Fork Fox 40 Performance, GRIP damper, 190mm, 20x110, custom tuned for Giant
Shock Fox DHX2 Performance Elite, 205/65, custom tuned for Giant M:400#, L:450#, XL:500#
Handlebar Giant Contact SL TR35, 800x35mm, 20mm rise
GripsGiant Tactal Pro single lock-on
Stem TruVativ Descendant Direct Mount 35, 50mm
Seatpost Giant Contact, 30.9mm, 400mm
SaddleGiant Romero
Shifters Shimano CUES, SL-6000, 1x10
Rear Derailleur Shimano CUES RD-U6000
Brakes SRAM Code R, hydraulic, CenterLine rotors [F] 220mm, [R] 200mm
Brake Levers SRAM Code R
Cassette Shimano CUES, CS-LG300, 11-48
Chain Shimano CUES LG500
Crankset Praxis Cadet HD M24, 32t, 165mm, 55mm chainline
Bottom Bracket Praxis, press fit
Rims Giant AM 29, alloy
HubsGiant Boost, sealed
SpokesStainless
Tires[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR
[R] Maxxis Minion DHR II 27.5x2.5 WT, 3C MaxxTerra, DD, TR tubeless
Extras Tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, integrated down tube storage bag
*Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HIGH|MID|LOW | HIGH|MID|LOW | HIGh|MID|LOW | HIGH|MID|LOW | ||
| A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
| B | Stack | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
| C | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| D | Bottom Bracket Drop | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
| E | Wheelbase | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| F | Chainstay Length | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| G | Head Tube Length | 100 | 105 | 115 | 120 |
| H | Top Tube Length | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
| I | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| J | Standover Height | 720 | 724 | 729 | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
Model Numbers
| Size | Model Number |
|---|---|
| Sea Sparkle/Hematite | |
| M | 1125003105 |
| L | 1125003107 |
| XL | 1125003108 |
