DESCRIPTION
In-Store Pickup Only

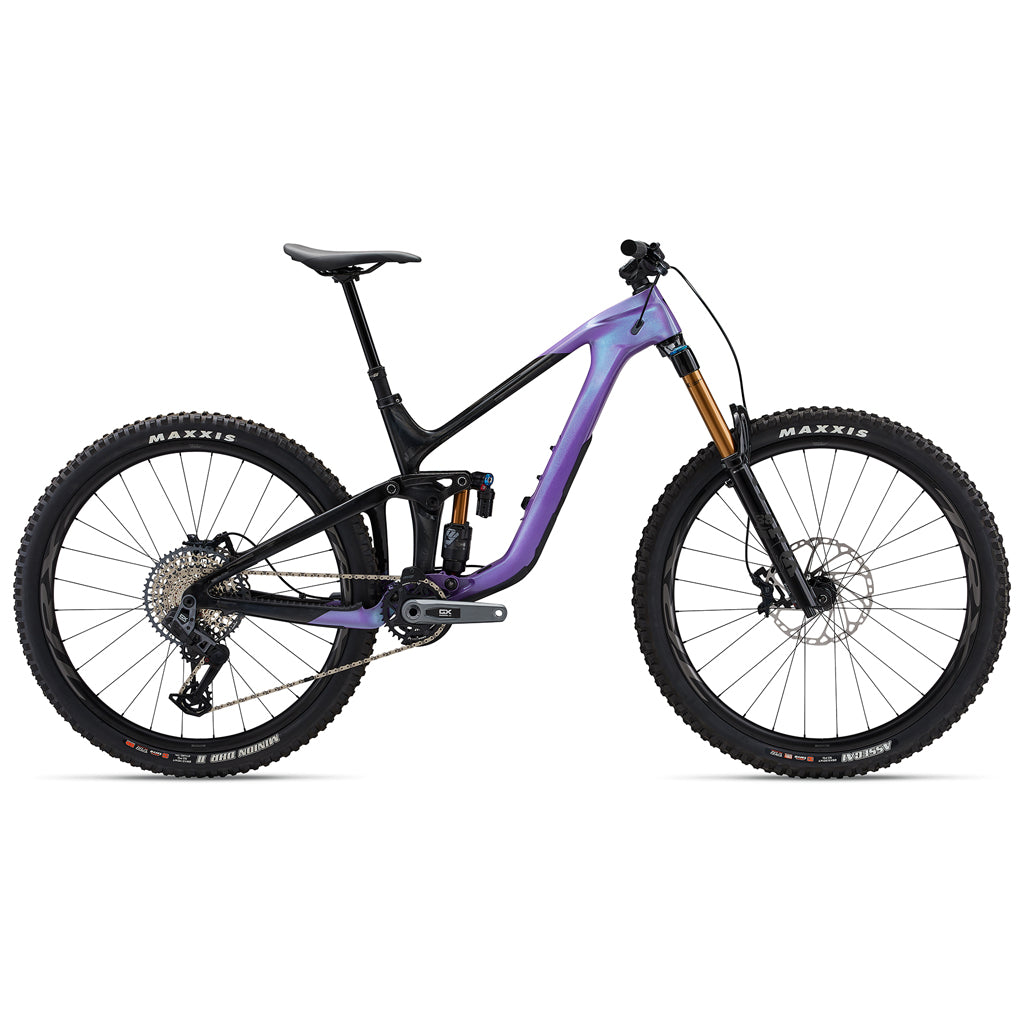

Go fast, get rowdy and nail new lines. With a full-composite chassis, developed with Giant’s enduro racing pros, this hard-charging 29er has 160mm of Maestro rear suspension, adjustable geometry, and the option to switch to a 27.5-inch rear wheel.
Race-Bred Suspension
A Maestro rear suspension system with 160mm of travel, paired with a 170mm fork, was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
Adjustable Enduro Geometry
Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Rear Wheel Options
Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
Specifications
Frame
Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage
Fork
Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock
Fox Float X2 Factory, 205/62.5, custom tuned for Giant
Handlebar
Giant Contact SLR TR35, composite, 800x35mm, 20mm rise
Grips
Giant Tactal Pro single lock-on
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
Saddle
Giant Romero SL
Shifters
SRAM AXS Pod, discrete clamp, 1x12
Rear Derailleur
SRAM GX Eagle Transmission
Brakes
Shimano SLX M7120, hydraulic, Shimano RT-66 rotors [F] 220mm, [R] 200mm
Brake Levers
Shimano SLX BL-M7100
Cassette
SRAM GX Eagle Transmission, 10x52
Chain
SRAM GX Eagle Transmission
Crankset
SRAM GX Eagle Transmission, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Hubs
[F] Giant MTB alloy, 6-bolt
[R] Giant MTB alloy, 30t 3-pawl driver, 6-bolt
Spokes
Stainless
Tires
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR
[R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras
Tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, integrated down tube storage bag
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
| B | Stack | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
| C | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| D | Bottom Bracket Drop | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
| E | Wheelbase | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| F | Chainstay Length | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| G | Head Tube Length | 100 | 105 | 115 | 120 |
| H | Top Tube Length | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
| I | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| J | Stand Over Height | 720 | 724 | 729 | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
