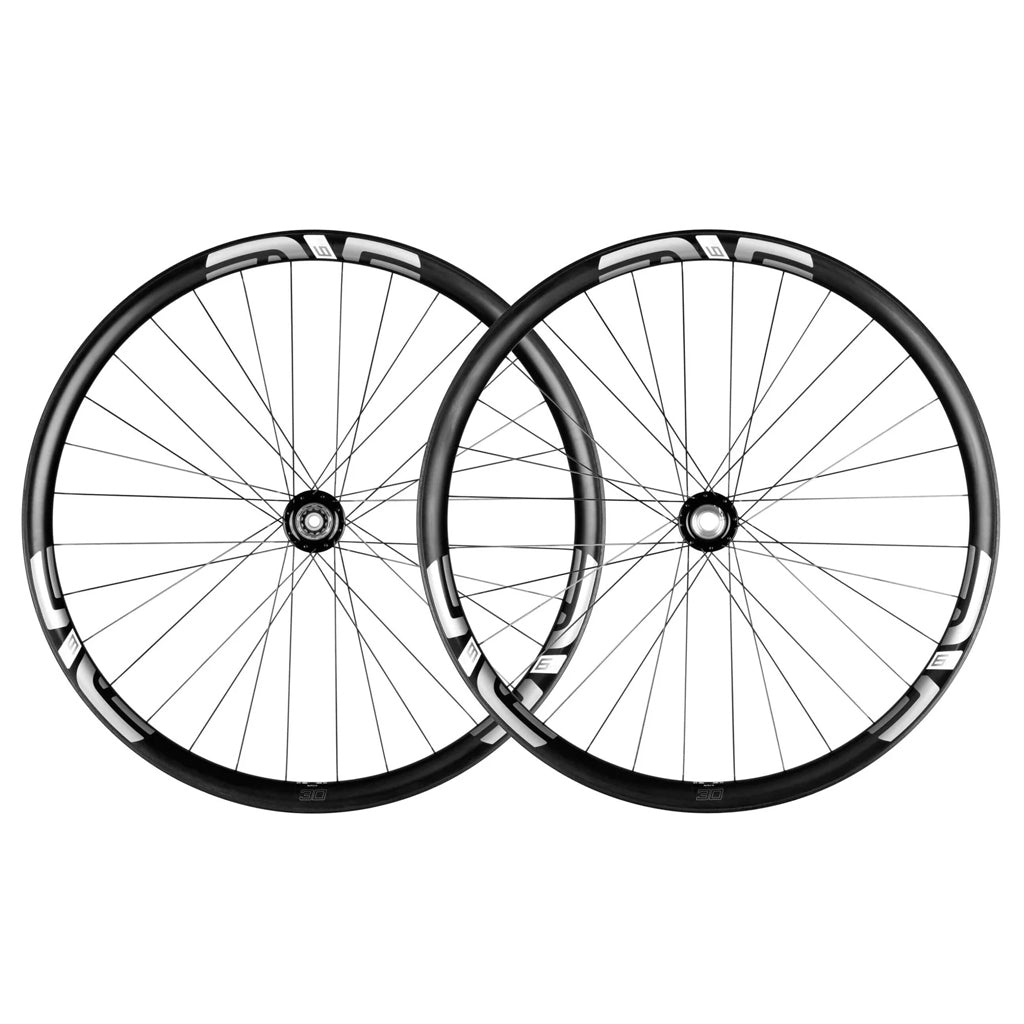

Shaped by Downhill World Cup podiums, Red Bull Rampage runs and the Enduro World Series, the M9 is the enduro and downhill wheel that is more than you will ever need and exactly what you want.

PRODUCT DETAILS:

• Application: Enduro/Downhill
• Inner Rim Width: 30mm
• ENVE Incidental Damage Protection

BUILD SPECS

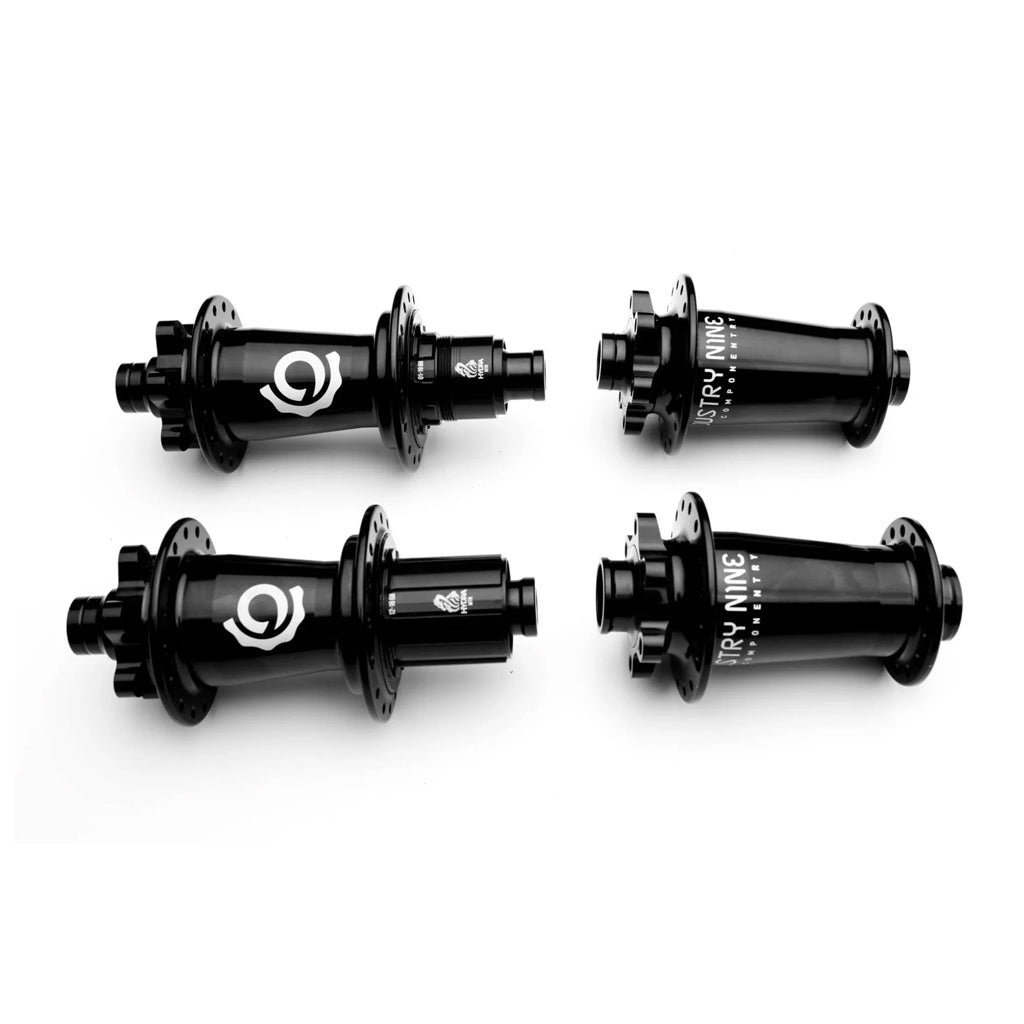

Hub Offering: Industry Nine Hydra
Spacing: Front: 20x110 Boost, 20x110 | Rear: 12x157, 12x150
Wheelsize: 27.5", 29"

DIMENSIONS

Rim Depth Front/Rear: 27mm / 27mm
Internal Width Front/Rear: 30mm / 30mm
External Width Front/Rear: 40mm / 40mm
Hole Count Front/Rear: 32 / 32
Effective Rim Diameter: 27.5" 557mm / 29" 597mm
Recommended Tire Size:2.35 in - 2.6 in
Max Tire Pressure: 40 PSI

WEIGHTS

Rim Weight Front/Rear/Set: 470g / 470g / 940g
Wheelset i9 Hydra SuperBoost 6B Hubs Front/Rear/Set: 996g / 1111g / 2108g

SKU 27.5:
100-2116-013 (12X157 - XD)
100-2116-014 (12X157- Shimano HG)

SKU 29:
100-2116-015 (12X157 - XD)
100-2116-016 (12X157 - Microspline)
