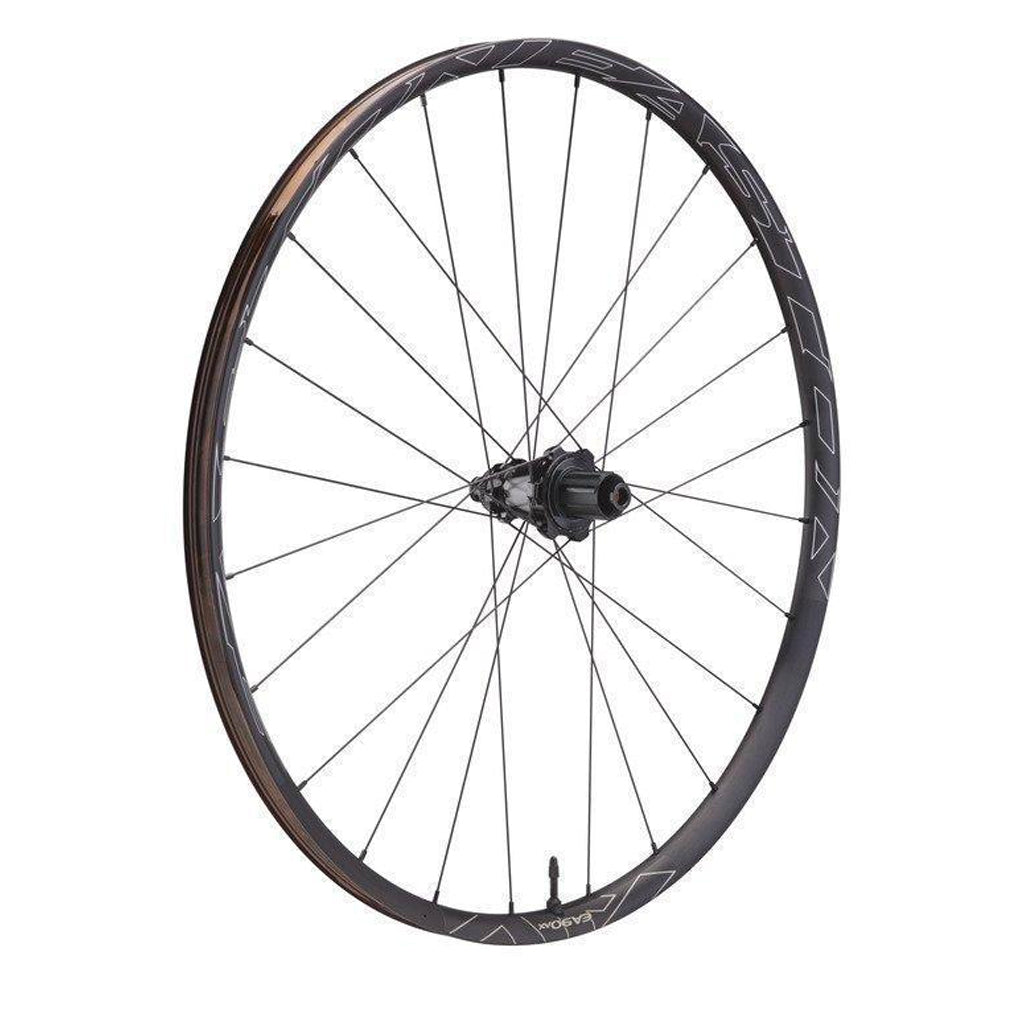

The all new EA90 AX Wheelset has been designed for days like these – gravel epics, strange roads and the opportunity for something different. As best in class gravel wheels, the EA90 AX boast a wide 25mm internal rim bed that fits adventure tire profiles from 35-55c. Its asymmetrical design optimizes spoke tension balance, wheel durability and stiffness. Laced to our proven Road Vault Hubs, the EA90 AX wheelset is a versatile upgrade that strikes a balance between the road less traveled and the race ahead.

WHEELSET WEIGHT: 1625g
FINISH: MATTE ANODIZE / VINYL DECALS
TYPE: TUBELESS READY ALUMINUM CLINCHER
RIM MATERIAL: EA90 ALUMINIUM
RIM DEPTH: 21mm
INTERNAL RIM WIDTH: 25mm
EXTERNAL RIM WIDTH: 29mm
SPOKES: SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN: 24 / 3X
BRAKING: SURFACE DISC - CENTER LOCK ROTOR MOUNT
NIPPLE TYPE: DT EXTERNAL ALLOY
FRONT/REAR HUB: EASTON VAULT CENTER LOCK - 12X100 / 12X142*
FREEHUB OPTIONS: SHIMANO
BEARING TYPE: SEALED CARTRIDGE BEARINGS
