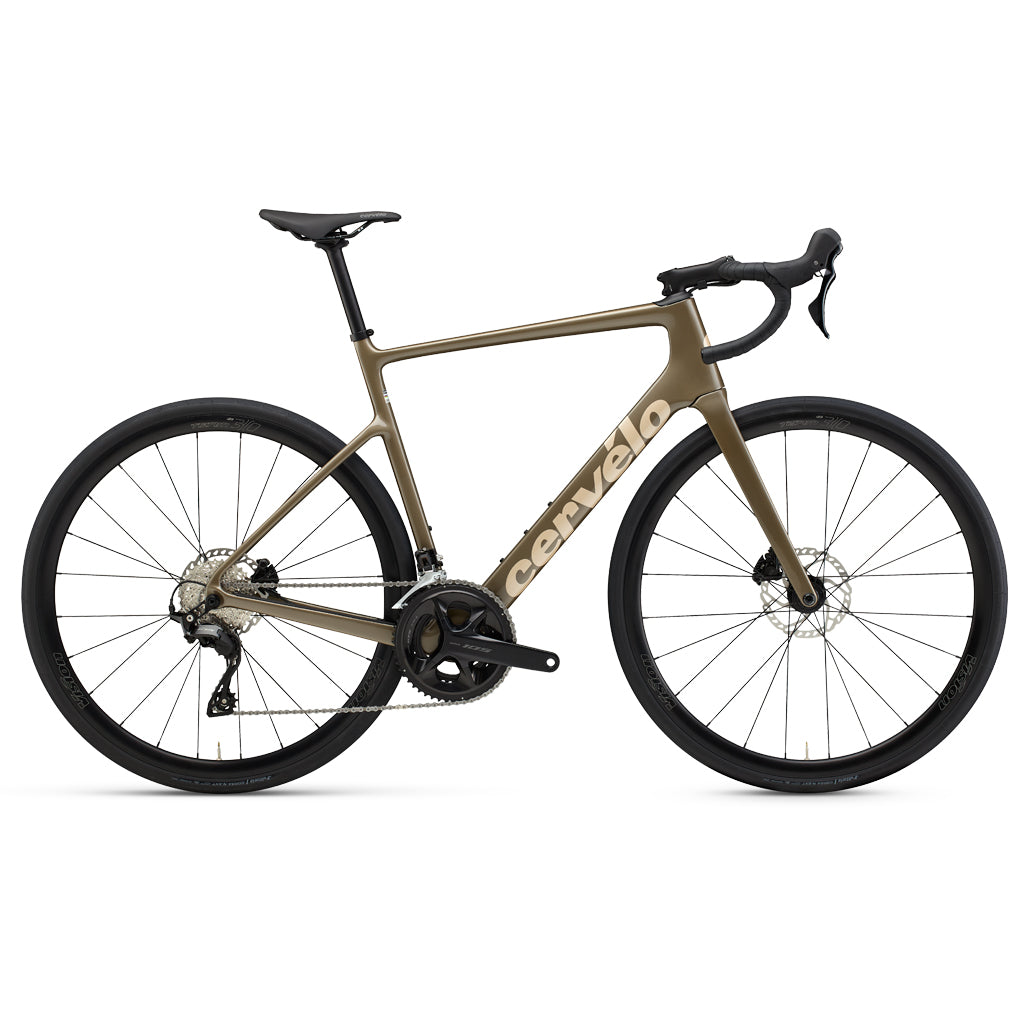

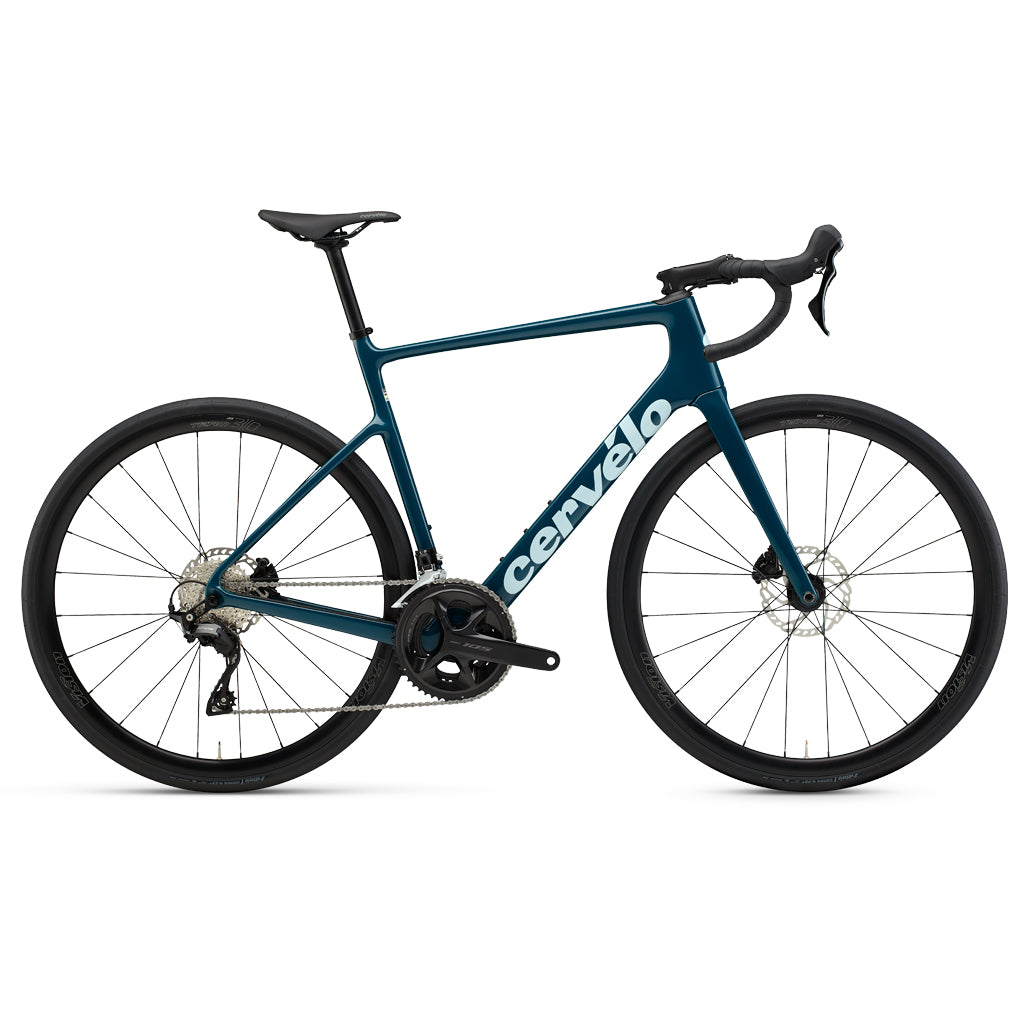

Cervélo Caledonia 105
Caledonia is a high-performance road bike with endurance-oriented geometry that delivers everything you’d expect from a Cervélo. It’s designed for all-season riders, fondo racers, and those who’ve just been bitten by the cycling bug. Clean, aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup add up to a bike that’s fast enough for spirited group rides, comfortable enough for all-day efforts, and looks right at home at every coffee stop.
Specifications
FORKCervélo All-Carbon, Tapered Caledonia Fork
BOTTOM BRACKETFSA, T47 BBright for 24mm spindle
HEADSETFSA IS2 1-1/8, 36° x 45° / 1-1/2, 36° x 45°
CHAINShimano M7100
FRONT DERAILLEURShimano 105, R7100
REAR DERAILLEUR Shimano 105, R7100
FRONT THRU AXLECervélo Aero Thru Axle Front, M12x-1.5mm, 127mm length
CASSETTEShimano 105, R7101, 11-34T, 12-Speed
REAR THRU AXLECervélo Aero Thru Axle Rear, M12x-1.5mm, 170.5mm length
SHIFTER/BRAKEShimano 105, R7120
HANDLEBARCervélo HB23 Alloy
FRONT WHEELVision Team i23 Disc, 23mm IW, J-Bend, 12x100mm, 6 bolt, tubeless compatible
REAR WHEELVision Team i23 Disc, 23mm IW, J-Bend, 12x142mm, HG freehub, 6 bolt, tubeless compatible
STEMCervélo ST36 Alloy
SADDLECervélo Saddle
SEATPOSTCervélo Alloy 27.2
BRAKE ROTORSShimano RT66 6-Bolt
TIRESVittoria Corsa N.EXT TLR G2.0 700x32c
CRANKSETShimano 105, R7100, 52/36T
ACCESSORIESCervélo Front Computer/Accessory Mount 810, Cervélo Removeable Fender Mounts
SIZES48, 51, 54, 56, 58, 61
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 360 | 369 | 378 | 387 | 396 | 405 |
| B | Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| C | Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| D | Front Centre | 580.5 | 582.7 | 592.5 | 609.5 | 627 | 644.1 |
| E | Bottom Bracket Drop | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| F | Wheelbase | 983.3 | 985.6 | 996.3 | 1013.4 | 1031.8 | 1048.9 |
| G | Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| H | Head Tube Length | 89.8 | 110.3 | 136.3 | 162.6 | 191.5 | 217.8 |
| I | Top Tube Length | 502 | 522 | 543 | 565 | 581 | 598 |
| J | Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| K | Standover Height - 5cm in front of BB | 701 | 743 | 775 | 798 | 824 | 847 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'7" | 192 - 200cm |
