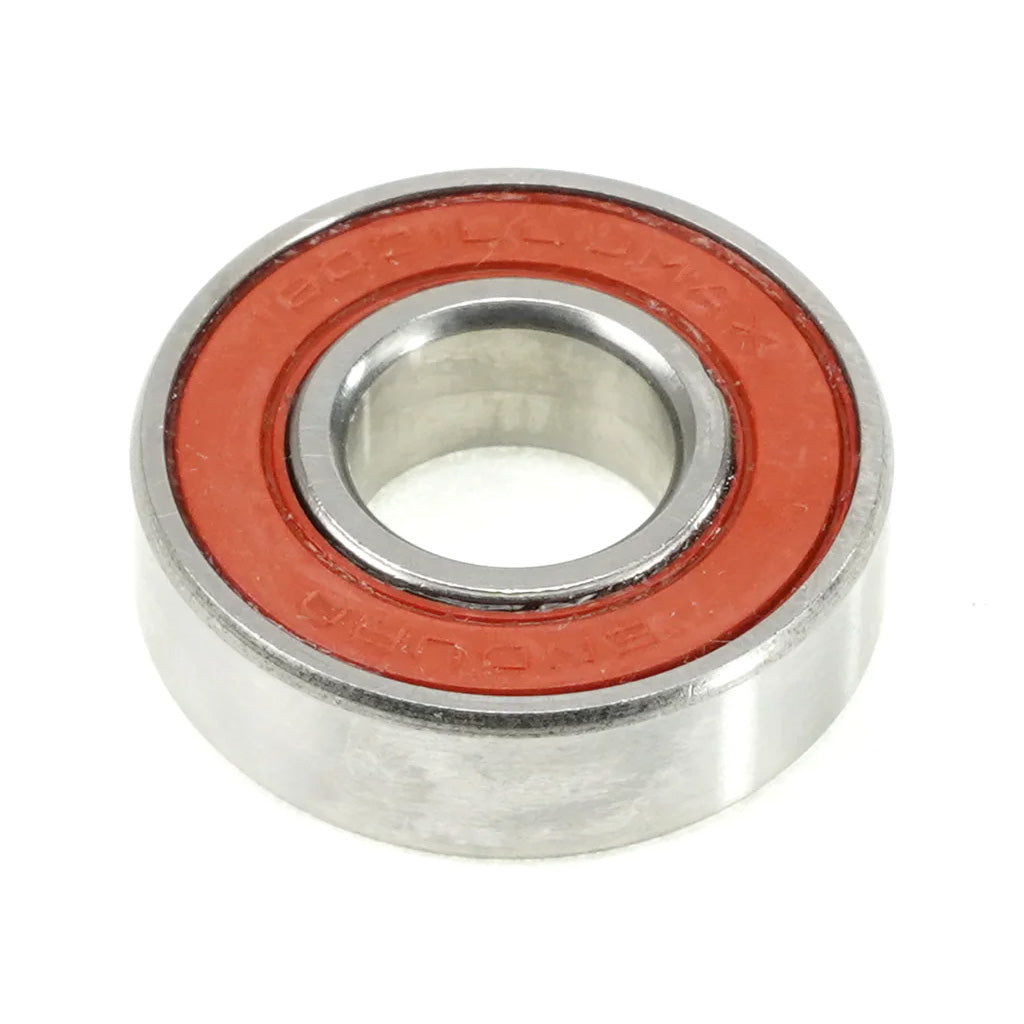

Enduro Bearing 6001 MAX

6001 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - 12mm x 28mm x 8mm -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

• MAX are designed for use in suspension pivots
• High precision Grade 10 balls with ABEC 3 precision
• No retainer means these bearings have 40 percent more static capacity
• Filled with Marine High Pressure grease
• LLU seals have two sealing lips on each seal
• Static load - 863lbf / 3.84kN
• Weight - 20.8g

MODEL ID:  6001 LLU MAX
