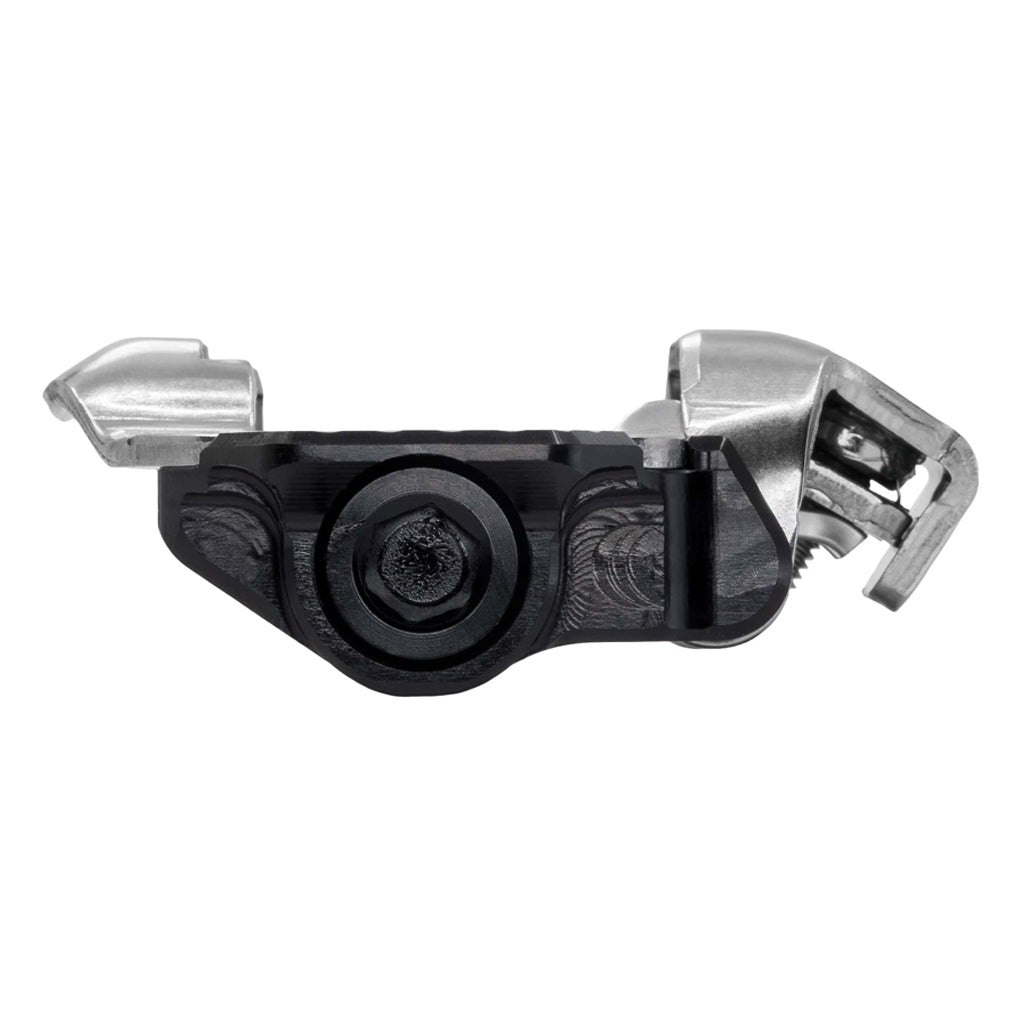

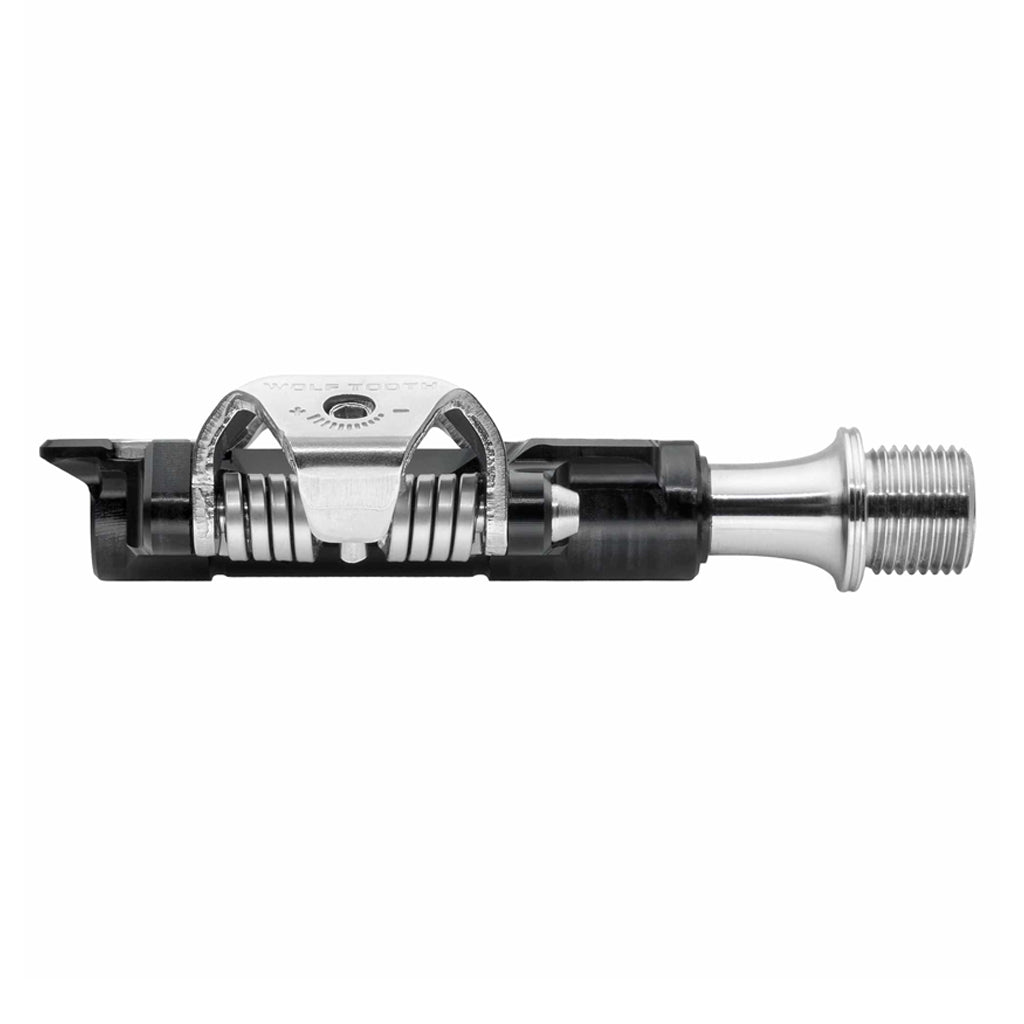

Wolf Tooth Components DEL Gravel Race Clipless Pedal

Wolf Tooth DEL Gravel Race Clipless Pedals feature a one-sided design for peak speed and consistent performance in gravel races. These SPD-compatible bike pedals are exceptionally lightweight at only 216 g, while still featuring a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.

The DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

• Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)

• Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)

• Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)

• Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately). Pedals ship in 55 mm position.

• 5 degrees float | 12 degrees release

• SPD compatible

• Proven axle and bearing design from Waveform Aluminum Pedals

• Designed, tested, and machined at Wolf Tooth in Minnesota, USA

Specifications:

Weight: 216g
Material: Body: 6061-T6 aluminum CNC machined
Axle: Heat-treated 17-4 PH stainless steel
Binding Cage: Stainless steel; Hardware: stainless steel
Included: Pedals, cleats with shims and bolts

Compatibility:

• Compatible with SPD cleats; Wolf Tooth cleats included

• Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads

Recommended:

• Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms

Features:

Commanding Performance
Riding with DEL Gravel Race Clipless Pedals feels more like riding with road shoes and pedals than standard gravel race shoes and XC pedals. The large platform area maximizes pedal and shoe contact for supreme power transfer.

Master Of All
DEL Gravel Race Pedals are significantly lighter, feature more platform area, and have a lower stack height than any other two-bolt SPD-compatible clipless pedal. Road pedal feel and power transfer with XC and gravel race shoes in any and all conditions.

Stainless Durability
These pedals will outlast your bike. The SPD-compatible stainless steel binding assemblies and axles create strong, rust-free pedals that are ready to ride hard on the nastiest dirt on the map.

Crisp SPD Compatible Interface
Clipping in and out needs to be simple, quick, and reliable. The DEL Gravel Race Clipless Pedals feature an SPD-compatible stainless steel binding that will work with your existing SPD cleats. They are optimized for the Wolf Tooth cleats that are included in the box. We improved the clipping experience so you can swiftly clip in at the start of the race, stay clipped in when it matters most, and unclip as quickly as needed.

Adjustable Q Factor
Adjusting the Q factor (pedal stance width) moves the pedal toward or away from the center of the bike. The DEL Gravel Race Clipless Pedals have Q factor options of 51, 55, and 59mm to fine-tune your fit, and ship set at 55mm. Adjusting Q factor is simple enough to do at home.

Ground Clearance and Mud Shedding
We designed DEL Gravel Race Clipless Pedals with a thin profile and open center for mud shedding. Your clips and unclips will be quick and reliable, regardless of mud and grit.

Reliable Construction
DEL Gravel Race Clipless Pedals feature machined components from Wolf Tooth HQ here in Minnesota, USA. The internal components use the same proven design from our popular Waveform Aluminum Pedals, including a machined stainless steel axle, three low-friction cartridge bearings, and one igus bushing with a custom radial seal that protects internal components from trail debris.

SKUs

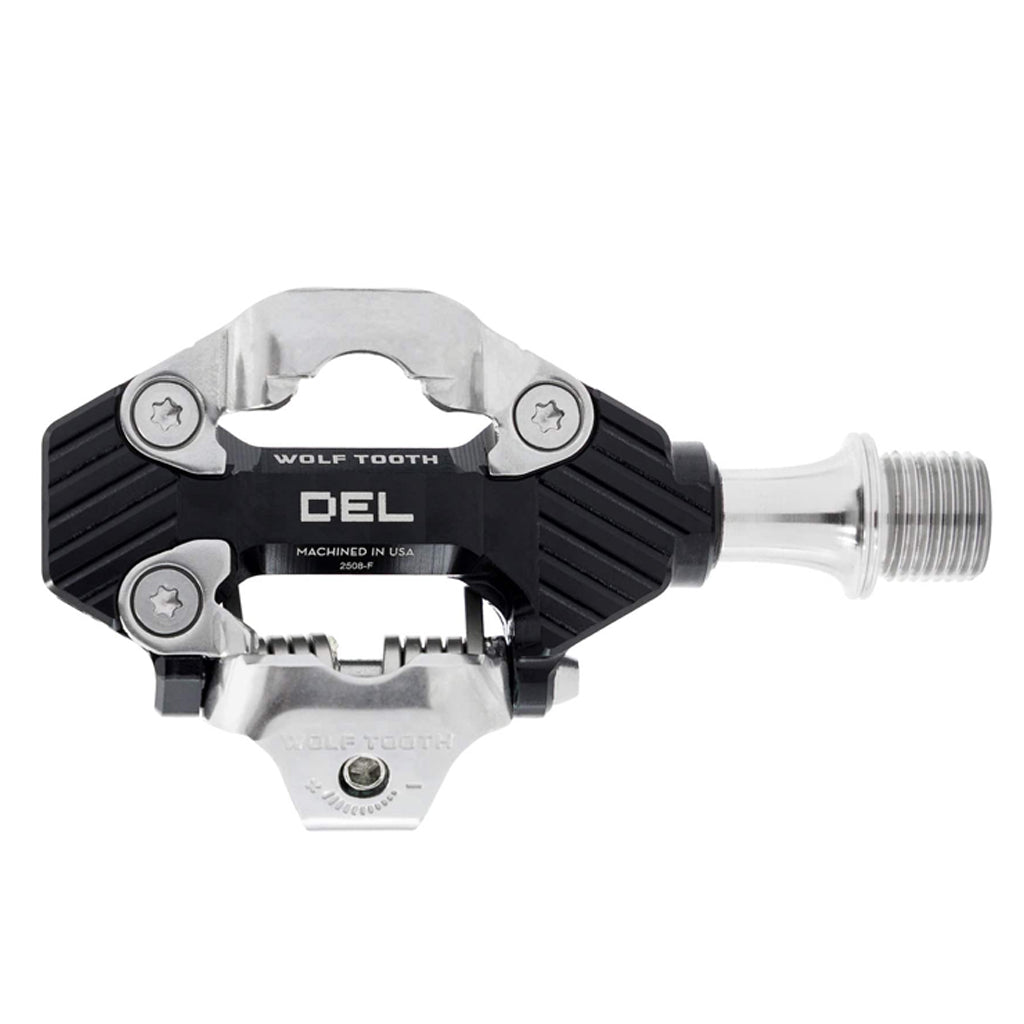

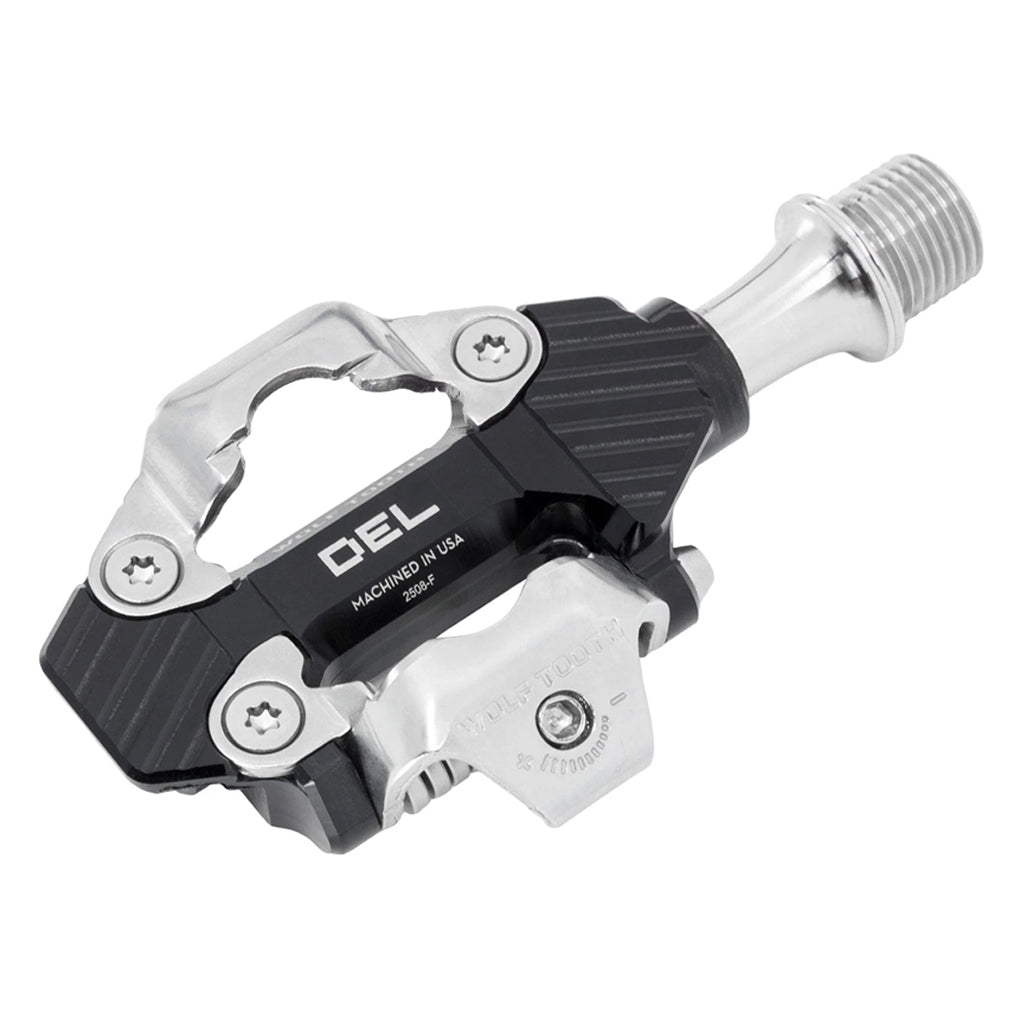

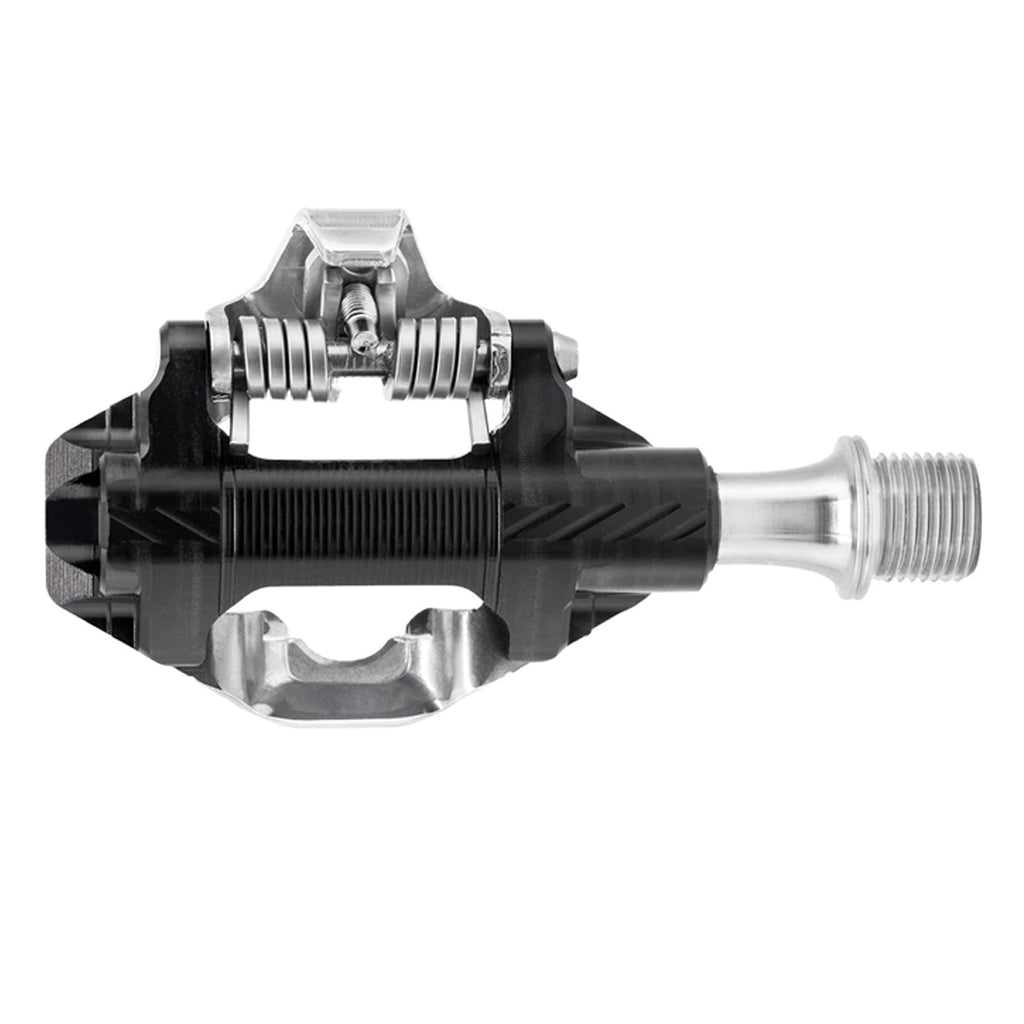

DEL-CLPS-BLK (Black)

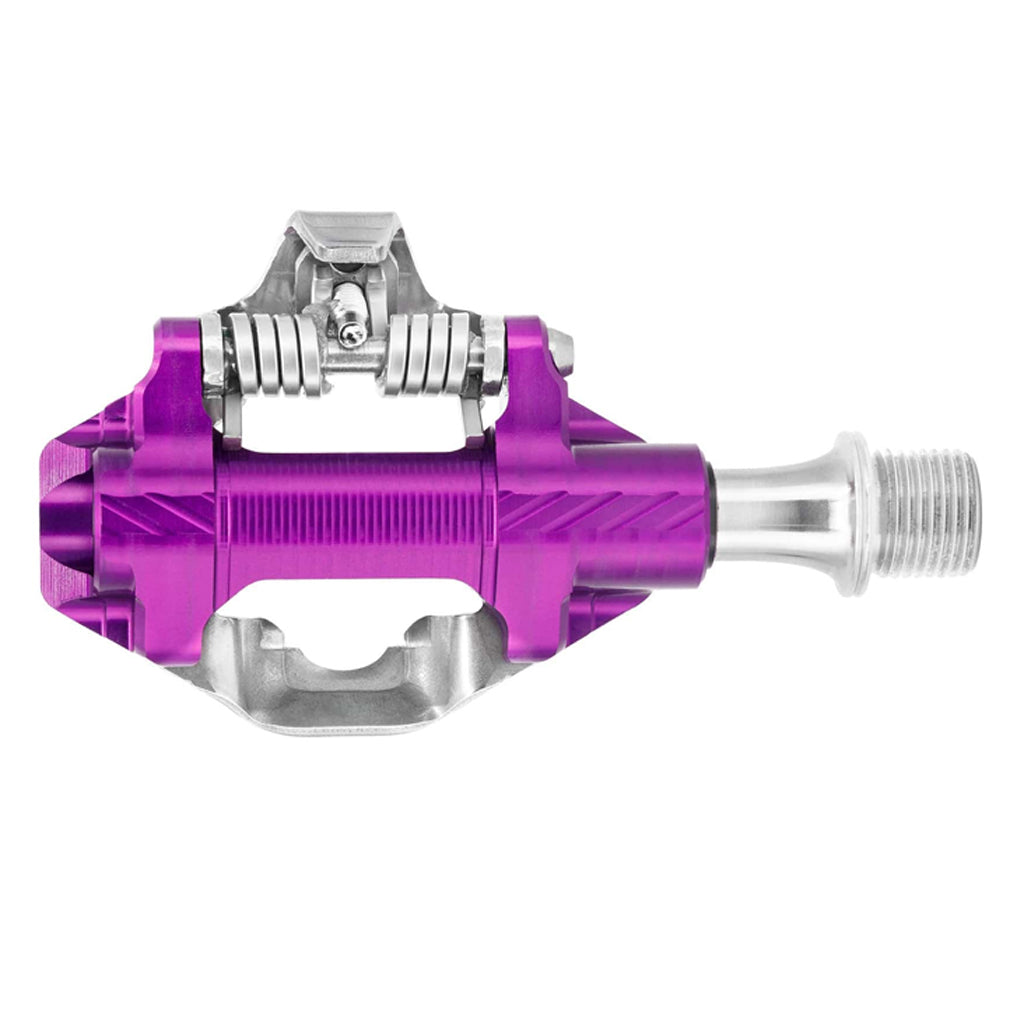

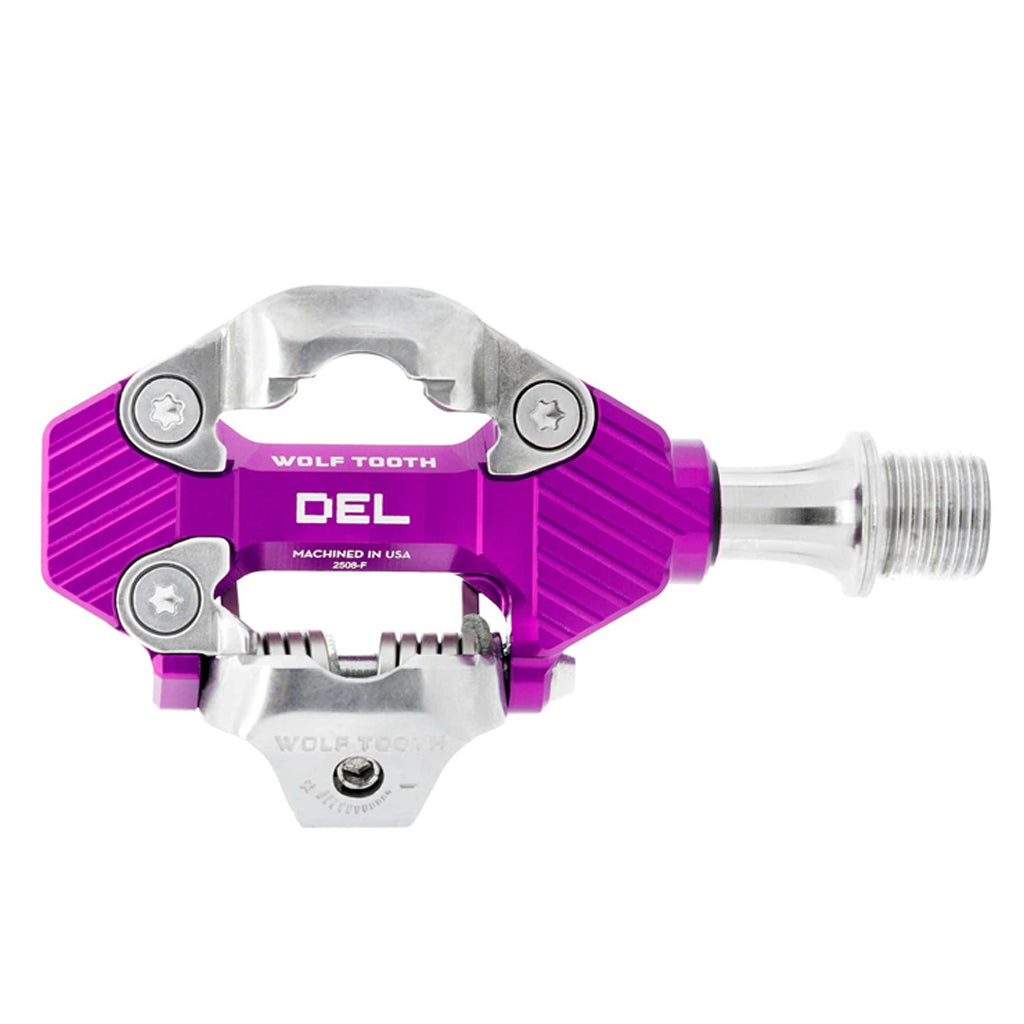

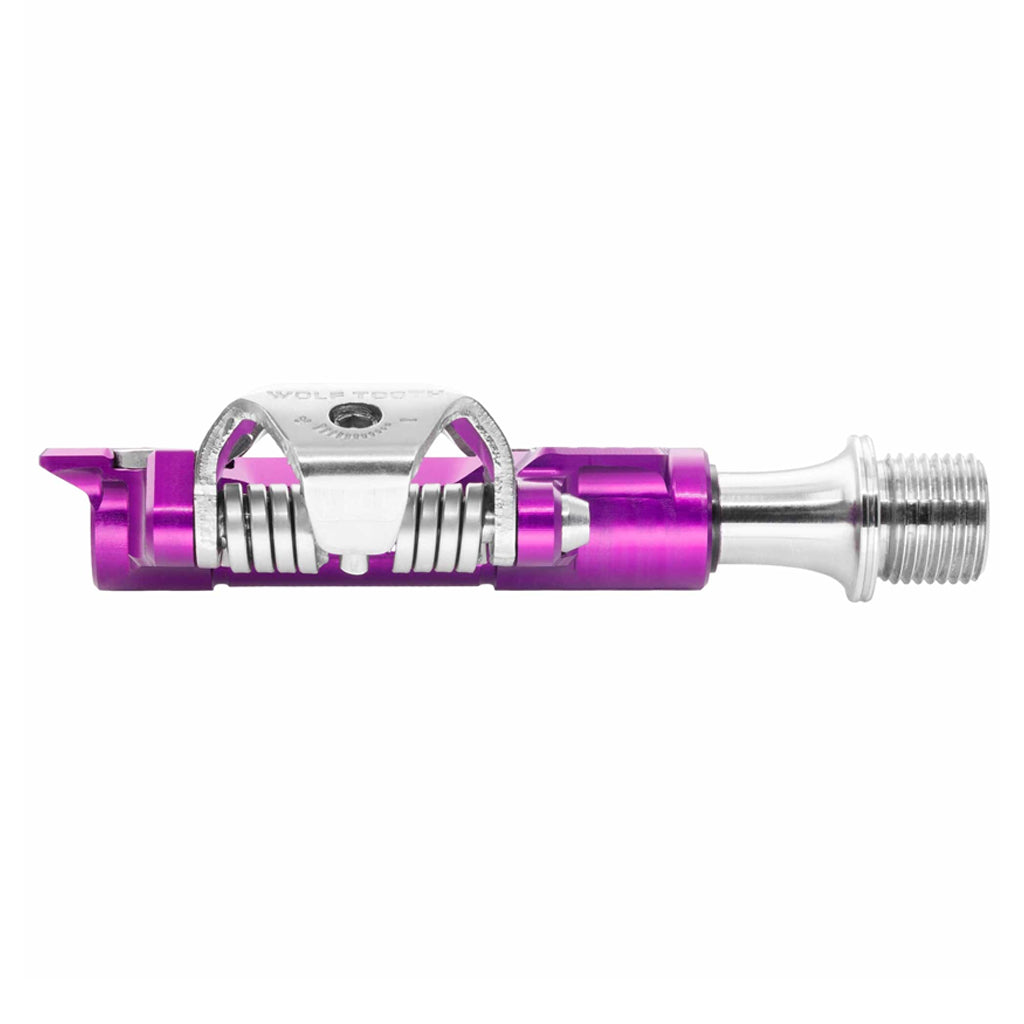

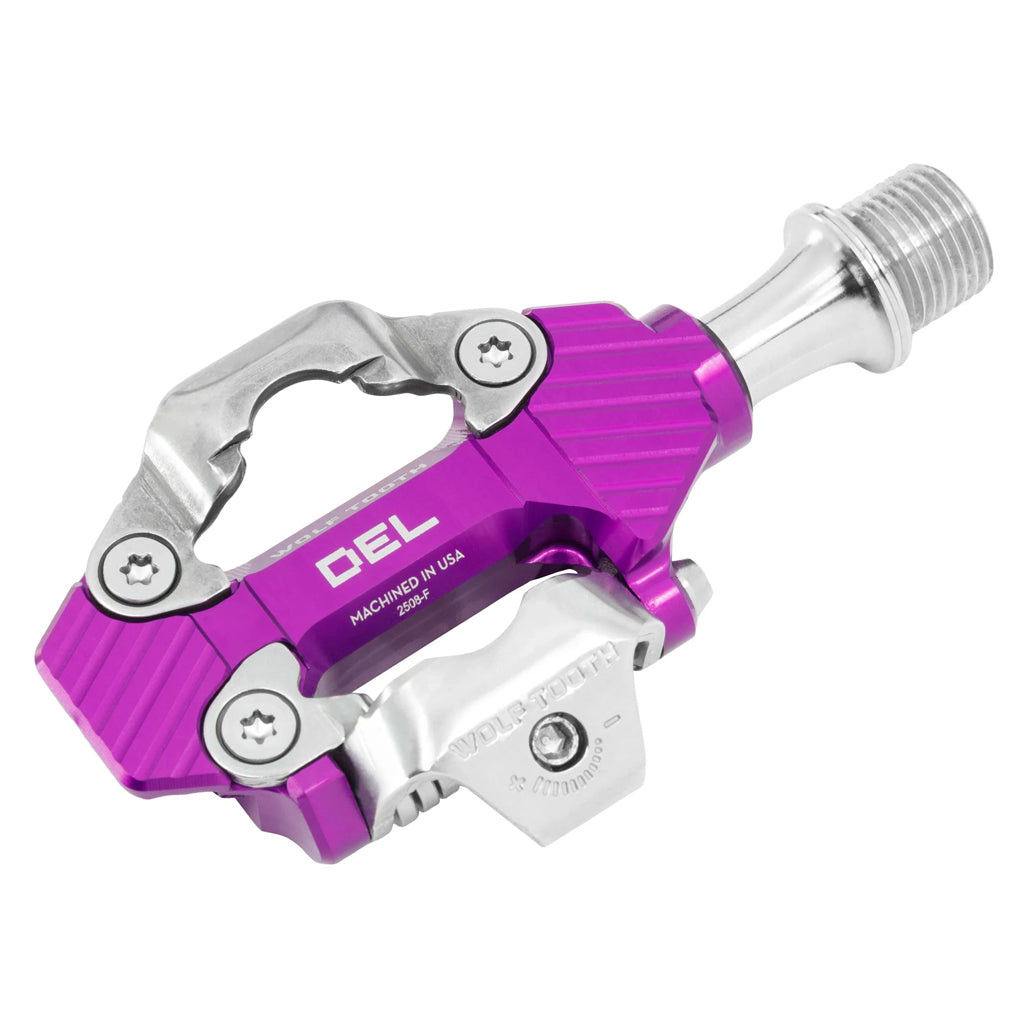

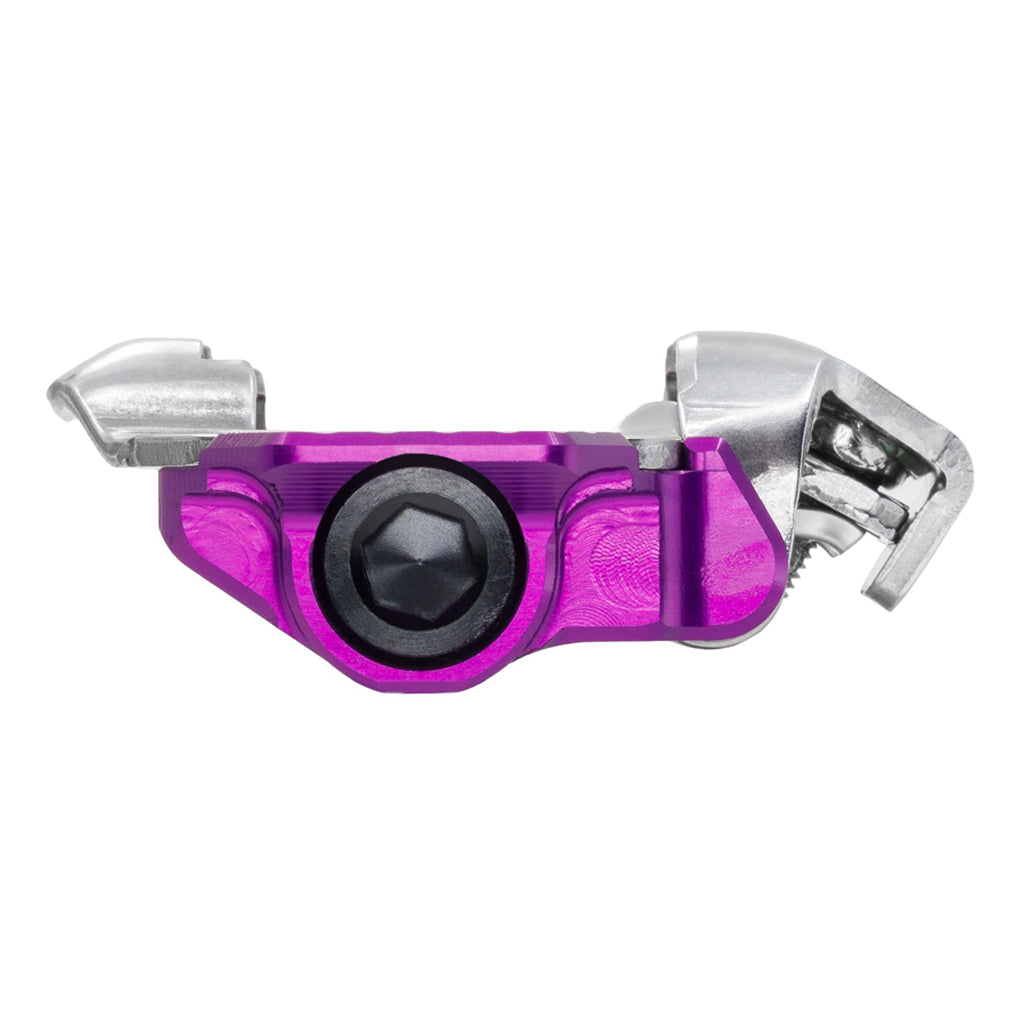

DEL-CLPS-PRU (Ultraviolet Purple)
