Wheels Manufacturing 12mm Rear Thru Axle

Designed and tested in the rugged conditions of Colorado, these new thru-axles will meet the demands of every rider. Machined from aircraft quality 7075 aluminum to be stiff, durable and long lasting. The low-profile design reduces weight, minimizes snag points, and provides a clean sleek look.

There is nothing worse than damaging your bike or components. Wheels Manufacturing designed a unique captive rotating thru-axle washer that reduces friction on dropouts during installation. This washer allows for a precise fit and prevents damage when torquing.

Whether you are looking to upgrade or replace an existing factory axle, the Wheels Mfg thru-axles will fit a wide variety of bike and fork models.

Download our thru-axle identification guide to determine which thru-axle your bike requires.

Features:

• Designed, machined and tested in Colorado, USA.

• 5mm hex on both ends of the axle for easy installation and removal.

• Hard anodized finish for extra durability.

• Captive rotating axle washer reduces friction on bikes frames and forks during installation, preventing potential damage.

• Axle length is compatible +/- 2mm

• Replacement for OEM thru-axles

Specifications:

Material: 7075 aluminum
Finish: Hard anodized
Diameter: 12mm
Torque Spec: 12 Nm max
Tool Interface: 5mm hex key

SKUs

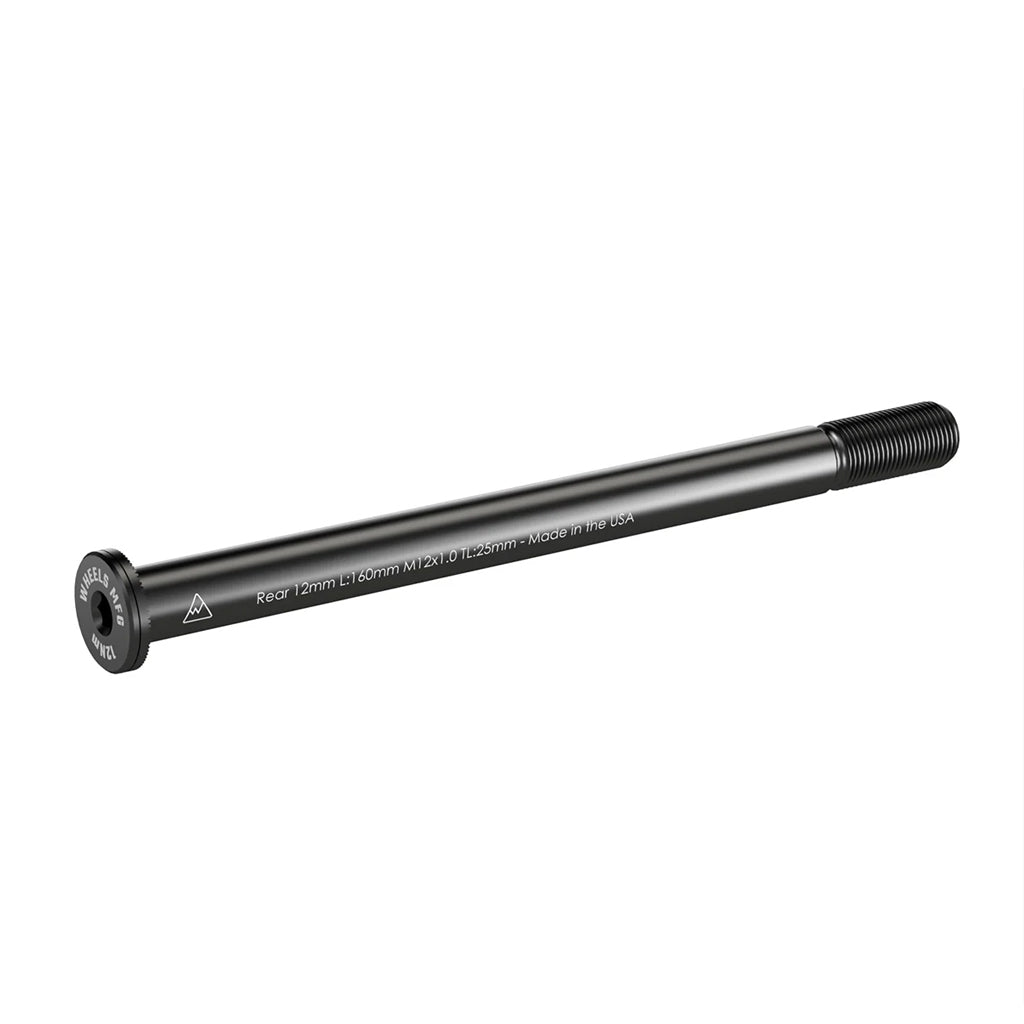

RTA-12-160-1.0 (160mm x 1.0)
RTA-12-162-1.0 (162mm x 1.0)

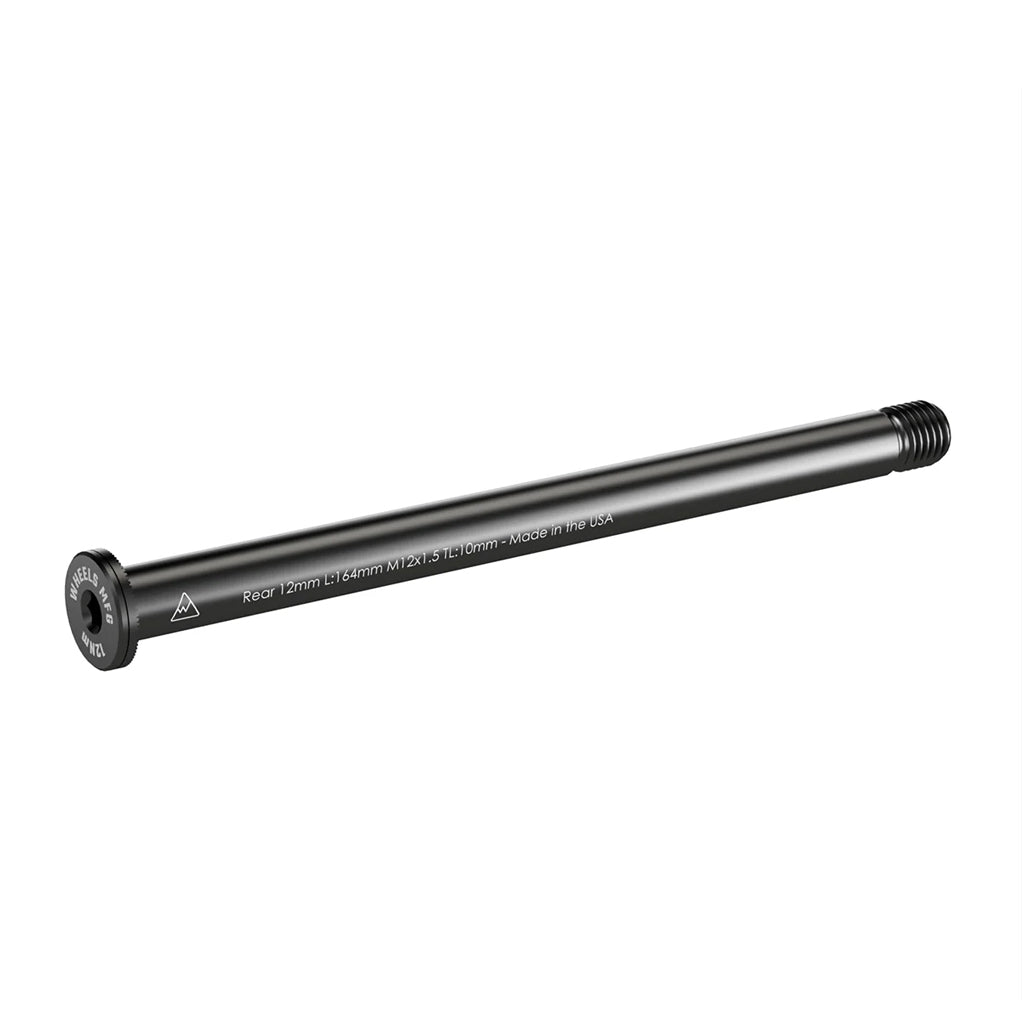

RTA-12-164-1.5 (164mm x 1.5)

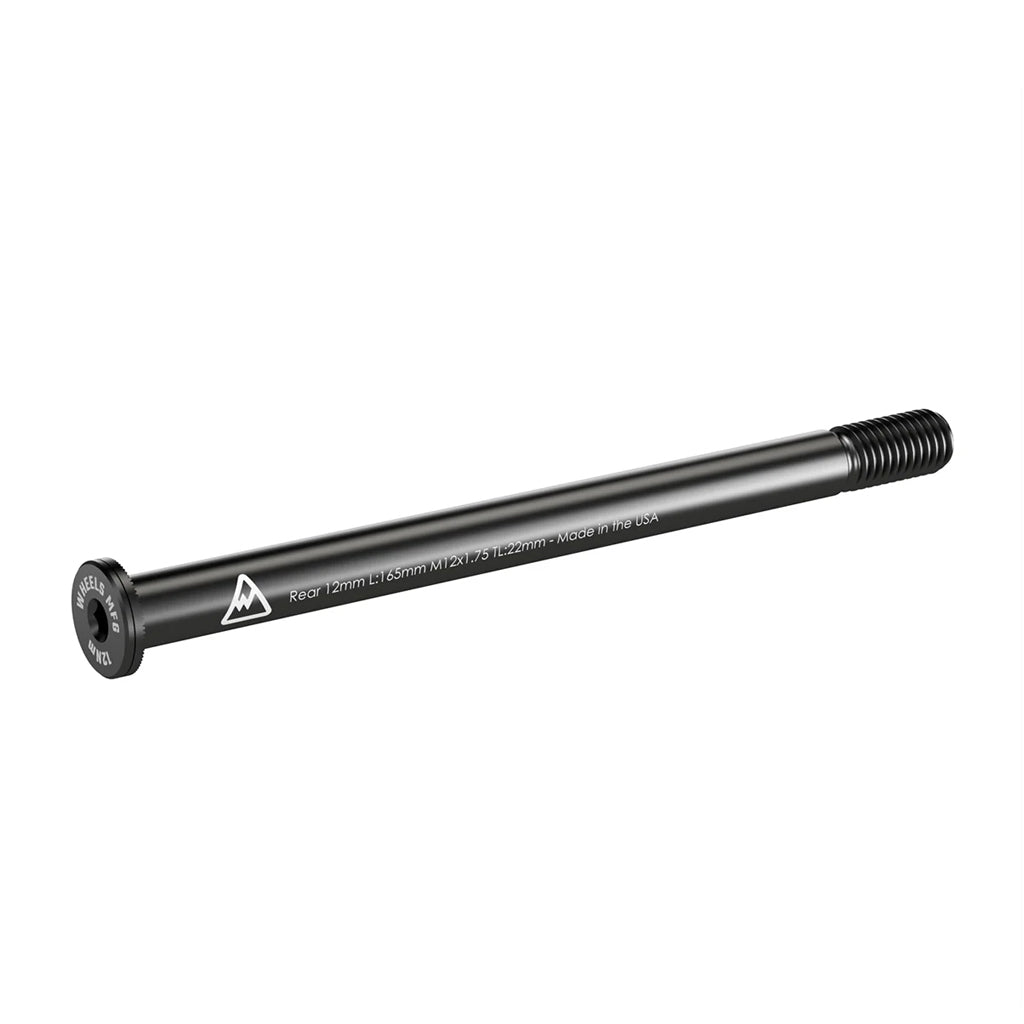

RTA-12-165-1.75 (165mm x 1.75)

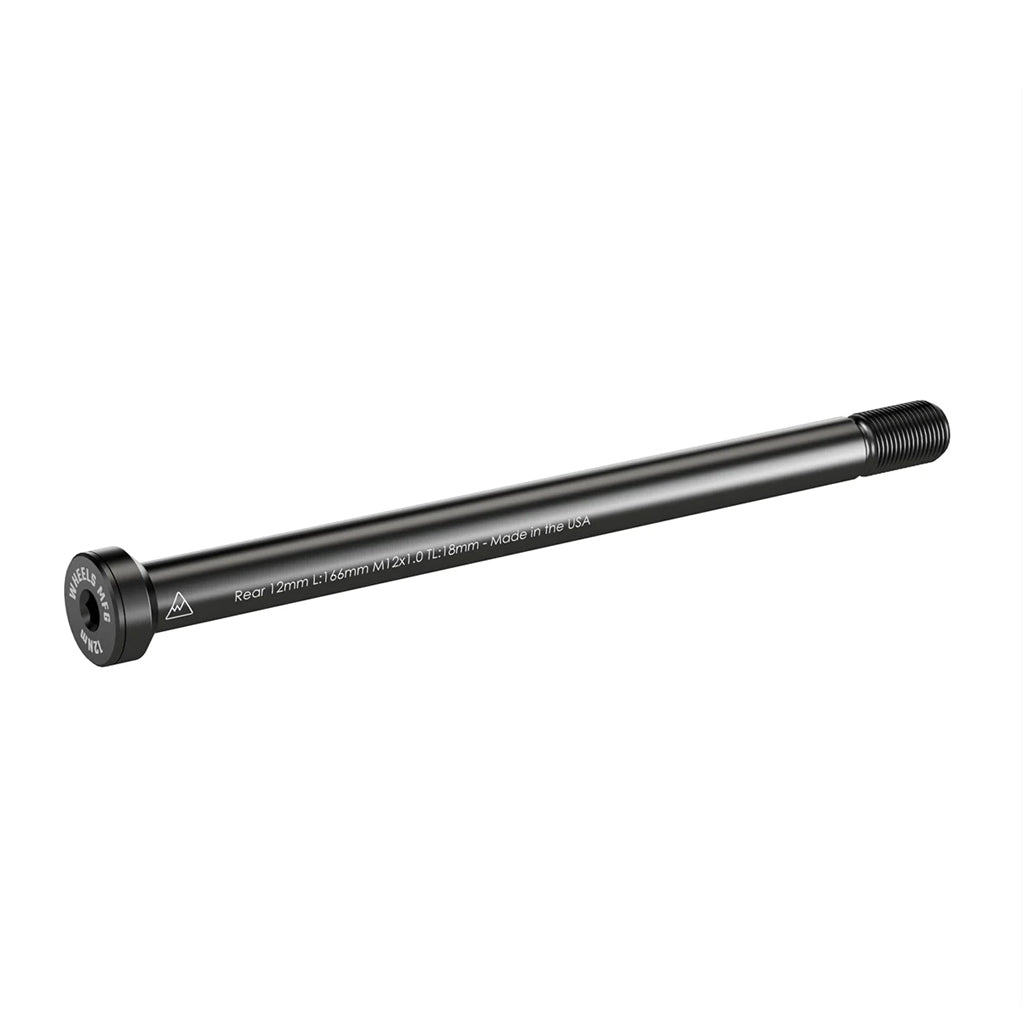

RTA-12-166-1.0 (166mm x 1.0)

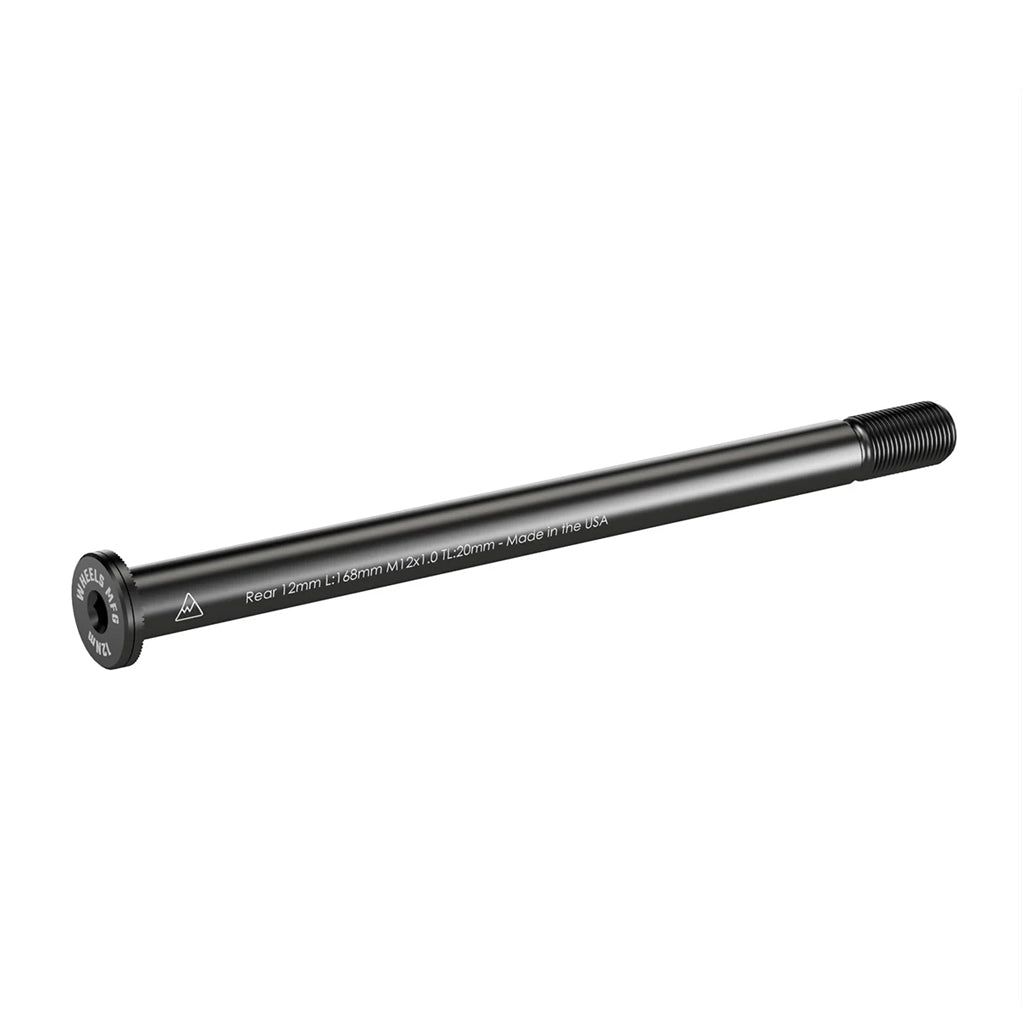

RTA-12-168-1.0 (168mm x 1.0)
RTA-12-172-1.0 (172mm x 1.0)
RTA-12-172-1.5 (172mm x 1.5)

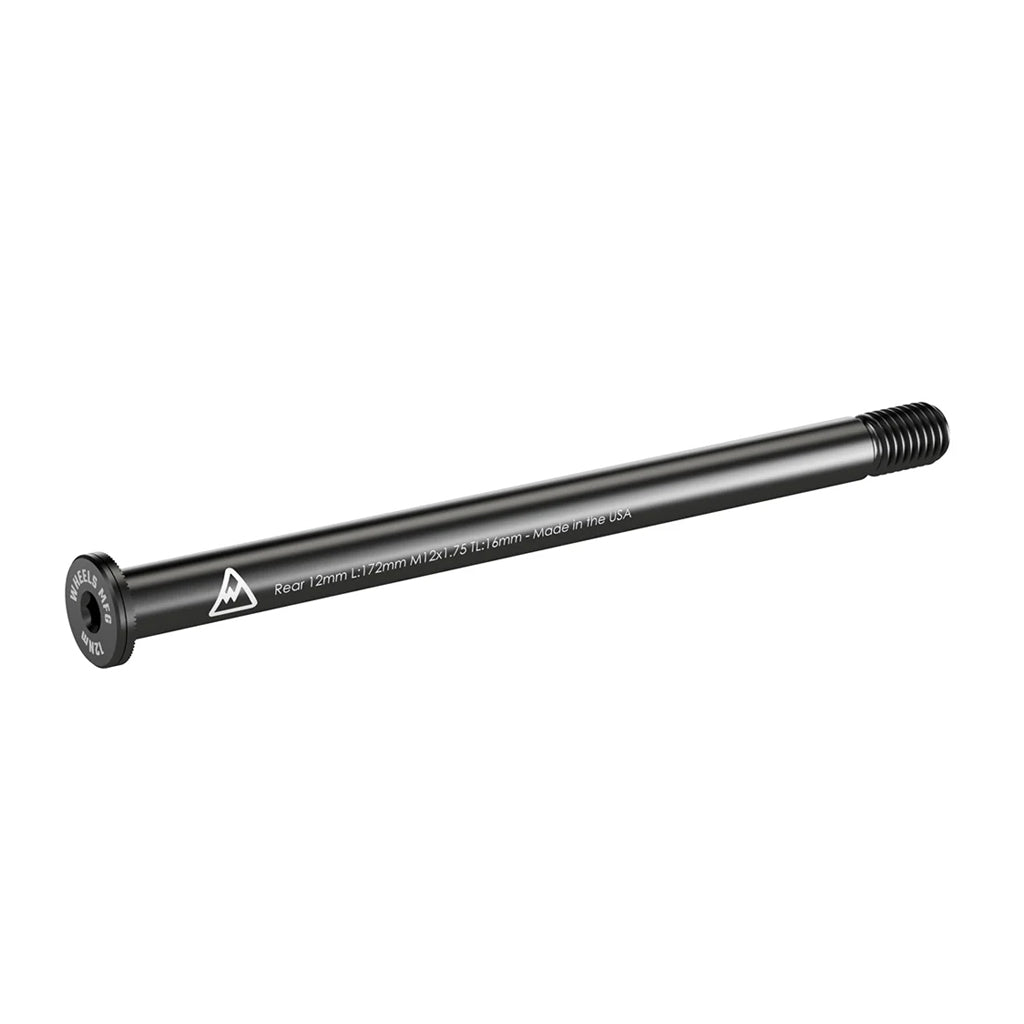

RTA-12-172-1.75 (172mm x 1.75)
RTA-12-175-1.0 (175mm x 1.0)
RTA-12-176-1.75 (176mm x 1.75)
RTA-12-180-1.0 (180mm x 1.0)
RTA-12-180-1.75 (180mm x 1.75)
RTA-12-185-1.0 (185mm x 1.0)

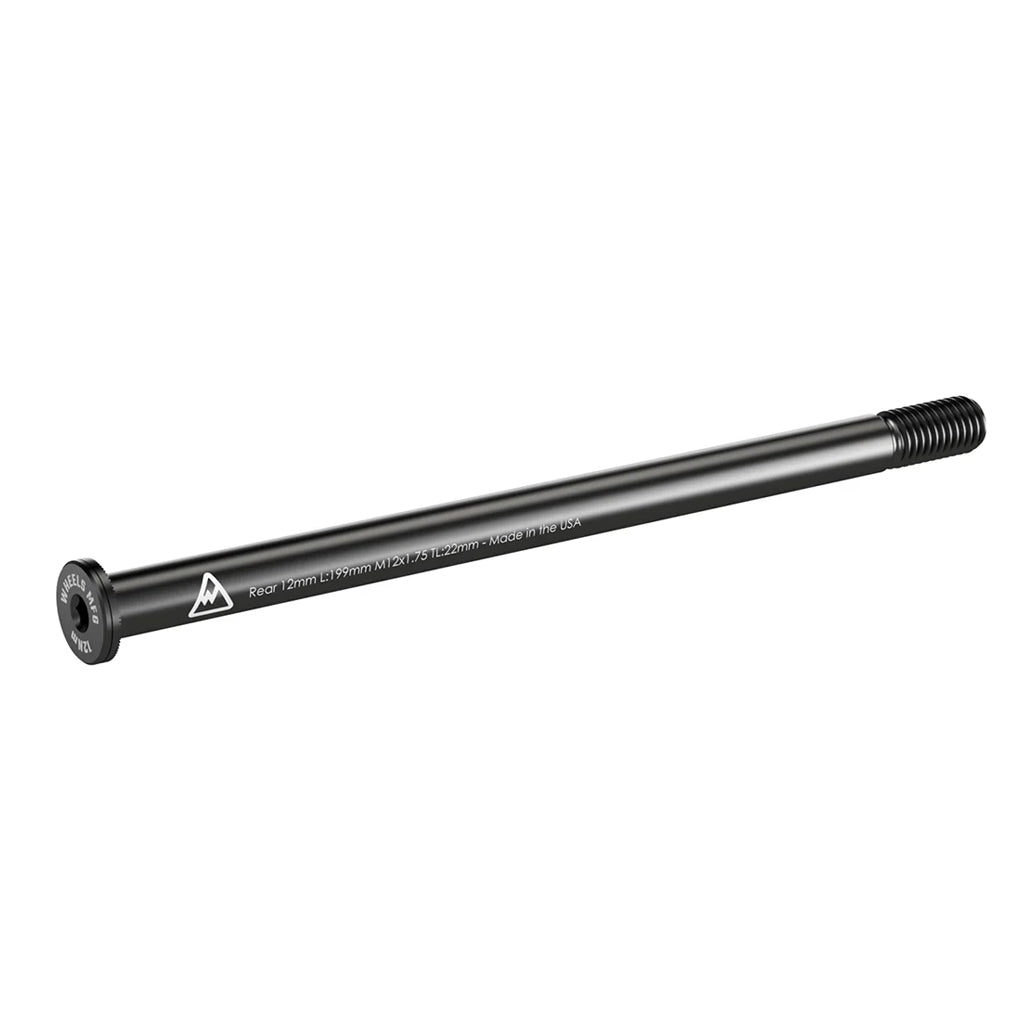

RTA-12-199-1.75 (199mm x 1.75)
