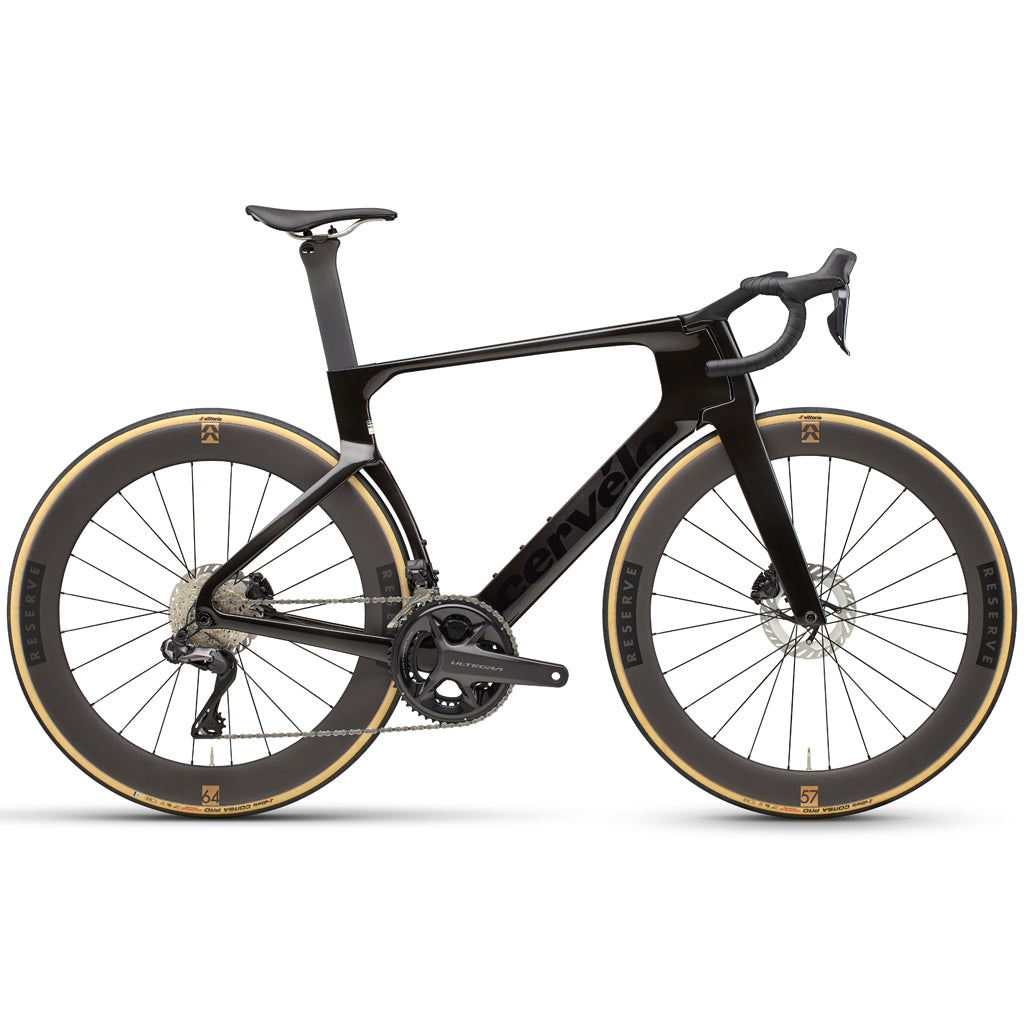

Cervélo S5 Ultegra Di2
The latest S5 sheds 124 grams from the previous generation through optimized carbon layup and upgraded hardware, all while adding depth to the fork and head tube. Those deeper tubes aren't just for show—they slice through the wind, saving you 6.4 watts compared to the previous S5 and keeping you at least 5 watts ahead of the competition. That's the kind of free speed that wins races.
Every S5 comes equipped with Cervélo's innovative Plus-Four concept handlebars, featuring a 4 cm flare from the hoods to the drops. This design puts you in a more efficient, aerodynamic position when riding on the hoods, while still delivering rock-solid stability in the drops when you're sprinting for the line or carving through descents.
To match the S5's performance, Cervélo partnered with Reserve to create the 57/64 wheelset. True to the redesigned S5's philosophy, these wheels are lighter than the previous generation's 53|62 while shaving off another 3 watts. It's the complete aero package.
Want to make sure everything fits perfectly? Cervélo offers a 60-day handlebar swap on the original HB19 that comes with your S5, giving you plenty of time to get a professional fit and dial in your setup exactly how you want it.
Specifications
ForkCervélo All-Carbon, Bayonet S5 Fork
HeadsetFSA IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
SeatpostCervélo SP34 Carbon
Seatpost Sizing48cm - 0mm, 51cm - 0mm, 54cm - 0mm, 56cm - 0mm, 58cm - 15mm, 61cm - 15mm
Left Shifter/BrakeShimano Ultegra, R8170
Right Shifter/BrakeShimano Ultegra, R8170
Front DerailleurShimano Ultegra, R8150
Rear DerailleurShimano Ultegra, R8150
Brake RotorsShimano CL800 Centerlock
Front Thru AxlesCervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru AxlesCervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Bottom Bracket FSA, BBright thread together for 24mm spindle
Crankset FSA, BBright thread together for 24mm spindle
Crank Sizing48cm - 165mm, 51cm - 165mm, 54cm - 170mm, 56cm - 170mm, 58cm - 172.5mm, 61cm - 172.5mm
Power Meter4iiii Precision Pro, GEN3+ Dual Sided
Handlebar Sizing48cm - 36cm, 51cm - 38cm, 54cm - 40cm, 56cm - 40cm, 58cm - 40cm, 61cm - 40cm
Stem Sizing48cm - 80mm, 51cm - 90mm, 54cm - 100mm, 56cm - 100mm, 58cm - 110mm, 61cm - 120mm
1-piece Handlebar/StemCervélo HB19 Carbon
SaddleSelle Italia NOVUS BOOST EVO SuperFlow Ti
CassetteShimano Ultegra, R8100, 11-34T, 12-Speed
ChainShimano M8100
Front WheelReserve 57TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear WheelReserve 64TA, DT Swiss 240, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
TireVittoria Corsa Pro TLR G2.0 700x29c
Max Tire Width34mm
AccessoriesCervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 367 | 376 | 384 | 392 | 401 | 409 |
| B | Stack | 496 | 519 | 542 | 565 | 588 | 608 |
| C | Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° | 73.5° |
| D | Front Centre | 579 | 580 | 581 | 588 | 604 | 617 |
| E | Bottom Bracket Drop | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| F | Wheelbase | 973 | 974 | 975 | 982 | 999 | 1013 |
| G | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| H | Head Tube Length | 64 | 82 | 104 | 125 | 152 | 173 |
| I | Top Tube Length | 520 | 535 | 550 | 565 | 581 | 595 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height | 712 | 734 | 758 | 781 | 804 | 822 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'4" - 6'6¾" | 193 - 200cm |
