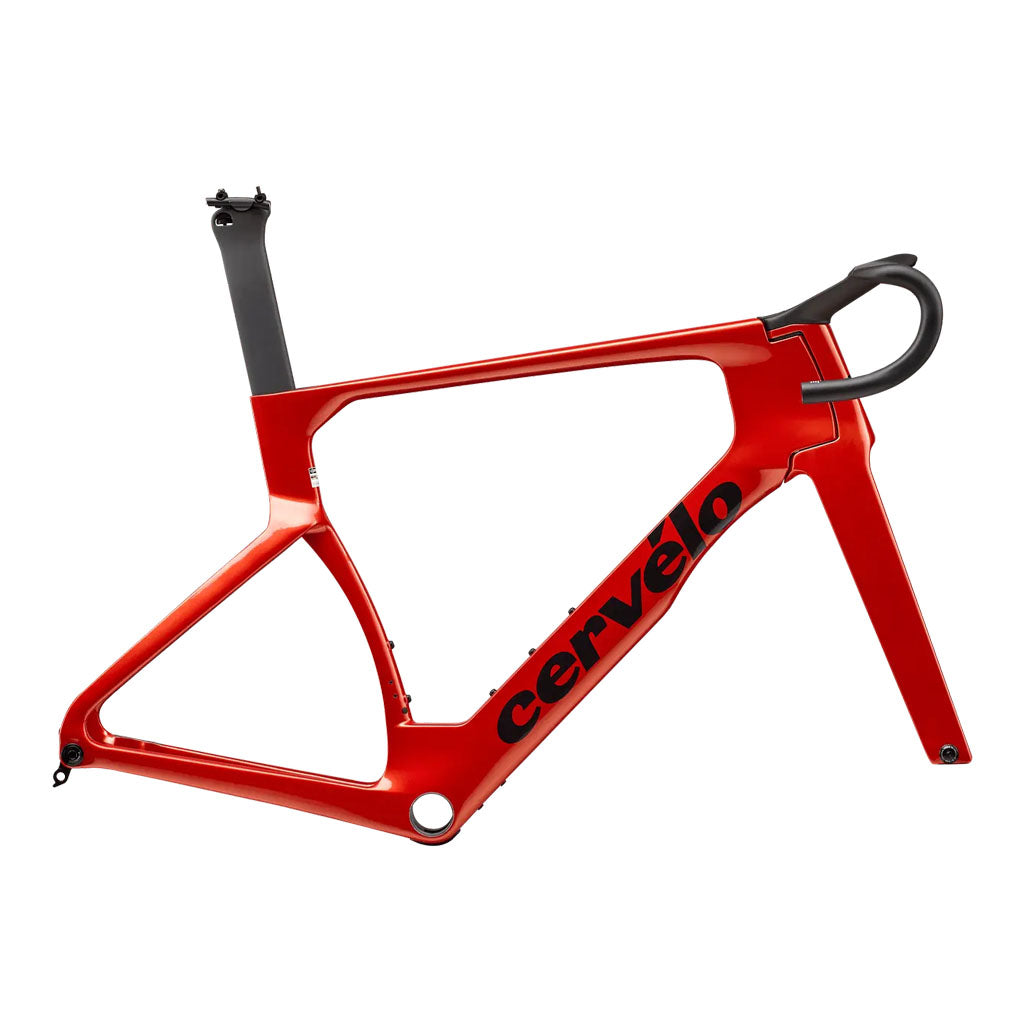

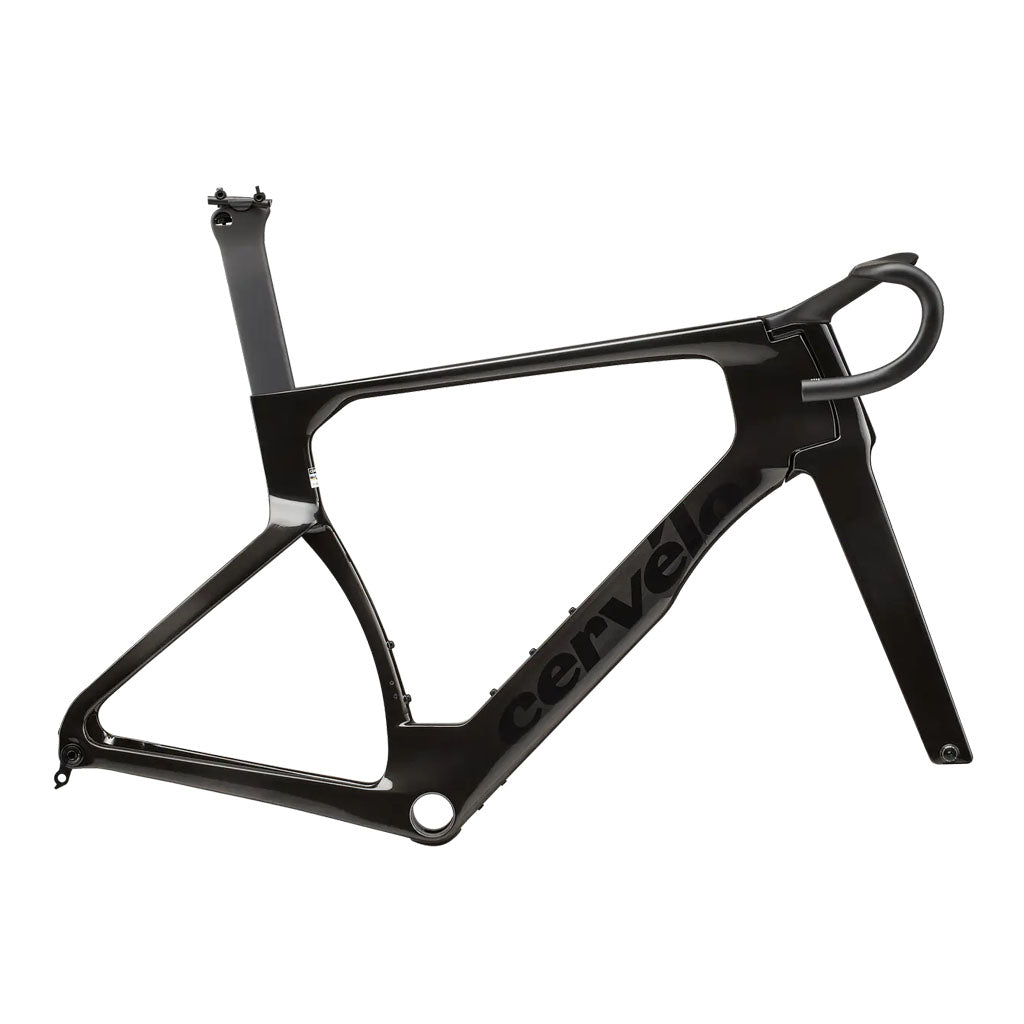

Cervélo S5 Frameset
The latest S5 sheds 124 grams from the previous generation through optimized carbon layup and upgraded hardware, all while adding depth to the fork and head tube. Those deeper tubes aren't just for show—they slice through the wind, saving you 6.4 watts compared to the previous S5 and keeping you at least 5 watts ahead of the competition. That's the kind of free speed that wins races.
Every S5 comes equipped with Cervélo's innovative Plus-Four concept handlebars, featuring a 4 cm flare from the hoods to the drops. This design puts you in a more efficient, aerodynamic position when riding on the hoods, while still delivering rock-solid stability in the drops when you're sprinting for the line or carving through descents.
To match the S5's performance, Cervélo partnered with Reserve to create the 57/64 wheelset. True to the redesigned S5's philosophy, these wheels are lighter than the previous generation's 53|62 while shaving off another 3 watts. It's the complete aero package.
Want to make sure everything fits perfectly? Cervélo offers a 60-day handlebar swap on the original HB19 that comes with your S5, giving you plenty of time to get a professional fit and dial in your setup exactly how you want it.
Specifications
Fork Cervélo All-Carbon, Bayonet S5 Fork
1-piece Handlebar/Stem Cervélo HB19 Carbon
Handlebar Sizing
Size 48 - 36cm
Size 51 - 38cm
Size 54 - 40cm
Size 56 -
40cm
Size 58 - 40cm
Size 61 - 40cm
Stem Sizing
Size 48 - 80mm
Size 51 - 90mm
Size 54 - 100mm
Size 56 -
100mm
Size 58 - 110mm
Size 61 - 120mm
Seatpost Cervélo SP34 Carbon
Seatpost Sizing
Size 48 - 0mm
Size 51 - 0mm
Size 54 - 0mm
Size 56 - 0mm
Size
58 - 15mm
Size 61 - 15mm
Accessories
- Cervélo Front Computer/Accessory Mount 887
- Cervélo Rear Accessory
Mount
Max Tire Width (Actual) 34mm
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 367 | 376 | 384 | 392 | 401 | 409 |
| B | Stack | 496 | 519 | 542 | 565 | 588 | 608 |
| C | Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° | 73.5° |
| D | Front Centre | 579 | 580 | 581 | 588 | 604 | 617 |
| E | Bottom Bracket Drop | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| F | Wheelbase | 973 | 974 | 975 | 982 | 999 | 1013 |
| G | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| H | Head Tube Length | 64 | 82 | 104 | 125 | 152 | 173 |
| I | Top Tube Length | 520 | 535 | 550 | 565 | 581 | 595 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height | 712 | 734 | 758 | 781 | 804 | 822 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'4" - 6'6¾" | 193 - 200cm |
