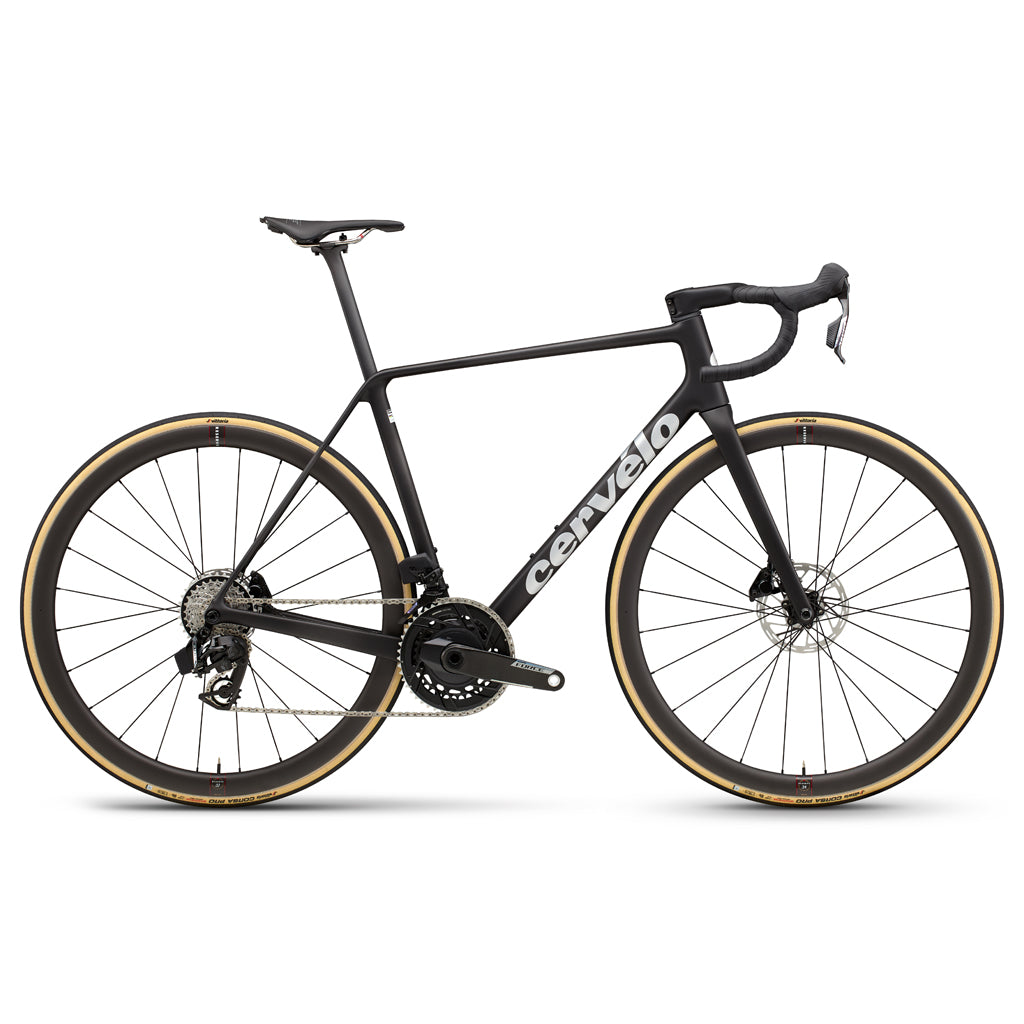

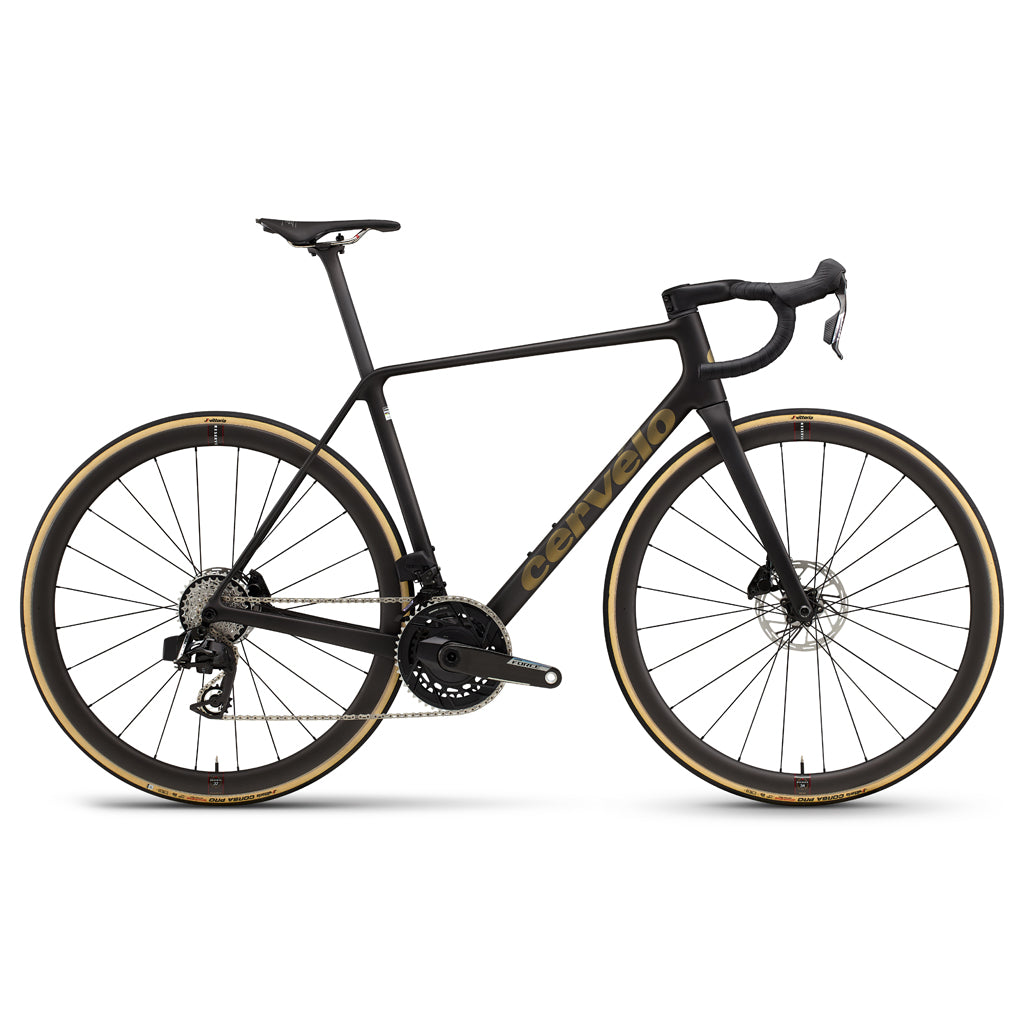

Cervélo R5 Force AXS
The Cervélo R5 is built for riders who demand every advantage on the climb and the confidence to push hard on the descent. Meticulously engineered to be lighter, stiffer, and more efficient, it blends razor-sharp handling with a refined ride quality that thrives in the mountains. Every detail has been optimized, from its slimmed-down frame and aero-focused cockpit to its UDH compatibility and weight-saving components. Making the R5 the ultimate tool for chasing podiums and conquering the steepest roads.
Specifications
Sizes
48, 51, 54, 56, 58, 61
Fork
Cervélo All-Carbon, Tapered R5 Fork
Headset
FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x
45°
Handlebar/Stem
Cervélo HB18 Carbon
Seatpost
Cervélo SP33 Carbon
Saddle
Prologo Nago R4 PAS LIGHTWEIGHT
TiRoX
Shifter/Brake
SRAM Force AXS E1
Brake Rotors
SRAM Paceline Centerlock
Derailleurs
SRAM Force AXS E1
Cassette
SRAM Force E1, 10-33T, 12-Speed
Chain
SRAM Force E1
Crankset
SRAM Force AXS E1, 48/35T, DUB,
with power meter
Bottom Bracket
SRAM DUB Ceramic, BBright
Front Wheel
Reserve 34TA, DT Swiss 240,
12x100mm, 24H, centerlock, tubeless
compatible
Rear Wheel
Reserve 37TA, DT Swiss 240,
12x142mm, HG freehub 24H, centerlock,
tubeless compatible
Front Thru Axle
Cervélo Aero Thru Axle Front, M12x -
1.5mm, 122mm length
Rear Thru Axle
Cervélo Aero Thru Axle Rear, M12x -
1.0mm, 169mm length
Tires
Vittoria Corsa Pro Speed TLR G2.0
700x26c
Accessories
Cervélo Front Computer/Accessory
Mount 887, Cervélo Rear Accessory
Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 369 | 377 | 383 | 391 | 400 | 408 |
| B | Stack | 496 | 520 | 544 | 568 | 591 | 611 |
| C | Head Tube Angle | 71° | 72° | 73° | 73° | 73° | 73° |
| D | Front Center | 579 | 580 | 580 | 594 | 611 | 625 |
| E | Bottom Bracket Drop | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| F | Wheelbase | 977 | 978 | 978 | 993 | 1010 | 1025 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 90 | 109 | 132 | 156 | 183 | 204 |
| I | Top Tube Length | 506 | 526 | 544 | 565 | 581 | 595 |
| J | Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| K | Standover Height | 700 | 731 | 757 | 779 | 803 | 822 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'5" | 192 - 197cm |
