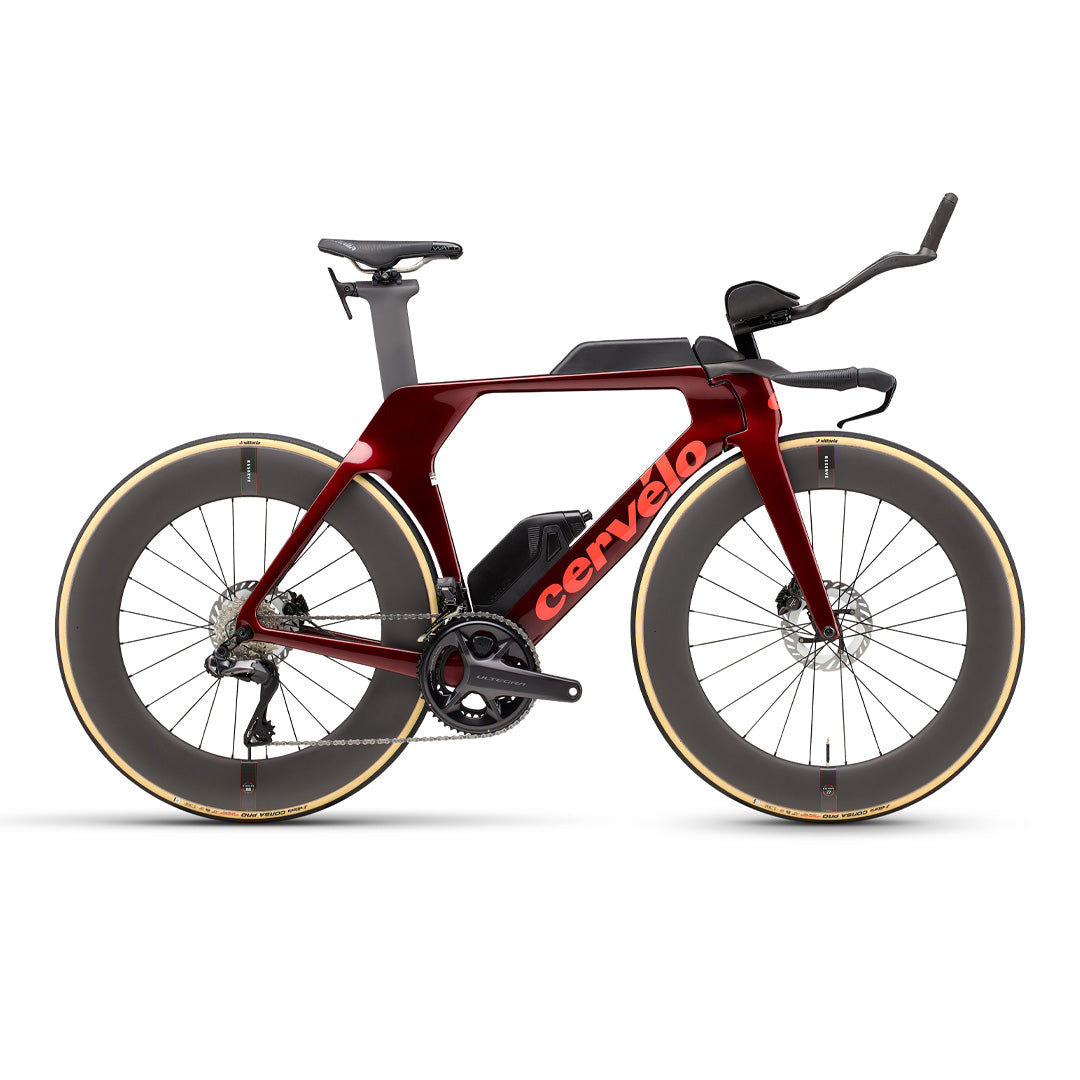

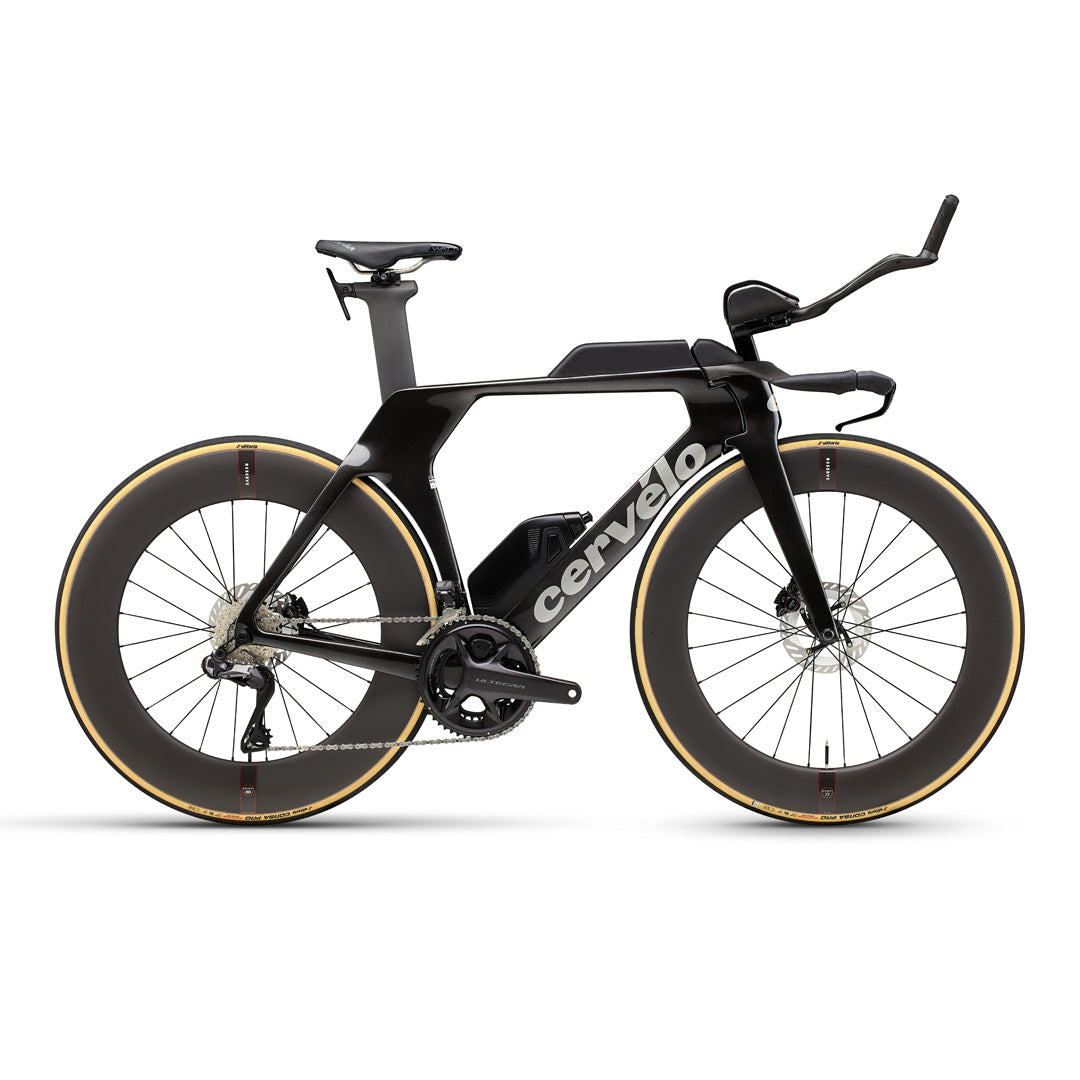

Cervélo P5 Ultegra Di2
When the gun goes off and the clock starts ticking, the Cervélo P5 is the bike that turns time into your ally. The P5 has already proven itself on cycling's most demanding stages, powering Team Jumbo-Visma to stunning victories at both the 2023 Giro d'Italia and Tour de France. That's the company this bike keeps.
But the P5 isn't just about time trial glory. It's engineered to extract every ounce of speed from every watt you produce, transforming your effort into relentless forward momentum. Optimized for modern aero wheels, with clearance for up to 34mm tires and packed with cutting-edge refinements, this bike rewrites what's possible when you're racing against the clock. Whether you're battling the Kona winds or throwing down at your hometown triathlon, the P5 gives you the tools to absolutely dominate.
World-beating aerodynamics are just the beginning. The P5 also delivers the adjustability and comfort you need to stay in your optimal position for hours. The revolutionary one-piece front end simplifies setup while allowing precise fit and stack adjustments, keeping you locked into that perfect aero tuck. Redesigned armrests provide rock-solid stability and control, so you can stay confident and powerful even when fatigue sets in. Integrated storage solutions designed specifically for triathletes mean fuelling mid-race is effortless and clean.
From the reimagined fastback seat stays to the refined geometry that puts every detail in service of speed, the P5 is built for one thing: helping you push harder, race smarter, and cross the finish line knowing you left everything out there.
But the P5 isn't just about time trial glory. It's engineered to extract every ounce of speed from every watt you produce, transforming your effort into relentless forward momentum. Optimized for modern aero wheels, with clearance for up to 34mm tires and packed with cutting-edge refinements, this bike rewrites what's possible when you're racing against the clock. Whether you're battling the Kona winds or throwing down at your hometown triathlon, the P5 gives you the tools to absolutely dominate.
World-beating aerodynamics are just the beginning. The P5 also delivers the adjustability and comfort you need to stay in your optimal position for hours. The revolutionary one-piece front end simplifies setup while allowing precise fit and stack adjustments, keeping you locked into that perfect aero tuck. Redesigned armrests provide rock-solid stability and control, so you can stay confident and powerful even when fatigue sets in. Integrated storage solutions designed specifically for triathletes mean fuelling mid-race is effortless and clean.
From the reimagined fastback seat stays to the refined geometry that puts every detail in service of speed, the P5 is built for one thing: helping you push harder, race smarter, and cross the finish line knowing you left everything out there.
Specifications
FORKCervélo All-Carbon, Bayonet P5 Fork
CASSETTEShimano Ultegra, R8100, 11-30T, 12-Speed
HEADSETFSA IS2 1-1/8, 36° x 45° / 1-1/4, 45° x 45°
BAR ENDShimano Dura-Ace, SW-R9160
FRONT THRU AXLECervélo Aero Thru Axle Front, M12x-1.5mm, 127mm length
BASEBARCervélo HB15 Carbon
EXTENSIONProfile Design 52ASC Extension Assembly
REAR THRU AXLECervélo Aero Thru Axle Rear, M12x- 1.5mm, 170.5mm length
RISERCervélo EX14 Carbon
FRONT WHEELReserve 77TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEELReserve 88TA, DT Swiss 240, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
SADDLESelle Italia WATT Superflow Ti316
SEATPOSTCervélo SP23 Carbon
SHIFTER/BRAKEShimano Dura-Ace, R9180
FRONT DERAILLEURShimano Ultegra, R8150
REAR DERAILLEURShimano Ultegra, R8150
BRAKE ROTORSShimano CL800 Centerlock
TIRESVittoria Corsa Pro TLR G2.0 700x29c
POWER METER4iiii Precision Pro, GEN3+ Dual Sided
CRANKSETShimano Ultegra, R8100, 52/36T
BOTTOM BRACKETFSA, BBright thread together for 24mm spindle
ACCESSORIESCervélo Rear Hydration Mount, Cervélo P5 Stem Storage, Cervélo Smartpak Top Tube Storage Bag 400, Cervélo Aero Water Bottle w/ Cage
CHAINShimano M8100
SIZES48, 51, 54, 56, 58
Geometry
| 48 | 51 | 54 | 56 | 58 | ||
|---|---|---|---|---|---|---|
| A | Reach | 387 | 403 | 417 | 431 | 444 |
| B | Stack | 466 | 486 | 502 | 521 | 539 |
| C | Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° |
| D | Front Center | 582 | 583 | 602 | 622 | 640 |
| E | Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 |
| F | Wheelbase | 975 | 976 | 995 | 1015 | 1033 |
| G | Head Tube Length | 67.5 | 81 | 98 | 117 | 137 |
| H | Standover Height | 728 | 754 | 769 | 786 | 804 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
For information on sizing please refer to Cervélo's interactive bike size and setup calculator for the P5.
