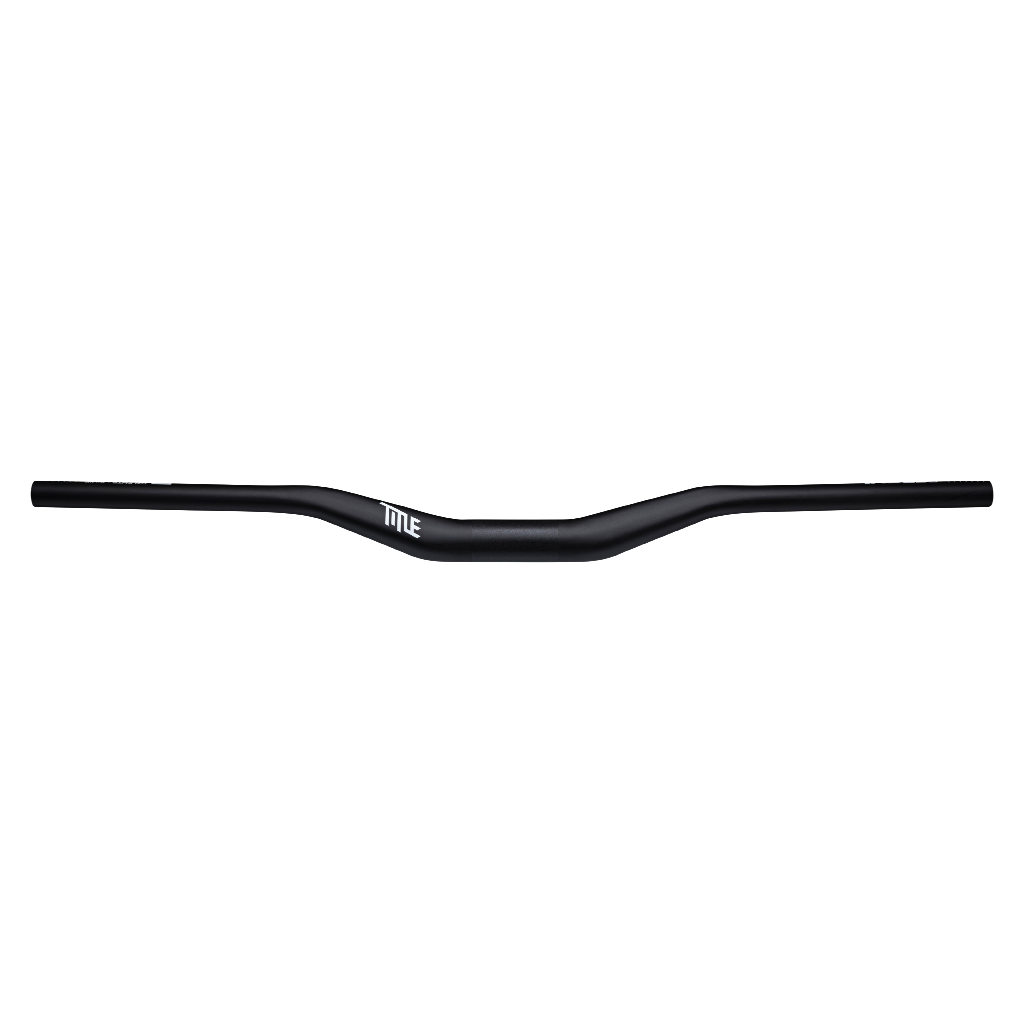

Title MTB FORM Carbon 35 Handlebar

Features:

• Tested and certified by EFBE. Passed TRI-TEST®. Certified for enduro, freeride, and downhill mountain bikes

• Unidirectional carbon fiber layup

• Centre guidelines for easy stem alignment

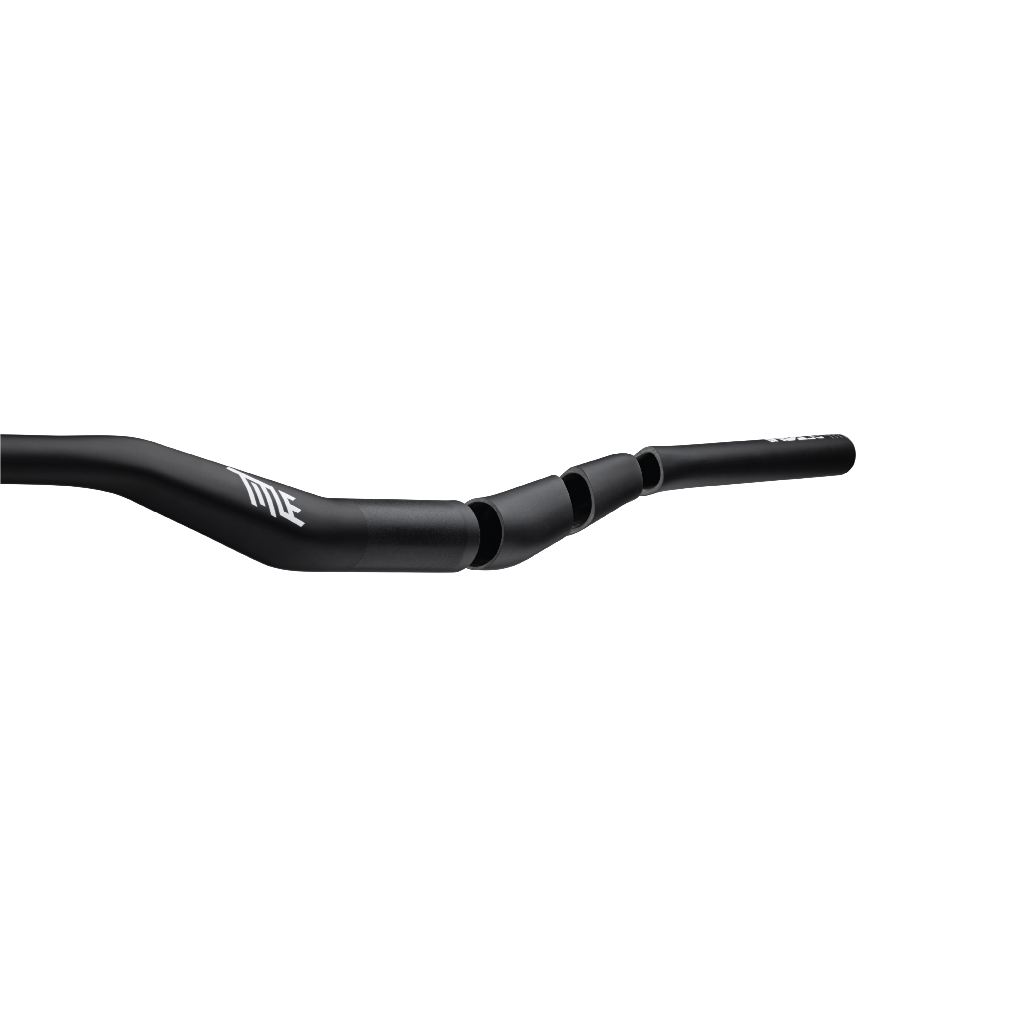

• Cut guidelines on both ends of handlebar

• Smoky matte black finish

Ride Characteristics:

Our carbon layup process allowed us to achieve an ultra-compliant bar that has more steering stiffness than that of our competitors, making Carbon FORM one of the softest bars on the market, while maintaining cornering sensitivity for aggressive riding and quick trail response.

Specifications:

• 800mm width

• 35mm clamp diameter

• 87mm clamp width (Compatible with DM1)

• 9° backsweep

• 5° upsweep

• 25mm rise (194 grams)

• 35mm rise (196 grams)

• Max torque stem bolts to 6NM

• For controls (shifters, brakes, grips etc) max torque to 4NM
  Not compatible with one-piece stems

Testing & Safety:

With a starting weight of 194 grams, Carbon FORM marks the lightest weight amongst DH & Enduro bars on the market. In addition, FORM has been certified at the highest DH standard of testing, EFBE TRI-TEST® Category 5, and proven in the field by our athletes over the course of a year to ensure the light weight is backed by dependable strength.
