The

Stumpjumper Evo

Why the Stumpjumper EVO?

The EVO is your seat in the eye of the hurricane, delivering unprecedented control, capability and adjustability, along with unexpected climb-ability. And that’s good, ‘cause when shit starts flying on the trail, you’ll be Zen in the middle of the mayhem.

  1. Front Travel: 160mm
  2. Rear Travel: 150mm
  3. Wheel size: MX

Technical Details

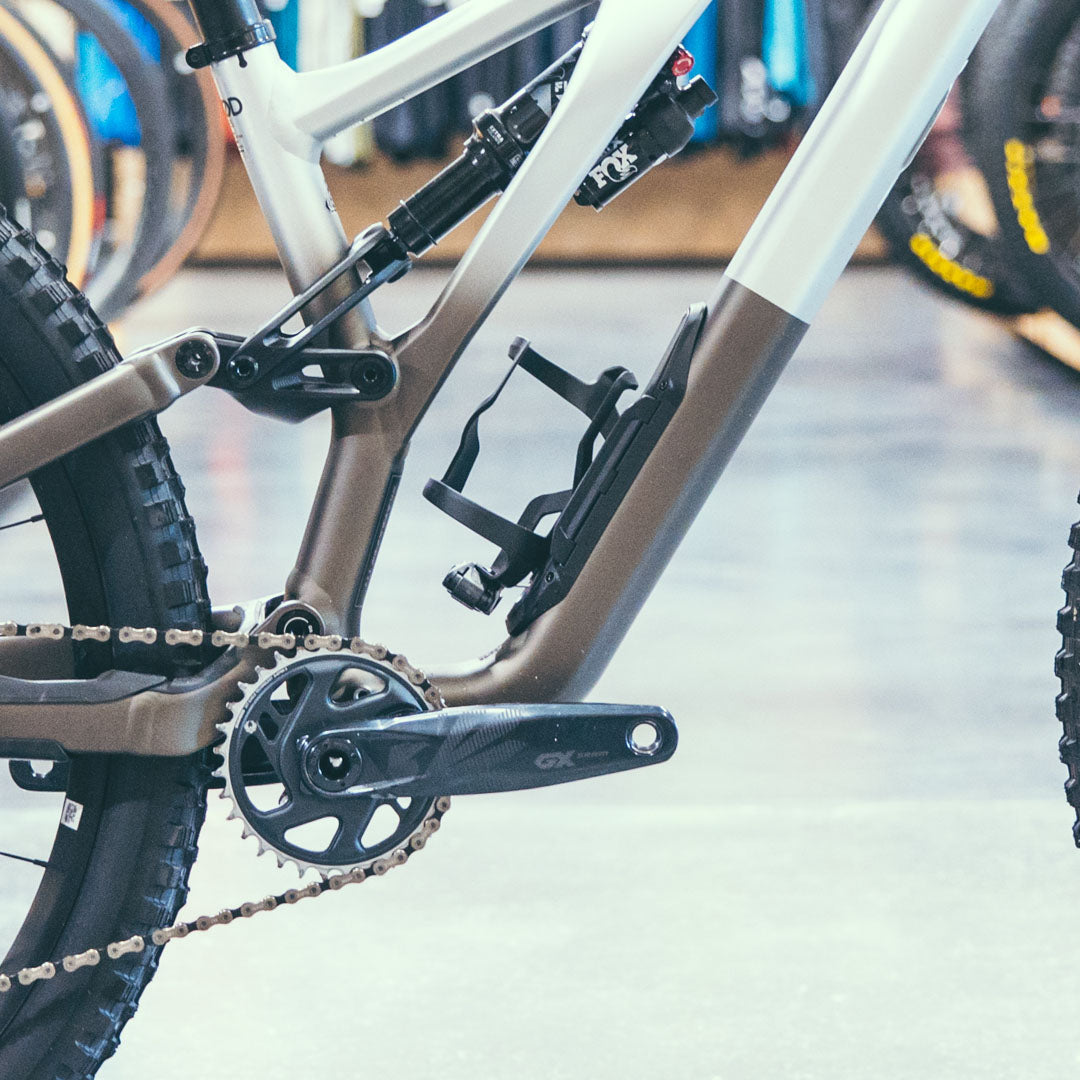

Effortlessly and tidily stow away a spare tube, CO2 cartridges, a windbreaker, or whatever your heart desires. The SWAT box is available on both Carbon and Alloy models.

  • SWAT Equipped
  • Adjustable Geo
  • MX or 29"

Geometry

S1 S2 S3 S4 S5 S6
A | Reach 475 498 528 408 428 448
B | Stack 613 617 626 635 644 654
C | Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
D | Seat Tube Length 385 385 405 425 445 465
E | Front Center 732 756 780 809 838 873
F | BB Height 335 340 340 340 340 340
G | BB Drop 40 35 35 35 35 35
H | Wheelbase 1189 1214 1283 1317 1165 1245
I | Chainstay Length 436 436 436 436 446 446
J | Headtube Length 95 95 105 115 125 135
K | Top-tube Length 538 564 590 623 647 679
L | Seat Tube Angle 78 77.6 77.2 76.9 77 77
M | Standover Height 733 764 763 762 767 770

Frame Sizing

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
S1 150 - 160cm
S2 157 - 173cm
S3 165 - 180cm
S4 173 - 188cm
S5 178 - 193cm
S6 188 - 203cm
