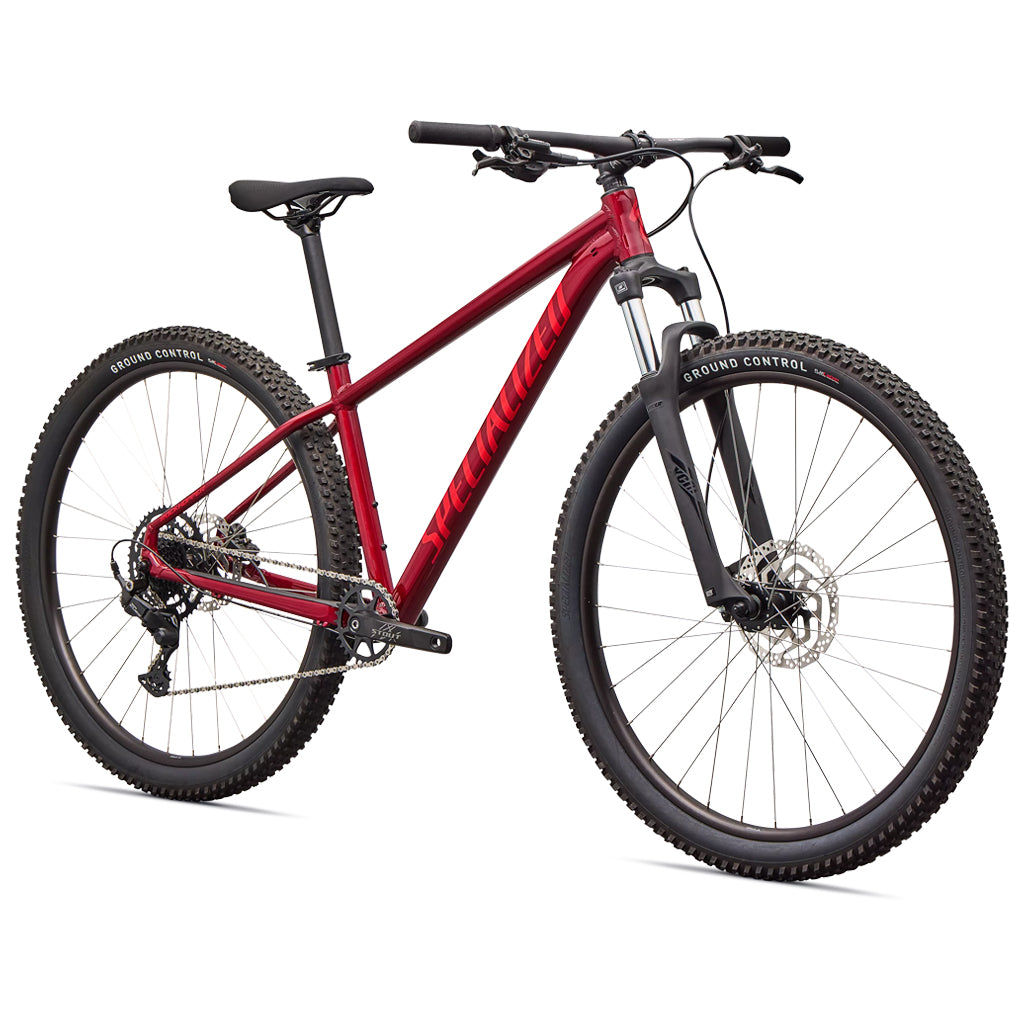

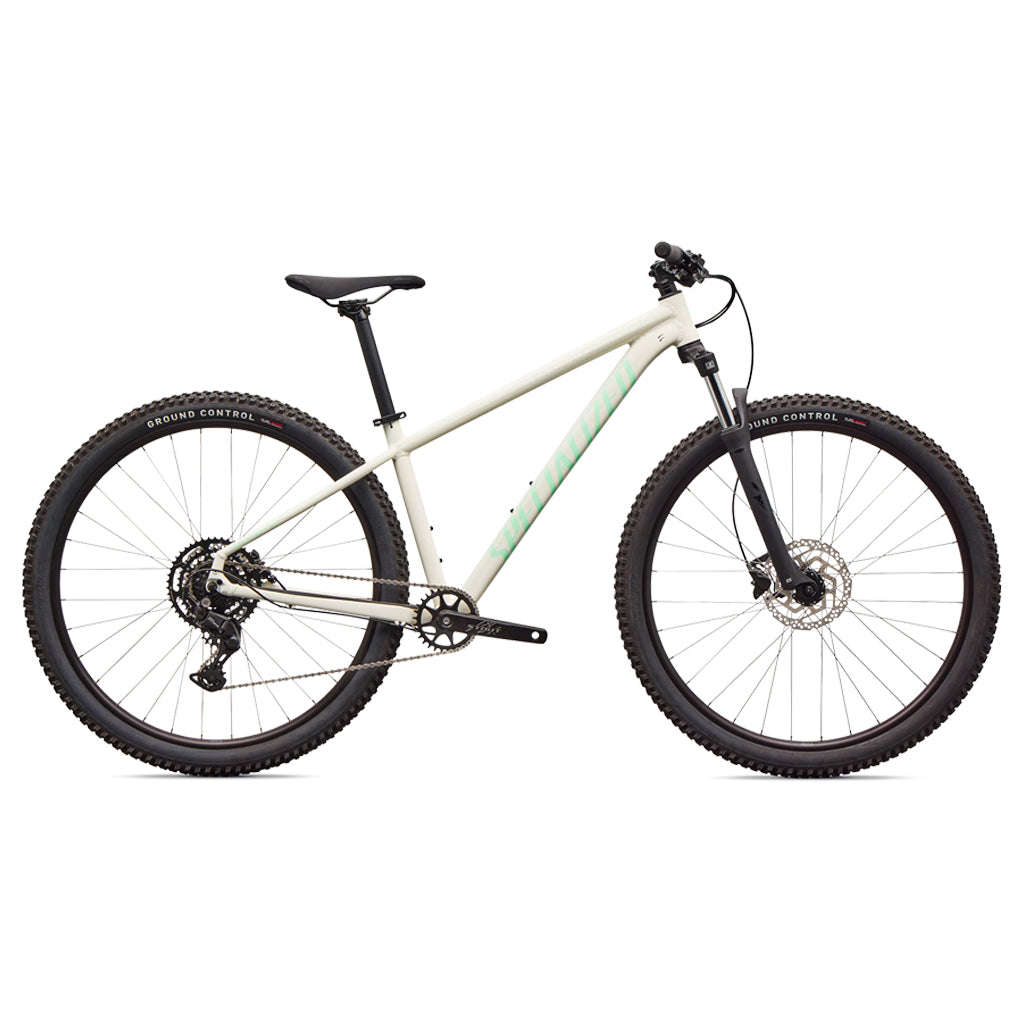

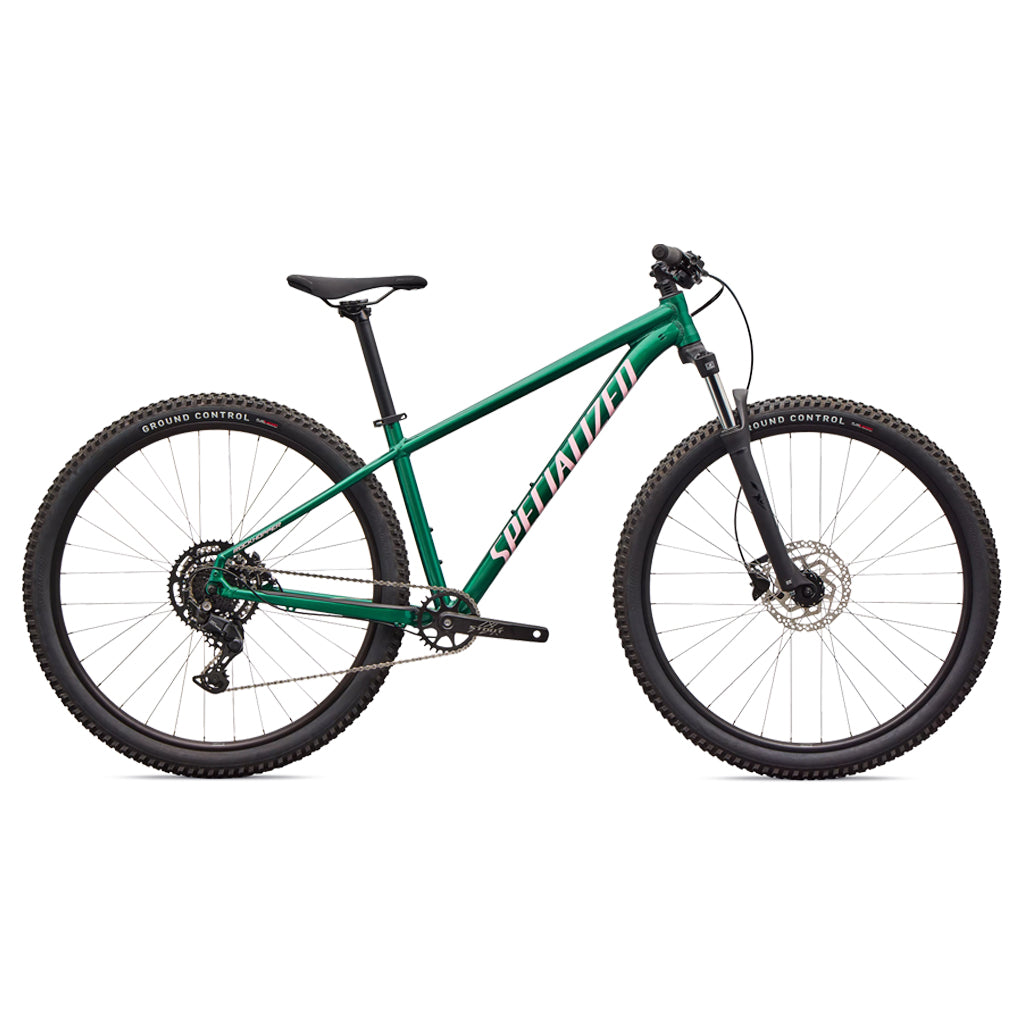

Specialized Rockhopper Sport 29
Specifications
FrameSpecialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible
ForkSR Suntour XCM 29, 30mm stanchions, Rx Tune, coil spring, QR, 90/100mm travel (size-specific), 42mm offset
Stem3D-forged alloy, 31.8mm, 7-degree rise
SeatPostAlloy, 2-bolt clamp, 30.9mm
Seat BinderAlloy, quick release, 34.9
SaddleBridge Sport, Steel rails, 155/143mm
GripsSpecialized Trail Grips, lock-on
HandlebarsAlloy Mini Rise, 9-degree backsweep, 15mm rise, 31.8mm
Front BrakeShimano BR-MT200, hydraulic disc
Rear BrakeShimano BR-MT200, hydraulic disc
ChainKMC eGlide11-Speed
CassetteShimano Cues, 9 speed, 11-46T
Rear DerailleurShimano, CUES, 9-Speed
Shift LeversShimano, CUES, 9-Speed Rapidfire, W/ Optical Gear Display
Bottom BracketSquare-tapered, 73mm, internal bearings, 122.5mm spindle
CranksetStout 1x, forged alloy
Front TireGround Control 2BR, 650B/29x2.35, T5
Rear TireGround Control 2BR, 650B/29x2.35, T5
Front HubAlloy, Sealed bearing, 6-Bolt, disc, 100x9mm spacing, quick-release
Rear HubAlloy Sealed bearing, 6-Bolt, disc, 135x9mm spacing, quick-release
RimsSpecialized alloy, disc only, double-wall, 25mm inner width, 32h
SpokesStainless, 14g
Inner TubesStandard, Schrader Valve
Weight14.02 kg (30 lb, 14.5 oz) – Size MD
Geometry
| XS - 27.5 | S - 27.5 | M - 27.5 | S - 29 | M - 29 | L - 29 | XL - 29 | XXL - 29 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 375 | 395 | 405 | 415 | 425 | 445 | 465 | 485 |
| B | Stack | 559 | 573 | 607 | 589 | 616 | 626 | 640 | 654 |
| C | Head Tube Angle | 68° | 68° | 68.5° | 68° | 68.5° | 68.5° | 68.5° | 68.5° |
| D | Front Centre | 630 | 656 | 672 | 682 | 696 | 719 | 745 | 770 |
| E | Bottom Bracket Drop | 43 | 43 | 62 | 43 | 62 | 62 | 62 | 62 |
| F | Wheelbase | 1067 | 1092 | 1105 | 1118 | 1128 | 1152 | 1178 | 1203 |
| G | Chainstay Length | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| H | Head Tube Length | 95 | 100 | 95 | 105 | 95 | 105 | 120 | 135 |
| I | Top Tube Length | 541 | 565 | 586 | 589 | 608 | 630 | 654 | 679 |
| J | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| K | Standover Height | 658 | 695 | 732 | 735 | 754 | 781 | 820 | 853 |
| All measurements in degrees or millimetres | |||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XXS | 4'3" - 4'9" | 130 - 145cm |
| XS | 4'8" - 5'1" | 142 - 155cm |
| S | 5'0" - 5'5" | 153 - 165cm |
| M | 5'4" - 5'10" | 163 - 178cm |
| L | 5'9" - 6'1" | 175 - 185cm |
| XL | 6'0" - 6'5" | 183 - 195cm |
| XXL | 6'4" - 6'9" | 193 - 206cm |
Part Numbers
| Size | Model Number | Gloss Dune White | Gloss Maroon | Gloss Smoke | Gloss Pine Green |
|---|---|---|---|---|
| M | 91826-6303 | 91826-6403 | 91826-6503 | 91826-6703 |
| L | 91826-6004 | 91826-6104 | 91826-6204 | 91826-6604 | XL | 91826-6005 | 91826-6105 | 91826-6205 | 91826-6605 |
| XXL | 91826-6006 | 91826-6106 | 91826-6206 | 91826-6606 |
