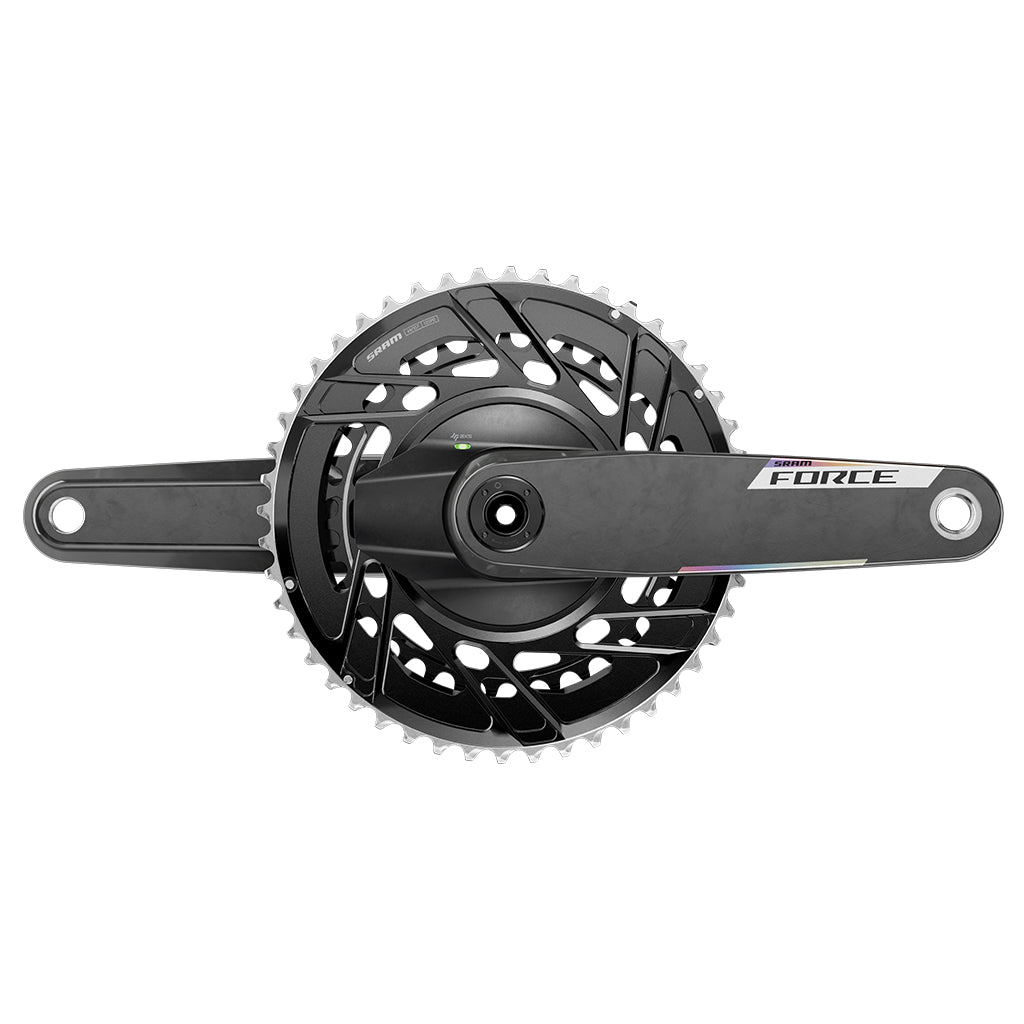

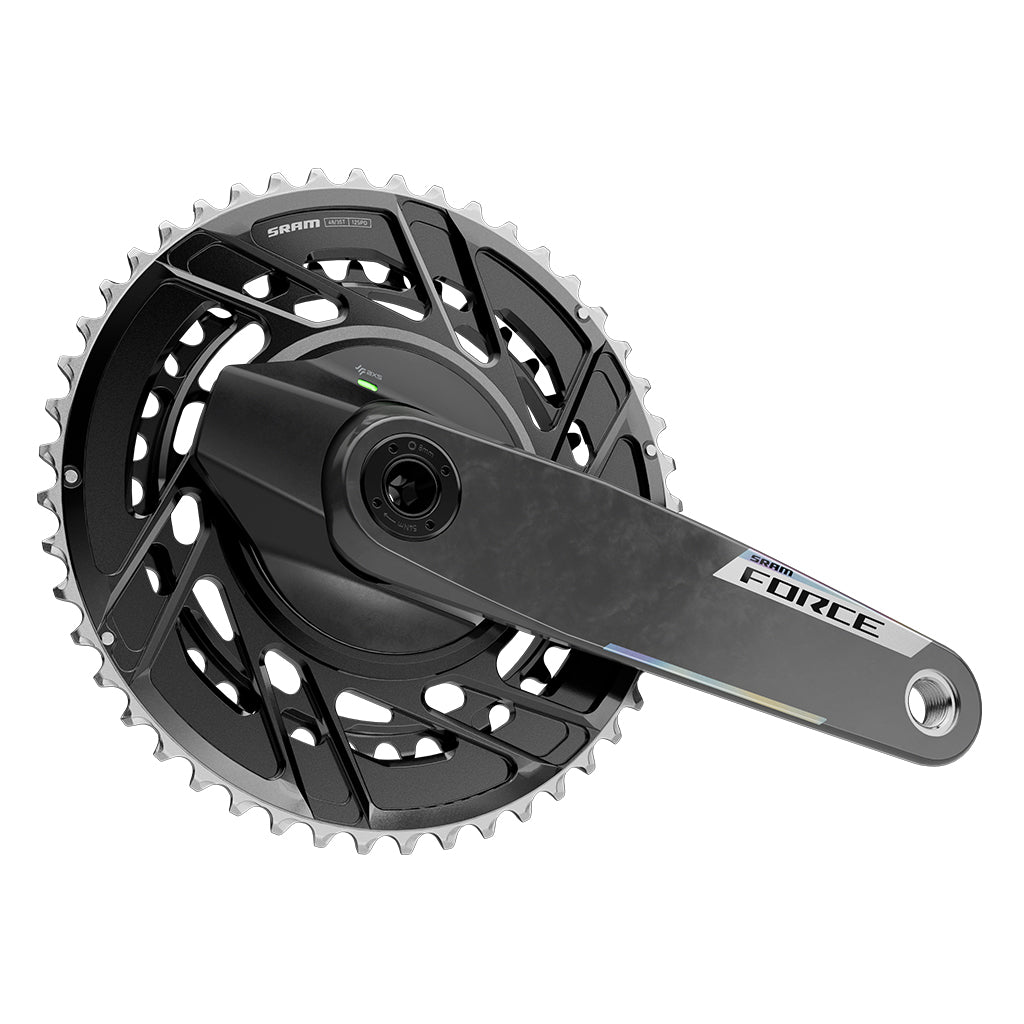

SRAM Force AXS E1 Power Meter DUB 12-Speed Direct Mount Crankset

Measure your ride power data more accurately than ever with the Force AXS power meter. SRAM built upon the stability and accuracy of the RED AXS integrated power meter, now providing riders even more options for customization and serviceability at the Force level. Riders will also be able to thread on and off desired chainring sizes for unmatched performance.

FEATURES

• Power meter is fully integrated into the chainring for lighter weight
• Power readings are accurate within +/-1.5% and aren’t affected by climate conditions during a ride
• Measures right and left leg power balance
• X-Range gearing technology gives you more range and a smoother gear progression, so you’re always in the right gear
• Crisp and accurate front shifts
• DUB bottom bracket adds durability and simplicity
• 46/33T, 48/35T, or 50/37T chainring combos available
• Available in 160, 165, 170, 172.5, and 175 mm lengths

SPECIFICATIONS

Speeds: 12
BB Compatibility: All SRAM Road DUB BBs
Chainring Size: 46/33T, 48/35T, 50/37T
Crank arm length: 160mm, 165mm, 170mm, 172.5mm, 175mm
Chainline: 45.0mm
Bottom Bracket Spindle Interface: DUB
Chainring material: Aluminum
Bolt Circle Diameter (BCD): Thread Mount
Power meter: Yes
Power Meter Type: Spider
Chain Technology: Road Flattop D1, Road Flattop E1
Drivetrain Configuration: 2x
Technology (FD): Road-Yaw
Front Tooth Jump: 13

SKUs
Product Numbers:
50/37T
160mm: 00.6118.739.000
165mm: 00.6118.739.001
170mm: 00.6118.739.003
172.5mm: 00.6118.739.004
175mm: 00.6118.739.005
48/35T
160mm: 00.6118.739.006
165mm: 00.6118.739.007
170mm: 00.6118.739.009
172.5mm: 00.6118.739.010
175mm: 00.6118.739.011
46/33T
160mm: 00.6118.739.012
165mm: 00.6118.739.013
170mm: 00.6118.739.015
172.5mm: 00.6118.739.016
175mm: 00.6118.739.017
Model ID: FC-FRC-P-E1
