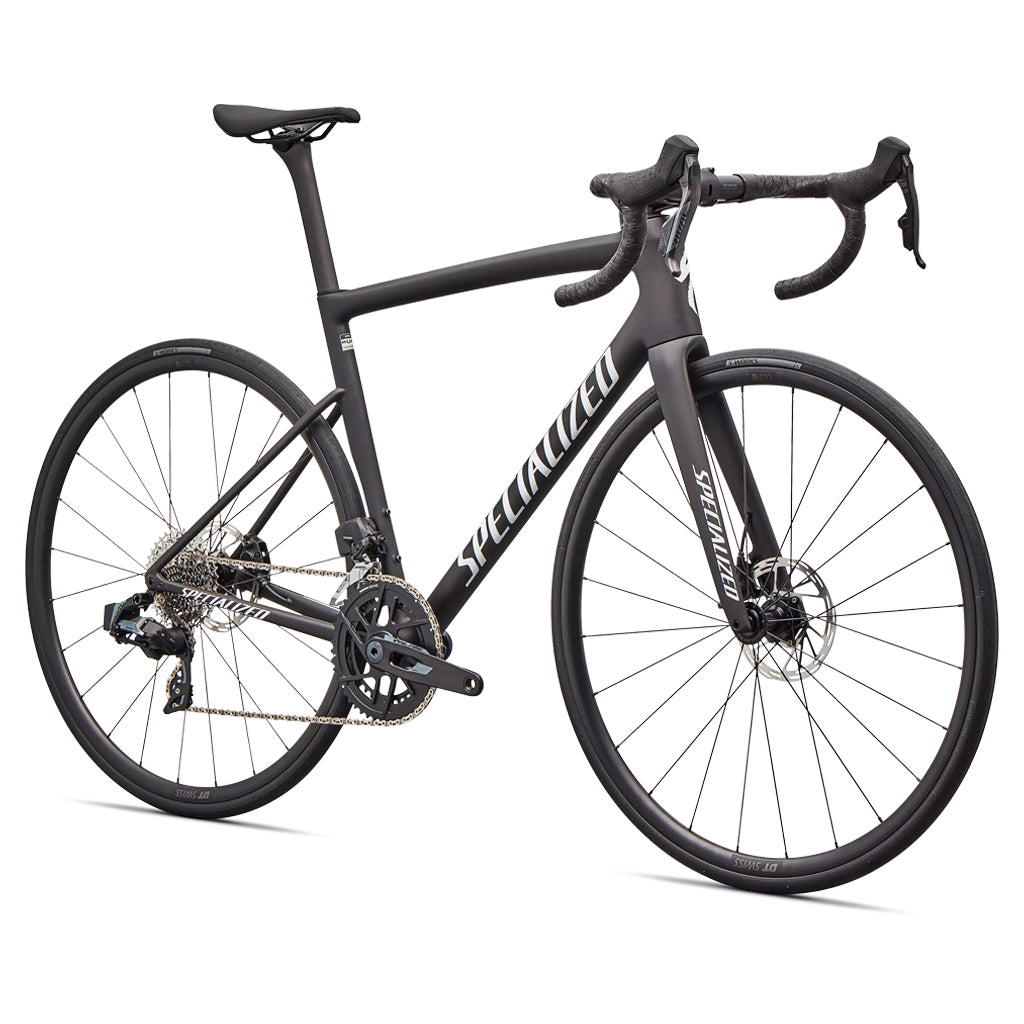

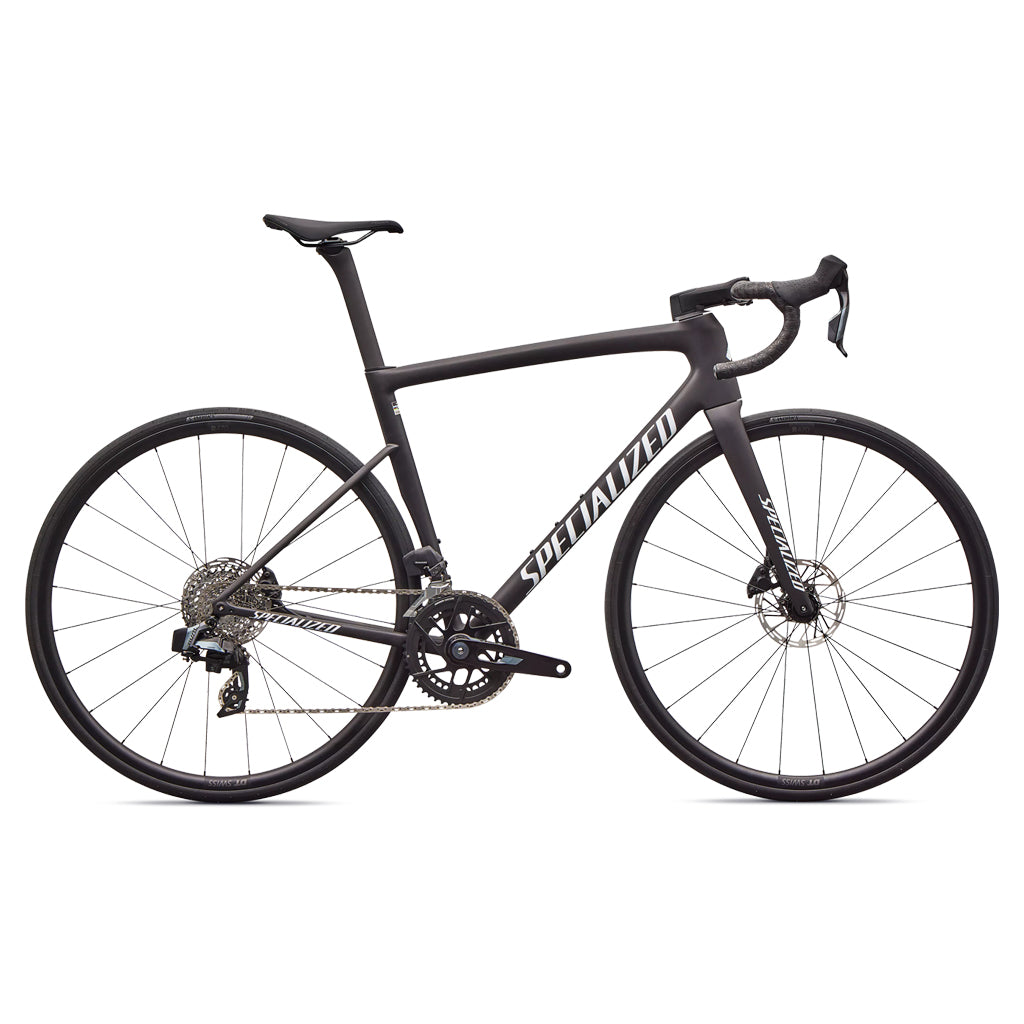

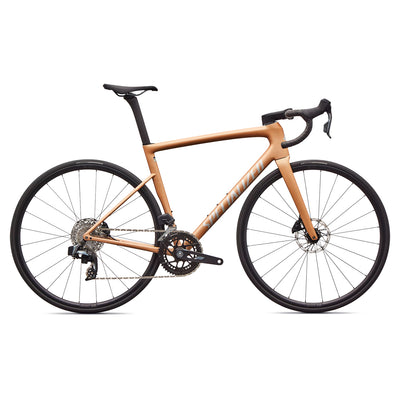

Specialized Tarmac SL8 Comp SRAM Rival AXS
Specifications
Frame Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor
Rear Brake NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor
Cassette NEW SRAM Rival XG-1250, 12sp, 10-36t
Bottom Bracket SRAM DUB BSA
Crankset NEW SRAM Rival E1, 48/35t
Chain NEW SRAM Rival E1
Shift Levers NEW SRAM Rival AXS E1 HRD
Rear Derailleur NEW SRAM Rival AXS E1
Front Derailleur NEW SRAM Rival AXS E1
Front Wheel DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Rear Wheel DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Front Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Rear Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Inner Tubes Turbo Ultralight, 48mm Presta valve
Saddle Body Geometry Power Sport, steel rails
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Handlebars Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Tape Supacaz Super Sticky Kush
Stem Tarmac integrated stem, 6-degree
Seat Binder Tarmac integrated wedge
Headset Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use
Product ID 292996
Weight Size 56
Weight 7.77 kg (17 lb, 2.1 oz)
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Front Centre | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Satin Carbon |
|---|---|
| 44 | 94926-5444 |
| 49 | 94926-5449 |
| 52 | 94926-5452 |
| 54 | 94926-5454 |
| 56 | 94926-5456 |
| 58 | 94926-5458 |
| 61 | 94926-5461 |
