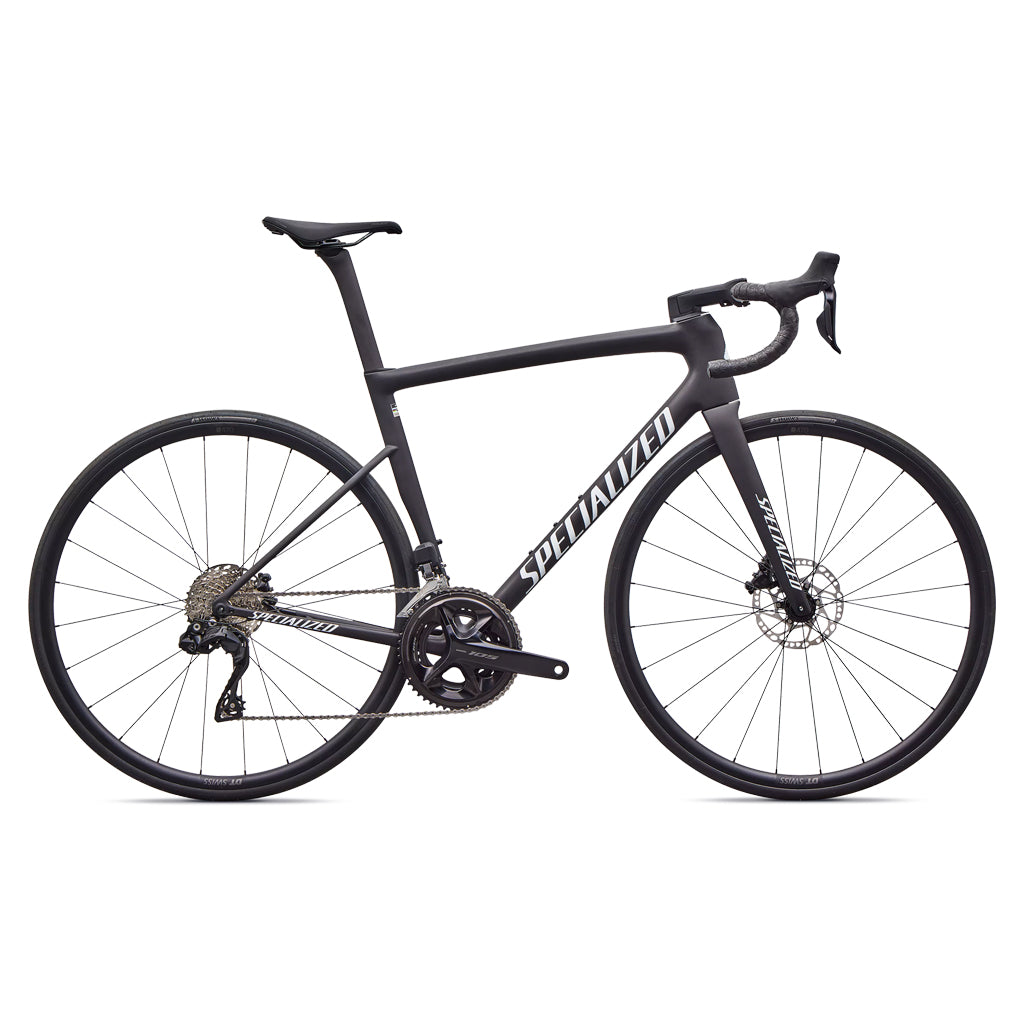

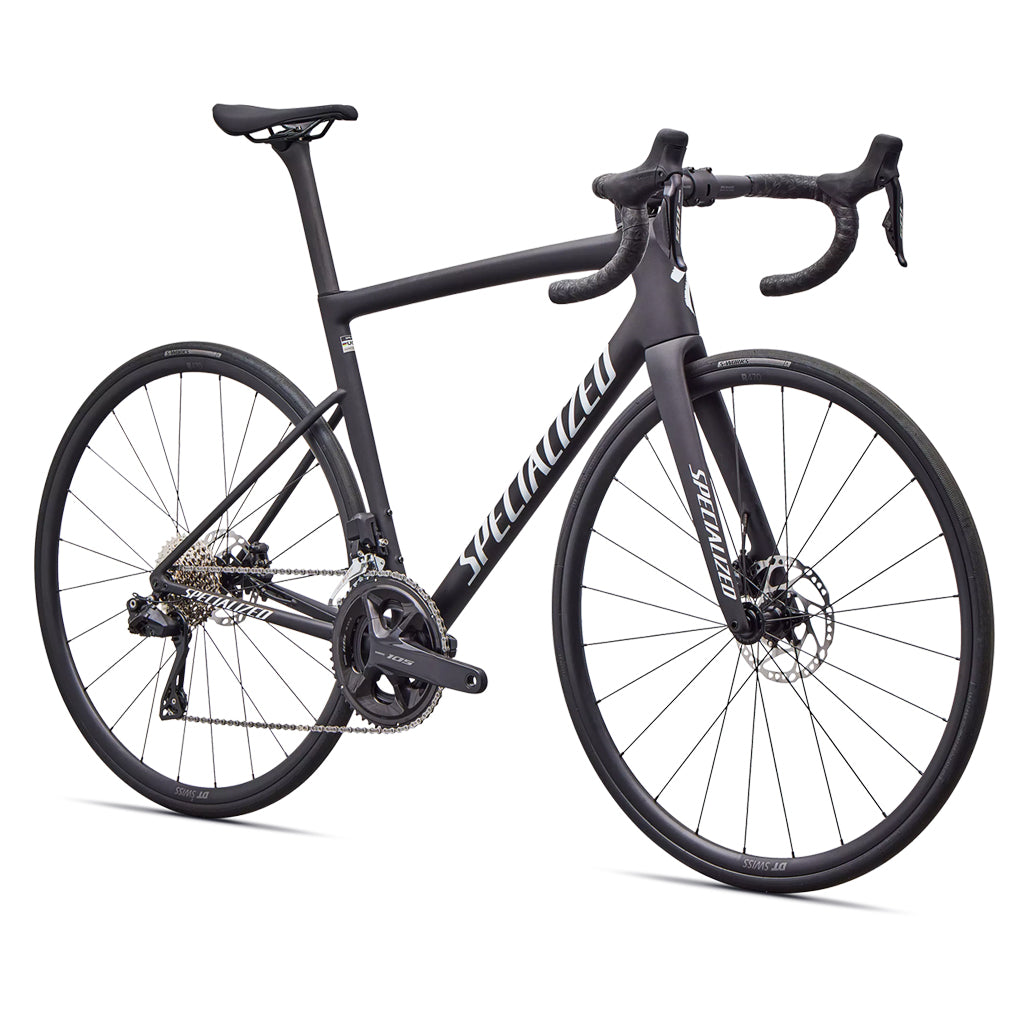

Specialized Tarmac SL8 Comp 105 Di2
Specifications
Frame Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake Shimano 105 Hydraulic Brake
Rear Brake Shimano 105 Hydraulic Brake
Cassette Shimano 105, 12-speed, 11-34t
Bottom Bracket Shimano Threaded BSA BB
Crankset Shimano 105, 12-speed
Chain Shimano SLX, M7100, 12-speed
Shift Levers Shimano 105 Di2 R7170, 12-speed
Rear Derailleur Shimano 105 Di2 7150
Front Derailleur Shimano 105 R7170, braze-on
Front Wheel DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Rear Wheel DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Rear Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Inner Tubes Turbo Ultralight, 48mm Presta valve
Saddle Body Geometry Power Sport, steel rails
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Handlebars Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Tape Supacaz Super Sticky Kush
Stem Tarmac integrated stem, 6-degree
Seat Binder Tarmac integrated wedge
Headset Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use
Weight 7.68 kg (16 lb, 14.9 oz) – Size 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Front Centre | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Satin Carbon | Gloss Red Tint |
|---|---|---|
| 44 | 94926-5044 | 94926-5944 |
| 49 | 94926-5049 | 94926-5949 |
| 52 | 94926-5052 | 94926-5952 |
| 54 | 94926-5054 | 94926-5954 |
| 56 | 94926-5056 | 94926-5956 |
| 58 | 94926-5058 | 94926-5958 |
| 61 | 94926-5061 | 94926-5961 |
