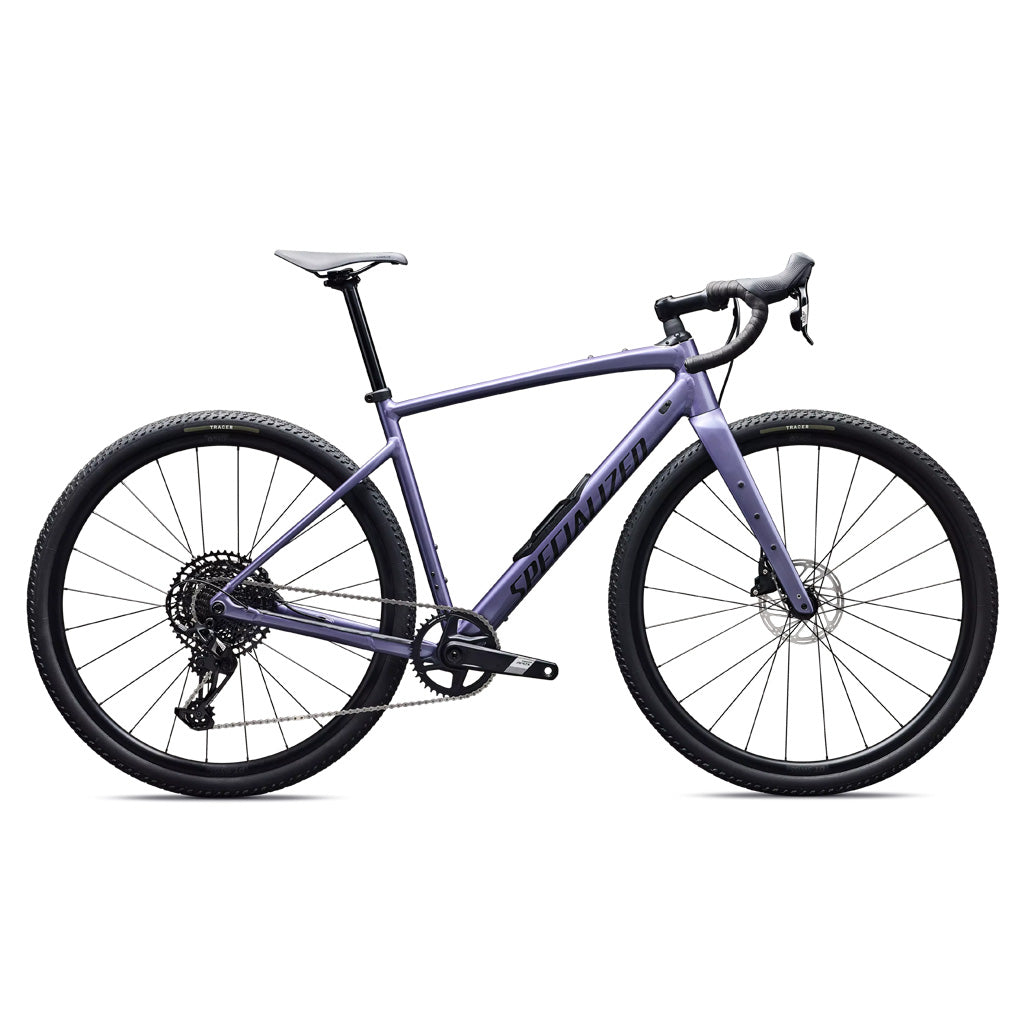

Specialized Diverge 4 Comp Alloy
Specifications
Frame Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Front Brake SRAM Apex, Hydraulic disc
Rear Brake SRAM Apex, Hydraulic disc
Shift Levers SRAM Apex
Crankset SRAM Apex DUB Wide, 40t
Rear Derailleur SRAM Apex Eagle 12-speed
Bottom Bracket SRAM DUB BSA 68 Wide
Chain SRAM NX Eagle, 12-speed
Cassette SRAM PG-1210 Eagle, 11-50t
Front Wheel DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire Tracer 700x45, Tubeless Ready
Rear Tire Tracer 700x45, Tubeless Ready
Inner Tubes Presta, 700x32-50mm
SeatPost Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Seat Binder Alloy, 30.8mm
Saddle Body Geometry Power Sport, steel rails
Stem Future Stem, Comp
Handlebars Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape Supacaz Suave
SWAT SWAT 3.0 internal downtube storage
Weight 10.6 kg (23 lb, 5.9 oz) - Size 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| B | Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| C | Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| D | Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| E | Bottom Bracket Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| F | Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| G | Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| H | Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| I | Top Tube Length | 521 | 537 | 556 | 575 | 593 | 613 |
| J | Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
| K | Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Mauve Metallic | Satin Shadow Silver | Gloss Pistachio |
|---|---|---|---|
| 49 | 95426-5149 | 95426-5249 | 95426-5449 |
| 52 | 95426-5152 | 95426-5252 | 95426-5452 |
| 54 | 95426-5154 | 95426-5254 | 95426-5454 |
| 56 | 95426-5156 | 95426-5256 | 95426-5456 |
| 58 | 95426-5158 | 95426-5258 | 95426-5458 |
| 61 | 95426-5161 | 95426-5261 | 95426-5461 |
