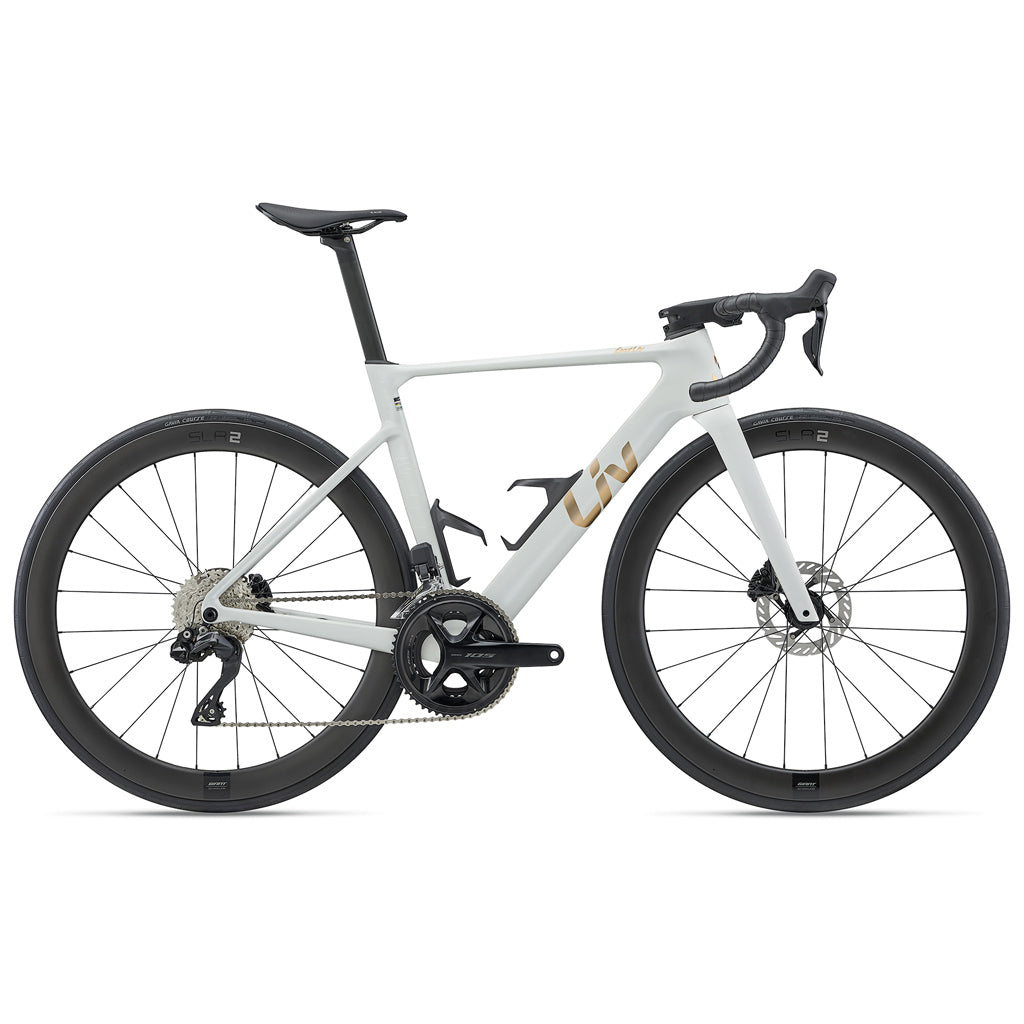

Liv Enviliv Advanced 1
Specifications
Frame Advanced-grade composite, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar Liv Contact SL Aero
Grips Liv Stratus Elite 2.0
Stem Giant Contact SL Aero, -10-degree
Seatpost Giant Vector, composite, -5/+15mm offset
Saddle Liv Alacra SL
Shifters Shimano 105 Di2, 2x12
Front Derailleur Shimano 105 Di2 FD-R7150
Rear Derailleur Shimano 105 Di2 FD-R7150
Brakes Shimano 105 hydraulic Shimano RT-CL700 rotors [F] 160mm, [R] 140mm
Brake Levers Shimano 105 Di2
Cassette Shimano 105, 12-speed, 11x36
Chain KMC X12
Crankset Shimano 105, 36/52
Bottom Bracket Shimano BB71, press fit
Rims Giant SLR 2 50 Carbon Disc WheelSystem, [F] 40mm, [R] 40mm
Hubs [F] Giant Low Friction Aero Hub, CenterLock, 12mm thru-axle
[R] Giant Low Friction Aero Hub, 3-pawl 30t driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires Giant Gavia Course 0, tubeless, 700x28c, 120 TPI, folding
Extras Computer mount, water bottle cages, tubeless prepared, 32mm max tire size
Geometry
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Reach | 366 | 373 | 378 | 383 | 392 |
| B | Stack | 494 | 512 | 527 | 548 | 567 |
| C | Head Tube Angle | 70.0° | 71.0° | 72.0° | 73° | 73° |
| D | Bottom Bracket Drop | 72 | 72 | 70 | 70 | 70 |
| E | Wheelbase | 970 | 975 | 977 | 984 | 999 |
| F | Chain Stay Length | 405 | 405 | 405 | 405 | 405 |
| G | Head Tube Length | 100 | 115 | 130 | 150 | 170 |
| H | Top Tube Length | 498 | 510 | 524 | 540 | 560 |
| I | Seat Tube Angle | 75.0° | 75.0° | 750° | 74.0° | 74.0° |
| J | Standover Height | 715 | 733 | 761 | 787 | 814 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XXS | 4'9" - 5'2" | 145 - 157cm |
| XS | 5'0" - 5'4" | 152 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 176cm |
| L | 5'7" - 6'0" | 170 - 182cm |
