Why the Giant Reign?
The Reign platform was initially introduced in 2005 as one of the first Giant mountain bikes to feature Maestro suspension. A lot has changed in the nearly two decades since, and Reign has continually evolved with the times. From suspension technologies to wheel sizes, frame materials to geometries, it’s a bike that has been pushing the boundaries of trail riding progression since before modern enduro racing even existed. It has racing in its DNA, but is equally at home in the bike park or on backcountry rides.
- Front Travel: 170mm
- Rear Travel: 160mm
- Wheel size: 29" & MX Compatible
Technical Details

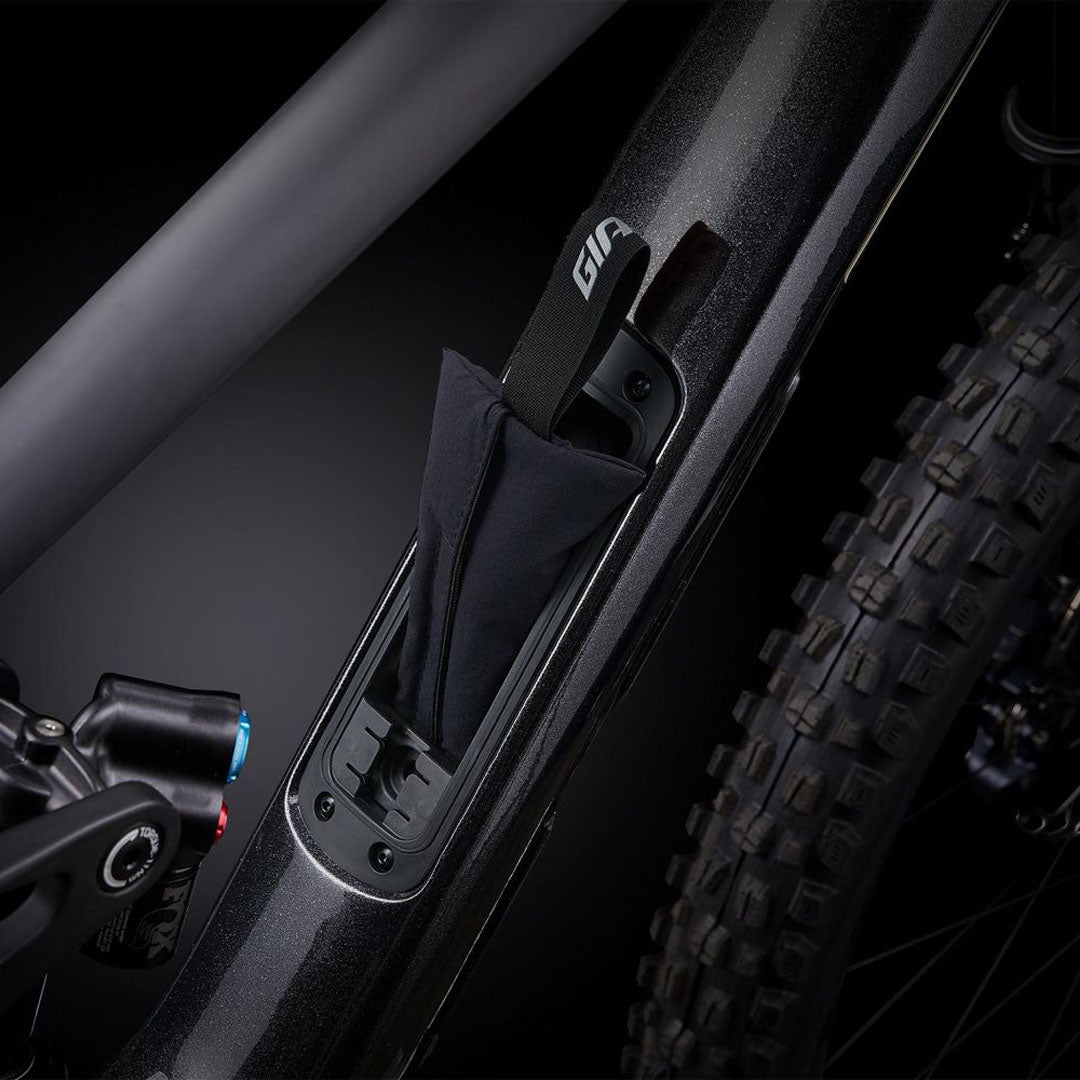

All new integrated down tube storage provides convenient carrying capacity for on-trail essentials.
- Internal Storage

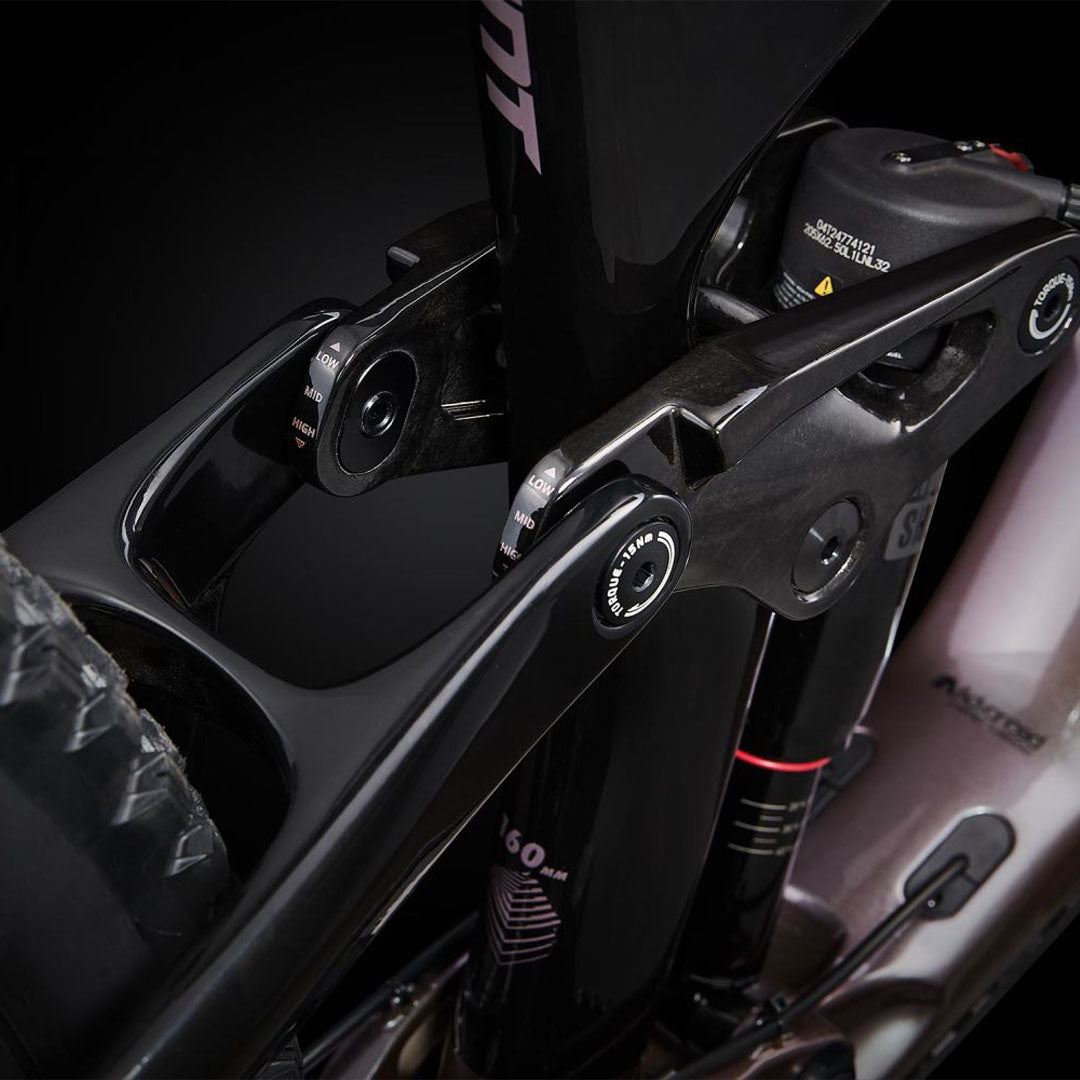

- Adjustable Geometry
- 29" & MX Compatible

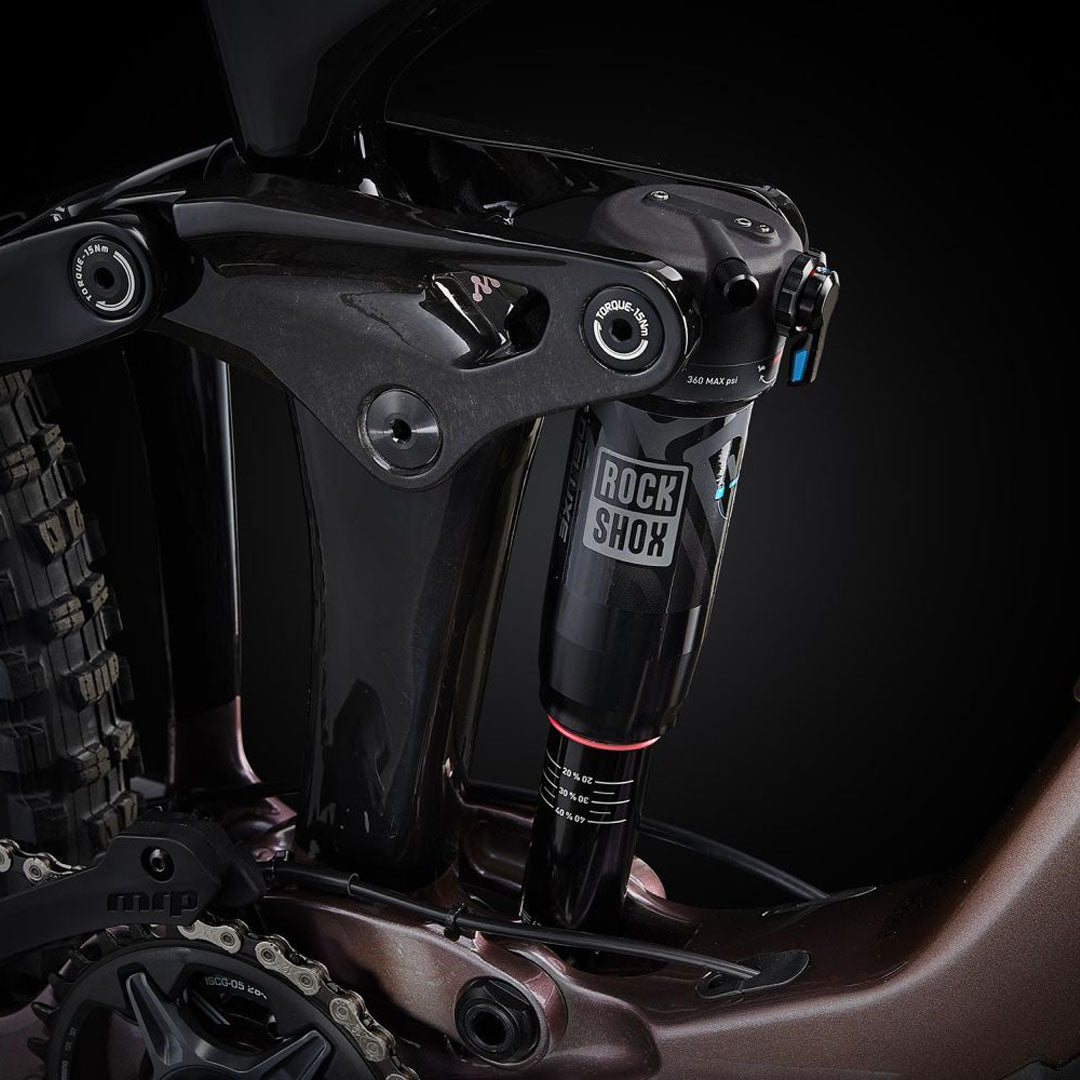

- Maestro Suspension
Geometry
S | M | L | XL | ||
---|---|---|---|---|---|
LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
B | Stack | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
C | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
D | Bottom Bracket Drop | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
E | Wheelbase | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
F | Chainstay Length | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
G | Head Tube Length | 100 | 105 | 115 | 120 |
H | Top Tube Length | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
I | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
J | Stand Over Height | 720 | 724 | 729 | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
*ALL MEASUREMENTS IN DEGREES OR MILLIMETRES
Frame Sizing
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
S | 5'4" - 5'8" | 163- 172cm |
M | 5'7" - 5'11" | 171 - 188cm |
L | 5'10" - 6'2" | 179 - 188cm |
XL | 6'2" - 6'6" | 187 - 198cm |
