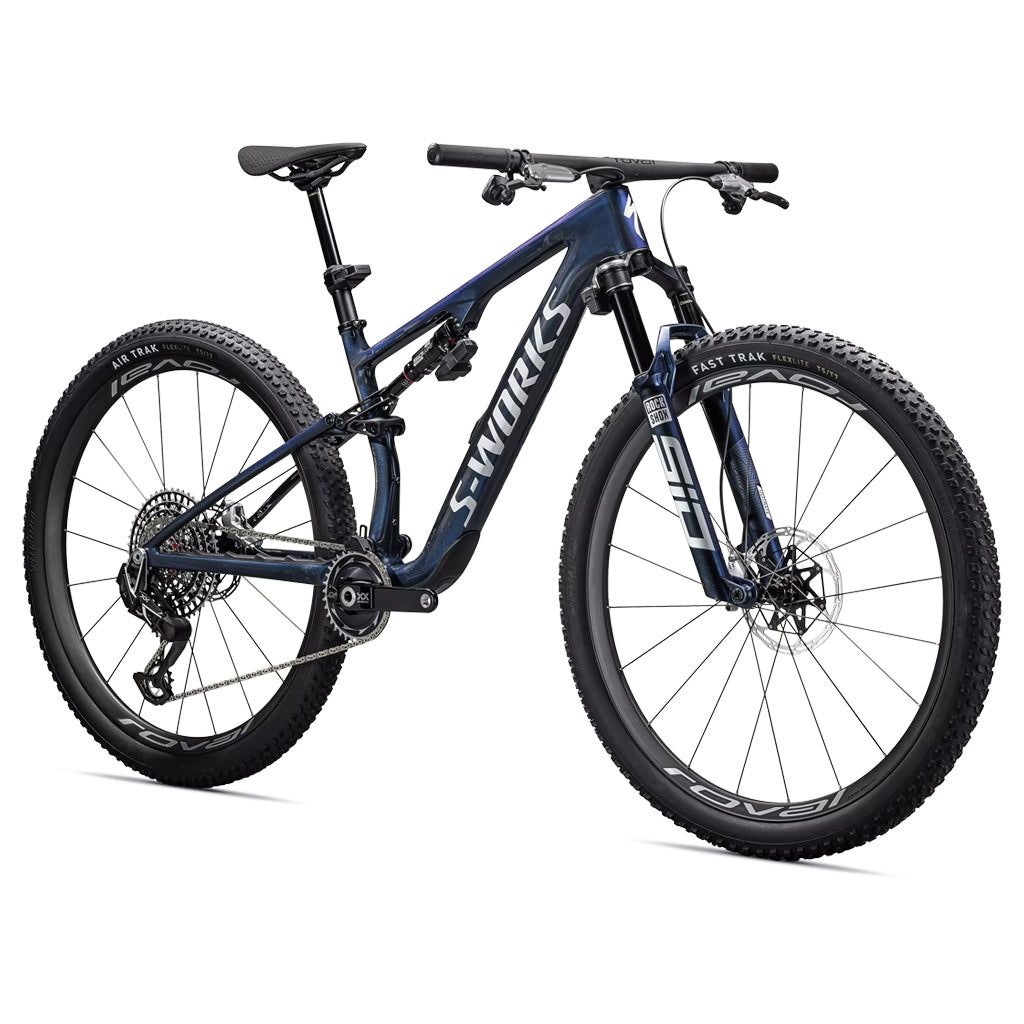

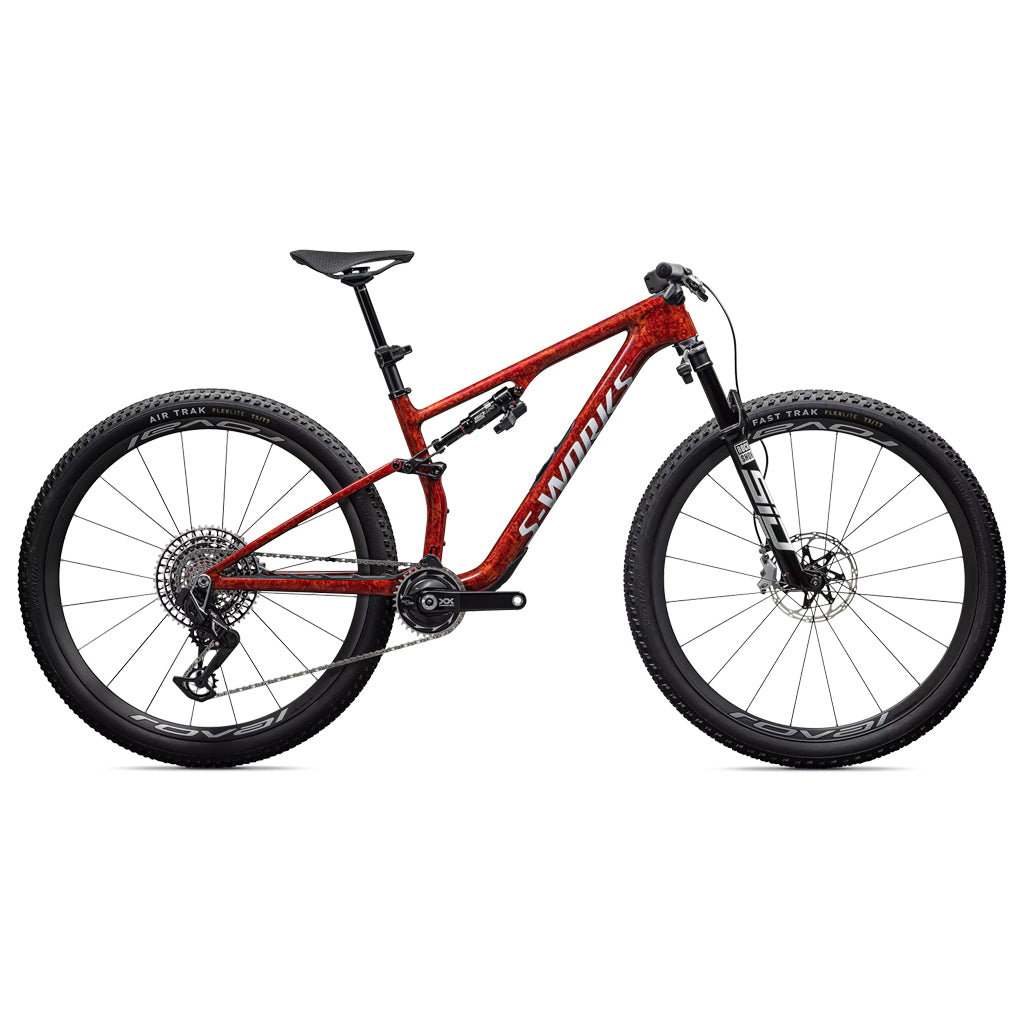

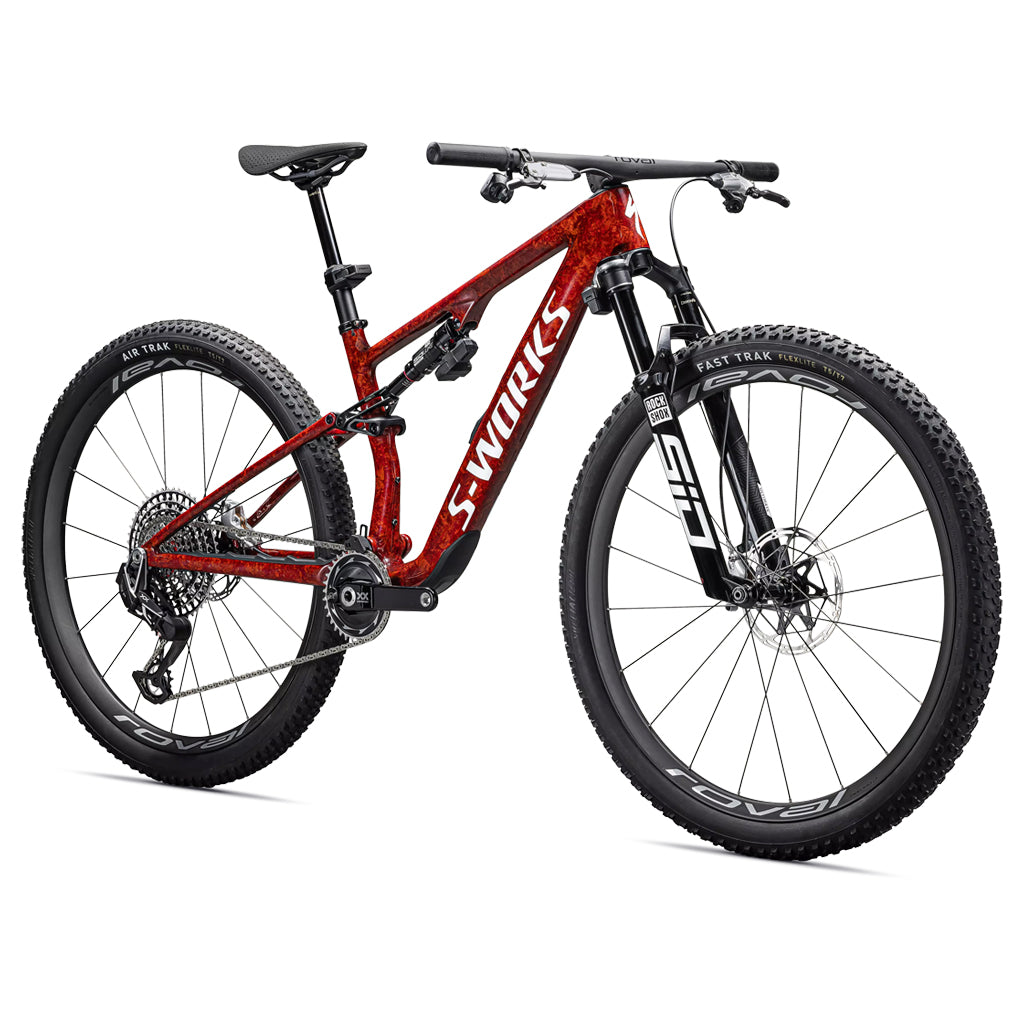

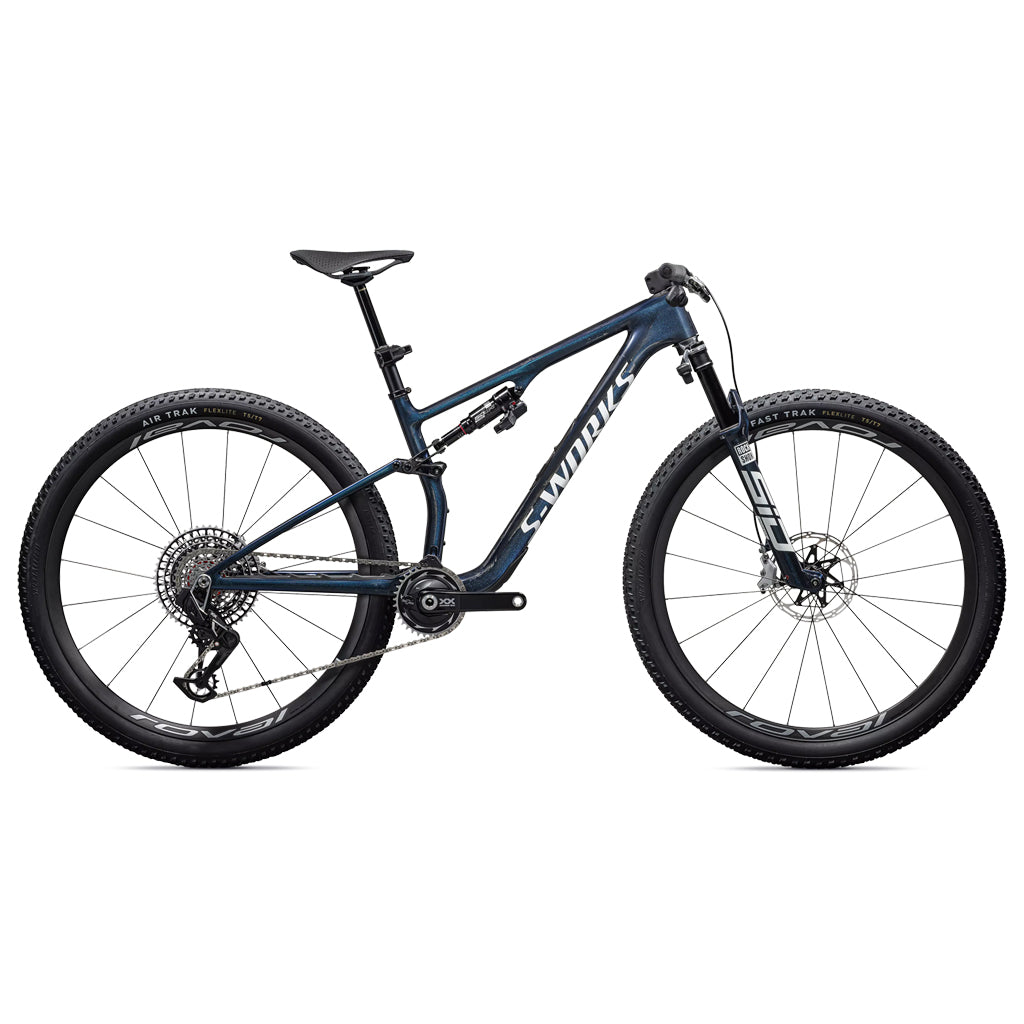

Specialized S-Works Epic 8
Specifications
Frame S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
SWAT SWAT internal downtube storage
Seat Binder Specialized Alloy 34.9, Titanium Bolt
Rear Shock RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Fork RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Front Brake SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor
Shift Levers SRAM AXS POD Ultimate Controller
Chain SRAM XX SL Eagle
Cassette SRAM CS-1299 10-52t
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Crankset SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB 170mm/175mm
Rear Derailleur SRAM XX SL Eagle AXS
Chainrings 34T
Front Wheel Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces
Rear Wheel Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss 180 internals, Roval Carbon spokes w/ Ti end pieces
Front Tire Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Tire Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes Specialized Turbo Tube
Saddle Specialized S-Works Power Mirror, Carbon Rails, 143mm/155mm
Handlebars Roval Control SL Integrated cockpit, 60mm X- 12 degree integrated stem, 8-degree backsweep, 1 degree upsweep, 760mm wide
SeatPost RockShox Reverb AXS, 30.9mm, S: 125, M/L:150, XL: 175mm
Grips Specialized Trail Grips
Weight 10.0kg (22 lb, 0.7 oz) - Size MD
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach (Low BB) | 390 | 420 | 450 | 475 | 500 |
| B | Stack | 603 | 597 | 598 | 610 | 628 |
| C | Head Tube Angle | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° |
| D | Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| E | Front Centre | 687 | 716 | 747 | 778 | 811 |
| F | Bottom Bracket Height | 323 | 318 | 329 | 324 | 331 | 326 | 333 | 328 | 333 | 328 |
| G | Bottom Bracket Drop (Low BB) | 52 | 46 | 44 | 42 | 42 |
| H | Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| K | Top Tube Length | 535 | 569 | 605 | 633 | 662 |
| L | Seat Tube Angle | 76.5° | 76° | 75.5° | 75.5° | 75.5° |
| M | Standover Height | 748 | 755 | 760 | 769 | 774 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'10" - 5'1" | 148 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Part Numbers
| Size | Model Number | Gloss Cyan Blue Pearl | Gloss Fiery Red Dry Impasto |
|---|---|---|
| S | 90326-0002 | 90326-0102 |
| M | 90326-0003 | 90326-0103 |
| L | 90326-0004 | 90326-0104 |
| XL | 90326-0005 | 90326-0105 |
