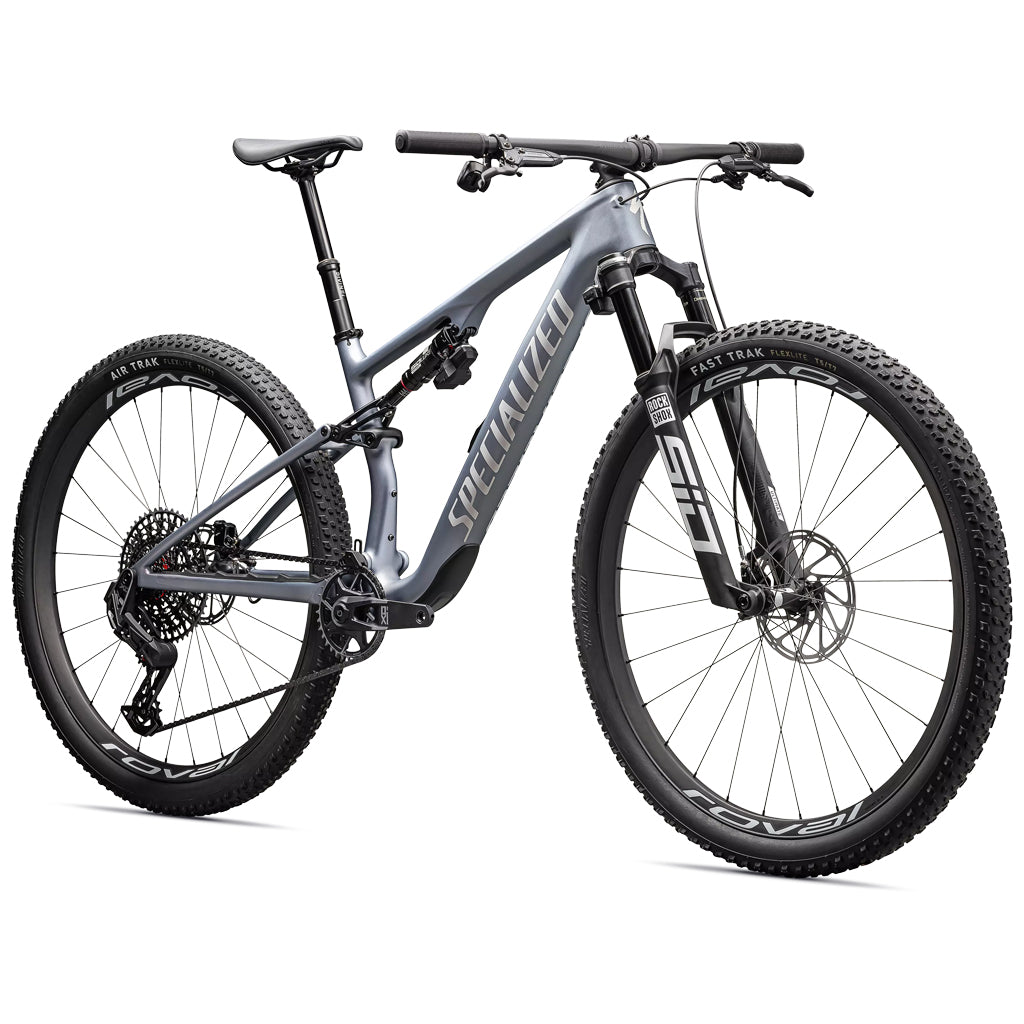

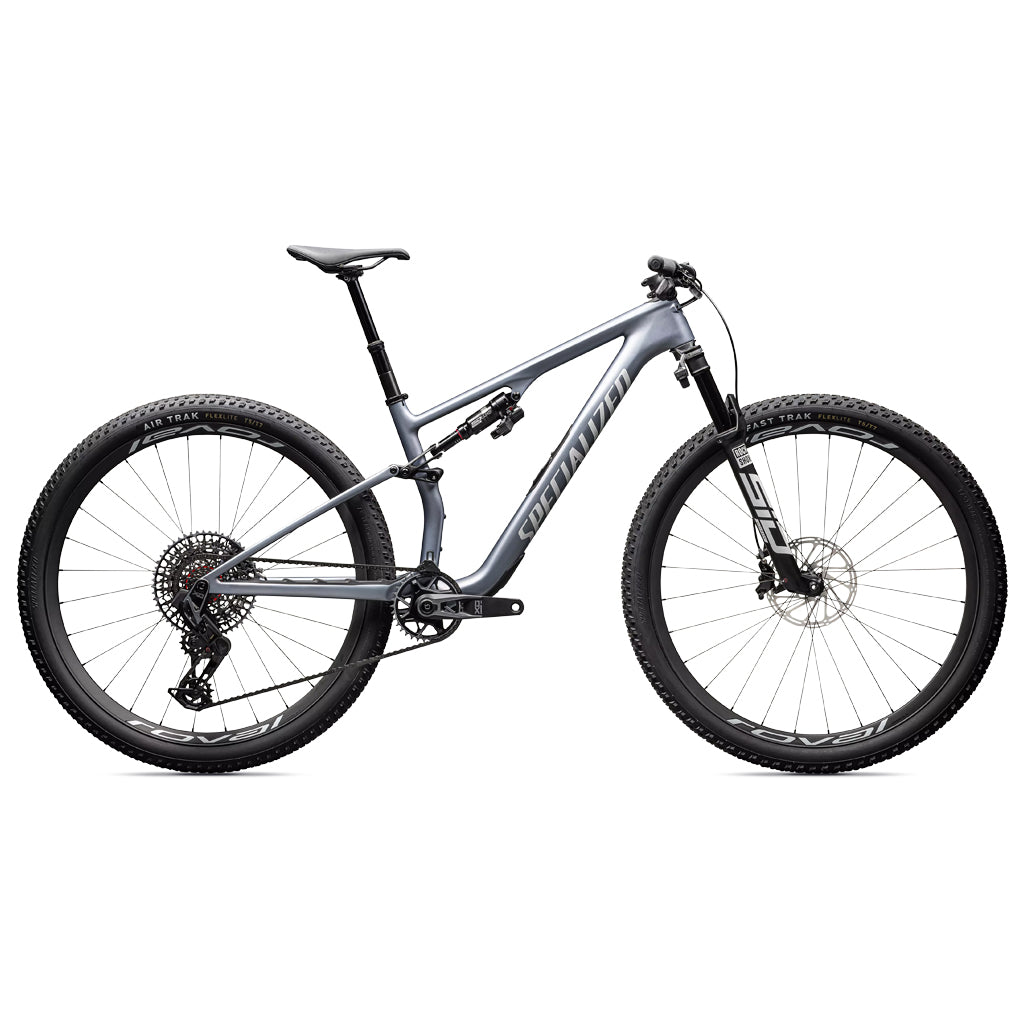

Specialized Epic 8 Pro
Specifications
Frame FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
SWAT SWAT internal downtube storage
Seat Binder Specialized Alloy 34.9, Steel Bolt
Rear Shock RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Fork RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Front Brake SRAM Motive Silver, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake SRAM Motive Silver, 4-piston caliper, hydraulic disc, 160mm rotor
Shift Levers SRAM AXS POD Controller
Chain SRAM X0
Cassette SRAM XS 1295, 12 speed, 10-52t
Bottom Bracket SRAM DUB Threaded Wide
Crankset SRAM X0 Eagle, Quarq Spindle power meter, DUB, 170/175mm
Rear Derailleur SRAM X0 Eagle Transmission
Chainrings 34T
Front Wheel Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 350 hub, DT Swiss Revolution straight pull spokes, 28h
Rear Wheel Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 350 hub, DT Swiss Revolution straight pull spokes, 28h
Front Tire Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Tire Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes Specialized Turbo Tube
Saddle Specialized Power Expert, Ti Rails, 143mm/155mm
Handlebars S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
SeatPost Bike Yoke Divine SL, 100 / 125mm travel, 30.9
Grips Specialized Trail Grips
Weight 10.82kg (23 lb, 13.7 oz) - Size MD
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach (Low BB) | 390 | 420 | 450 | 475 | 500 |
| B | Stack | 603 | 597 | 598 | 610 | 628 |
| C | Head Tube Angle | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° |
| D | Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| E | Front Centre | 687 | 716 | 747 | 778 | 811 |
| F | Bottom Bracket Height | 323 | 318 | 329 | 324 | 331 | 326 | 333 | 328 | 333 | 328 |
| G | Bottom Bracket Drop (Low BB) | 52 | 46 | 44 | 42 | 42 |
| H | Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| K | Top Tube Length | 535 | 569 | 605 | 633 | 662 |
| L | Seat Tube Angle | 76.5° | 76° | 75.5° | 75.5° | 75.5° |
| M | Standover Height | 748 | 755 | 760 | 769 | 774 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'10" - 5'1" | 148 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Part Numbers
| Size | Model Number | Glacial Metallic Pearl |
|---|---|
| S | 90326-1002 |
| M | 90326-1003 |
| L | 90326-1004 |
| XL | 90326-1005 |
