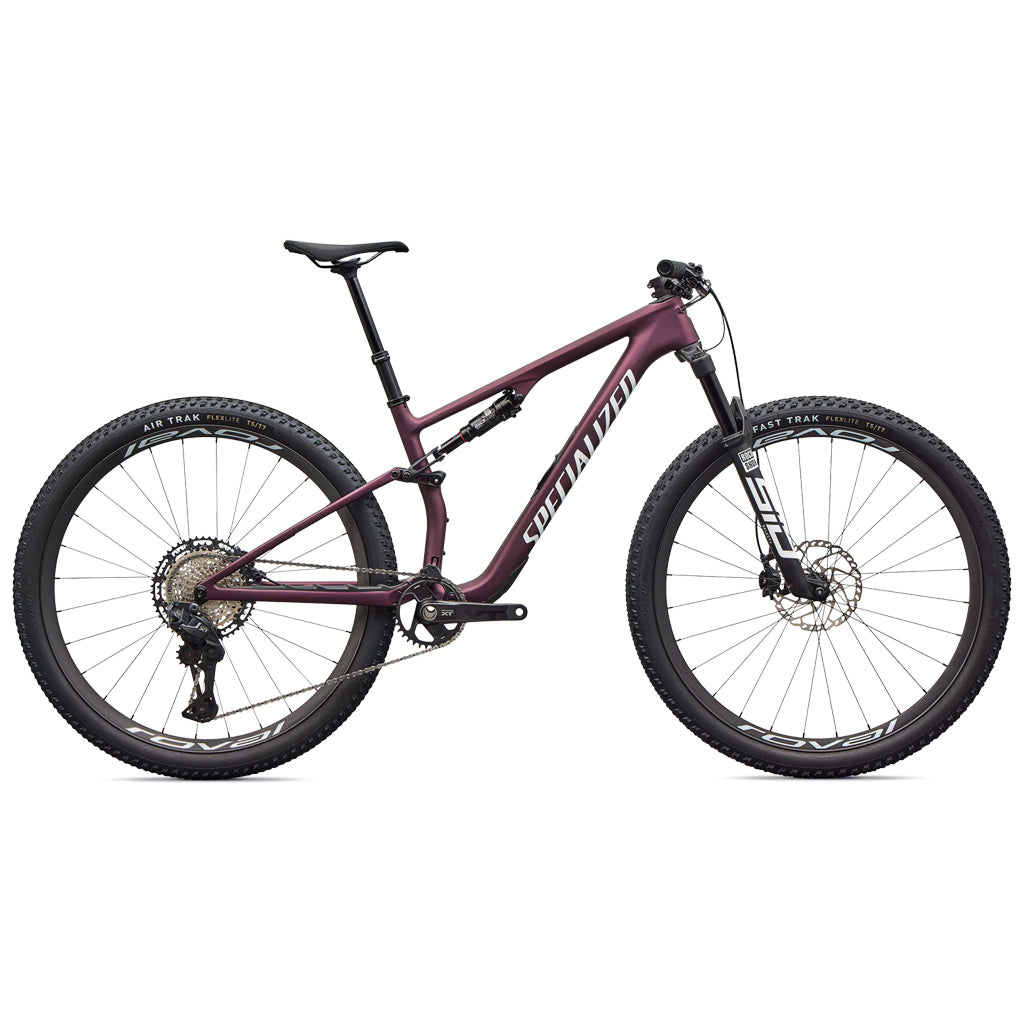

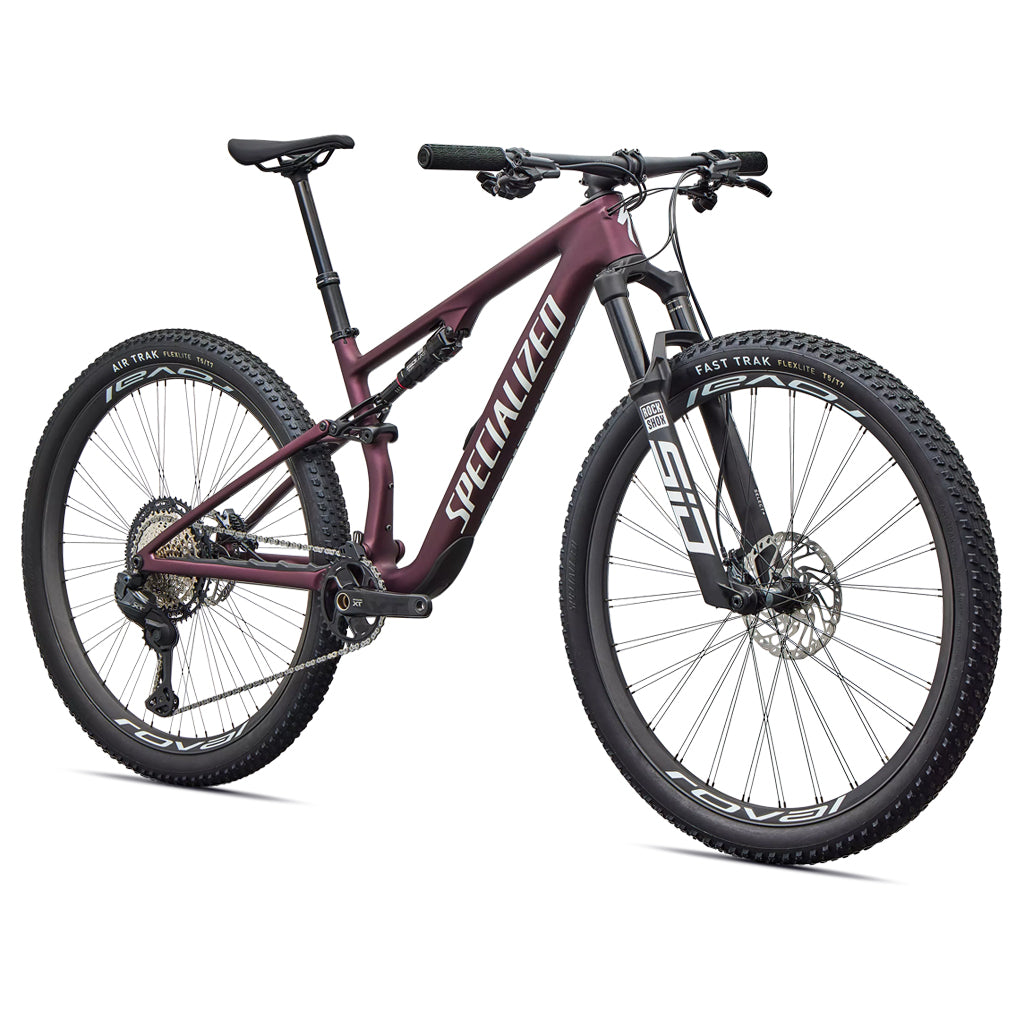

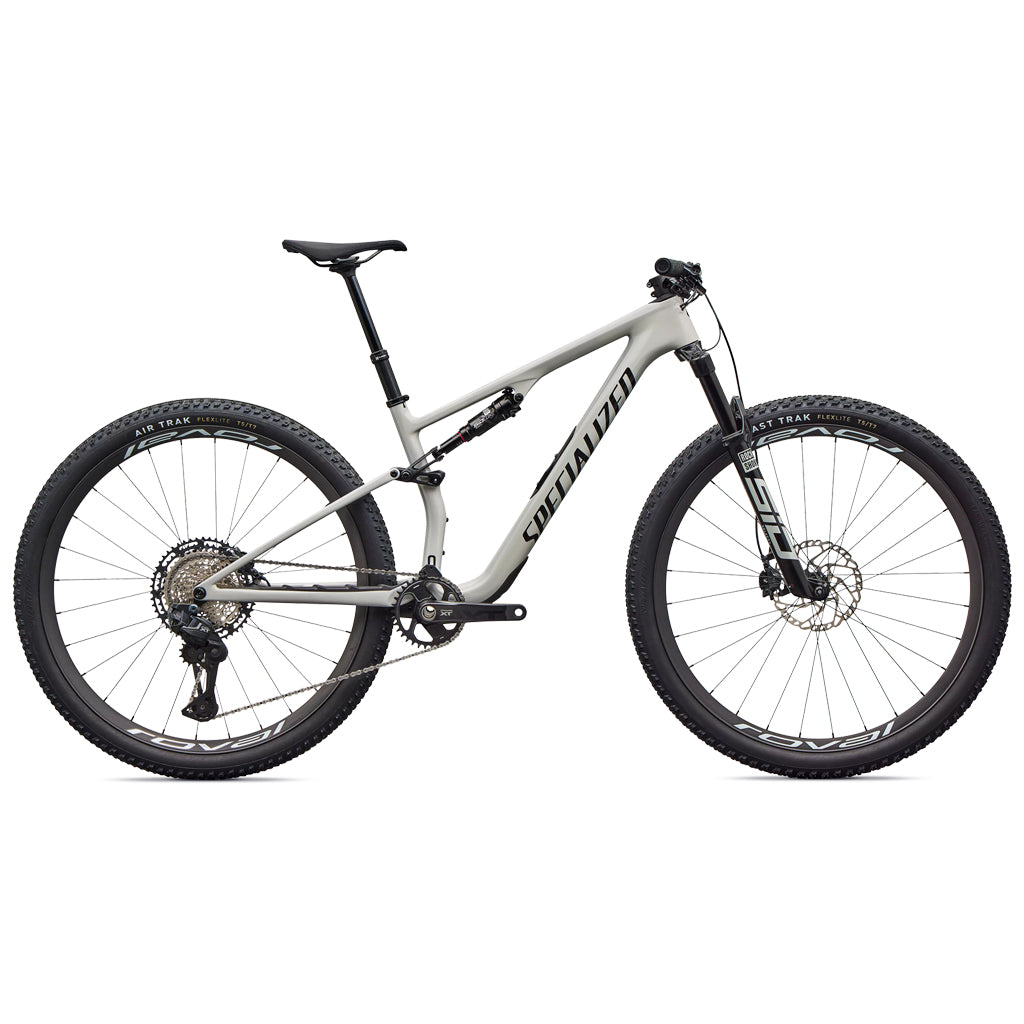

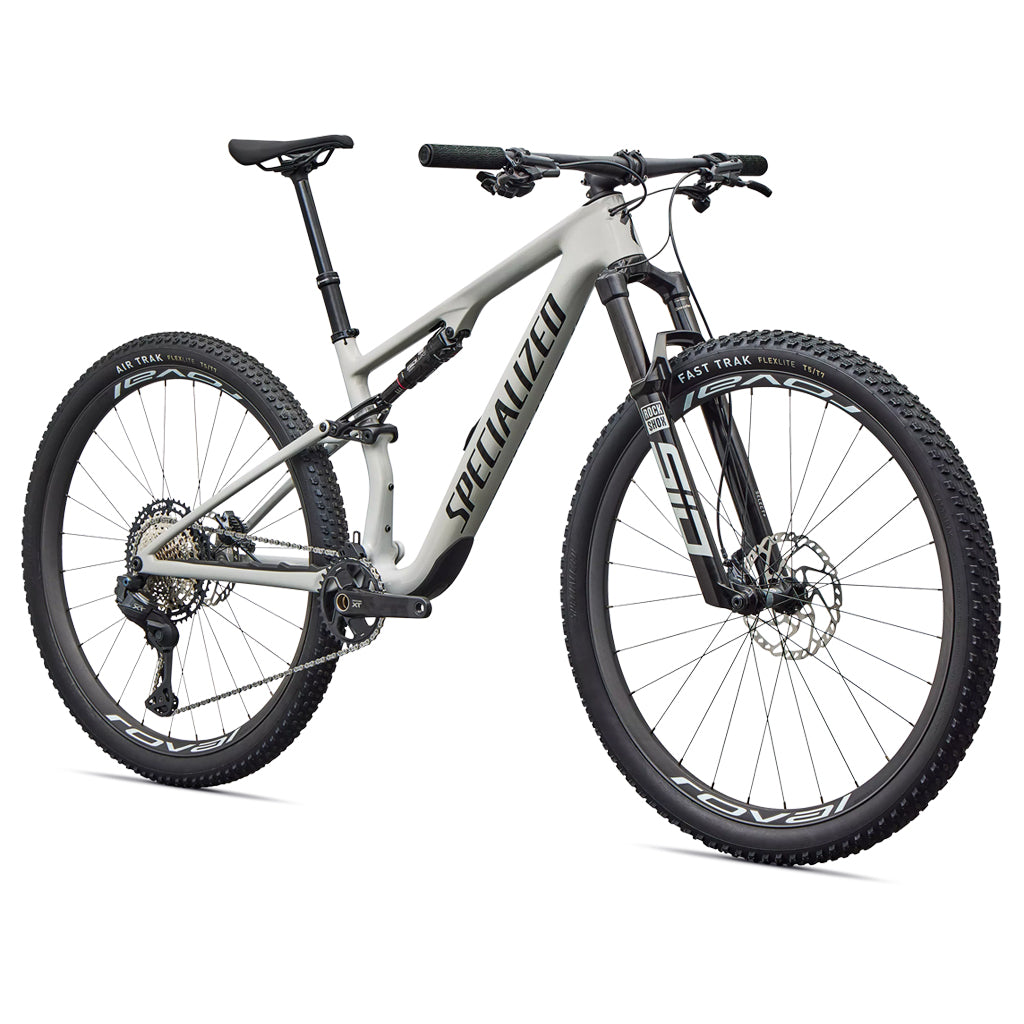

Specialized Epic 8 Expert Shimano XT Di2 RockShox Select+
Specifications
FrameFACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
SWATSWAT internal downtube storage
Seat BinderSpecialized Alloy 34.9, Steel Bolt
ForkFOX 34 SL Performance Elite, GRIP X Damper, HSC, LSC, LSR adjust, 130mm travel, 44mm offset, 15x110mm
Rear ShockFOX FLOAT Performance Elite, EVOL LV, Ride Dynamics Tuned, 2-position compression adjust, 190x45mm
Front BrakeShimano XT 8200, 4-piston caliper, hydraulic disc, 180mm rotor
Rear BrakeShimano XT 8200, 4-piston caliper, hydraulic disc, 180mm rotor
Chainrings32T
ChainShimano XT
CranksetShimano XT 8200, 170mm
Shift LeversShimano XT Di2
Rear DerailleurShimano XT Di2, 12-speed
CassetteShimano XT M8200, 12-speed, 10-51
Bottom BracketShimano, BB-MT801, Threaded
Front WheelRoval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear WheelRoval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear TireSpecialized Ground Control, Grid Lite Casing, T5/T7 Compound, 29x2.35
Front TireSpecialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Inner TubesSpecialized Turbo Tube
StemAlloy Stem, 35mm clamp, 60mm
SaddleBody Geometry Power Comp, steel rails
HandlebarsSpecialized Alloy, 20mm rise, 35mm
GripsSpecialized Trail Grips
SeatPostX-Fusion Manic, 30.9, XS-SM: 125mm, M: 150mm, L-XL: 170mm Travel, 0mm offset
Product ID291799
Weight11.85 kg (26 lb, 2.0 oz)
Weight SizeMD
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach | 390 | 420 | 450 | 475 | 500 |
| B | Stack | 603 | 597 | 598 | 610 | 628 |
| C | Head Tube Angle | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° |
| D | Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| E | Front Center | 687 | 716 | 747 | 778 | 811 |
| F | Bottom Bracket Height | 323/318 | 329/324 | 331/326 | 333/328 | 333/328 |
| G | Bottom Bracket Drop | 52 | 46 | 44 | 42 | 42 |
| H | Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| K | Top Tube Length | 535 | 569 | 605 | 633 | 662 |
| L | Seat Tube Angle | 76.5° | 76° | 75.5° | 75.5° | 75.5° |
| M | Standover Height | 748 | 755 | 760 | 769 | 774 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XS | 4'10" - 5'1" | 148 - 155cm |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Part Numbers
| Size | Model Number | Gloss Dolomite Metallic | Satin Bordeaux Metallic |
|---|---|---|
| XS | 90326-3201 | 90326-3301 |
| S | 90326-3201 | 90326-3301 |
| M | 90326-3203 | 90326-3303 |
| L | 90326-3204 | 90326-3304 |
| XL | 90326-3205 | 90326-3305 |
