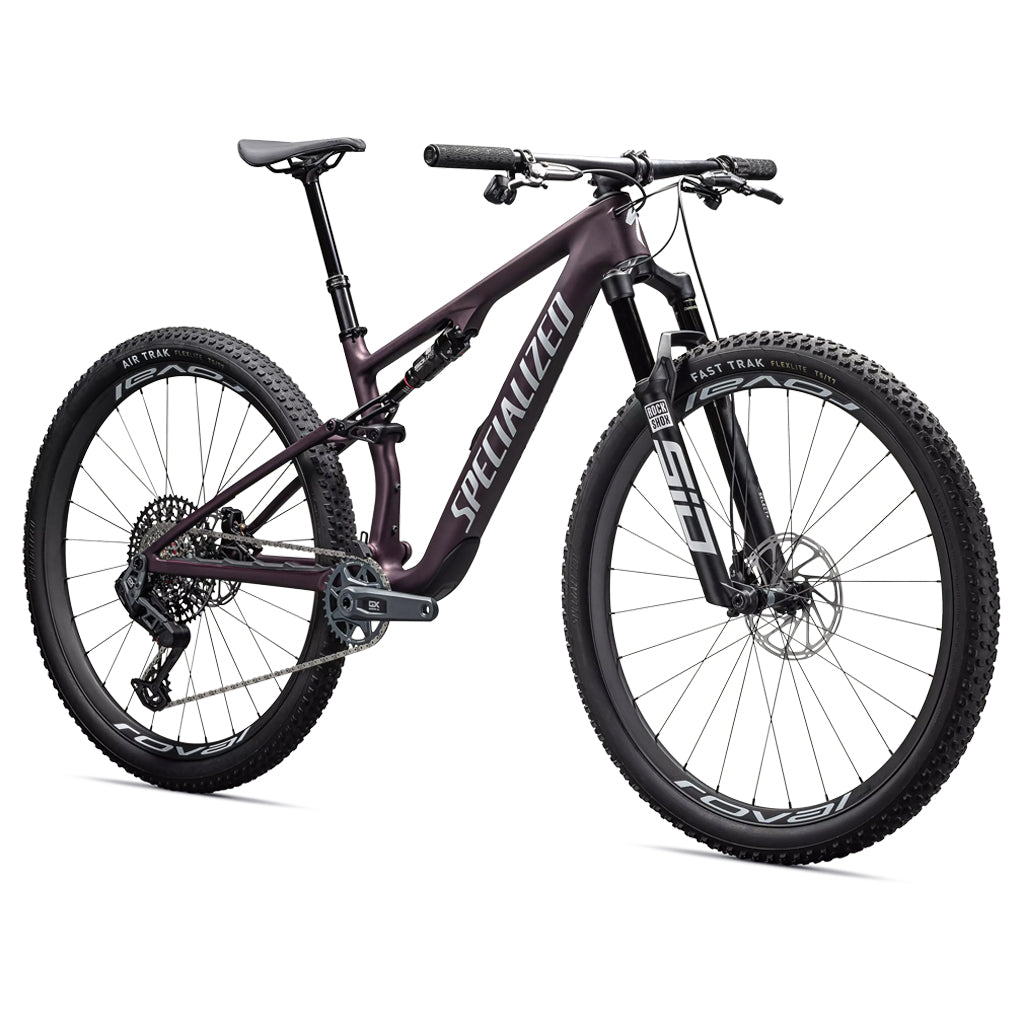

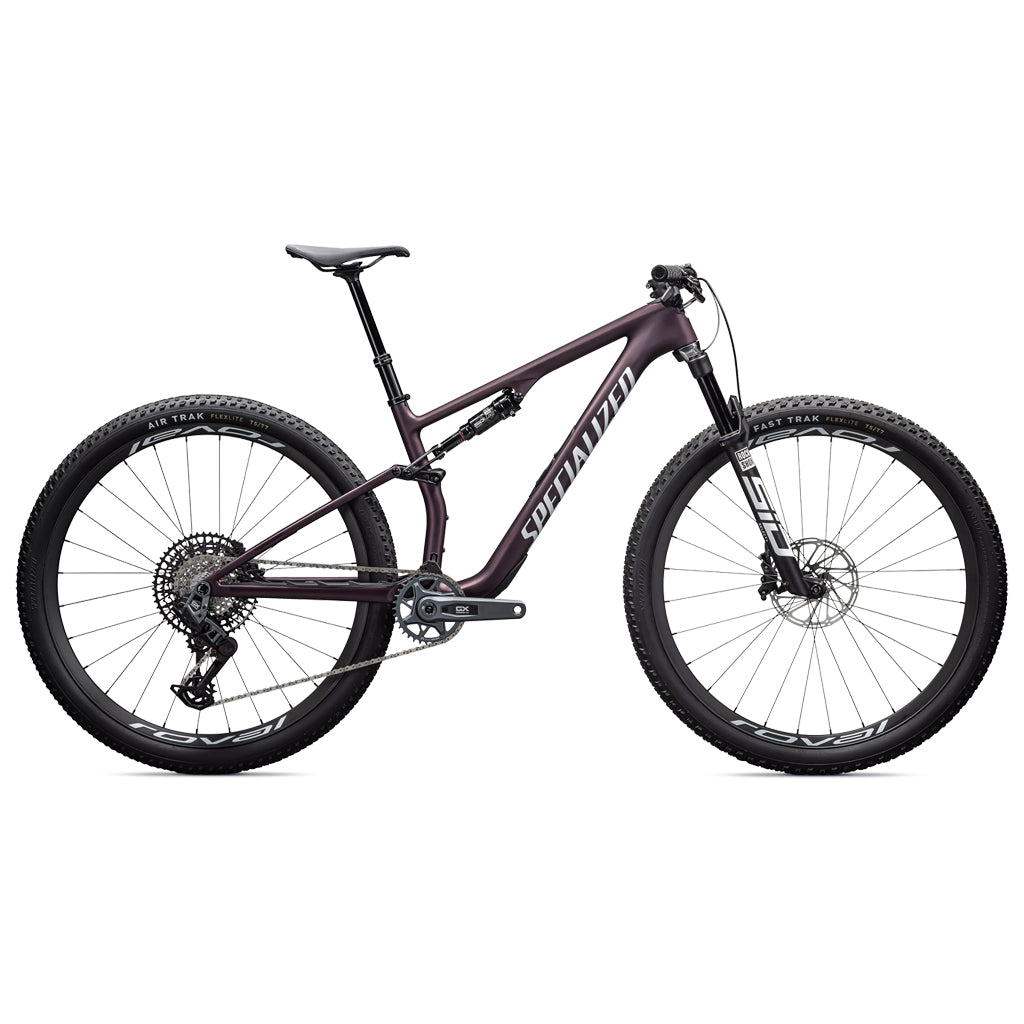

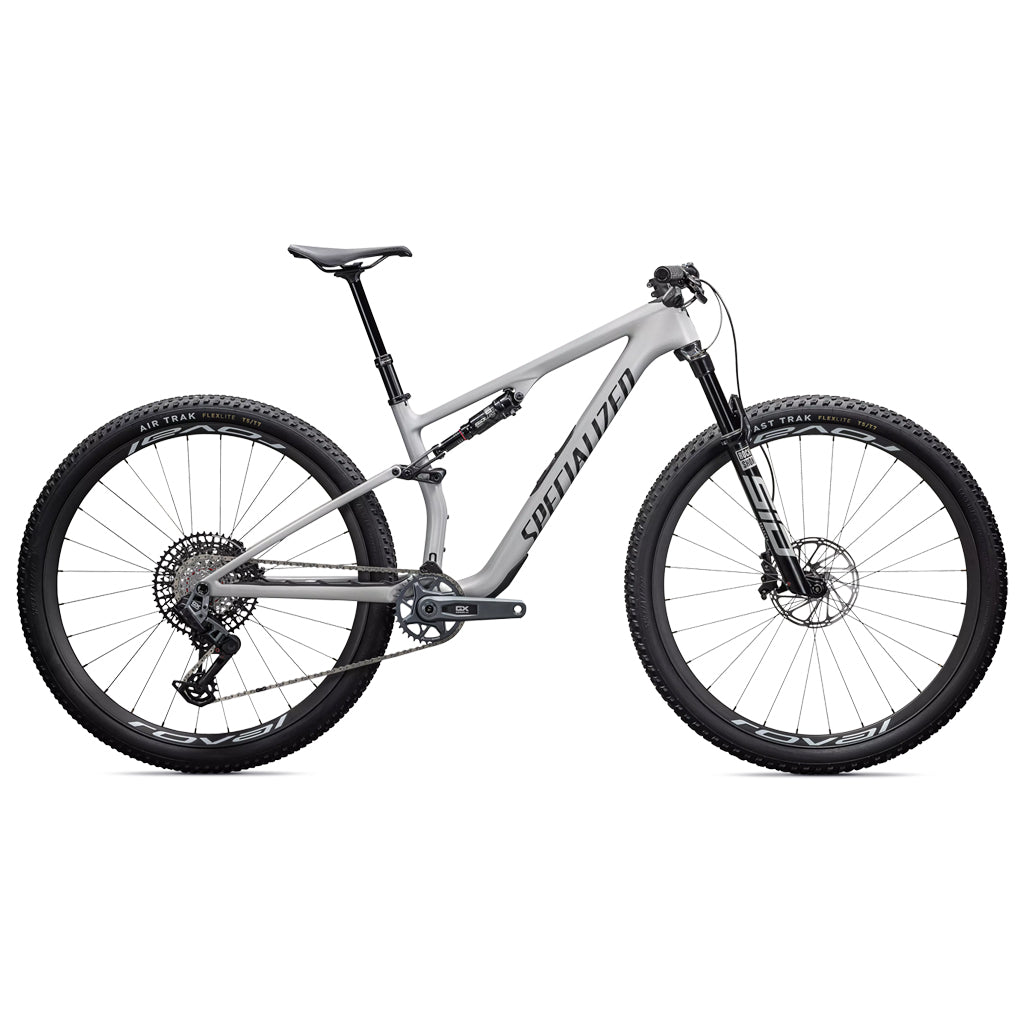

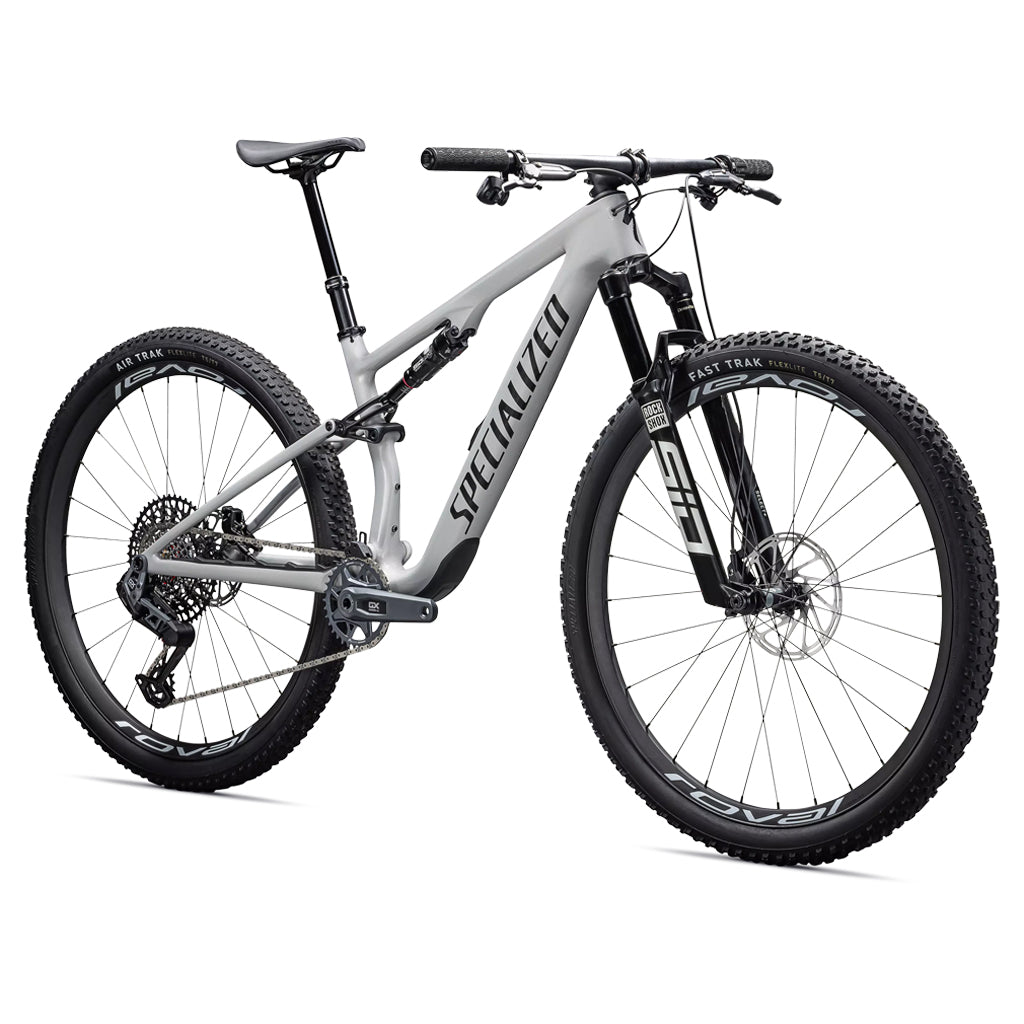

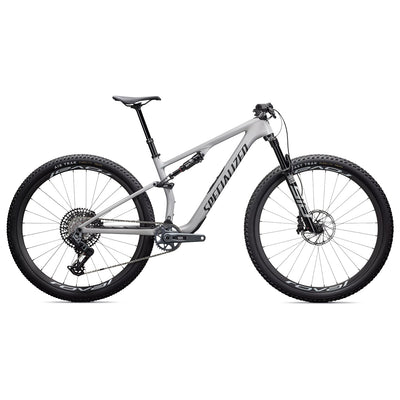

Specialized Epic 8 Expert
Specifications
Frame FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
SWAT SWAT internal downtube storage
Seat Binder Specialized Alloy, 34.9, Steel bolt
Rear Shock RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
Fork RockShox SID Select+, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Front Brake SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 160mm rotor
Shift Levers SRAM AXS POD Controller
Chain SRAM GX Eagle Transmission 12-Speed Flattop Chain
Cassette SRAM XG-1275 T-Type 12-Speed 10-52t
Bottom Bracket SRAM DUB Threaded Wide
Crankset SRAM GX Eagle, DUB, 165/170/175mm
Rear Derailleur SRAM GX Eagle AXS Transmission
Chainrings 34T
Front Wheel Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear Wheel Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Front Tire Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Tire Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes Specialized Turbo Tube
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle Body Geometry Power Sport, steel rails
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
SeatPost X-Fusion Manic, 30.9, 125/150/170 Travel, 0mm offset
Grips SRAM Slip on with Twist-Loc
Weight 11.15kg (24 lb, 9.3 oz) - Size MD
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach (Low BB) | 390 | 420 | 450 | 475 | 500 |
| B | Stack | 603 | 597 | 598 | 610 | 628 |
| C | Head Tube Angle | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° |
| D | Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| E | Front Centre | 687 | 716 | 747 | 778 | 811 |
| F | Bottom Bracket Height | 323 | 318 | 329 | 324 | 331 | 326 | 333 | 328 | 333 | 328 |
| G | Bottom Bracket Drop (Low BB) | 52 | 46 | 44 | 42 | 42 |
| H | Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| K | Top Tube Length | 535 | 569 | 605 | 633 | 662 |
| L | Seat Tube Angle | 76.5° | 76° | 75.5° | 75.5° | 75.5° |
| M | Standover Height | 748 | 755 | 760 | 769 | 774 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'10" - 5'1" | 148 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Part Numbers
| Size | Model Number | Gloss Dolomite Metallic | Satin Bordeaux Metallic |
|---|---|---|
| XS | 90326-3001 | 90326-3101 |
| S | 90326-3002 | 90326-3102 |
| M | 90326-3003 | 90326-3103 |
| L | 90326-3004 | 90326-3104 |
| XL | 90326-3005 | 90326-3105 |
